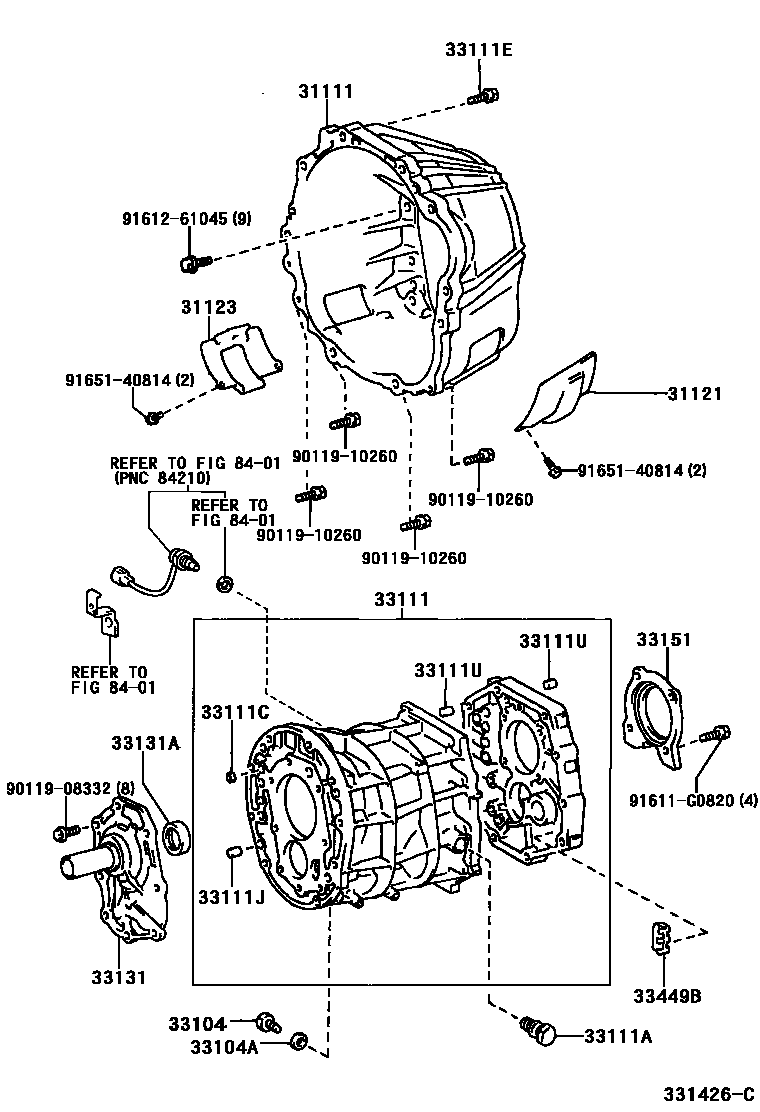

CLUTCH HOUSING & TRANSMISSION CASE (MTM)

31111HOUSING, CLUTCH

main31111-14111iJZX110..5F200210-200411

31121COVER, CLUTCH HOUSING, NO.1

main31121-22030iJZX110..5F200010-200210

31123COVER, CLUTCH HOUSING, NO.2

main31123-14020iJZX110..5F200010-200210

33104PLUG SUB-ASSY, DRAIN(MTM)

main90341-18006iJZX110..5F200010-200210

33104AGASKET, DRAIN PLUG(MTM)

main90430-18008iJZX110..5F200210-200411

33111CASE, MANUAL TRANSMISSION

main33101-35100iJZX110..5F200010-200202

main33101-60040iJZX110..5F200202-200210

33111APLUG, MANUAL TRANSMISSION CASE

main90341-18019iJZX110..5F200202-200210

main90341-18026iJZX110..5F200010-200202

33111CPLUG(FOR TRANSMISSION CASE)

main90331-14004iJZX110..5F200210-200411

main96411-41800×3iJZX110..5F200010-200210

33111EBOLT(FOR TRANSMISSION CASE & ENGINE SETTING)

main91619-61250×5iJZX110..5F200010-200210

33111JPIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)

main90250-12002×2iJZX110..5F200010-200210

33111UPIN, RING(FOR MANUAL TRANSMISSION CASE)

main90253-15001×4iJZX110..5F200010-200210

33131RETAINER, BEARING, FRONT(MTM)

main33131-35031iJZX110..5F200010-200210

33131ASEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER)

main90311-32012iJZX110..5F200010-200210

33151RETAINER, OUTPUT SHAFT REAR BEARING(MTM)

main33151-35020iJZX110..5F200010-200210

33449BMAGNET, TRANSMISSION

main33449-35030iJZX110..5F200010-200210

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011908332

main90119-08332

9011910260

main90119-10260

91611G0820

main91611-G0820

9161261045

main91612-61045

9165140814

main91651-40814

21 parts on this diagram · 1 diagram in section
