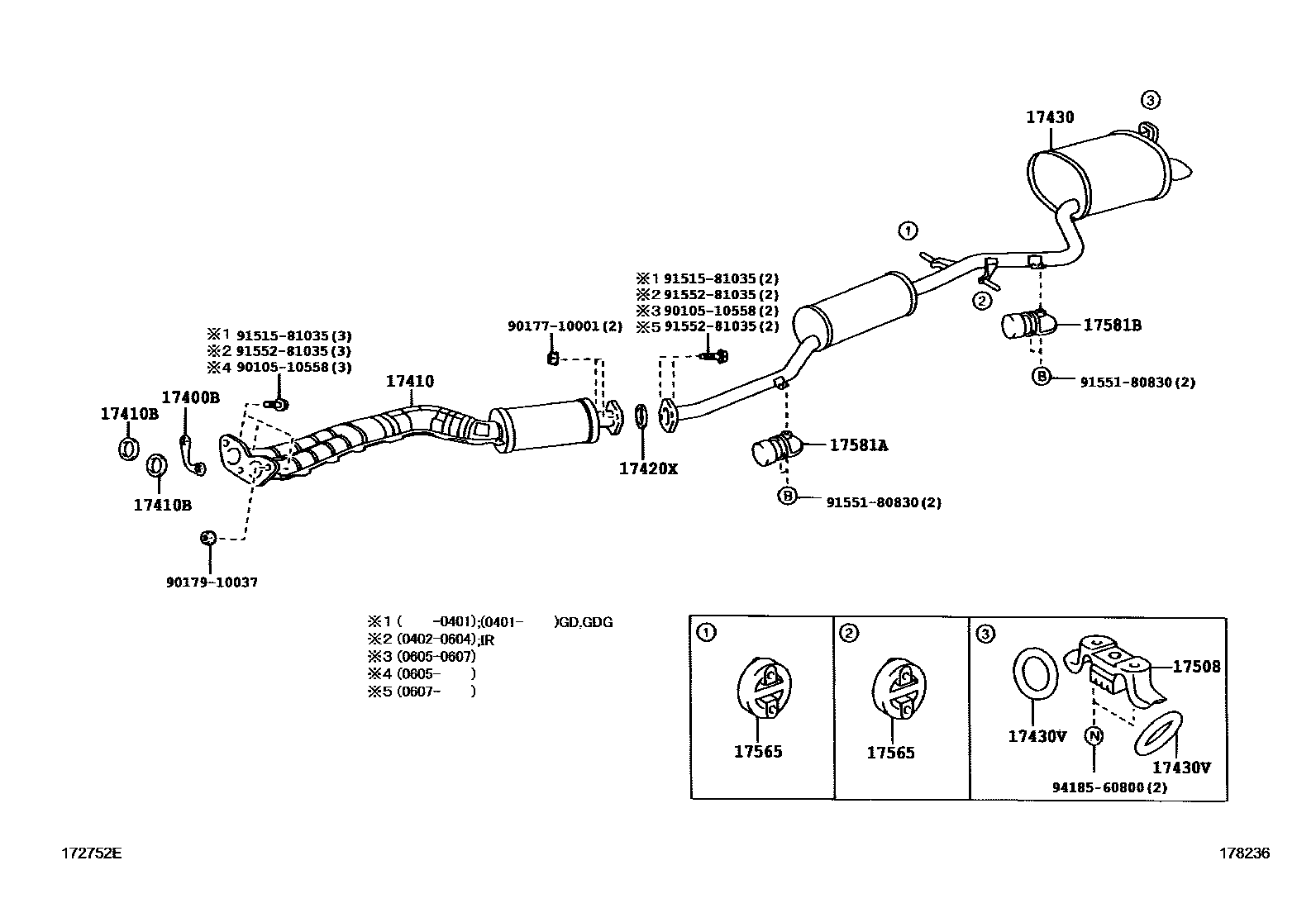

EXHAUST PIPE

0001 1 0003 1 0004 1 0005 1 0006 1

17400BRETAINER, EXHAUST PIPE

main18495-46020i1GFE,1JZFSE,1JZGE..GX11#,JZX11#..SED200210

17410PIPE ASSY, EXHAUST, FRONT

main17410-46560i1JZGTE..JZX110200010-200604

main17410-46610i1JZFSE..JZX110200010-200104

main17410-46611i1JZFSE..JZX110..SED200210

main17410-46650i1GFE,1JZGE..GX115,JZX115200010

main17410-70280i1GFE..GX110..SED200210

17410BGASKET, EXHAUST PIPE

main90917-06046×2i1JZFSE..JZX110;1GFE,1JZGE..GX11#,JZX115..GD,GDG,IR,IRS200010

main90917-06068i1JZGTE..JZX110200010-200604

17420PIPE ASSY, EXHAUST, CENTER

main17420-70420i1GFE..GX110..GD200209-200210

17420XGASKET, EXHAUST PIPE, CENTER

main17451-74060i1GFE..GX110..SED200210

main90917-06057i1GFE..GX110..GD200010-200208

main90917-06076i1GFE,1JZ#..GX115,JZX11#200010

17430PIPE ASSY, EXHAUST, TAIL

main17430-46600i1JZFSE..JZX110..SED200210

main17430-46610i1JZGTE..JZX110200010-200604

main17430-46620i1JZGE..JZX115..GDG200010-200210

main17430-46740i1JZFSE..JZX110..IRS200201

main17430-46750i1JZGE..JZX115..IRS200201

main17430-70710i1GFE..GX110..GD200010-200209

main17430-70720i1GFE..GX115200010

main17430-70790i1GFE..GX110..SED200210

17430VBOLT OR RING, EXHAUST TAILPIPE (FOR REAR)

main90301-36001×2i1JZFSE..JZX110;1GFE,1JZGTE,1JZGE..GX11#,JZX11#..GD,GDG,GDGT,GDV,IR,IRS,IRV200010

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-46060i1JZFSE..JZX110;1GFE,1JZGTE,1JZGE..GX11#,JZX11#..GD,GDG,GDGT,GDV,IR,IRS,IRV200011

main17508-50010i1GFE,1JZ#..GX11#,JZX11#200010-200011

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-11160×2i1JZFSE..JZX110;1GFE,1JZGTE,1JZGE..GX11#,JZX11#..GD,GDG,GDGT,GDV,IR,IRS,IRV200010

17581ADAMPER, EXHAUST PIPE

main17581-46070i1GFE..GX110..GD200010-200209

17581BDAMPER, EXHAUST PIPE, NO.2

main17581-62010i1GFE..GX110..GD200010-200209

9010510558

main90105-10558

9017710001

main90177-10001

9017910037

main90179-10037

9151581035

main91515-81035

9155180830

main91551-80830

9155281035

main91552-81035

9418560800

main94185-60800

18 parts on this diagram · 5 diagrams in section
