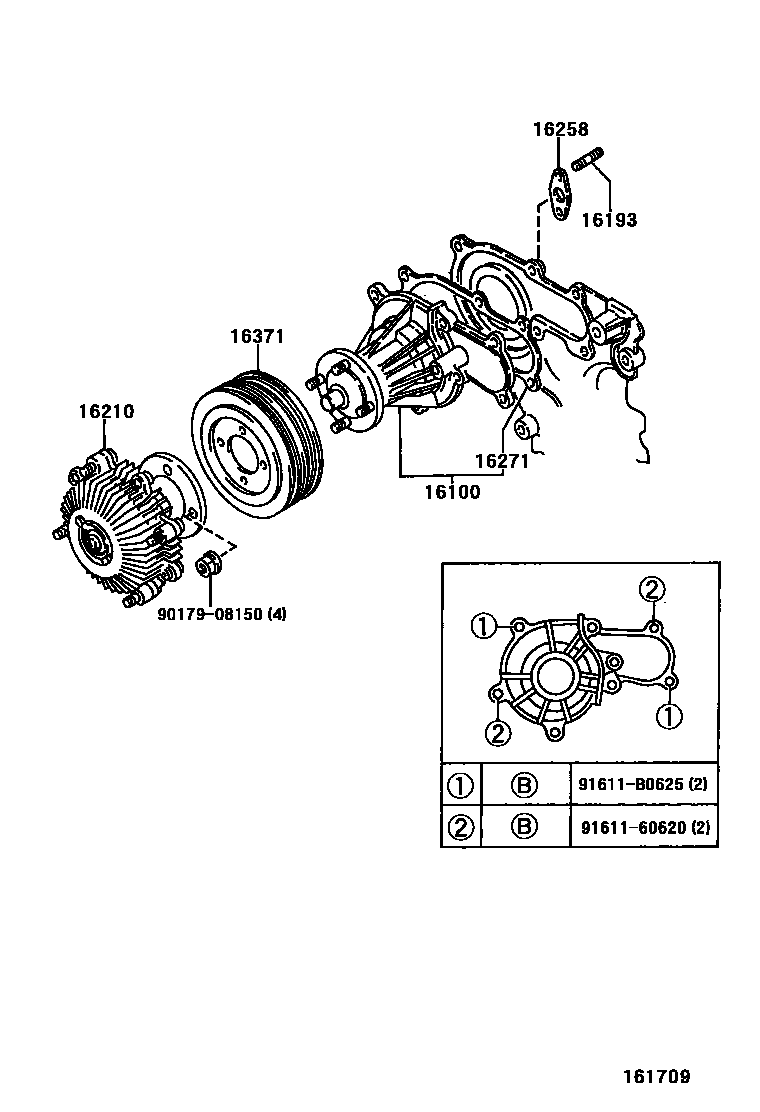

WATER PUMP

0001 1 0002 1 0003 1

16100PUMP ASSY, ENGINE WATER

main16100-49855i1JZGTE..JZX110..GDV200210-200411

main16100-49867i1JZFSE,1JZGE..JZX11#200010-200108

main16100-49868i1JZFSE,1JZGE..JZX11#..SED200210-200411

main16100-79285i1GFE..GX11#..GD,IR200010-200706

16193BOLT, STUD(FOR WATER PUMP COVER)

main16192-70010×2i1GFE..GX11#..GD,IR200010-200706

main16193-46030×2i1JZFSE,1JZGE..JZX11#200010

16210COUPLING ASSY, FLUID

main16210-46052i1JZFSE,1JZGE..JZX11#200010

main16210-70090i1GFE..GX11#..GD,IR200010-200706

16258GASKET(FOR HEATER RETURN)

main16258-70020i1GFE..GX11#..SED200210-200411

16271GASKET, WATER PUMP

main16124-70041i1GFE..GX11#..GD,IR200010-200706

16371PULLEY, FAN

main16371-46030i1JZ#..JZX11#200010

main16371-70060i1GFE..GX11#..SED200210-200411

9017908150

main90179-08150

9161160620

main91611-60620

91611B0625

main91611-B0625

9 parts on this diagram · 3 diagrams in section
