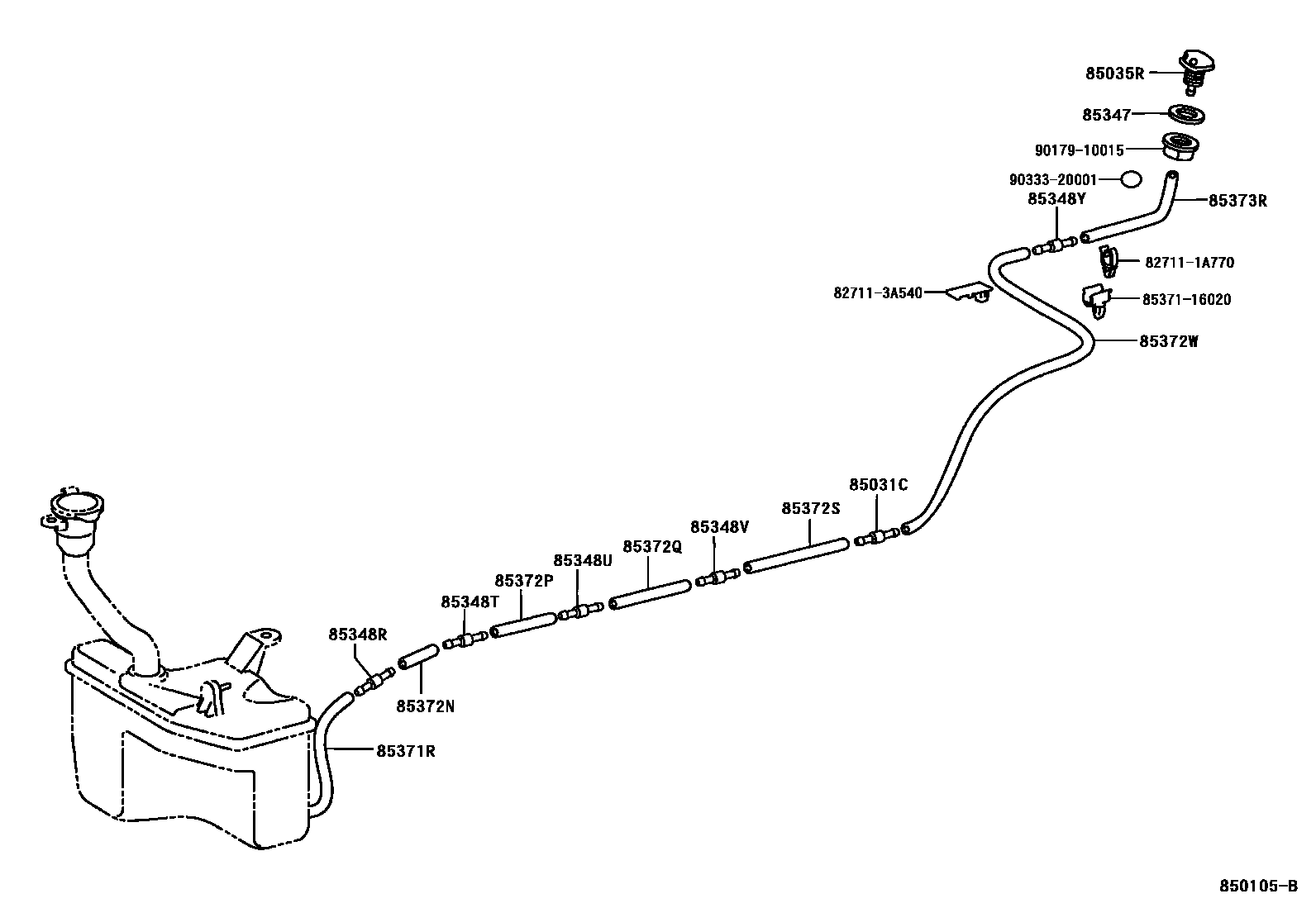

REAR WASHER

85031CVALVE SUB-ASSY, WASHER

main85375-12520iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85035RNOZZLE SUB-ASSY, REAR WASHER

main85391-22020iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

sub85391-22010

85347PACKING, REAR WASHER

main85347-12010iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85348UJOINT, REAR WASHER HOSE, NO.3

main85349-89122iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85348VJOINT, REAR WASHER HOSE, NO.4

main85349-89122iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85348YJOINT, REAR WASHER HOSE, NO.5

main85349-89122iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90446-07001iGX10#,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-33299iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90446-07001iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main90099-33299iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85372SHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.4

main90446-07001iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90446-07001iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85374-22020iGX100,JZX100,105,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

sub90099-33299

827111A770WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1A770

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540

8537116020HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main85371-16020

9017910015

main90179-10015

9033320001

main90333-20001

20 parts on this diagram · 1 diagram in section
