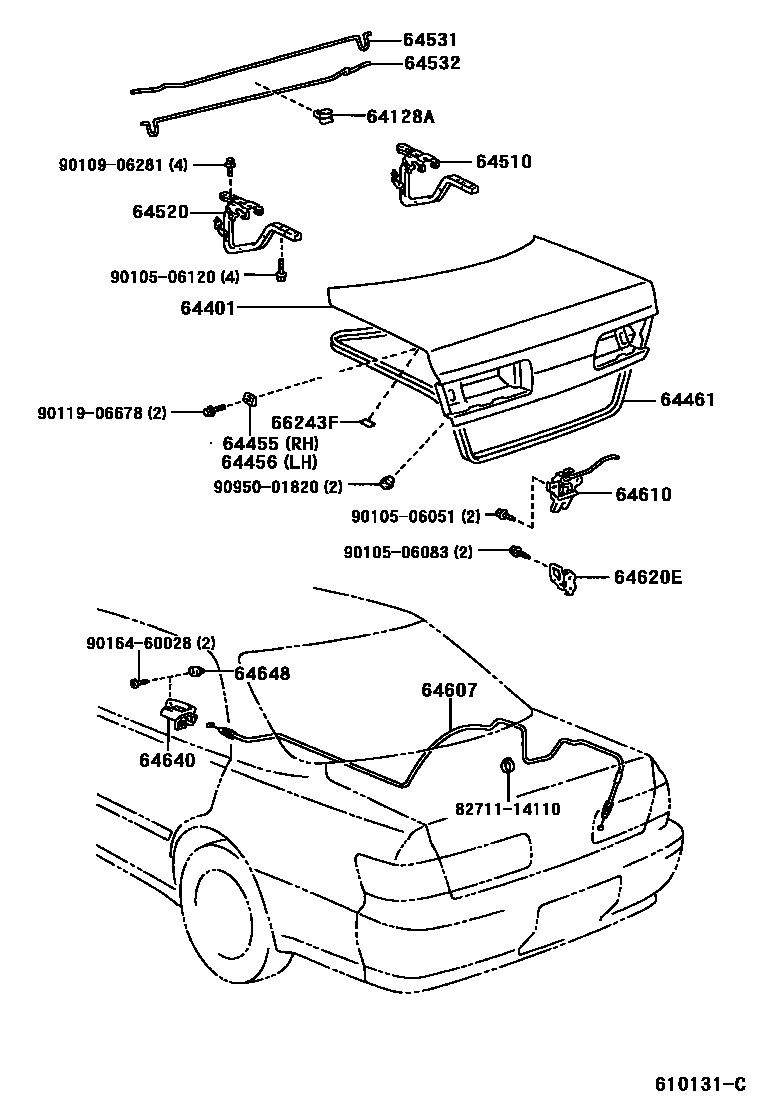

LUGGAGE COMPARTMENT DOOR & LOCK

64128ASUPPORT, LUGGAGE COMPARTMENT DOOR TORSION BAR, NO.2

main64128-22030iGX10#,JZX10#,LX100199609

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22660iGX100,JZX10#,LX100199609-199808

main64401-22670iGX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

main64401-22720iGX10#,JZX10#,LX100199808

main64401-22730iGX100,JZX100..TOU,TOUS,TOUV199808

64455CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, RH

main64455-22010iGX10#,JZX10#,LX100199609

64456CUSHION, LUGGAGE COMPARTMENT DOOR SIDE, LH

main64456-22010iGX10#,JZX10#,LX100199609

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22220iGX10#,JZX10#,LX100199609

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-22150iGX10#,JZX10#,LX100199609

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-22150iGX10#,JZX10#,LX100199609

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22310iGX10#,JZX10#,LX100199609

main64531-22320iGX100,JZX100..TOU,TOUS,TOUV199808

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22310iGX10#,JZX10#,LX100199609

main64532-22320iGX100,JZX10#,LX100..GD,GDG,TOU,TOUS,TOUV199609-199808

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22380iGX10#,JZX10#,LX100199609

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-22010iGX100,JZX10#,LX100..GD,GDG,TOUV199609-199808

main64600-22040iGX10#,JZX10#,LX100..GD,GDG,TOUV199808

main64610-22170iGX100,JZX100,LX100..GL,TOU,TOUS199609-199808

main64610-22200iGX100,JZX100..TOU,TOUS; GX105199808

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64621-22040iGX10#,JZX10#,LX100199609

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-22250-B0iGX100,JZX100..TOU,TOUS,TOUV199609-199808

DK.BLUE GRAY,TRIM1#

main64640-22250-C0iGX100,JZX100..TOU,TOUS,TOUV199808-200010

BLACK,TRIM2#

main64640-22250-E0iGX10#,JZX10#,LX100..GD,GDG199609-200010

ORCHID,TRIM4#

main64640-22250-G0iGX10#,JZX10#,LX100..GD,GDG,GL199609-200010

SAGE,TRIM6#

64648GROMMET, LUGGAGE DOOR LOCK OPENER

main64648-32010×2iGX10#,JZX10#,LX100199609

66243FPROTECTOR, REAR BODY, NO.1

main66244-22010×2iGX10#,JZX10#,LX100199609

8271114110WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14110

9010506051

main90105-06051

9010506083

main90105-06083

9010506120

main90105-06120

9010906281

main90109-06281

9011906678

main90119-06678

9016460028

main90164-60028

9095001820

main90950-01820

23 parts on this diagram · 1 diagram in section
