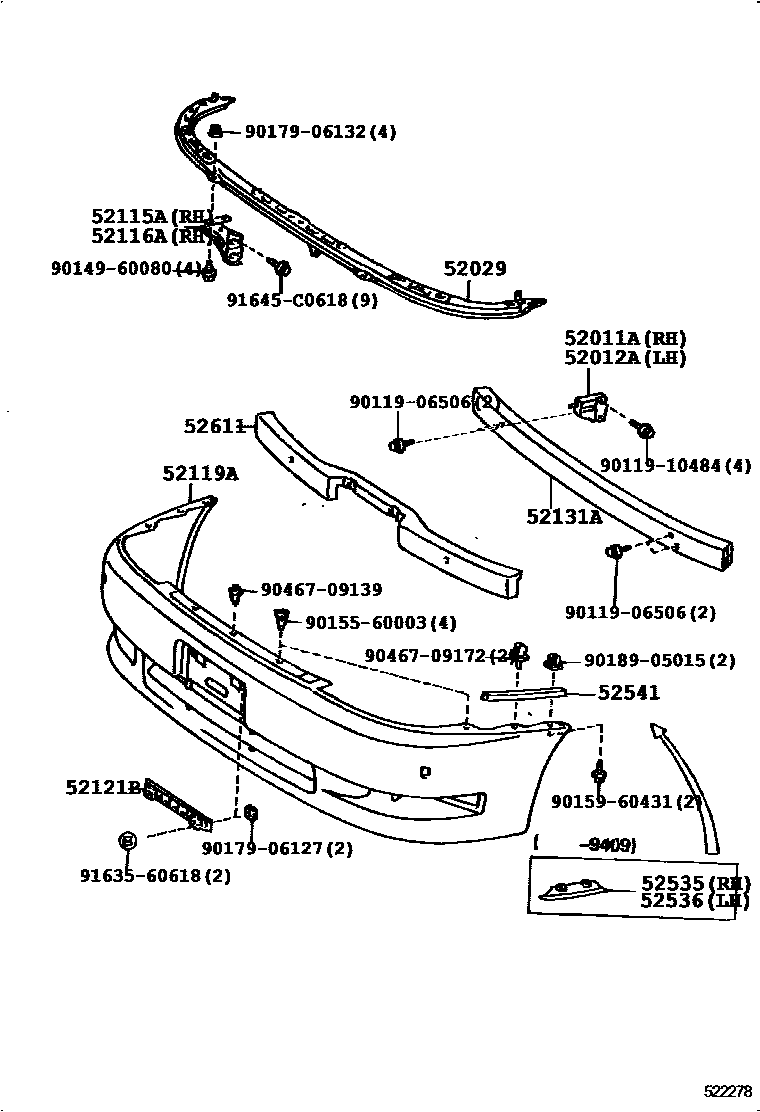

FRONT BUMPER & BUMPER STAY

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-22240iGX90,JZX9#,LX90,SX90199210-199609

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-22250iGX90,JZX9#,LX90,SX90199210-199609

52029REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER

main52029-22040iGX90,JZX9#,LX90,SX90199210-199609

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-22190iGX90,JZX9#,LX90,SX90199210-199609

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-22160iGX90,JZX9#,LX90,SX90199210-199609

52119ACOVER, FRONT BUMPER

main52119-22790-A0iGX90,JZX9#,LX90,SX90199210-199409

SUPER WHITE 2,040

main52119-22790-A1iGX90..ATM199304-199309

main52119-22790-A2iJZX90..GD199306-199312

main52119-22790-B0iGX90,JZX9#,LX90,SX90199210-199409

DK.BL.GRAY ME,183

main52119-22790-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199210-199409

FLAXEN MM,4M7

main52119-22790-G0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199210-199409

DK.GRAYISH OLIVE ME,6M7

main52119-22790-G1iLX90..GRO199310-199408

main52119-22790-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199310-199409

DK.TURQUOISE.MC,742

main52119-22800-A0iJZX90,91..GDG199210-199409

main52119-22800-A1iJZX90,91..GDG199210-199409

main52119-22800-B0iJZX90,91..GDG199210-199409

main52119-22800-E0iJZX90,91..GDG199210-199409

main52119-22800-G0iJZX90,91..GDG199210-199409

main52119-22800-G1iJZX90,91..GDG199210-199409

main52119-22800-H0iJZX90,91..GDG199310-199409

main52119-22810-A0iGX90,JZX9#,LX90,SX90199409-199609

SUPER WHITE 2,040

main52119-22810-A1iJZX9#199409-199412

WARM GRAY PM,046

main52119-22810-A2iGX90..ATM199604-199609

main52119-22810-B0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199609

SILVER ME,199

main52119-22810-E0iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

FLAXEN MM,4M7

main52119-22810-E1iGX90,JZX9#,LX90,SX90..GD,GDG,GL,GRO199409-199609

DK.BROWN MC.,4N2

main52119-22810-G0iGX90,JZX91,93..ATM;JZX90,LX90..GD,GDG,GRO,TOUS,TOUV199412-199609

DK.GREEN MIO,6N2

main52119-22810-G1iGX90..ATM199504-199603

main52119-22810-H0iGX90,JZX9#,LX90,SX90..GD,GDG,GRO,TOUS,TOUV199409-199509

DK.TURQUOISE.MC,742

main52119-22820-A0iJZX90,91..GDG199409-199609

main52119-22820-A1iJZX90,91..GDG199409-199609

main52119-22820-B0iJZX90,91..GDG199409-199609

main52119-22820-E0iJZX90,91..GDG199409-199609

main52119-22820-E1iJZX90,91..GDG199409-199609

main52119-22820-G0iJZX90,91..GDG199409-199609

main52119-22820-H0iJZX90,91..GDG199409-199509

52121BBRACKET, FRONT LICENCE PLATE MOUNTING

main52121-22130iGX90,JZX9#,LX90,SX90199210-199609

52131AREINFORCEMENT, FRONT BUMPER

main52131-22190iGX90,JZX9#,LX90,SX90199210-199609

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-22050iGX90,JZX9#,LX90,SX90199210-199409

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-22050iGX90,JZX9#,LX90,SX90199210-199409

52541PROTECTOR, FRONT BUMPER

main52541-22020×2iGX90,JZX9#,LX90,SX90199409-199609

52611ABSORBER, FRONT BUMPER ENERGY

main52611-22200iGX90,JZX9#,LX90,SX90199210-199409

main52611-22210iGX90,JZX9#,LX90,SX90199409-199609

9011906506

main90119-06506

9011910484

main90119-10484

9014960080

main90149-60080

9015560003

main90155-60003

9015960431

main90159-60431

9017906127

main90179-06127

9017906132

main90179-06132

9018905015

main90189-05015

9046709139

main90467-09139

9046709172

main90467-09172

9163560618

main91635-60618

91645C0618

main91645-C0618

24 parts on this diagram · 1 diagram in section
