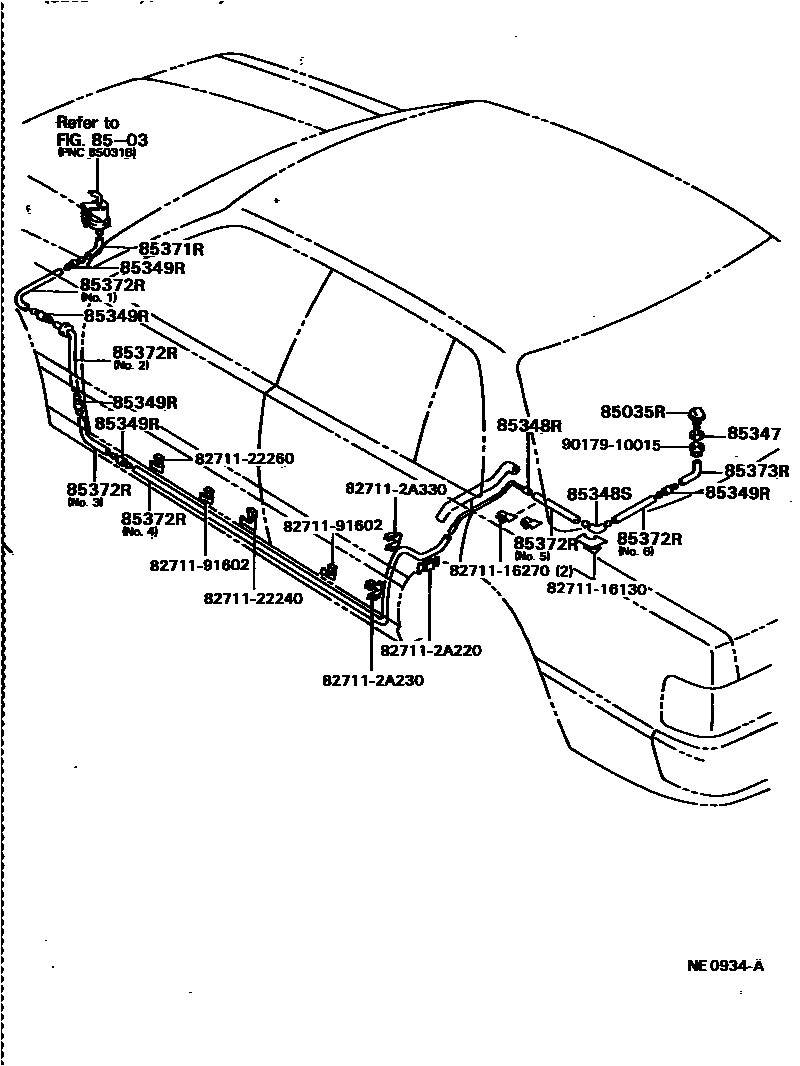

REAR WASHER

0001 1 0002 1

8503

85035RNOZZLE SUB-ASSY, REAR WASHER

main85035-12370iGX81..SED..GD199008-199512

sub85391-22010

main85035-22240iJZX81..SED..GD198808-199302

sub85035-12370

main85035-22240iLX80..HT199111-199210

sub85035-12370

85347PACKING, REAR WASHER

main85347-12010iLX80..HT199111-199210

main85347-12010iGX81,JZX81,MX83..GD,GDG,GT198808-199512

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-22240iGX81,JZX81,MX83..SED..(GD,GDG)198808-199512

main85349-22240iLX80..HT199111-199210

main85349-22260iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

ROOF SIDE INNER

main85355-22260iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

REAR WHEEL HOUSE

main85355-22260iLX80..HT199111-199210

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200iGX81,JZX81,MX83..GD,GDG,GT198808-199512

85349RJOINT, REAR WASHER HOSE, NO.5

main85349-89122iLX80..HT199111-199210

main85349-89122iGX81,JZX81,MX83..GD,GDG,GT198808-199512

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90099-33299iGX81,JZX81,MX83..GD,GDG,GT198808-199302

main90099-33299iLX80..HT199111-199210

85372RHOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)

main90099-33080iLX80..HT199111-199210

main90099-33080iGX81,JZX81,MX83..GD,GDG,GT198908-199302

main90099-33639iLX80..HT199111-199210

sub90099-33589

main90099-33639iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

sub90099-33589

main90099-33641iGX81,JZX81,MX83..SED..(GD,GDG)198808-199512

sub90099-33589

main90446-07001iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

main90446-07001iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

main90446-07001iLX80..HT199111-199210

main90446-07001iGX81,JZX81,MX83..GD,GDG,GT198808-199302

main90446-07001iGX81,JZX81,MX83..SED..(GD,GDG)198808-199512

main90446-07001iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-33299iLX80..HT199111-199210

main90099-33299iGX81,JZX81,MX83..GD,GDG,GT198808-199302

8271116130WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16130

8271116270WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-16270

8271122240WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22240

8271122260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22260

827112A220WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A220

827112A230WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A230

827112A330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2A330

8271191602WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-91602

9017910015

main90179-10015

18 parts on this diagram · 2 diagrams in section
