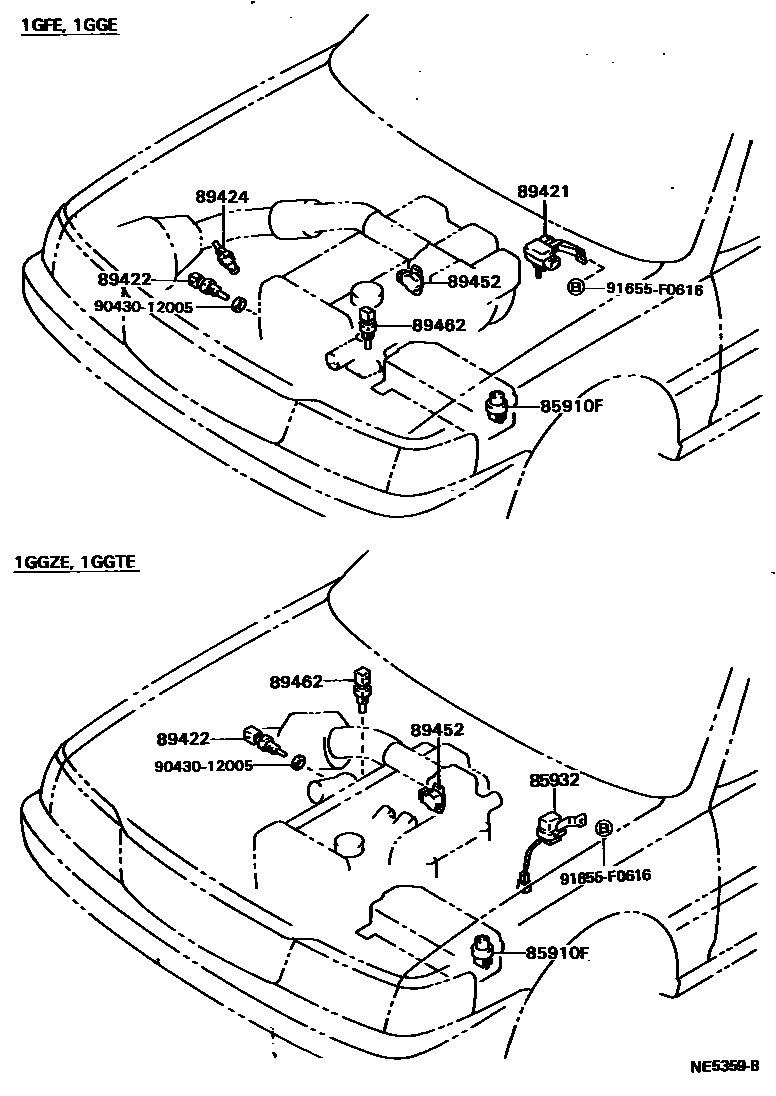

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

85910FRELAY, COMPUTER (FOR EFI)

main90987-02004iGX81,JZX81,MX83,SX80198808-199512

85932RELAY, SUPERCHARGER

main85932-22010iGX81..SPC198808-199008

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89420-22080iGX81..HTWC,TWC198808-199008

main89420-22110iSX80198808-199008

main89420-22130iGX81,JZX81..HTWC,TWC199008-199512

main89420-22140iJZX81..TWT199008-199210

main89420-22150iSX80199008-199512

main89420-22160iGX81,JZX81..HTWC,TWC199008-199512

FUJI

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-20010iGX81,JZX81,MX83,SX80198808-199512

89424SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)

main89424-12010iGX81,JZX81,SX80..HTWC,TWC198808-199512

main89424-24010iJZX81..TWT199108-199210

main89424-28010iJZX81,SX80..CI,TWT198808-199108

89452SENSOR, THROTTLE POSITION (FOR E.F.I.)

main89452-12040iGX81..SPC,TWC,TWT198808-199302

main89452-12060iSX80199304-199512

main89452-14020iSX80199008-199302

main89452-14050iMX83198908-199302

main89452-20080iSX80198808-199008

main89452-22010iGX81..HTWC198808-199302

main89452-22080iJZX81..TWT199008-199210

main89452-22090iJZX81..TWC199008-199302

main89452-30110iGX81199302-199512

89462SWITCH, START INJECTOR TIME

main89462-20020iGX81..TWC199006-199302

main89462-20030iGX81,MX83..GDG,GT198808-199006

main89462-20040iSX80198808-199008

9043012005

main90430-12005

91655F0616

main91655-F0616

9 parts on this diagram · 4 diagrams in section
