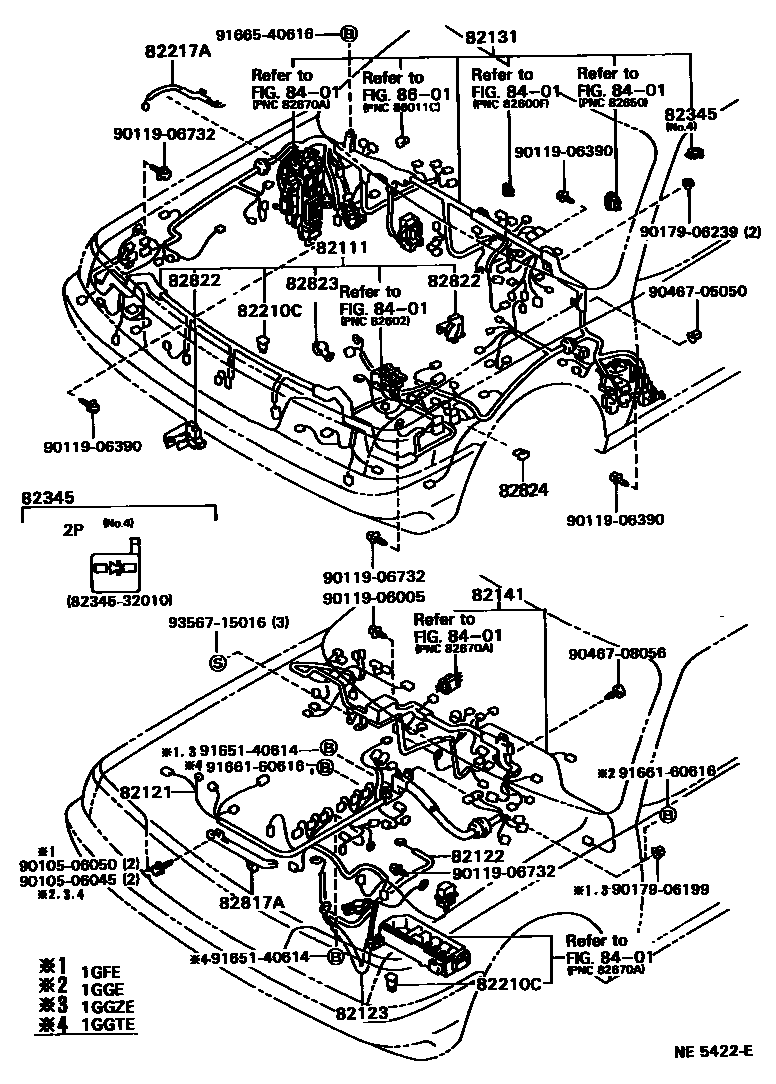

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1CABLE BOND 0009 1CABLE BOND 0010 1CLAMP & GROMMET 0011 1CLAMP & GROMMET 0012 1CLAMP & GROMMET 0013 1CLAMP & GROMMET 0014 1CLAMP & GROMMET 0015 1CLAMP & GROMMET 0016 1 0017 1

82111WIRE, ENGINE ROOM MAIN

main82111-22760iGX81..4FC..TWT198808-198901

main82111-22761iGX81..4FC..TWT198901-199008

main82111-22770iGX81..5F..TWT;GX81..4FC..TWC198808-199008

main82111-22780iGX81..5F..TWT;GX81..4FC..TWC198808-199008

main82111-22790iGX81..4FC..GD..HTWC198808-199008

main82111-22800iGX81..4FC..HTWC198808-199008

main82111-22810iSX80..GL,GR,STD198808-198910

main82111-22811iSX80..GL,GR,STD198910-199008

main82111-22820iLX80198808-199008

main82111-22830iLX80..GL..DSL198808-199008

main82111-22840iYX80198808-199008

main82111-22850iGX81..4FC..TWT198808-198901

main82111-22851iGX81..4FC..TWT198901-199008

main82111-2A180iGX81..SPC198808-198908

main82111-2A180iGX81..SPC198908-198912

main82111-2A182iGX81..SPC198912-199008

main82111-2A190iGX81..5F..TWC198808-199008

main82111-2A200iGX81..5F..TWC198808-199008

main82111-2A210iSX80..KYO198808-198910

main82111-2A211iSX80..KYO198910-199008

main82111-2A270iGX81..5F..GD..HTWC198808-199008

main82111-2A280iGX81..5F..HTWC198808-199008

main82111-2A330iMX83198908-199008

main82111-2A350iGX81..SPC198908-198912

main82111-2A351iGX81..SPC198912-199008

main82111-2A370iGX81..SPC198908-198912

main82111-2A371iGX81..SPC198912-199008

main82111-2A420iMX83199008-199302

main82111-2A430iJZX81..TWT199008-199210

main82111-2A460iJZX81..GD199008-199302

main82111-2A470iJZX81..GD199008-199302

main82111-2A480iJZX81..GD199008-199302

main82111-2A490iGX81..TWC199008-199302

main82111-2A500iGX81..TWC199008-199302

main82111-2A510iGX81..GD..HTWC199008-199302

main82111-2A520iGX81..HTWC199008-199302

main82111-2A530iSX80..GL,GR,STD199008-199302

main82111-2A540iSX80..KYO199008-199305

main82111-2A550iLX80199008-199304

main82111-2A560iLX80..GL..DSL199008-199302

main82111-2A570iYX80199008-199302

main82111-2A870iGX81199302-199512

main82111-2A880iGX81199302-199512

main82111-2A890iSX80..GL,GR199302-199512

main82111-2C010iLX80199302-199304

main82111-2C010iLX80199304-199308

main82111-2C020iYX80199302-199512

main82111-2C040iSX80..KYO199305-199512

82121WIRE, ENGINE

main82121-22400iMX83198908-199008

main82121-22410iLX80..TD198808-198908

main82121-22411iLX80..TD198908-199008

main82121-22420iLX80..DSL198808-199008

main82121-22440iGX81..5F..TWT198808-199008

main82121-22450iGX81..4FC..TWT198808-199008

main82121-22460iGX81..SPC198808-198908

main82121-22460iGX81..SPC198908-199008

main82121-22470iGX81..5F..TWC198808-199008

main82121-22480iGX81..4FC..TWC198808-199008

main82121-22490iGX81..5F..HTWC198808-199008

main82121-22500iGX81..4FC..HTWC198808-199008

main82121-22510iSX80..5F198808-198904

main82121-22511iSX80..5F198904-198910

main82121-22512iSX80..5F198910-199008

main82121-22520iSX80..4FC198808-198904

main82121-22521iSX80..4FC198904-198910

main82121-22522iSX80..4FC198910-199008

main82121-22640iGX81..4FC..GD..HTWC198808-199008

main82121-22660iGX81..SPC198908-199008

main82121-22670iSX80..5F198904-198910

main82121-22671iSX80..5F198910-199008

main82121-22680iSX80..4FC198904-198910

main82121-22681iSX80..4FC198910-199008

main82121-22690iMX83199008-199108

main82121-22691iMX83199108-199302

main82121-22700iJZX81..TWT199008-199108

main82121-22701iJZX81..TWT199108-199210

main82121-22720iJZX81..GDG199008-199302

main82121-22730iJZX81..GD199008-199302

main82121-22750iGX81..4FC..TWC199008-199108

main82121-22751iGX81..4FC..TWC199108-199302

main82121-22760iGX81..5F..TWC199008-199108

main82121-22761iGX81..5F..TWC199108-199302

main82121-22770iGX81..4FC..GD..HTWC199008-199107

main82121-22771iGX81..4FC..GD..HTWC199108-199304

main82121-22780iGX81..5F..HTWC199008-199107

main82121-22781iGX81..5F..HTWC199107-199302

main82121-22790iGX81..4FC..HTWC199008-199107

main82121-22791iGX81..4FC..HTWC199107-199302

main82121-22800iSX80..4FC199008-199302

main82121-22810iSX80..5F199008-199302

main82121-22820iLX80..4FC199008-199104

main82121-22821iLX80..4FC199104-199302

main82121-22830iLX80..5F..TD199008-199011

main82121-22831iLX80..5F..TD199011-199302

main82121-22840iLX80..DSL199008-199011

main82121-22841iLX80..DSL199011-199302

main82121-2A190iGX81199302-199512

main82121-2A220iSX80..5F199302-199512

main82121-2A230iSX80..4FC199302-199512

main82121-2A240iLX80199302-199308

82122WIRE, ENGINE, NO.2

main82122-22090iGX81198808-199002

main82122-22100iMX83198908-199302

main82122-22110iLX80..5F198808-199304

main82122-22120iLX80..5F198808-199304

main82122-22120iLX80..4FC198808-199302

main82122-22140iSX80198808-199008

main82122-22150iYX80198808-199302

main82122-22160iGX81198904-199302

main82122-22170iGX81199002-199304

main82122-22180iJZX81..TWT199008-199210

main82122-22190iJZX81..TWT199008-199210

main82122-22200iJZX81..TWC199008-199302

main82122-22210iJZX81..TWC199008-199302

main82122-22220iSX80199008-199302

main82122-22330iGX81199304-199512

main82122-22340iGX81199302-199512

main82122-22350iLX80199304-199308

main82122-22360iLX80199304-199308

main82122-22370iYX80199302-199512

main82122-22390iYX80..GL199302-199512

main82122-22400iSX80199302-199512

82123WIRE, ENGINE, NO.3

main82123-22060iGX81..HTWC;GX81..5F..TWC198808-199512

main82123-22070iGX81..HTWC;GX81..5F..TWC198808-199512

main82123-22100iLX80198808-199308

82131WIRE, COWL

main82131-2A570iGX81..GD..HTWC198808-198908

main82131-2A571iGX81..GD..HTWC198908-199008

main82131-2A580iGX81..LG198808-199008

main82131-2A590iSX80..GR198808-199008

main82131-2A600iSX80..GL,STD198808-199008

main82131-2A610iSX80..KYO198808-199008

main82131-2A620iLX80..GR198808-198809

main82131-2A621iLX80..GR198809-198901

main82131-2A622iLX80..GR198901-198908

main82131-2A623iLX80..GR198908-199008

main82131-2A630iLX80..GL198808-199008

main82131-2A640iLX80..KYO198808-198811

main82131-2A641iLX80..KYO198811-199008

main82131-2A650iYX80..GL198808-198908

main82131-2A651iYX80..GL198908-199008

main82131-2A660iYX80..KYO198808-198908

main82131-2A661iYX80..KYO198908-199008

main82131-2A670iLX80..GL..DSL198808-199008

main82131-2A680iGX81..TWT198808-198809

main82131-2A681iGX81..TWT198809-198908

main82131-2A682iGX81..TWT198908-199008

main82131-2A690iGX81..TWT198808-198809

main82131-2A691iGX81..TWT198809-198908

main82131-2A692iGX81..TWT198908-199008

main82131-2A700iGX81..TWT198808-198809

main82131-2A701iGX81..TWT198809-198908

main82131-2A702iGX81..TWT198908-199008

main82131-2A710iGX81..SPC198808-198908

main82131-2A711iGX81..SPC198908-199008

main82131-2A720iGX81..SPC198808-198908

main82131-2A730iGX81..TWC198808-198809

main82131-2A731iGX81..TWC198809-198908

main82131-2A732iGX81..TWC198908-199008

main82131-2A740iGX81..TWC198808-198809

main82131-2A741iGX81..TWC198809-198908

main82131-2A742iGX81..TWC198908-199008

main82131-2A750iGX81..TWC198808-198809

main82131-2A751iGX81..TWC198809-198908

main82131-2A752iGX81..TWC198908-199008

main82131-2A760iGX81..GD..HTWC198808-198908

main82131-2A761iGX81..GD..HTWC198908-199008

main82131-2A770iGX81..GD..HTWC198808-198908

main82131-2A771iGX81..GD..HTWC198908-199003

main82131-2A772iGX81..HT..GD..HTWC199004

main82131-2A772iGX81..GD..HTWC199003-199008

main82131-2C200iMX83198908-199008

main82131-2C210iGX81..SPC198908-199008

main82131-2C220iGX81..SPC198908-199008

main82131-2C230iYX80..GL198908-199008

main82131-2C240iLX80..GL..DSL198908-199008

main82131-2C290iMX83199008-199302

main82131-2C300iJZX81..TWT199008-199210

main82131-2C330iJZX81..GD199008-199302

main82131-2C340iJZX81..GD199008-199302

main82131-2C350iJZX81..GD199008-199302

main82131-2C360iGX81..TWC199008-199302

main82131-2C370iGX81..TWC199008-199302

main82131-2C380iGX81..TWC199008-199302

main82131-2C390iGX81..GD..HTWC199008-199302

main82131-2C400iGX81..GD..HTWC199008-199302

main82131-2C420iGX81..GD..HTWC199008-199302

main82131-2C430iGX81..LG199008-199302

main82131-2C440iSX80..GR199008-199302

main82131-2C450iSX80..GL,STD199008-199302

main82131-2C460iSX80..KYO199008-199302

main82131-2C470iLX80..GR199008-199009

main82131-2C471iLX80..GR199009-199101

main82131-2C472iLX80..GR199101-199302

main82131-2C480iLX80..GL199008-199009

main82131-2C481iLX80..GL199009-199101

main82131-2C482iLX80..GL199101-199302

main82131-2C490iLX80..KYO199008-199009

main82131-2C491iLX80..KYO199009-199302

main82131-2C500iLX80..GL..DSL199008-199009

main82131-2C501iLX80..GL..DSL199009-199302

main82131-2C510iLX80..GL..DSL199008-199009

main82131-2C511iLX80..GL..DSL199009-199302

main82131-2C520iYX80..GL199008-199302

main82131-2C530iYX80..GL199008-199302

main82131-2C540iYX80..(3FC,5F)..KYO199008-199512

main82131-2C770iLX80..HT199111

main82131-2V070iGX81199302-199409

main82131-2V080iGX81199302-199409

main82131-2V090iSX80..GR199302-199409

main82131-2V100iSX80..GL199302-199512

main82131-2V110iLX80199302-199308

main82131-2V120iYX80..GL199302-199409

main82131-2V130iYX80..4FC;YX80..5F..GL199302-199512

main82131-2V150iSX80..KYO199302-199512

main82135-22220iGX81199409-199512

main82135-22230iGX81199409-199512

main82135-22240iSX80..GR199409-199512

main82135-22250iYX80..GL199409-199512

82141WIRE, INSTRUMENT PANEL

main82141-22330iYX80198808-199008

main82141-22340iGX81..TWC,TWT198808-199008

main82141-22350iGX81..SPC198908-199008

main82141-22350iGX81..SPC,TWC,TWT198808-198908

main82141-22360iGX81..TWC,TWT198808-199008

main82141-22360iGX81..SPC198908-199008

main82141-22370iGX81..SPC198808-199008

main82141-22370iGX81..SPC198908-199008

main82141-22380iGX81..GD..HTWC198808-199008

main82141-22390iGX81..GD..HTWC198808-199008

main82141-22400iGX81..GD..HTWC198808-199008

main82141-22410iGX81..HT..GD..HTWC199004-199007

main82141-22410iGX81..GD..HTWC198808-199008

main82141-22420iGX81,LX80,SX80..4FC..(GL,GR,KYO,LG)198808-199008

main82141-22430iGX81,LX80,SX80..5F..(GL,GR,KYO,LG,STD)198808-199008

main82141-22581iLX80,SX80..GR198908-199008

main82141-22590iGX81..SPC198908-199008

main82141-22600iMX83198908-199008

main82141-22630iJZX81..GDG,GT199008-199302

main82141-22630iJZX81..GDG,GT199008-199302

main82141-22640iJZX81..GDG,GT199008-199302

main82141-22650iGX81..GD..HTWC199008-199302

main82141-22650iGX81199302-199304

main82141-22650iGX81..GD..HTWC199008-199302

main82141-22660iGX81,JZX81..GD..TWC199008-199302

main82141-22680iGX81..GD..HTWC199008-199302

main82141-22690iJZX81..GD199008-199302

main82141-22690iMX83199008-199302

main82141-22690iMX83199008-199302

main82141-22690iMX83199008-199302

main82141-22690iGX81199302-199304

main82141-22700iMX83199008-199302

main82141-22710iGX81199008-199512

main82141-22730iGX81..GD..HTWC199008-199304

main82141-22740iLX80,SX80..GR199008-199302

main82141-22750iLX80,SX80..GL,KYO199008-199304

main82141-22760iYX80199008-199302

main82141-22880iLX80..HT199111-199210

main82141-2A090iGX81,SX80..GD,GR199302-199512

main82141-2A100iSX80..GL,KYO199302-199512

main82141-2A110iYX80199302-199512

main82141-2A130iLX80199304-199308

main82141-2A150iYX80..KYO199305-199512

82210CFUSIBLE LINK

main90982-08188iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

main90982-08188iGX81,LX80,MX83,SX80198808-199008

main90982-08188iGX81,LX80,MX83,SX80198808-199512

main90982-08189iLX80,YX80198808-199008

main90982-08189iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

main90982-08189iLX80,YX80198808-199008

main90982-08202iJZX81..GD198808-199512

main90982-08203iLX80,YX80198808-199512

main90982-08223iSX80198808-199512

main90982-08246iJZX81..GD,GT198808-199512

main90982-08246iGX81..5F..(HTWC,TWC)198808-199512

82217AWIRE, FRONT WINDOW DEFOGGER

main82217-22010iGX81,SX80..GD,GL,GR199008-199512

82345DIODE

main82345-20040iSX80..GR..HTWC198808-199111

3P

main82345-20040iSX80199111-199512

main82345-32010iGX81..GD,GDG,GT198808-199512

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-22350iGX81..TWC,TWT198808-199302

main82817-22660iGX81..HTWC198808-199107

main82817-30521iGX81..SPC198808-199008

82822BRACKET,CONNECTOR BLOCK

main82822-22110iGX81..SPC198808-199008

main82822-22110iGX81,SX80..GD,GL,GR,GT,LG,STD198908-199008

main82822-22120iGX81..SPC198908-199008

main82822-22120iGX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT198808-199008

main82822-22130iGX81..GD,GT198808-199008

main82822-22130iSX80..KYO198808-199008

main82822-22190iLX80,YX80198811-199008

main82822-22200iJZX81..GD199008-199302

main82822-22200iJZX81..GDG,GT;GX81,MX83,SX80..(GDG,KYO)..(HTWC,SPC,TWC)198908-199512

main82822-22200iGX81..GD199008-199512

main82822-22210iGX81,MX83..GDG198908-199512

main82822-22240iGX81,JZX81,SX80..GD,GL,GR,LG,STD199008-199512

main82822-22250iLX80,YX80199008-199512

82823CAP, TERMINAL, NO.1

main82823-22080iGX81..4FC;GX81..5F..TWT;LX80,MX83,SX80198812-199512

main82823-32020iLX80198808-198812

82824CONNECTOR, WIRING HARNESS

main82824-22040iJZX81;GX81,MX83..GDG198908-199302

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

8234532010DIODE

main82345-32010

9010506045

main90105-06045

9010506050

main90105-06050

9011906005

main90119-06005

9011906390

main90119-06390

9011906732

main90119-06732

9017906199

main90179-06199

9017906239

main90179-06239

9046705050

main90467-05050

9046708056

main90467-08056

9165140614

main91651-40614

9166160616

main91661-60616

9166540616

main91665-40616

9356715016

main93567-15016

29 parts on this diagram · 17 diagrams in section
