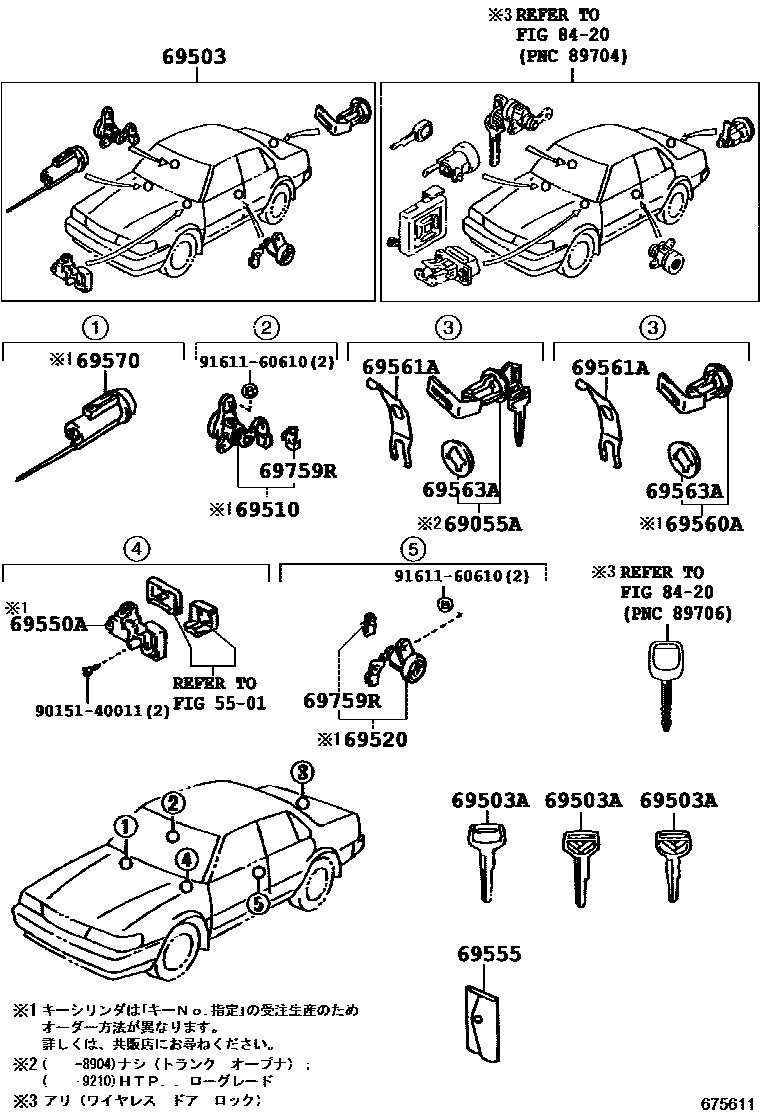

LOCK CYLINDER SET

5501

69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK

main69055-22250iSX80..STD198808-198904

main69055-22290iGX81,LX80,SX80..HT..(GR,LG)198808-199210

69503CYLINDER SET, LOCK

main69005-22660iSX80..STD198808-198904

main69005-22670iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG)198808-198904

main69005-22670iLX80198904-199309

main69005-22680iGX81,JZX81..SED..(GD,GDG)198808-199302

main69005-22730iLX80,SX80..SED..GR198908-199302

sub69005-2A010

main69005-22770iGX81,JZX81..HT..(GD,GDG,GT)198808-199210

main69005-22780iGX81,LX80,SX80..HT..(GR,LG)198808-199210

main69005-22870iLX80,SX80..HT198908-199210

main69005-2A010iSX80,YX80..GL,GR199302-199512

main69005-2A170iGX81199302-199409

69503AKEY, BLANK

main90999-00130iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

sub90999-00153

main90999-00132iGX81,SX80,YX80198808-199512

sub90999-00174

main90999-00137iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

sub90999-00165

69510CYLINDER ASSY, FRONT DOOR LOCK, RH

main69510-22161iSX80,YX80198808-199512

main69510-22171iGX81,JZX81,MX83..GD,GDG,GT198808-199409

69520CYLINDER ASSY, FRONT DOOR LOCK, LH

main69520-22161iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

69550ACYLINDER ASSY, GLOVE COMPARTMENT DOOR LOCK

main69550-22060iGX81,SX80,YX80198808-199512

69555COVER, KEY

main69555-17020iGX81,LX80,SX80,YX80199302-199512

main69555-20010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199302

69560ACYLINDER ASSY, LUGGAGE COMPARTMENT DOOR LOCK

main69560-22280iLX80;SX80,YX80..KYO198904-199309

main69560-22280iGX81,LX80,SX80,YX80..SED..(GL,GR,KYO,LG)198808-198904

main69560-22310iLX80,SX80..HT198908-199210

main69560-22310iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

main69560-22330iLX80,SX80..SED..GR198908-199302

main69560-22330iGX81,SX80,YX80..GD,GL,GR198808-199512

69561ARETAINER, LUGGAGE COMPARTMENT LOCK CYLINDER

main69561-22060iGX81,SX80,YX80198808-199512

main69561-22070iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

69563APAD, LUGGAGE COMPARTMENT DOOR LOCK CYLINDER

main69563-32020iGX81,LX80,SX80,YX80..GL,GR,KYO,LG,STD198811-199008

69570CYLINDER ASSY, IGNITION SWITCH LOCK

main69570-22080iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

sub69570-17060

69759RSNAP, FRONT DOOR LOCK CYLINDER

main69759-22080iGX81,SX80,YX80198808-199512

main69759-22090iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

8420

9015140011

main90151-40011

9161160610

main91611-60610

16 parts on this diagram · 1 diagram in section
