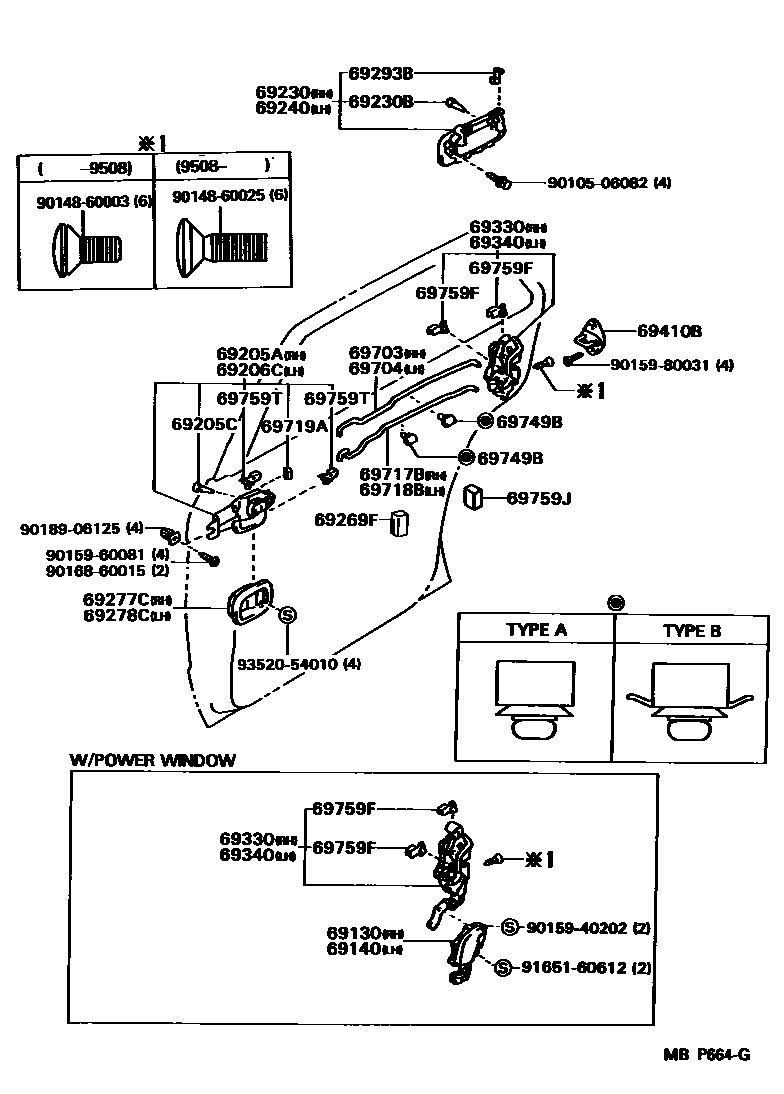

REAR DOOR LOCK & HANDLE

0001 1 0002 1

69130ACTUATOR ASSY, REAR DOOR LOCK, RH

main69130-20090iGX81,LX80,SX80..SED..(GR,LG)199008-199302

main69130-20090iYX80..GL199302-199512

main69130-20100iGX81,SX80..GD,GR199302-199512

main69130-20100iGX81,JZX81,MX83..SED..(GD,GDG)199008-199302

main69130-22010iGX81,LX80,SX80..SED..(GR,LG)198808-199008

sub69130-20090

main69130-22020iLX80,YX80..GL..(DSL,LPG)198908-199008

sub69130-20100

main69130-22020iGX81,MX83..SED..(GD,GDG)198808-199008

sub69130-20100

main69130-22030iGX81,LX80,SX80..HT..(GR,LG)198808-199210

main69130-22040iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

main69130-22040iLX80..HT199111-199210

69140ACTUATOR ASSY, REAR DOOR LOCK, LH

main69140-20090iYX80..GL199302

main69140-20090iGX81,LX80,SX80..SED..(GR,LG)199008-199302

main69140-20100iGX81,JZX81,MX83..SED..(GD,GDG)199008-199302

main69140-20100iGX81,SX80..GD,GR199302

main69140-22010iGX81,LX80,SX80..SED..(GR,LG)198808-199008

sub69140-20090

main69140-22020iGX81,MX83..SED..(GD,GDG)198808-199008

sub69140-20100

main69140-22020iLX80,YX80..GL..(DSL,LPG)198908-199008

sub69140-20100

main69140-22030iGX81,LX80,SX80..HT..(GR,LG)198808-199210

main69140-22040iGX81,JZX81,MX83..HT..(GD,GDG,GT)198808-199210

main69140-22040iLX80..HT199111-199210

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-22040-02iGX81,LX80,SX80..GD,GDG,GR,GT,LG198808-199008

NEW MAROON,TRIM3#

main69205-22040-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main69205-22040-06iGX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG198808-199008

SABLE,TRIM4#

main69205-22050-02iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199011

NEW MAROON,TRIM3#

sub69205-22060

main69205-22050-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199011

MEDIUM GRAY,TRIM1#

sub69205-22060

main69205-22050-06iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG199008-199011

SABLE,TRIM4#

sub69205-22060

main69205-22060-02iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199011-199302

NEW MAROON,TRIM3#

sub69205-22060

main69205-22060-03iGX81,JZX81,LX80,MX83,SX80,YX80199011-199512

MEDIUM GRAY,TRIM1#

sub69205-22060

main69205-22060-06iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG199011-199302

SABLE,TRIM4#

sub69205-22060

69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)

main90541-04018iGX81,LX80,MX83,SX80,YX80198808-199008

main90541-04018iGX81,JZX81,LX80,MX83,SX80,YX80198809-199512

OD=8.5

main90541-04020iGX81,SX80,YX80198809-199512

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-22040-02iLX80,YX80..GL..(DSL,LPG);GX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199008

NEW MAROON,TRIM3#

main69206-22040-04iGX81,LX80,MX83,SX80,YX80198808-199008

DARK BLUE,TRIM8#

main69206-22040-06iGX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG198808-199008

SABLE,TRIM4#

main69206-22050-02iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199011

NEW MAROON,TRIM3#

sub69206-22060

main69206-22050-03iGX81,JZX81,LX80,MX83,SX80,YX80199008-199011

MEDIUM GRAY,TRIM1#

sub69206-22060

main69206-22050-06iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG199008-199011

SABLE,TRIM4#

sub69206-22060

main69206-22060-02iLX80,YX80..GL..(DSL,LPG);GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199011-199302

NEW MAROON,TRIM3#

sub69206-22060

main69206-22060-03iGX81,JZX81,LX80,MX83,SX80,YX80199011-199512

MEDIUM GRAY,TRIM1#

sub69206-22060

main69206-22060-06iGX81,JZX81,LX80,MX83,SX80,YX80..GD,GDG,GL,GR,GT,LG199011-199302

SABLE,TRIM4#

sub69206-22060

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69230-22060iGX81,JZX81,LX80,SX80,YX80..SED..(GD,GL,GR,KYO,LG,STD)198808-199512

main69230-22070-04iGX81,MX83..SED..GDG198903-199008

BLUE MICA,8E3

main69230-22070-07iJZX81,MX83..SED..GDG199008-199302

DARK GRAYISH GREEN M,6L8

main69230-22070-08iGX81,JZX81,MX83..SED..GDG198808-199302

WHITE PEARL MICA,049

main69230-22070-09iJZX81,MX83..SED..GDG199008-199302

DARK MAUVE MICA,3K1

main69230-22070-18iGX81,JZX81,MX83..SED..GDG198808-199302

SUPER WHITE 4,050

main69230-22070-23iGX81,MX83..SED..GDG198808-199008

GRAY M. M.,170

main69230-22070-24iJZX81,MX83..SED..GDG199008-199302

BLUE M,869

main69230-22070-26iJZX81,MX83..SED..GDG199008-199302

BEIGE M.M,4J1

main69230-22070-33iGX81,MX83..SED..GDG198908-199008

GREENISH SILVER M.,174

main69230-22070-43iGX81,JZX81,MX83..SED..GDG198908-199302

DARK BLUEISH GRAY,183

main69230-22070-53iJZX81,MX83..SED..GDG199008-199302

BLUISH GRAY M,182

main69230-22080iGX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG)198808-199210

main69230-22090-01iJZX81,MX83..HT..GDG199008-199210

BLACK M,24S

main69230-22090-03iGX81,MX83..HT..GDG198808-199008

GRAY MICA M.,170

main69230-22090-03iGX81..HT..GD198910-199008

main69230-22090-04iGX81,MX83..HT..GDG198903-199008

BLUE MICA,8E3

main69230-22090-04iGX81..HT..GD198910-199008

main69230-22090-06iJZX81,MX83..HT..GDG199008-199210

BEIGE MICA M,4J1

main69230-22090-07iJZX81,MX83..HT..GDG199008-199210

DARK GRAYISH GREEN M,6L8

main69230-22090-08iJZX81..GD199105

main69230-22090-08iGX81..HT..GD198910-199008

main69230-22090-08iGX81,JZX81,MX83..HT..GDG198808-199210

WHITE PEARL MICA,049 ,22K

main69230-22090-08iGX81..HT..GD..HTWC199004-199008

main69230-22090-08iGX81..4FC..GD..HTWC199112-199210

main69230-22090-08iGX81..HT..GD..HTWC199109-199110

main69230-22090-08iJZX81..HT..GD199205-199210

main69230-22090-13iGX81..HT..GD198910-199008

main69230-22090-13iGX81,MX83..HT..GDG198908-199008

GREENISH SILVER M.,174

main69230-22090-14iJZX81,MX83..HT..GDG199008-199210

BLUE M,869

main69230-22090-18iGX81,JZX81,MX83..HT..GDG198808-199210

SUPER WHITE 4,050

main69230-22090-18iLX80..HT199111-199210

main69230-22090-18iGX81..4FC..GD..HTWC199112-199210

main69230-22090-18iGX81..HT..4FC..GD..HTWC199205-199210

main69230-22090-18iGX81..HT..GD198910-199008

main69230-22090-23iGX81..HT..GD198910-199008

main69230-22090-23iGX81,JZX81,MX83..HT..GDG198908-199210

DARK BLUEISH GRAY,183

main69230-22090-33iJZX81,MX83..HT..GDG199008-199210

BLUISH GRAY M,182

main69230-22090-43iJZX81,MX83..HT..GDG199008-199210

DARK MAUVE MICA,3K1

69230BCUSHION(FOR REAR DOOR OUTSIDE HANDLE)

main90541-04018iGX81,SX80,YX80198808-199512

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69240-22060iGX81,SX80,YX80198808-199512

main69240-22070-04iGX81,MX83..SED..GDG198903-199008

BLUE MICA,8E3

main69240-22070-07iJZX81,MX83..SED..GDG199008-199302

DARK GRAYISH GREEN M,6L8

main69240-22070-08iGX81,JZX81,MX83..SED..GDG198808-199302

WHITE PEARL MICA,049

main69240-22070-09iJZX81,MX83..SED..GDG199008-199302

DARK MAUVE MICA,3K1

main69240-22070-18iGX81,JZX81,MX83..SED..GDG198808-199302

SUPER WHITE 4,050

main69240-22070-23iGX81,MX83..SED..GDG198808-199008

GRAY M. M.,170

main69240-22070-24iJZX81,MX83..SED..GDG199008-199302

BLUE M,869

main69240-22070-26iJZX81,MX83..SED..GDG199008-199302

BEIGE M.M,4J1

main69240-22070-33iGX81,MX83..SED..GDG198908-199008

GREENISH SILVER M.,174

main69240-22070-43iGX81,JZX81,MX83..SED..GDG198908-199302

DARK BLUEISH GRAY,183

main69240-22070-53iJZX81,MX83..SED..GDG199008-199302

BLUISH GRAY M,182

main69240-22080iGX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG)198808-199210

main69240-22090-01iJZX81,MX83..HT..GDG199008-199210

BLACK M,24S

main69240-22090-03iGX81..HT..GD198910-199008

main69240-22090-03iGX81,MX83..HT..GDG198808-199008

GRAY MICA M.,170

main69240-22090-04iGX81,MX83..HT..GDG198903-199008

BLUE MICA,8E3

main69240-22090-04iGX81..HT..GD198910-199008

main69240-22090-06iJZX81,MX83..HT..GDG199008-199210

BEIGE MICA M,4J1

main69240-22090-07iJZX81,MX83..HT..GDG199008-199210

DARK GRAYISH GREEN M,6L8

main69240-22090-08iGX81..HT..GD..HTWC199109-199110

main69240-22090-08iGX81,JZX81,MX83..HT..GDG198808-199210

WHITE PEARL MICA,049 ,22K

main69240-22090-08iGX81..4FC..GD..HTWC199112-199210

main69240-22090-08iJZX81..HT..GD199205-199210

main69240-22090-08iGX81..HT..GD..HTWC199004-199008

main69240-22090-08iGX81..HT..GD198910-199008

main69240-22090-08iJZX81..GD199105

main69240-22090-13iGX81,MX83..HT..GDG198908-199008

GREENISH SILVER M.,174

main69240-22090-13iGX81..HT..GD198910-199008

main69240-22090-14iJZX81,MX83..HT..GDG199008-199210

BLUE M,869

main69240-22090-18iGX81..HT..GD198910-199008

main69240-22090-18iGX81..HT..4FC..GD..HTWC199205-199210

main69240-22090-18iGX81..4FC..GD..HTWC199112-199210

main69240-22090-18iGX81,JZX81,MX83..HT..GDG198808-199210

SUPER WHITE 4,050

main69240-22090-18iLX80..HT199111-199210

main69240-22090-23iGX81,JZX81,MX83..HT..GDG198908-199210

DARK BLUEISH GRAY,183

main69240-22090-23iGX81..HT..GD198910-199008

main69240-22090-33iJZX81,MX83..HT..GDG199008-199210

BLUISH GRAY M,182

main69240-22090-43iJZX81,MX83..HT..GDG199008-199210

DARK MAUVE MICA,3K1

69269FSEAL, REAR DOOR INSIDE HANDLE

main69269-22050iGX81,SX80,YX80198906-199512

69277CBEZEL, REAR DOOR INSIDE HANDLE, RH

main69297-22020-02iLX80,YX80..GL..(DSL,LPG)198908-199008

NEW MAROON,TRIM3#

sub69297-22020

main69297-22020-04iLX80,SX80,YX80..GL,KYO,STD198808-199008

DARK BLUE,TRIM8#

sub69297-22020

main69297-22020-06iLX80,SX80,YX80..GL198808-199008

SABLE,TRIM4#

sub69297-22020

main69297-22030-02iGX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199008

NEW MAROON,TRIM3#

main69297-22030-02iLX80,YX80..GL..(DSL,LPG)198908-199008

main69297-22030-04iLX80,YX80..GL..(DSL,LPG)198908-199008

main69297-22030-04iGX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199008

DARK BLUE,TRIM8#

main69297-22030-06iGX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199008

SABLE,TRIM4#

main69297-22040-02iLX80,YX80..GL..(DSL,LPG)199008-199302

NEW MAROON,TRIM3#

main69297-22040-03iLX80,SX80,YX80..GL,KYO,STD199008-199512

MEDIUM GRAY,TRIM1#

main69297-22040-06iLX80,SX80,YX80..GL199008-199302

SABLE,TRIM4#

main69297-22050-02iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

NEW MAROON,TRIM3#

sub69297-22050

main69297-22050-02iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

sub69297-22050

main69297-22050-03iLX80,YX80..GL..(DSL,LPG)199008-199512

sub69297-22050

main69297-22050-03iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199512

MEDIUM GRAY,TRIM1#

sub69297-22050

main69297-22050-06iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

sub69297-22050

main69297-22050-06iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

SABLE,TRIM4#

sub69297-22050

69278CBEZEL, REAR DOOR INSIDE HANDLE, LH

main69298-22020-02iLX80,YX80..GL..(DSL,LPG)198908-199008

NEW MAROON,TRIM3#

sub69298-22020

main69298-22020-04iLX80,SX80,YX80..GL,KYO,STD198808-199008

DARK BLUE,TRIM8#

sub69298-22020

main69298-22020-06iLX80,SX80,YX80..GL198808-199008

SABLE,TRIM4#

sub69298-22020

main69298-22030-02iGX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199008

NEW MAROON,TRIM3#

main69298-22030-02iLX80,YX80..GL..(DSL,LPG)198908-199008

main69298-22030-04iLX80,YX80..GL..(DSL,LPG)198908-199008

main69298-22030-04iGX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199008

DARK BLUE,TRIM8#

main69298-22030-06iGX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198808-199008

SABLE,TRIM4#

main69298-22040-02iLX80,YX80..GL..(DSL,LPG)199008-199302

NEW MAROON,TRIM3#

main69298-22040-03iLX80,SX80,YX80..GL,KYO,STD199008-199512

MEDIUM GRAY,TRIM1#

main69298-22040-06iLX80,SX80,YX80..GL199008-199302

SABLE,TRIM4#

main69298-22050-02iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

NEW MAROON,TRIM3#

sub69298-22050

main69298-22050-02iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

sub69298-22050

main69298-22050-03iLX80,YX80..GL..(DSL,LPG)199008-199512

sub69298-22050

main69298-22050-03iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199512

MEDIUM GRAY,TRIM1#

sub69298-22050

main69298-22050-06iLX80,YX80..GL..(DSL,LPG)199008-199302

SABLE,TRIM4#

sub69298-22050

main69298-22050-06iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG199008-199302

sub69298-22050

69293BSNAP, REAR DOOR OUTSIDE HANDLE

main69293-12050iGX81,JZX81,LX80,MX83,SX80,YX80..SED198808-199512

main69293-12060iGX81,JZX81,LX80,MX83,SX80,YX80..SED198808-199512

69330LOCK ASSY, REAR DOOR, RH

main69330-22230iYX80..KYO;LX80,SX80..GL,KYO,STD198808-199008

main69330-22231iYX80..KYO;LX80,SX80..GL,KYO,STD199008-199305

main69330-22241iSX80,YX80..GL199302-199512

main69330-22260iYX80..GL198808-199008

sub69330-22231

main69330-22261iLX80..GL..DSL199008-199302

main69330-22280iGX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG)198808-199008

main69330-22281iGX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG)199008-199302

main69330-22291iGX81,SX80..GD,GR199302-199512

main69330-22320iGX81,LX80,MX83..HT198808-199008

main69330-22321iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

main69330-22350iLX80199302-199309

main69330-91603iLX80..GL..DSL198908-199302

main69330-91603iLX80..GL..DSL199008-199302

69340LOCK ASSY, REAR DOOR, LH

main69340-22240iYX80..KYO;LX80,SX80..GL,KYO,STD198808-199008

main69340-22241iSX80,YX80..KYO199008-199305

main69340-22251iYX80..KYO;SX80..GL,KYO199302-199512

main69340-22270iYX80..GL198808-199008

main69340-22271iYX80..GL199008-199302

main69340-22290iGX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG)198808-199008

main69340-22291iGX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG)199008-199302

main69340-22301iGX81,SX80..GD,GR199302-199512

main69340-22330iGX81,LX80,MX83..HT198808-199008

main69340-22331iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

main69340-22360iLX80,YX80..GL199302-199512

main69340-22370iYX80..GL199302-199512

main69340-91603iYX80..GL199008-199302

main69340-91603iYX80..GL198908-199302

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-20070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199302

main69410-87001iGX81,LX80,SX80,YX80199302-199512

69703LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, RH

main69737-22070iGX81,LX80,MX83..HT198808-199008

main69737-22080iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main69737-22100iGX81,JZX81,LX80,MX83,SX80,YX80..SED199008-199305

main69737-22110iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

main69770-22070iGX81,LX80,SX80,YX80..GD,GL,GR199302-199512

69704LINK SUB-ASSY, REAR DOOR LOCKING CONTROL, LH

main69738-22060iGX81,LX80,MX83..HT198808-199008

main69738-22070iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main69738-22090iSX80,YX80..KYO199008-199305

main69738-22100iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

main69780-22070iGX81,LX80,SX80,YX80..GD,GL,GR199302-199512

69717BLINK, REAR DOOR LOCK REMOTE CONTROL, RH

main69713-22060iGX81,LX80,MX83..HT198808-199008

main69713-22070iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main69713-22080iGX81,JZX81,LX80,MX83,SX80,YX80..SED199008-199512

main69713-22090iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

69718BLINK, REAR DOOR LOCK REMOTE CONTROL, LH

main69714-22060iGX81,LX80,MX83..HT198808-199008

main69714-22070iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main69714-22080iGX81,SX80,YX80199008-199512

main69714-22090iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

69719ACUSHION, DOOR LOCK CONTROL

main69719-22010iGX81,LX80,MX83,SX80,YX80198808-199008

69749BCLAMP, REAR DOOR LOCK LINK

main69749-20030iGX81,LX80,MX83,SX80,YX80198808-199008

main69749-20030iGX81,JZX81,LX80,MX83,SX80,YX80199008-199512

main69749-50010iGX81,JZX81,LX80,MX83,SX80,YX80199008-199512

69759FSNAP, REAR DOOR LOCK CONTROL LINK

main69759-24050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

GREEN

main69759-24060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

GRAY

69759JSILENCER, DOOR LOCK LINK

main69759-22100iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

main69759-30021iGX81,JZX81,LX80,MX83,SX80,YX80..SED198808-199512

69759TSNAP, REAR DOOR INSIDE HANDLE

main69759-14050iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

main69759-24070iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

9010506082

main90105-06082

9014860003

main90148-60003

9014860025

main90148-60025

9015940202

main90159-40202

9015960081

main90159-60081

9015980031

main90159-80031

9016860015

main90168-60015

9018906125

main90189-06125

9165160612

main91651-60612

9352054010

main93520-54010

34 parts on this diagram · 2 diagrams in section
