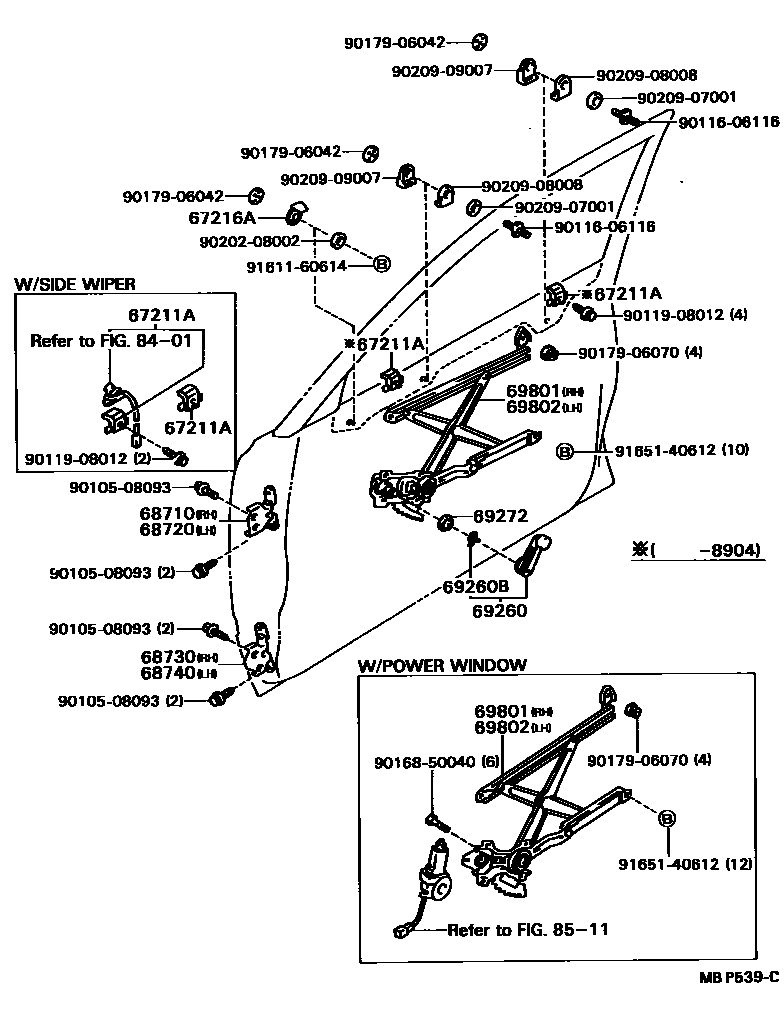

FRONT DOOR WINDOW REGULATOR & HINGE

0001 1 0002 1

67211ASTOP, FRONT DOOR WINDOW, UPPER

main67205-22030iGX81..SED..(GD,GDG)198808-198904

main67205-22030iGX81,JZX81,MX83..SED..(GD,GDG)198904-199302

FRONT-RH

main67205-22040iGX81,MX83..HT..(GD,GDG,GT)198808-199008

main67205-22040iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

main67206-22020iGX81,JZX81,MX83..SED..(GD,GDG)198904-199302

FRONT-LH

main67206-22020iGX81..SED..(GD,GDG)198808-198904

main67206-22030iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

main67206-22030iGX81,MX83..HT..(GD,GDG,GT)198808-199008

main67211-22020iGX81..GD,GDG,GT198808-199008

main67211-22020iGX81,JZX81,LX80,MX83,SX80..HT198904-199210

main67211-22020iGX81,JZX81,MX83..HT..(GD,GDG,GT)199008-199210

main67211-22020iGX81,JZX81,MX83..SED..(GD,GDG)198904-199302

REAR

67216ASTOPPER, FRONT DOOR GLASS, UPPER NO.2

main67216-30050iGX81,SX80,YX80198808-199512

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-22060iGX81,JZX81,LX80,MX83,SX80,YX80198808-199305

main68710-22070iGX81,LX80,SX80,YX80199302-199512

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-22050iSX80,YX80..KYO198808-199305

main68720-22060iGX81,LX80,SX80,YX80..GD,GL,GR199302-199512

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-22040iGX81,JZX81,LX80,MX83,SX80,YX80198808-199305

main68730-22050iGX81,LX80,SX80,YX80..GD,GL,GR199302-199512

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-22040iSX80,YX80..KYO198808-199305

main68740-22050iGX81,LX80,SX80,YX80199302-199512

69260HANDLE ASSY, FRONT DOOR WINDOW REGULATOR

main69260-22030-16iLX80,SX80,YX80..GL198808-199302

SABLE,TRIM4#

main69260-22030-23iLX80,SX80,YX80..GL,KYO,STD199008-199512

MEDIUM GRAY,TRIM1#

main69260-22030-24iLX80,SX80,YX80..GL,KYO,STD198808-199008

DARK BLUE,TRIM8#

main69260-22030-32iLX80,YX80..GL..(DSL,LPG)198908-199302

NEW MAROON,TRIM3#

69260BRING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE)

main90520-01002iLX80,SX80,YX80..GL,KYO,STD198808-199008

main90520-01274iLX80,SX80,YX80..GL,KYO,STD199008-199512

69272PLATE, FRONT DOOR REGULATOR INSIDE HANDLE

main69285-22010-08iLX80,SX80..GL..(HTWC,TD)199008-199302

NATURAL WHITE,TRIM1#,4#

main69285-22010-08iLX80,SX80,YX80..GL198808-199008

NATURAL WHITE,TRIM4#,8#

main69285-22010-08iLX80,SX80,YX80..KYO,STD198808-199008

NATURAL WHITE,TRIM8#

main69285-22010-08iLX80,YX80..GL..(DSL,LPG)198908-199008

NATURAL WHITE,TRIM3#,4#,8#

main69285-22010-08iLX80,YX80..GL..(DSL,LPG)199008-199302

NATURAL WHITE,TRIM1#,3#,4#

main69285-22010-08iLX80,YX80..GL..(DSL,LPG)199008-199512

NATURAL WHITE,TRIM1#

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-22110iYX80..GL198908-199512

main69801-22110iGX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG)198808-199512

main69801-22120iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

main69810-22220iLX80,SX80,YX80..GL,KYO,STD198808-199008

main69810-22260iLX80,SX80,YX80..GL,KYO,STD199008-199512

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-22110iLX80,YX80..GL..(DSL,LPG)198908-199512

main69802-22110iGX81,JZX81,LX80,MX83,SX80..SED..(GD,GDG,GR,LG)198808-199512

main69802-22120iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

main69820-22210iLX80,SX80,YX80..GL,KYO,STD198808-199008

main69820-22250iLX80,SX80,YX80..GL,KYO,STD199008-199512

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8511DOOR MOTOR & DOOR SOLENOID

→ Go to FIG 85-11

9010508093

main90105-08093

9011606116

main90116-06116

9011908012

main90119-08012

9016850040

main90168-50040

9017906042

main90179-06042

9017906070

main90179-06070

9020208002

main90202-08002

9020907001

main90209-07001

9020908008

main90209-08008

9020909007

main90209-09007

9161160614

main91611-60614

9165140612

main91651-40612

25 parts on this diagram · 2 diagrams in section
