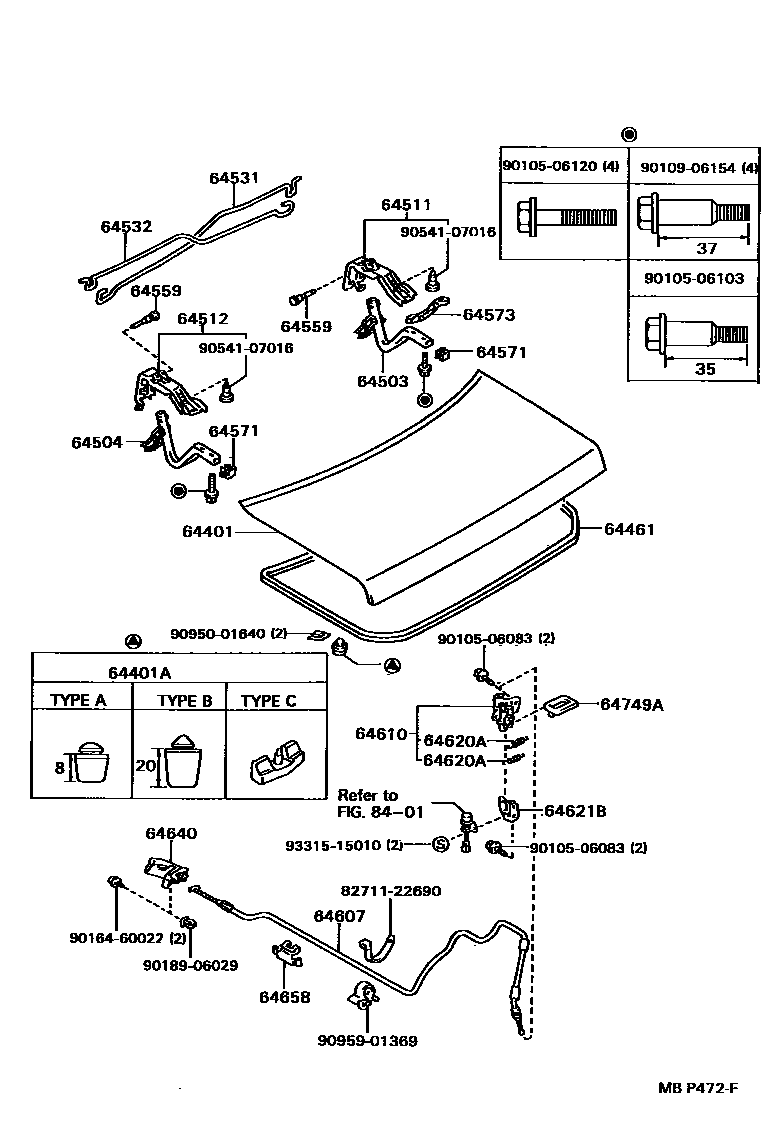

LUGGAGE COMPARTMENT DOOR & LOCK

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-22510iGX81,JZX81,LX80,MX83,SX80,YX80..SED198808-199512

main64401-22520iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

main64401-22530iGX81,JZX81,MX83..HT..(GDG,GT)..(TWC,TWT)198808-199210

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-06041×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199311

main90541-06059×2iGX81,SX80,YX80199311-199512

main90541-07033×2iGX81,JZX81,MX83..HT..(GDG,GT)..(TWC,TWT)198808-199210

main90541-09029×2iGX81,JZX81,LX80,MX83,SX80,YX80198808-199512

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-22200iGX81,JZX81,LX80,MX83,SX80,YX80..SED198808-199512

main64461-22210iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

64503ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64503-22060×3iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main64503-22090×2iGX81,LX80,MX83..HT198808-199008

main64503-22110iGX81,JZX81,MX83..HT..(GDG,GT)..(TWC,TWT)198808-199210

64504ARM SUB-ASSY, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64503-22060iGX81,SX80,YX80199309-199512

main64503-22090×2iGX81,LX80,MX83..HT198808-199008

main64503-22110iGX81,JZX81,MX83..HT..(GDG,GT)..(TWC,TWT)198808-199210

64511SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64511-22110iGX81,JZX81,LX80,MX83,SX80,YX80..SED198808-199309

main64511-22120iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

64512SUPPORT, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64512-22110iGX81,SX80,YX80199309-199512

main64512-22120iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

64531BAR, LUGGAGE DOOR HINGE TORSION, RH

main64531-22220iGX81,SX80199309-199512

main64531-22240iGX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG)198808-199210

main64531-22250iGX81,JZX81..TWT198808-199210

main64531-22260iGX81,JZX81,LX80,SX80,YX80..SED..(GD,GL,GR,KYO,LG,STD); GX81,JZX81,MX83..SED..GDG198808-199302

main64531-22270iGX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG); GX81,JZX81,MX83..HT..GDG198808-199210

main64531-22280iJZX81,MX83..HT..GDG198908-199210

main64531-22290iYX80199305-199512

main64531-22300iYX80..GL199302-199305

64532BAR, LUGGAGE DOOR HINGE TORSION, LH

main64532-22220iGX81,JZX81,LX80,SX80,YX80..SED..(GD,GL,GR,KYO,LG,STD)198808-199302

main64532-22240iGX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG)198808-199210

main64532-22250iGX81,JZX81..TWT198808-199210

main64532-22260iGX81,JZX81,LX80,SX80,YX80..SED..(GD,GL,GR,KYO,LG,STD); GX81,JZX81,MX83..SED..GDG198808-199302

main64532-22270iGX81,JZX81,LX80,SX80..HT..(GD,GR,GT,LG); GX81,JZX81,MX83..HT..GDG198808-199210

main64532-22280iJZX81,MX83..HT..GDG198908-199210

main64532-22290iYX80199305-199512

main64532-22300iYX80199305-199512

64559PIN, LUGGAGE DOOR HINGE

main64559-22020×2iGX81,SX80,YX80199309-199512

64571COVER, LUGGAGE COMPARTMENT DOOR HINGE

main64571-22020×2iGX81,JZX81..TWT198808-199210

main64571-30020×2iGX81,SX80,YX80199309-199512

64573PROTECTOR, LUGGAGE DOOR OPENER CABLE, RH

main64573-22010iGX81,JZX81,LX80,SX80..GD,GL,GR,GT,LG; YX80;GX81,JZX81,LX80,MX83,SX80..GDG,KYO,STD198808-199305

main64573-22020iGX81,SX80199309-199512

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-22330iGX81,JZX81,LX80,MX83,SX80..HT198808-199210

main64607-22350iGX81,SX80,YX80199309-199512

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-22110iGX81,JZX81,LX80,MX83,SX80,YX80198904-199309

main64610-22120iSX80..STD198808-198904

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-05001iGX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG; SX80..STD198808-198809

main90506-05002iGX81,JZX81,LX80,MX83,SX80,YX80198904-199309

WHITE

main90506-06009iGX81,LX80,SX80,YX80..GD,GDG,GL,GR,GT,KYO,LG; SX80..STD198809-198904

64621BSTRIKER, LUGGAGE COMPARTMENT DOOR LOCK

main64621-22040iGX81,SX80,YX80199309-199512

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-22210-02iLX80..GL..DSL;GX81,JZX81,LX80,MX83,SX80..GD,GDG,GR,GT,LG198908-199302

NEW MAROON,TRIM3#

main64640-22210-03iGX81,JZX81,LX80,MX83,SX80199008-199512

MEDIUM GRAY,TRIM1#

main64640-22210-04iGX81,LX80,MX83,SX80198808-199008

DARK BLUE,TRIM8#

main64640-22210-06iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG198808-199302

SABLE,TRIM4#

main64640-22230-02iYX80..GL198908-199302

NEW MAROON,TRIM3#

main64640-22230-03iYX80199008-199512

MEDIUM GRAY,TRIM1#

main64640-22230-04iYX80198808-199008

DARK BLUE,TRIM8#

main64640-22230-06iYX80..GL198808-199302

SABLE,TRIM4#

64658BRACKET, LUGGAGE CONTROL CABLE, RH

main64658-22010iGX81,JZX81,LX80,MX83,SX80,YX80198808-199309

64749ACOVER, LUGGAGE COMPARTMENT DOOR STRIKER

main64749-22040iLX80,SX80,YX80..GL,KYO,STD198808-198812

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271122690WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-22690

9010506083

main90105-06083

9010506103

main90105-06103

9010506120

main90105-06120

9010906154

main90109-06154

9016460022

main90164-60022

9018906029

main90189-06029

9054107016

main90541-07016

9095001640

main90950-01640

9095901369

main90959-01369

9331515010

main93315-15010

31 parts on this diagram · 1 diagram in section
