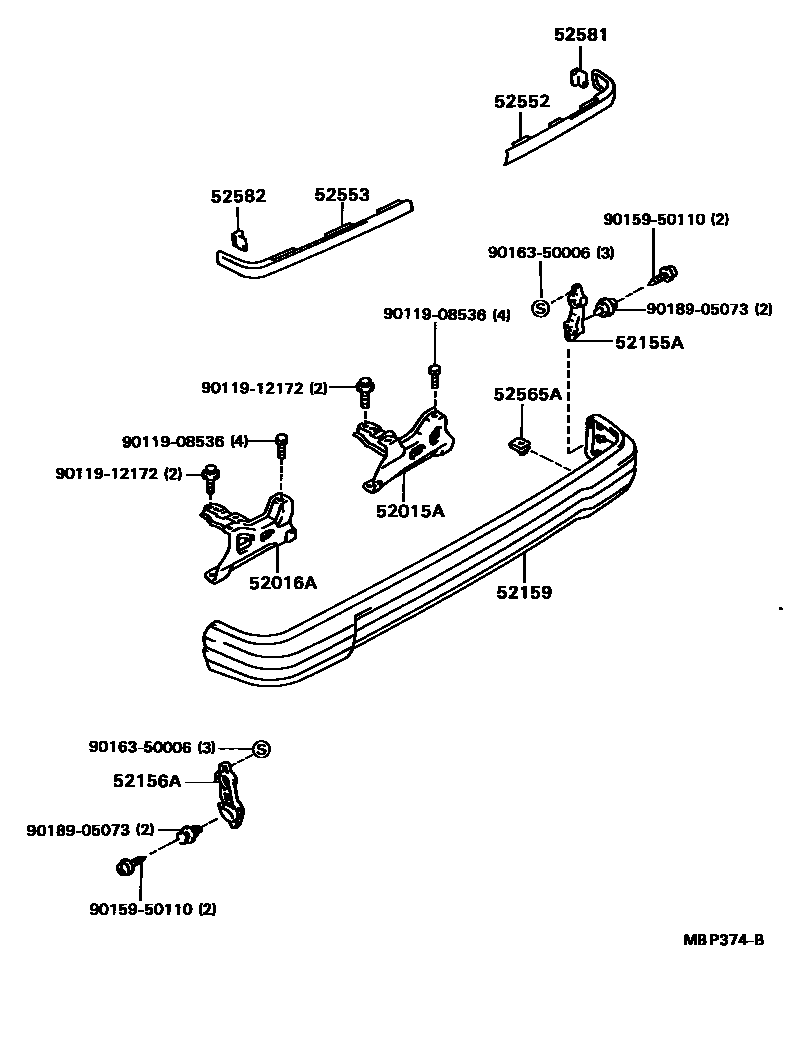

REAR BUMPER & BUMPER STAY

0001 1��(P.P. �����) 0002 1��(���� �����) 0003 1��(���� �����)

52015AARM SUB-ASSY, REAR BUMPER, RH

main52015-22100iLX80,YX80..DSL,LPG;LX80,SX80..(KYO,STD)..(CI,HTWC,TD)198808-199512

52016AARM SUB-ASSY, REAR BUMPER, LH

main52016-22060iLX80,YX80..DSL,LPG;LX80,SX80..(KYO,STD)..(CI,HTWC,TD)198808-199512

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-22120iSX80..STD; YX80;LX80,SX80..KYO198908-199008

main52155-22130iLX80..GL..DSL; YX80;LX80,SX80..KYO,STD198808-199302

main52155-22150iYX80..3FC,5F;YX80..4FC..GL;LX80,SX80..KYO199008-199512

main52155-22160iJZX81,MX83199008-199302

52156ASUPPORT, REAR BUMPER SIDE, LH

main52155-22130iLX80..GL..DSL; YX80;LX80,SX80..KYO,STD198808-199302

main52156-22140iGX81,LX80,SX80..GD,GL,GR,LG; SX80..STD199008-199302

main52156-22160iSX80..STD; YX80;LX80,SX80..KYO198908-199008

main52156-22170iJZX81,MX83199008-199302

52159COVER, REAR BUMPER

main52159-22260iLX80,YX80..DSL,LPG;LX80,SX80..(KYO,STD)..(HTWC,TD)199008-199302

main52159-22350-02iGX81,LX80,SX80..GD,GL,GR,GT,LG198808-198908

main52159-22350-03iYX80..GL198908-199008

main52159-22350-04iGX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG198903-199008

main52159-22350-08iYX80;LX80,SX80..KYO198908-199008

main52159-22350-13iYX80..GL198908-199008

main52159-22350-33iGX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG; YX80..GL198908-199008

main52159-22350-43iGX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG; YX80..GL198908-199008

main52159-22360iLX80,YX80..DSL,LPG;LX80,SX80..(KYO,STD)..(CI,TD)198808-199008

main52159-22390-02iGX81..GD,GT198808-198908

main52159-22390-03iGX81..GD,GT198808-199008

main52159-22390-04iGX81..GD,GT198808-198903

main52159-22390-08iGX81..GD,GT198808-198903

main52159-22390-13iGX81,MX83..GD,GDG,GT198904-199008

main52159-22390-33iGX81,MX83..GD,GDG,GT198908-199008

main52159-22390-43iGX81,MX83..GD,GDG,GT198908-199008

main52159-22420iLX80..GL..DSL; YX80;LX80,SX80..KYO,STD198808-199302

main52159-22450-03iGX81..HT..GD; GX81..TWT198910-199008

main52159-22450-08iGX81..HT..(GD,GT); GX81..SPC198808-198901

main52159-22450-13iGX81..HT..GD; GX81..TWT198910-199008

main52159-22450-18iGX81..SPC198808-198901

main52159-22450-28iGX81..HT..GD; GX81..TWT198910-199008

main52159-22450-38iGX81..HT..GD; GX81..TWT198910-199008

main52159-22450-48iGX81,MX83..GDG198902-199008

main52159-22460-03iGX81,MX83..GDG; GX81..HT..(GD,GT)198808-199008

main52159-22460-08iGX81..HT..(GD,GT); GX81..SPC198808-198901

main52159-22460-13iGX81,MX83..GDG; GX81..HT..(GD,GT)198908-199008

main52159-22460-18iGX81..SPC198808-198901

main52159-22460-28iGX81,MX83..HT..GDG; GX81..HT..(GD,GT)198808-199008

main52159-22460-38iGX81,MX83..GDG; GX81..HT..(GD,GT)198902-199008

main52159-22460-48iGX81,MX83..GDG198902-199008

main52159-22480-05iLX80,SX80..HT199008-199210

BEIGE M.M/GRAY M.M,TRIM4#&4J1

main52159-22480-08iGX81..GD; LX80,SX80..SED..GR199008-199302

SUPER WHITE 4/SLVR M,TRIM1#,3#,4#&050

main52159-22480-18iGX81..HT..GD199008-199210

PEARL STREAM TONNING,TRIM1#,4#&22K

main52159-22480-A0iGX81..HT..GD..HTWC199109-199110

main52159-22480-A1iGX81..HT..4FC..GD..HTWC199112-199210

main52159-22480-A2iGX81,SX80..GD,GR199302-199512

SPR WHITE 2/SILVER M,040

main52159-22480-B1iGX81,SX80..GD,GL,GR199409-199512

SILVER ME./GRAY M.M,199

main52159-22480-E0iGX81,SX80..GD,GR199302-199512

FLAXHEN M.M/GRAY M.M,4M7

main52159-22490-05iGX81..GD199008-199302

main52159-22490-08iGX81..GD199008-199302

main52159-22490-18iGX81..HT..GD199008-199210

main52159-22500-02iGX81,LX80,SX80..GD,GL,GR,LG; YX80..GL199008-199302

DARK MAUVE MICA,3K1

main52159-22500-03iGX81,SX80..GD,GL,GR; LX80,YX80..GL199302-199512

DARK BLUISH GRAY M,183

main52159-22500-04iGX81,LX80,SX80..GD,GL,GR,LG; YX80..GL199008-199302

BLUE M,869

main52159-22500-05iGX81,LX80,SX80..GD,GR199008-199302

BEIGE M.M,4J1

main52159-22500-07iGX81,LX80,SX80..GD,GL,GR,LG; YX80..GL199008-199302

DARK GRAISH GREEN M,6L8

main52159-22500-08iSX80,YX80..KYO199302-199305

SUPER WHITE 4,050

main52159-22500-A0iLX80,YX80;SX80..KYO199305-199512

SUPER WHITE 2,040

main52159-22500-B0iGX81,SX80..GD,GL,GR; YX80..GL199409-199512

SILVER ME.,199

main52159-22500-E0iGX81,SX80..GD,GL,GR; LX80,YX80..GL199302-199512

FLAXEN MICA M.,4M7

main52159-22500-G0iGX81,SX80..GD,GL,GR; LX80,YX80..GL199302-199409

DK.GRAISH OLIVE M.,6M7

main52159-22510-02iGX81..GD199008-199302

main52159-22510-03iGX81..GD199008-199302

main52159-22510-04iGX81..GD199008-199302

main52159-22510-07iGX81..GD199008-199302

main52159-22510-08iGX81..GD199008-199302

main52159-22520-01iJZX81,MX83..HT199008-199210

EXCELLENT TONNING,24S

main52159-22520-02iJZX81,MX83199008-199302

D MAUVE MICA/BLACK M,3K1

main52159-22520-03iJZX81,MX83..TWC199008-199302

BLUISH GRY M/BLCK M,182

main52159-22520-04iJZX81,MX83199008-199302

BLUE M/BLACK M,869

main52159-22520-05iJZX81,MX83199008-199302

BEIGE M.M/GRAY M.M,4J1

main52159-22520-07iJZX81,MX83199008-199302

D GRISH GREN M/BLK M,6L8

main52159-22520-08iJZX81..HT..GD199105

main52159-22520-13iJZX81,MX83199008-199302

D BLISH GRY M/BLCK M,183

main52159-22520-18iJZX81,MX83199008-199302

SUPER WHITE 4/SLVR M,050

main52159-22520-28iJZX81,MX83..HT199008-199210

PEARL STREAM TONNING,22K

main52159-22530-01iJZX81,MX83..HT199008-199210

main52159-22530-02iJZX81,MX83199008-199302

main52159-22530-03iJZX81,MX83..TWC199008-199302

main52159-22530-04iJZX81,MX83199008-199302

main52159-22530-05iJZX81,MX83199008-199302

main52159-22530-07iJZX81,MX83199008-199302

main52159-22530-08iJZX81..SED..GD;JZX81,MX83..GDG199008-199302

main52159-22530-13iJZX81,MX83199008-199302

main52159-22530-18iJZX81,MX83199008-199302

main52159-22530-28iJZX81,MX83..HT199008-199210

52552FILLER, REAR BUMPER, RH

main52552-22020iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main52552-22040iGX81,LX80,MX83..HT198808-199008

main52552-22050iGX81,JZX81,LX80,MX83,SX80,YX80..SED199008-199512

main52552-22060iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

52553FILLER, REAR BUMPER, LH

main52553-22020iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main52553-22040iGX81,LX80,MX83..HT198808-199008

main52553-22050iGX81,JZX81,LX80,MX83,SX80,YX80..SED199008-199512

main52553-22060iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

52565ARETAINER, REAR BUMPER, LOWER

main52565-12040×4iLX80..GL..DSL; YX80;LX80,SX80..KYO,STD198808-199302

main52565-22040iSX80..STD; YX80;LX80,SX80..KYO198908-199005

main52565-22041iGX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG; SX80..STD; YX80;LX80,SX80..KYO199005-199008

main52565-22050iGX81,JZX81,LX80,MX83,SX80..GD,GDG,GL,GR,GT,LG; SX80..STD199008-199302

52581PROTECTOR, REAR BUMPER, RH

main52581-22020iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main52581-22021×2iGX81,JZX81,LX80,MX83,SX80,YX80..SED199008-199512

main52581-22030iGX81,LX80,MX83..HT198808-199008

main52581-22031iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

52582PROTECTOR, REAR BUMPER, LH

main52581-22020iGX81,LX80,MX83,SX80,YX80..SED198808-199008

main52581-22021×2iGX81,JZX81,LX80,MX83,SX80,YX80..SED199008-199512

main52581-22030iGX81,LX80,MX83..HT198808-199008

main52581-22031iGX81,JZX81,LX80,MX83,SX80..HT199008-199210

9011908536

main90119-08536

9011912172

main90119-12172

9015950110

main90159-50110

9016350006

main90163-50006

9018905073

main90189-05073

15 parts on this diagram · 3 diagrams in section
