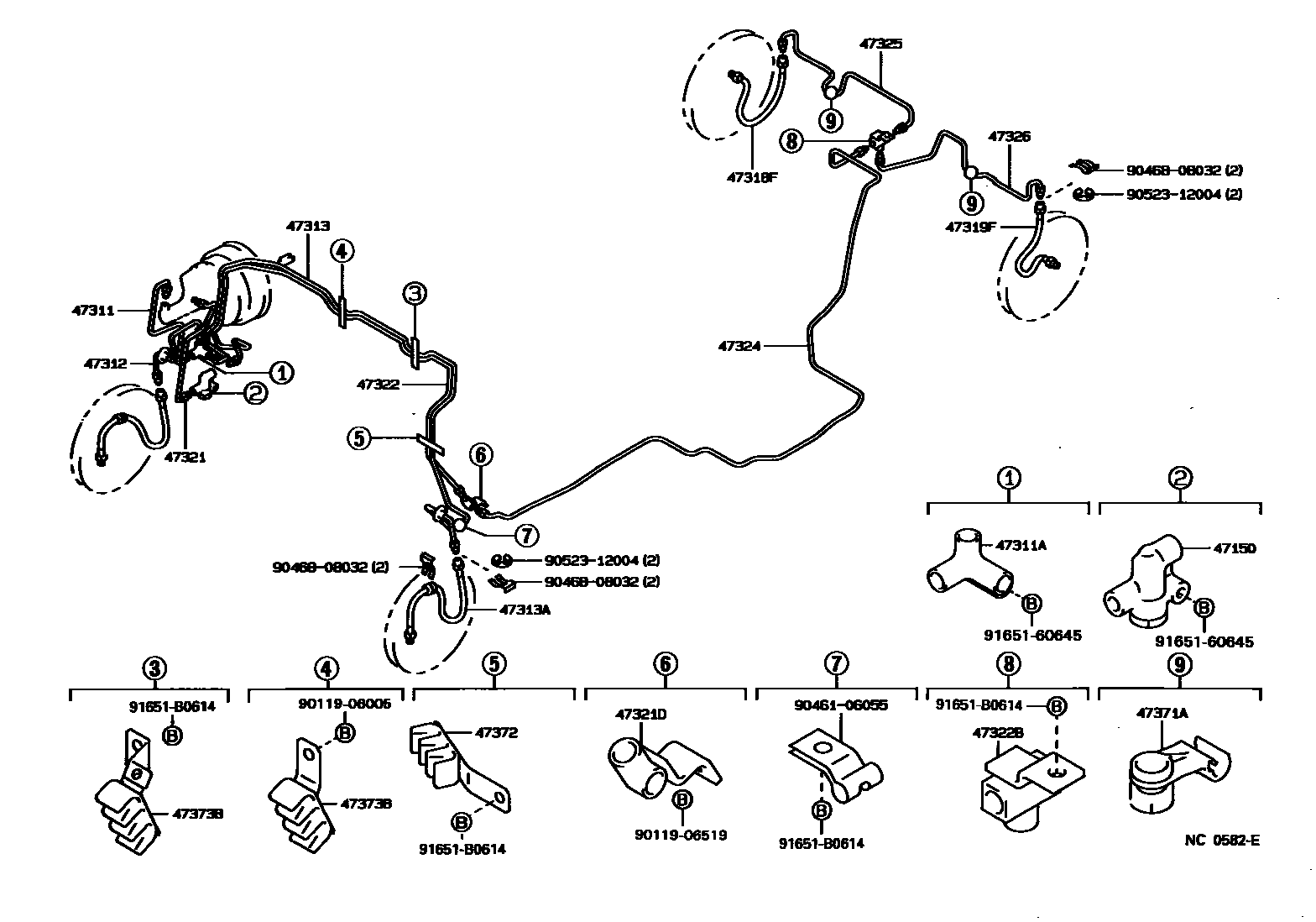

BRAKE TUBE & CLAMP

0001 1 0002 1��(ESC OR ������ ���-���� ���0003 1 0004 1 0005 1 0006 1 0007 1��(������ ����-�) 0008 1��(ESC OR ������ ���-���� ���0009 1��(������ ����-�)

47150VALVE ASSY, PROPORTIONING

main47150-16010iJZX81;GX81,MX83..GDG,GT198808-199302

main47150-22050iGX81,LX80,SX80,YX80199305-199309

47311TUBE, FRONT BRAKE, NO.1

main47311-22390iGX81..SPC198908-199008

main47311-22400iGX81,LX80,SX80,YX80..GL,GR,LG,STD198808-199008

main47311-22401iGX81,LX80,SX80,YX80..GL,GR,LG,STD199008-199512

main47311-22410iGX81..SPC198808-198908

main47311-22420iLX80,SX80,YX80..KYO198808-199008

main47311-22421iLX80,SX80,YX80..KYO199008-199512

main47311-22470iJZX81..GD199008-199302

47311AWAY(FOR FRONT BRAKE TUBE)

main90413-10227iGX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT198808-198908

47312TUBE, FRONT BRAKE, NO.2

main47312-22180iGX81,LX80,SX80,YX80199305-199512

main47312-22190iGX81..SPC198808-198908

main47312-22240iGX81,MX83..GDG198908-199008

main47312-22250iGX81,JZX81..GD199008-199305

main47312-22260iJZX81,MX83..GDG,GT; JZX81..GD199008-199302

47313TUBE, FRONT BRAKE, NO.3

main47313-22300iGX81,JZX81,LX80..GD,GL,GR,LG198808-199305

main47313-22310iSX80,YX80198808-199512

main47313-22320iGX81..SPC198808-198908

main47313-22330iGX81..TWT198808-199008

main47313-22380iLX80..KYO198808-199302

main47313-22390iGX81,MX83..GDG198908-199008

main47313-22400iJZX81,MX83..GDG,GT; JZX81..GD199008-199009

main47313-22401iJZX81,MX83..GDG,GT; JZX81..GD199009-199302

main47313-22410iGX81199305-199512

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02570×2iJZX81..GD;GX81,LX80,SX80,YX80..CI,DSL,HTWC,LPG,TD,TWC,TWT198808-199305

main90947-02571×2iGX81..GD,GT198808-199305

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02568iGX81..SPC198908-199008

main90947-02569iGX81199305-199512

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02568iGX81..SPC198908-199008

main90947-02569iGX81..GD,GT198808-199305

47321TUBE, REAR BRAKE, NO.1

main47321-22190iJZX81..GD;GX81..GD,GT198808-199305

main47321-22200iGX81,LX80,SX80,YX80..GL,GR,LG,STD198808-199512

main47321-22210iJZX81..GD199008-199302

main47321-22220iLX80,SX80,YX80..KYO198808-199008

main47321-22221iLX80,SX80,YX80..KYO199008-199512

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10118iGX81,JZX81,LX80,MX83198808-199305

main90412-10119iSX80,YX80198808-199512

47322TUBE, REAR BRAKE, NO.2

main47322-22210iGX81..SPC198908-199008

main47322-22220iSX80,YX80198808-199512

main47322-22230iGX81199305-199512

main47322-22240iGX81..TWT198808-199008

main47322-22290iJZX81..GD199008-199302

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10098iLX80,SX80,YX80198808-199512

main90413-10228iGX81,JZX81,MX83198808-199305

47324TUBE, REAR BRAKE, NO.4

main47324-22210iGX81199305-199512

main47324-22220iSX80,YX80198808-199512

main47324-22240iJZX81;GX81,MX83..GDG198808-199302

main47324-22250iLX80198808-199308

47325TUBE, REAR BRAKE, NO.5

main47325-22060iGX81,JZX81,MX83198808-199305

47326TUBE, REAR BRAKE, NO.6

main47326-22070iGX81,JZX81,MX83198808-199305

47371ACLAMP, BRAKE TUBE, NO.1

main47371-22300×4iLX80199008-199308

main47371-22310×2iGX81,JZX81,MX83198808-199305

47372CLAMP, BRAKE TUBE, NO.2

main47371-22130iSX80,YX80;GX81,JZX81,LX80,MX83..GD,GDG,GL,GR,GT,LG198808-199305

main47371-22150iLX80..KYO198808-199302

47373BCLAMP, BRAKE TUBE, NO.3

main47371-22120iGX81,JZX81..GD,LG; GX81..GD199008-199305

main47371-22140×2iLX80..KYO198808-199302

main47371-22190iYX80198808-199512

main47371-22200×2iSX80; YX80198808-199512

main47371-22240iGX81199305-199512

main47371-22330iGX81..TWT198808-199008

9011906005

main90119-06005

9011906519

main90119-06519

9046106055

main90461-06055

9046808032

main90468-08032

9052312004

main90523-12004

9165160645

main91651-60645

91651B0614

main91651-B0614

25 parts on this diagram · 9 diagrams in section
