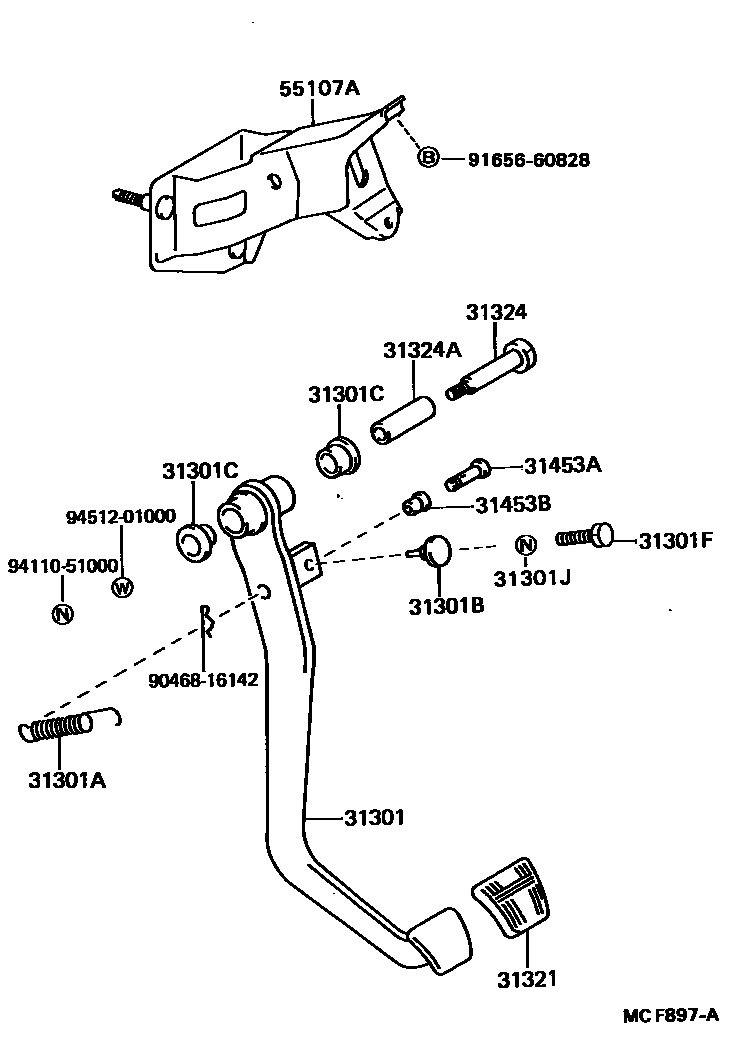

CLUTCH PEDAL & FLEXIBLE HOSE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

31301PEDAL SUB-ASSY, CLUTCH

main31301-22230iGX81,LX80,SX80,YX80..5F..(CI,DSL,HTWC,LPG,TWC)198808-199512

main31301-22240iLX80,SX80,YX80..5F..KYO198908-199512

main31310-22070iGX81,LX80..5F..(TD,TWT)198808-199302

31301ASPRING(FOR CLUTCH PEDAL)

main90507-12033iGX81,LX80,SX80,YX80..5F..(CI,DSL,HTWC,LPG,TWC)198808-199512

main90508-45001iGX81,LX80..5F..(TD,TWT)198808-199302

31301BCUSHION, NO.1(FOR CLUTCH PEDAL)

main90541-06008iGX81,LX80,SX80,YX80..5F198808-199512

31301CBUSH(FOR CLUTCH PEDAL)

main90386-13015iLX80,SX80,YX80..5F198808-199512

main90386-13192iGX81,LX80..5F..(TD,TWT)198808-199302

31301FBOLT(FOR CLUTCH PEDAL STOPPER)

main90101-10369iGX81,LX80,SX80,YX80..5F198808-199512

31301JNUT(FOR CLUTCH PEDAL STOPPER)

main94120-41000iGX81,LX80,SX80,YX80..5F198808-199512

31321PAD, CLUTCH PEDAL

main31321-14020iGX81,LX80,SX80,YX80..5F198808-199512

31324SHAFT, CLUTCH PEDAL

main90101-10039iGX81,LX80,SX80,YX80..5F198808-199512

31324ACOLLAR, CLUTCH PEDAL SHAFT

main90387-10003iGX81,LX80,SX80,YX80..5F198808-199512

31453APIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90240-08006iGX81,LX80..5F..(TD,TWT)198808-199302

main90249-08018iGX81,LX80,SX80,YX80..5F..(CI,DSL,HTWC,LPG,TWC)198808-199512

31453BBUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)

main90386-08002iGX81,LX80,SX80,YX80..5F198808-199512

55107ASUPPORT SUB-ASSY, CLUTCH PEDAL

main55107-22180iLX80..5F..TD198808-199302

main55107-22190iGX81,LX80,SX80,YX80..5F..(CI,DSL,HTWC,LPG,TWC)198808-199512

main55107-22200iGX81..5F..TWT198808-199008

9046816142

main90468-16142

9165660828

main91656-60828

9411051000

main94110-51000

9451201000

main94512-01000

16 parts on this diagram · 6 diagrams in section
