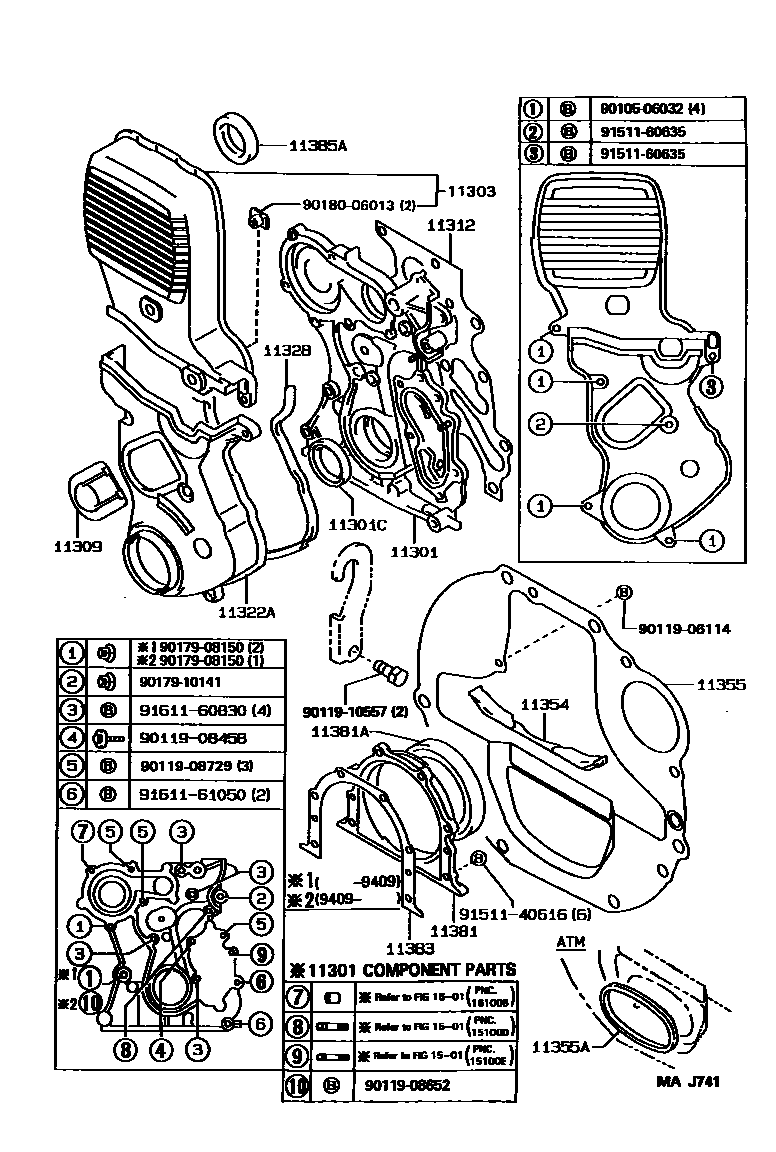

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

11301CASE SUB-ASSY, TIMING GEAR

main11301-42010i7MGE..MX83198908-199302

main11301-71010i3YP..YX80198808-199512

main11311-54050i2L#..LX80198808-199108

sub11311-54051

main11311-54051i2L#..LX80199108-199308

sub11311-54052

sub15115-54022

main11311-70030i1GGZE..GX81198808-199008

sub11311-79025

main11311-70040i1GFE..GX81198808-199010

sub11311-79035

main11311-79035i1GFE..GX81199010-199512

main11311-79055i1GGE..GX81199010-199302

main11311-88300i1GGE..GX81198808-199010

sub11311-79055

main11311-88340i1GGTE..GX81198808-199008

sub11311-79065

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-42003i7MGE..MX83198908-199302

sub90311-42026

main90311-42012i2L#..LX80198808-199102

main90311-42026i2L#..LX80199102-199308

main90311-45003i1GFE,1GG#..GX81198808-199512

sub90311-45015

11303COVER SUB-ASSY, CRANKSHAFT GEAR OR PULLEY

main11303-70010i1GGZE..GX81198808-199008

main11303-70020i1GFE..GX81198808-199512

11309COVER SUB-ASSY, TIMING BELT, NO.4

main11325-42010i7MGE..MX83198908-199302

main11325-88300i1GFE,1GG#..GX81198808-199512

11312GASKET, FRONT END PLATE

main11312-42010i7MGE..MX83198912-199302

main11312-43010i7MGE..MX83198908-198912

sub11312-42010

main11312-54021i2L#..LX80198808-199308

main11312-70013i1GFE,1GG#..GX81198808-199009

sub11312-70014

main11312-70013i1GGE..GX81199009-199302

*54

sub11312-70014

main11312-70014i1G#..GX81199009-199512

*53

sub11312-70020

main11313-42010i7MGE..MX83198908-198912

sub11313-42020

main11313-42020i7MGE..MX83198912-199302

11322ACOVER, TIMING BELT, NO.1

main11302-46020i1JZ#..JZX81199008-199210

sub11302-46021

main11302-46021i1JZGE..JZX81199210-199302

main11302-70020i1GGZE..GX81198808-199008

main11302-70040i1GFE..GX81198808-199512

main11321-88300i1GGE,1GGTE..GX81198808-199302

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-42010i7MGE..MX83198908-199302

main11328-54020i2L#..LX80198808-198904

sub11328-54021

main11328-54021i2L#..LX80198904-199308

main11328-70020i1GGZE..GX81198808-199008

main11328-70030i1GFE..GX81198808-199512

main11328-71011i3YP..YX80198808-198912

sub11328-71012

main11328-71012i3YP..YX80198912-199512

main11328-74010i4SF#..SX80198808-199512

main11328-88300i1GGE,1GGTE..GX81198808-199302

11354SEAL, FLYWHEEL HOUSING DUST

main11354-54010i2L#..LX80198808-199308

main11354-70010i1GFE,1GG#..GX81198808-199512

main11354-71010i3YP..YX80198808-199512

11355PLATE, REAR END

main11355-41010i7MGE..MX83198908-199302

main11355-54030i2L#..LX80..5F198808-199308

main11355-54040i2LT..LX80..4FC198808-199302

main11355-63010i4SF#..SX80198808-199512

main11355-70010i1GFE,1GGE,1GGTE..GX81..5F198808-199302

main11355-70020i1GFE,1GG#..GX81..4FC198808-199512

main11355-71010i3YP..YX80..5F198808-199512

main11355-71021i3YP..YX80..ATM198808-199512

11355APLUG, HOLE(FOR REAR END PLATE)

main90950-01160i3YP..YX80..ATM198808-199512

main90950-01263i2LT..LX80..4FC198808-199302

main90950-01307i1GFE,1GG#..GX81..4FC198808-199512

11381RETAINER, ENGINE REAR OIL SEAL

main11381-43010i7MGE..MX83198908-199302

main11381-46010i1JZ#..JZX81199008-199302

main11381-54020i2L#..LX80198808-199308

sub11381-54030

sub90116-08404

main11381-63011i4SFI..SX80198808-198907

sub11381-63012

main11381-63012i4SF#..SX80198907-199512

main11381-70010i1GFE,1GG#..GX81198808-199512

main11381-71010i3YP..YX80..4FC,5F198808-199512

11381ASEAL, ENGINE REAR OIL

main90311-75004i1GFE,1GG#..GX81198808-198908

sub90311-75006

main90311-75004i1GGE,1GGTE..GX81198908-198910

*54

sub90311-75006

main90311-75007i1GFE,1GG#..GX81198910-199512

main90311-75007i1GFE,1GGE,1GGZE..GX81198908-198910

*53

main90311-80001i7MGE..MX83198908-199302

main90311-80008i3YP..YX80..ATM;3YP..YX80..5F..GL198808-199303

sub90311-80009

main90311-80009i3YP..YX80..5F..KYO199302-199512

sub90311-80014

main90311-85004i2L#..LX80198808-199102

sub90311-85006

main90311-85006i4SFE..SX80198808-199305

sub90311-85009

main90311-85006i4SFE..SX80199305-199512

sub90311-85009

main90311-85007i2L#..LX80199209-199512

main90311-85007i4SFE..SX80199504-199512

main90311-90006i1JZ#..JZX81199008-199302

11383GASKET, ENGINE REAR OIL SEAL RETAINER

main11383-25010i3YP..YX80198808-198912

main11383-41010i7MGE..MX83198908-199302

main11383-54020i2L#..LX80198808-199107

sub11383-54030

main11383-54030i2L#..LX80199107-199308

main11383-63010i4SFI..SX80198808-198907

sub11383-63011

main11383-63011i4SF#..SX80198907-199111

sub11383-74021

main11383-70010i1GFE,1GGE,1GGZE..GX81198808-199009

*53

sub11383-70011

main11383-70011i1G#..GX81199009-199512

*53

main11383-71010i3YP..YX80..4FC,5F198912-199512

main11383-74020i4SFE..SX80199111-199202

sub11383-74021

main11383-74021i4SFE..SX80199202-199512

main11383-88340i1GGE,1GGTE..GX81198808-199302

*54

sub11383-70011

11385RETAINER, CAMSHAFT OIL SEAL

main11382-54020i2L#..LX80198808-199308

11385ASEAL, OIL(FOR CAMSHAFT)

main90311-35008i1GG#..GX81198808-199003

sub90311-35022

main90311-35008i1GGE,1GGTE..GX81199003-199007

*54

sub90311-35022

main90311-35013i1GFE..GX81199003-199512

sub90311-35022

main90311-35022i1GG#..GX81199007-199302

sub90311-35040

main90311-35022i1GGE,1GGZE..GX81199003-199007

*53

sub90311-35040

main90311-35022i1GFE..GX81199003-199512

sub90311-35040

main90311-38041i1JZGTE..JZX81199008-199210

main90311-40014i1JZGE..JZX81199008-199302

sub90311-40020

1501

1601

9010506032

main90105-06032

9011906114

main90119-06114

9011908458

main90119-08458

9011908652

main90119-08652

9011908729

main90119-08729

9011910557

main90119-10557

9017908150

main90179-08150

9017910141

main90179-10141

9018006013

main90180-06013

9151140616

main91511-40616

9151160635

main91511-60635

9161160830

main91611-60830

9161161050

main91611-61050

30 parts on this diagram · 9 diagrams in section
