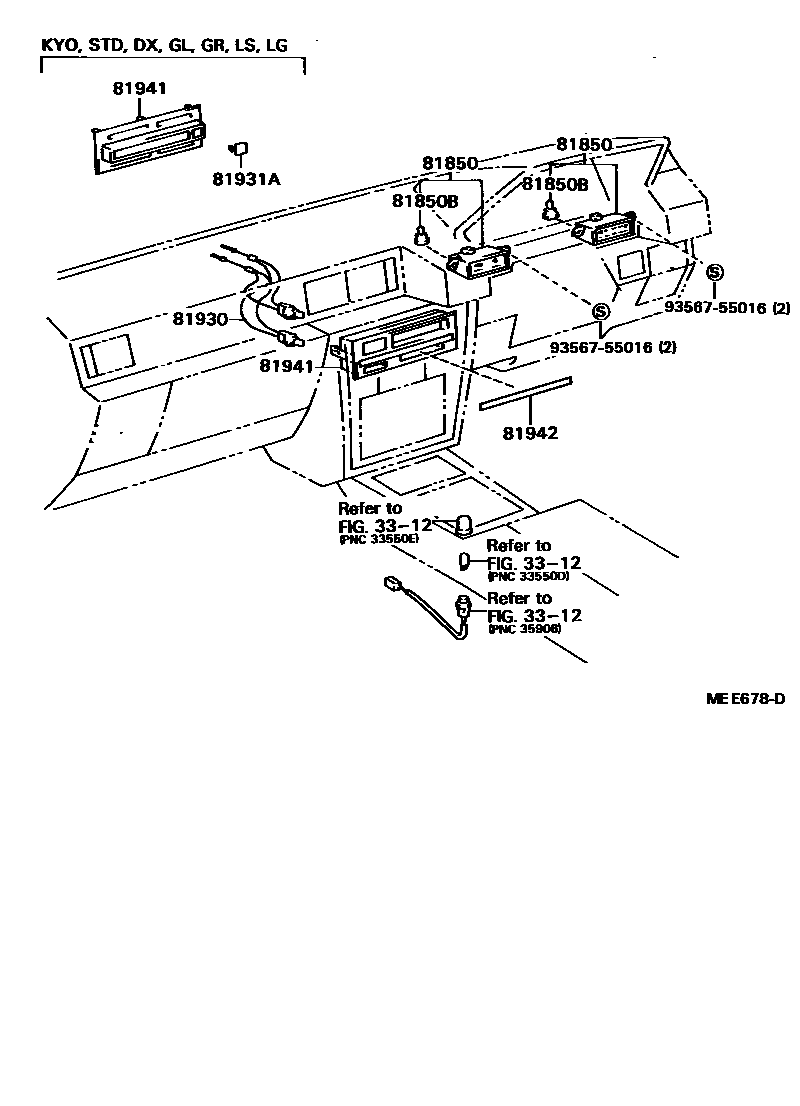

INDICATOR

3312

81850LAMP ASSY, INDICATOR

main81850-22130iGX71..5F..(TWC,TWT)198408-198608

INNER

sub81850-22300

main81850-22130iGX71..5F..(TWC,TWT)198408-198608

INNER,W/*DS

sub81850-22300

main81850-22140iLX7#198408-198608

INNER

main81850-22190iGX7#,MX71,SX70,YX7#198408-198608

OUTER

sub81850-22360

main81850-22200iLX70..GR198408-198608

OUTER

sub81850-22370

main81850-22260iGX71,MX71..4FC..(TBO,TWC,TWT)198408-198608

INNER,W/*AS

main81850-22290iLX7#..DX,GL,KYO198408-198608

OUTER

sub81850-22380

main81850-22300iGX71..5F..(TWC,TWT)198608-198808

INNER

main81850-22300iGX71..5F..(TWC,TWT)198608-198808

INNER,W/*DS

main81850-22310iLX7#198608-198808

INNER

main81850-22320iSX70,YX7#..DX,GL,KYO,STD198608-198808

INNER

main81850-22330iGX71..LS198608-198808

OUTER

main81850-22340iGX71..4FC..(TWC,TWT)198608-198808

INNER

main81850-22360iGX7#,SX70,YX7#198608-198808

OUTER

main81850-22370iLX70..GR198608-198808

OUTER

main81850-22380iLX7#..DX,GL,KYO198608-198808

OUTER

81850BBULB, INDICATOR LAMP

main84999-30020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

main84999-50140iGX7#,LX7#,SX70,YX7#198608-198808

81930LAMP ASSY, HEATER CONTROL INDICATOR, NO.1

main81930-22100iGX71,MX71..GD,GT198408-198608

81931ACOVER, COOLER SWITCH HOLE

main55538-22040iLX7#,SX70,YX7#..DX,GL,KYO,STD198408-198808

sub55538-22041

main55538-22050iGX7#,LX70,SX70..GR,LG198608-198808

81941PLATE, HEATER CONTROL NAME

main55519-22120iGX71,MX71..GD,GT198408-198608

main55519-22121iGX71..GD,GT198608-198808

sub55519-22122

main55519-22130iGX71,MX71..GD,GT198408-198608

W/*SMD

main55519-22131iGX71..GD,GT198608-198808

W/*SMD

main55519-22160iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

sub55519-22162

main55519-22161iLX7#,SX70,YX7#..DX,GL,KYO,STD198608-198808

sub55519-22162

main55519-22170iGX7#,LX70,SX70..GR,LG198408-198608

W/*AAC

main55519-22240iGX7#,LX70,SX70..GR,LG198608-198808

sub55519-22241

81942SHEET, HEATER CONTROL NAME

main81942-22010iGX7#,LX70,SX70..GR,LG198608-198808

W/*AAC

sub81942-22011

9356755016

main93567-55016

8 parts on this diagram · 1 diagram in section
