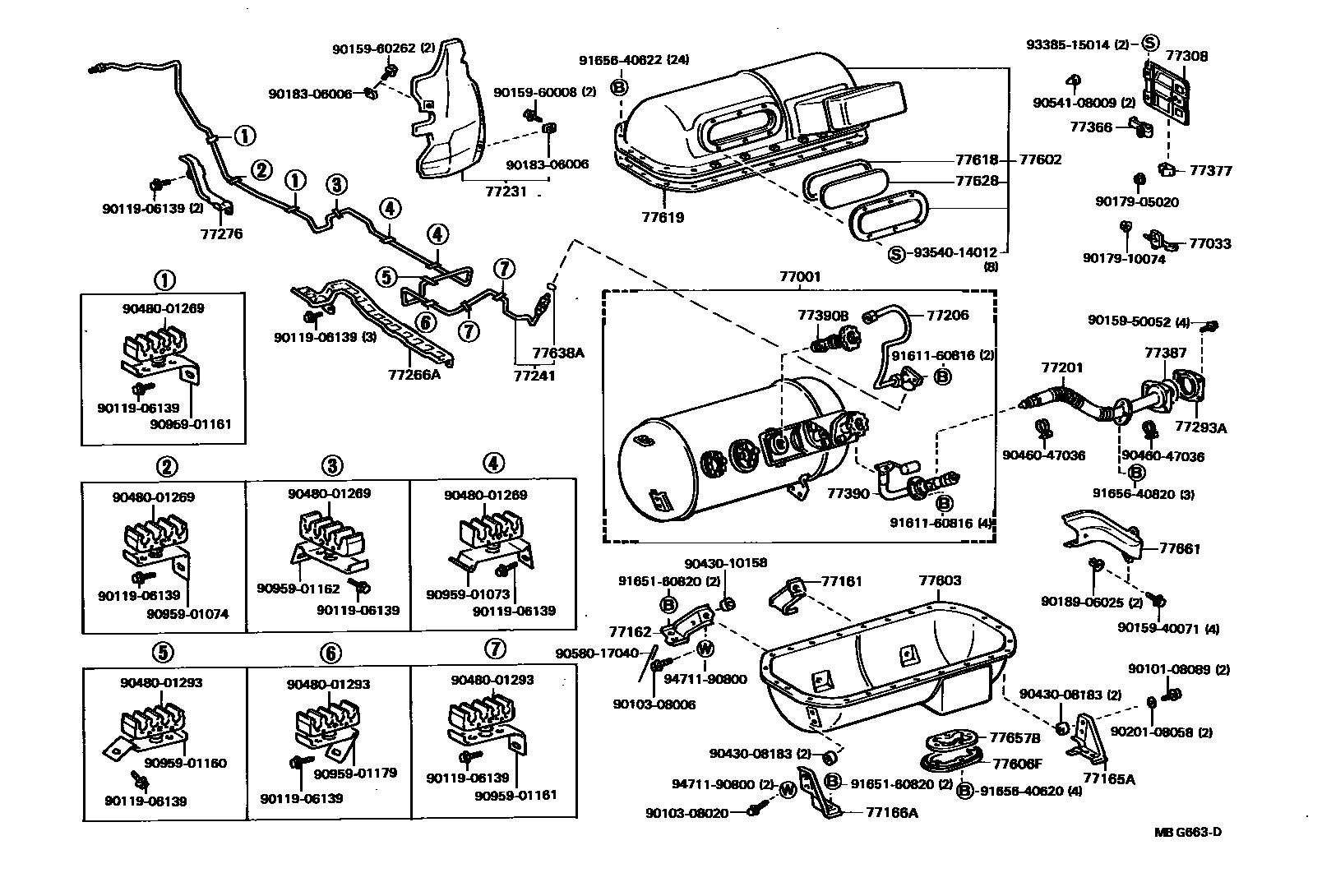

FUEL TANK & TUBE

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1

77001TANK ASSY, FUEL (LPG)

main77001-22370iYX70,72198408-198706

sub77001-22371

main77001-22371iYX72198706-198808

77033LOCK SUB-ASSY, FUEL TANK CAP

main77037-14010iGX7#,LX7#,MX71,SX70,YX76198408-198808

sub77037-90K00

main77037-22020iYX70,72198408-198808

77161BRACKET, FUEL TANK, FRONT RH

main77161-22020iYX70,72198408-198808

77162BRACKET, FUEL TANK, FRONT LH

main77162-22020iYX70,72198408-198808

77165ABRACKET, FUEL TANK MOUNTING, REAR NO.2 RH

main77165-22020iYX70,72198408-198808

77166ABRACKET, FUEL TANK MOUNTING, REAR NO.2 LH

main77166-22020iYX70,72198408-198808

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-22170iYX70,72198408-198808

main77201-22180iGX71,LX70,MX71,SX70198408-198808

main77201-23010iGX70,LX76,YX76198411-198506

main77201-23031iGX70,LX76,YX76198509-198710

sub77201-23032

main77201-23032iGX70,LX76,YX76198710-198808

main77201-23040iGX70,LX76,YX76198506-198506

main77201-23050iGX70,LX76,YX76198506-198509

77206TUBE SUB-ASSY, FUEL TANK SUCTION

main77017-22160iLX70198408-198808

main77017-22170iSX70198408-198808

main77017-23010iYX76198411-198808

main77017-23020iLX76198411-198808

main77203-22030iYX70,72198408-198808

77231PROTECTOR, INLET TUBE

main77277-22050iGX71,LX70,MX71,SX70198408-198808

main77277-22060iYX70,72198408-198808

main77277-23010iGX70,LX76,YX76198411-198808

77241TUBE, FUEL MAIN, NO.1

main77205-22120iSX70198408-198703

main77205-22121iSX70198703-198808

main77205-22130iLX70198408-198703

main77205-22131iLX70198703-198808

main77205-23010iLX76198411-198703

main77205-23011iLX76198703-198808

main77205-23040iYX76198411-198703

main77205-23041iYX76198703-198808

main77251-22280iGX71,MX71198408-198808

sub77251-22340

main77251-22310iYX70,72198408-198808

main77251-23020iGX70198411-198808

77266APROTECTOR, FUEL TUBE, NO.1

main77266-22040iGX7#,LX7#,MX71,SX70198408-198808

main77266-22050iYX7#198408-198808

77276PROTECTOR, FUEL HOSE

main77276-22020iGX7#,MX71198408-198808

main77276-22030iYX7#198408-198808

main77276-22040iLX7#,SX70198408-198808

77293ASHIELD, FUEL TANK FILLER PIPE, NO.3

main77293-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

77308COVER SUB-ASSY, FUEL INLET BOX

main77350-22060iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

sub77350-22080

main77350-22070iGX71,MX71,SX70..HT198408-198808

main77350-22080iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-24010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

77377RETAINER, FUEL FILLER OPENING LID LOCK

main77377-20030iGX7#,LX7#,SX70,YX7#198608-198808

main77377-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198608

77387RING, FUEL INLET BOX

main77391-16010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

77390VALVE ASSY, FUEL TANK INLET

main77390-22020iYX70,72198408-198808

77390BVALVE, FUEL TANK OUTLET

main90977-01019iYX70,72198408-198808

77602CASE SUB-ASSY, FUEL TANK, UPPER

main77601-22080iYX70,72198408-198808

77603CASE SUB-ASSY, FUEL TANK, LOWER

main77603-22050iYX70,72198408-198808

77606FCASE SUB-ASSY, FUEL TANK COVER VENT

main77606-20030iYX70,72198408-198808

77618GASKET, CASE WINDOW

main77618-30010iYX70,72198408-198808

77619SEAL, FUEL TANK VALVE COVER TO FLOOR

main77619-22030iYX70,72198408-198808

77628GLASS, CASE COVER WINDOW

main77628-30010iYX70,72198408-198808

77638ARING, O (FOR TANK VALVE JOINT SLEEVE)

main96712-24011iYX70,72198408-198808

77657BSEAL, FUEL TANK COVER VENT CASE, UPPER

main77657-20020iYX70,72198408-198808

77661COVER, FUEL INLET PIPE

main77661-22040iYX70,72198408-198808

9010108089

main90101-08089

9010308006

main90103-08006

9010308020

main90103-08020

9011906139

main90119-06139

9015940071

main90159-40071

9015950052

main90159-50052

9015960008

main90159-60008

9015960262

main90159-60262

9017905020

main90179-05020

9017910074

main90179-10074

9018306006

main90183-06006

9018906025

main90189-06025

9020108058

main90201-08058

9043008183

main90430-08183

9043010158

main90430-10158

9046047036

main90460-47036

9048001269

main90480-01269

9048001293

main90480-01293

9054108009

main90541-08009

9058017040

main90580-17040

9095901073

main90959-01073

9095901074

main90959-01074

9095901160

main90959-01160

9095901161

main90959-01161

9095901162

main90959-01162

9095901179

main90959-01179

9161160816

main91611-60816

9165160820

main91651-60820

9165640620

main91656-40620

9165640622

main91656-40622

9165640820

main91656-40820

9338515014

main93385-15014

9354014012

main93540-14012

9471190800

main94711-90800
