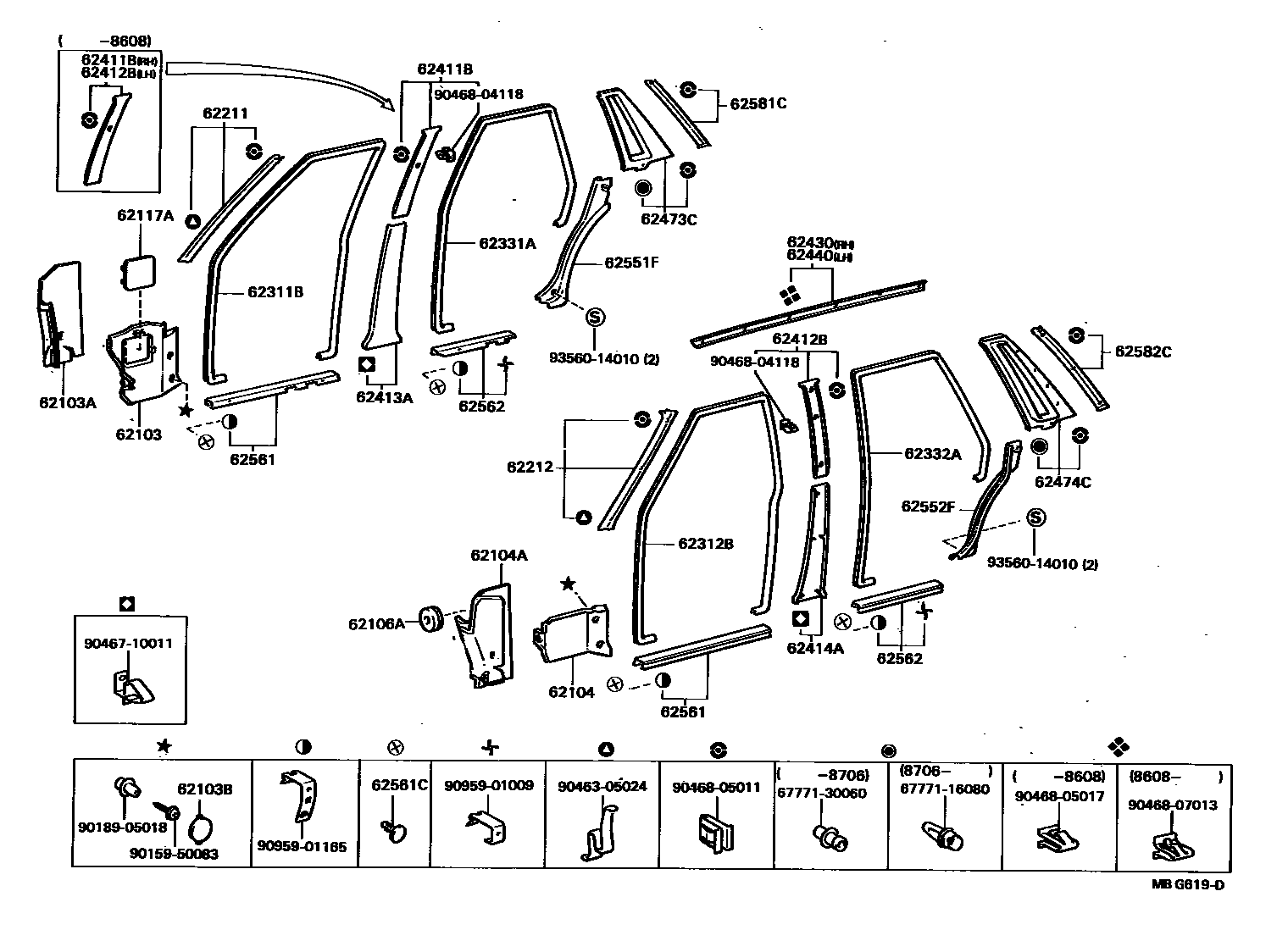

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-22140-02iGX7#,LX70,SX70..GR,LG198408-198808

MAROON,MAROON,TRIM3#

main62101-22140-03iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

main62101-22140-04iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,KYO,LG,LS,STD)198608-198808

BLUE,DARK BLUE,TRIM8#

main62101-22140-05iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

main62101-22140-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS); GX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62101-22160-02iGX71,MX71..GD,GT198408-198608

MAROON,MAROON,TRIM3#

main62101-22160-03iGX71,MX71..GD,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62101-22160-05iGX71,MX71..GD,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62101-22161-02iGX71..GD,GT198608-198808

MAROON,MAROON,TRIM3#

main62101-22161-04iGX71..GD,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62101-22161-05iGX71..GD,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62103AINSULATOR SUB-ASSY, COWL SIDE, RH

main62105-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

62103BPLUG(FOR COWL SIDE TRIM BOARD)

main90950-01427-02×4iGX7#,LX70,SX70..GR,LG198408-198808

MAROON,MAROON,TRIM3#

main90950-01427-03×4iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

main90950-01427-04×4iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS,STD); GX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

main90950-01427-05×4iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

main90950-01427-15×4iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS); GX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-22170-02iGX7#,LX70,SX70..GR,LG198408-198808

MAROON,MAROON,TRIM3#

main62102-22170-03iGX7#,LX7#,SX70,YX7#..DX,GL,GR,KYO,LG,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

main62102-22170-04iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,KYO,LG,LS,STD); GX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

main62102-22170-05iGX7#,LX7#,SX70,YX7#..DX,GL,GR,LG,LS198408-198608

BEIGE,BEIGE,TRIM4#

main62102-22170-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS); GX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62102-22190-02iGX71,MX71..GD,GT198408-198608

MAROON,MAROON,TRIM3#

main62102-22190-03iGX71,MX71..GD,GT198408-198608

GRAY,COOL GRAY,TRIM1#

main62102-22190-05iGX71,MX71..GD,GT198408-198608

BEIGE,BEIGE,TRIM4#

main62102-22191-02iGX71..GD,GT198608-198808

MAROON,MAROON,TRIM3#

main62102-22191-04iGX71..GD,GT198608-198808

BLUE,DARK BLUE,TRIM8#

main62102-22191-05iGX71..GD,GT198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62102-22210-02iGX71..4FC..GD198408-198608

W/ESC,MAROON,MAROON,TRIM3#

main62102-22210-03iGX71..4FC..GD198408-198608

W/ESC,GRAY,COOL GRAY,TRIM1#

main62102-22210-05iGX71..4FC..GD198408-198608

W/ESC,BEIGE,BEIGE,TRIM4#

main62102-22211-02iGX71..4FC..TWC198608-198808

W/4-ESC,MAROON,MAROON,TRIM3#

main62102-22211-04iGX71..4FC..TWC198608-198808

W/4-ESC,BLUE,DARK BLUE,TRIM8#

main62102-22211-05iGX71..4FC..TWC198608-198808

W/4-ESC,BEIGE,DARK BEIGE,TRIM4#

62104AINSULATOR SUB-ASSY, COWL SIDE, LH

main62106-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

62106AINSULATOR SUB-ASSY, COWL SIDE, UPPER LH

main62107-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22030-02iGX7#,LX70,MX71,SX70..GD,GR,LG198408-198510

MAROON,MAROON,TRIM3#

main62117-22030-03iGX7#,LX7#,MX71,SX70,YX7#198408-198510

GRAY,COOL GRAY,TRIM1#

main62117-22030-05iGX7#,LX7#,MX71,SX70,YX7#..DX,GD,GL,GR,LG,LS198408-198510

BEIGE,BEIGE,TRIM4#

main62117-22031-02iGX7#,LX70,SX70..GD,GR,GT,LG198510-198608

MAROON,MAROON,TRIM3#

main62117-22031-03iGX7#,LX7#,SX70,YX7#198510-198608

GRAY,COOL GRAY,TRIM1#

main62117-22031-05iGX7#,LX7#,SX70,YX7#..DX,GD,GL,GR,GT,LG,LS198510-198608

BEIGE,BEIGE,TRIM4#

main62117-22050-02iGX7#,LX70,SX70..GD,GR,GT,LG198608-198808

MAROON,MAROON,TRIM3#

main62117-22050-04iGX7#,LX7#,SX70,YX7#..SED,V,WG; GX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

main62117-22050-05iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS); GX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62211GARNISH, FRONT PILLAR, RH

main62211-22120-02iGX7#,LX70,SX70..(SED,WG)..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62211-22120-03iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,KYO,LG,LS,STD)198408-198608

GRAY,COOL GRAY,TRIM1#

main62211-22120-04iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,KYO,LG,LS,STD)198608-198808

BLUE,DARK BLUE,TRIM8#

main62211-22120-05iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62211-22120-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62211-22130-02iGX71,MX71..SED..GD198408-198808

MAROON,MAROON,TRIM3#

main62211-22130-03iGX71,MX71..SED..GD198408-198608

GRAY,COOL GRAY,TRIM1#

main62211-22130-04iGX71..SED..GD198608-198808

BLUE,DARK BLUE,TRIM8#

main62211-22130-05iGX71,MX71..SED..GD198408-198608

BEIGE,BEIGE,TRIM4#

main62211-22130-15iGX71..SED..GD198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62211-22170-02iGX71,SX70..HT..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62211-22170-03iGX71..HT..LG198408-198608

GRAY,COOL GRAY,TRIM1#

main62211-22170-04iGX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

main62211-22170-05iGX71..HT..LG198408-198608

BEIGE,BEIGE,TRIM4#

main62211-22170-15iGX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62211-22180-02iGX71,MX71..HT..(GD,GT)198408-198808

MAROON,MAROON,TRIM3#

main62211-22180-03iGX71,MX71..HT..(GD,GT)198408-198608

GRAY,COOL GRAY,TRIM1#

main62211-22180-04iGX71..HT..(GD,GT)198608-198808

BLUE,DARK BLUE,TRIM8#

main62211-22180-05iGX71,MX71..HT..(GD,GT)198408-198608

BEIGE,BEIGE,TRIM4#

main62211-22180-15iGX71..HT..(GD,GT)198608-198808

BEIGE,DARK BEIGE,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-22130-02iGX7#,LX70,SX70..(SED,WG)..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62212-22130-03iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,KYO,LG,LS,STD)198408-198608

GRAY,COOL GRAY,TRIM1#

main62212-22130-04iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,KYO,LG,LS,STD)198608-198808

BLUE,DARK BLUE,TRIM8#

main62212-22130-05iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62212-22130-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62212-22140-02iGX71,MX71..SED..GD198408-198808

MAROON,MAROON,TRIM3#

main62212-22140-03iGX71,MX71..SED..GD198408-198608

GRAY,COOL GRAY,TRIM1#

main62212-22140-04iGX71..SED..GD198608-198808

BLUE,DARK BLUE,TRIM8#

main62212-22140-05iGX71,MX71..SED..GD198408-198608

BEIGE,BEIGE,TRIM4#

main62212-22140-15iGX71..SED..GD198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62212-22180-02iGX71,SX70..HT..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62212-22180-03iGX71..HT..LG198408-198608

GRAY,COOL GRAY,TRIM1#

main62212-22180-04iGX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

main62212-22180-05iGX71..HT..LG198408-198608

BEIGE,BEIGE,TRIM4#

main62212-22180-15iGX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62212-22190-02iGX71,MX71..HT..(GD,GT)198408-198808

MAROON,MAROON,TRIM3#

main62212-22190-03iGX71,MX71..HT..(GD,GT)198408-198608

GRAY,COOL GRAY,TRIM1#

main62212-22190-04iGX71..HT..(GD,GT)198608-198808

BLUE,DARK BLUE,TRIM8#

main62212-22190-05iGX71,MX71..HT..(GD,GT)198408-198608

BEIGE,BEIGE,TRIM4#

main62212-22190-15iGX71..HT..(GD,GT)198608-198808

BEIGE,DARK BEIGE,TRIM4#

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-22010-02iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198408-198608

MAROON,MAROON,TRIM3#

main62311-22010-03iGX7#,LX70,MX71,SX70,YX70..(SED,WG)..(GD,GL,GR,LG,LS)198408-198608

GRAY,COOL GRAY,TRIM1#

main62311-22010-05iGX7#,LX70,MX71,SX70,YX70..(SED,WG)..(GD,GL,GR,LG)198408-198608

BEIGE,BEIGE,TRIM4#

main62311-22011-02iGX7#,LX70,SX70..(SED,WG)..(GD,GR,LG)198608-198808

MAROON,MAROON,TRIM3#

main62311-22011-04iGX7#,LX70,SX70,YX72..(SED,WG)..(GD,GL,GR,LG,LS)198608-198808

BLUE,DARK BLUE,TRIM8#

main62311-22011-05iGX7#,LX70,SX70,YX72..(SED,WG)..(GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62313-22110-03iLX76,YX76198411-198608

GRAY,COOL GRAY,TRIM1#

main62313-22110-04iLX70,SX70,YX72..KYO,STD; LX76,YX76198608-198808

BLUE,DARK BLUE,TRIM8#

main62313-22110-05iLX76,YX76198411-198608

BEIGE,BEIGE,TRIM4#

main62313-22110-15iLX76,YX76198608-198808

BEIGE,DARK BEIGE,TRIM4#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-22010-02iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198408-198608

MAROON,MAROON,TRIM3#

main62312-22010-03iGX7#,LX70,MX71,SX70,YX70..(SED,WG)..(GD,GL,GR,LG,LS)198408-198608

GRAY,COOL GRAY,TRIM1#

main62312-22010-05iGX7#,LX70,MX71,SX70,YX70..(SED,WG)..(GD,GL,GR,LG)198408-198608

BEIGE,BEIGE,TRIM4#

main62312-22011-02iGX7#,LX70,SX70..(SED,WG)..(GD,GR,LG)198608-198808

MAROON,MAROON,TRIM3#

main62312-22011-04iGX7#,LX70,SX70,YX72..(SED,WG)..(GD,GL,GR,LG,LS)198608-198808

BLUE,DARK BLUE,TRIM8#

main62312-22011-05iGX7#,LX70,SX70,YX72..(SED,WG)..(GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62313-22110-03iLX76,YX76198411-198608

GRAY,COOL GRAY,TRIM1#

main62313-22110-04iLX70,SX70,YX72..KYO,STD; LX76,YX76198608-198808

BLUE,DARK BLUE,TRIM8#

main62313-22110-05iLX76,YX76198411-198608

BEIGE,BEIGE,TRIM4#

main62313-22110-15iLX76,YX76198608-198808

BEIGE,DARK BEIGE,TRIM4#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-22010-02iGX71,LX70,MX71,SX70..SED..(GD,GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62331-22010-03iGX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG,LS)198408-198608

GRAY,COOL GRAY,TRIM1#

main62331-22010-04iGX71,LX70,SX70,YX72..SED..(GD,GL,LG,LS)198608-198808

BLUE,DARK BLUE,TRIM8#

main62331-22010-05iGX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG)198408-198608

BEIGE,BEIGE,TRIM4#

main62331-22010-15iGX71,LX70,SX70,YX72..SED..(GD,GL,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62331-23010-02iGX70198411-198808

MAROON,MAROON,TRIM3#

main62331-23010-03iGX70198411-198608

GRAY,COOL GRAY,TRIM1#

main62331-23010-04iGX70198608-198808

BLUE,DARK BLUE,TRIM8#

main62331-23010-05iGX70198411-198608

BEIGE,BEIGE,TRIM4#

main62331-23010-15iGX70198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62333-22050-03iLX70,SX70,YX70..KYO,STD198408-198608

GRAY,COOL GRAY,TRIM1#

main62333-22050-04iLX70,SX70,YX72..KYO,STD198608-198808

BLUE,DARK BLUE,TRIM8#

main62333-23010-03iLX76,YX76198411-198608

GRAY,COOL GRAY,TRIM1#

main62333-23010-04iLX76,YX76198608-198808

BLUE,DARK BLUE,TRIM8#

main62333-23010-05iLX76,YX76198411-198608

BEIGE,BEIGE,TRIM4#

main62333-23010-15iLX76,YX76198608-198808

BEIGE,DARK BEIGE,TRIM4#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-22010-02iGX71,LX70,MX71,SX70..SED..(GD,GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62332-22010-03iGX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG,LS)198408-198608

GRAY,COOL GRAY,TRIM1#

main62332-22010-04iGX71,LX70,SX70,YX72..SED..(GD,GL,LG,LS)198608-198808

BLUE,DARK BLUE,TRIM8#

main62332-22010-05iGX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG)198408-198608

BEIGE,BEIGE,TRIM4#

main62332-22010-15iGX71,LX70,SX70,YX72..SED..(GD,GL,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62332-23010-02iGX70198411-198808

MAROON,MAROON,TRIM3#

main62332-23010-03iGX70198411-198608

GRAY,COOL GRAY,TRIM1#

main62332-23010-04iGX70198608-198808

BLUE,DARK BLUE,TRIM8#

main62332-23010-05iGX70198411-198608

BEIGE,BEIGE,TRIM4#

main62332-23010-15iGX70198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62333-22050-03iLX70,SX70,YX70..KYO,STD198408-198608

GRAY,COOL GRAY,TRIM1#

main62333-22050-04iLX70,SX70,YX72..KYO,STD198608-198808

BLUE,DARK BLUE,TRIM8#

main62333-23010-03iLX76,YX76198411-198608

GRAY,COOL GRAY,TRIM1#

main62333-23010-04iLX76,YX76198608-198808

BLUE,DARK BLUE,TRIM8#

main62333-23010-05iLX76,YX76198411-198608

BEIGE,BEIGE,TRIM4#

main62333-23010-15iLX76,YX76198608-198808

BEIGE,DARK BEIGE,TRIM4#

62411BGARNISH, CENTER PILLAR, UPPER RH

main62411-22150-02iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198408-198608

MAROON,MAROON,TRIM3#

main62411-22150-03iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

GRAY,COOL GRAY,TRIM1#

main62411-22150-05iGX7#,LX7#,MX71,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62411-22170-02iGX7#,LX70,SX70..(SED,WG)..(GD,GR,LG)198608-198808

MAROON,MAROON,TRIM3#

main62411-22170-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

main62411-22170-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62411-22190-02iGX71,MX71..HT198408-198608

MAROON,MAROON,TRIM3#

main62411-22190-03iGX71,MX71..HT198408-198608

GRAY,COOL GRAY,TRIM1#

main62411-22190-05iGX71,MX71..HT198408-198608

BEIGE,BEIGE,TRIM4#

main62411-22200-02iGX71,SX70..HT198608-198808

MAROON,MAROON,TRIM3#

main62411-22200-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

main62411-22200-05iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62412BGARNISH, CENTER PILLAR, UPPER LH

main62412-22170-02iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198408-198608

MAROON,MAROON,TRIM3#

main62412-22170-03iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

GRAY,COOL GRAY,TRIM1#

main62412-22170-05iGX7#,LX7#,MX71,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62412-22190-02iGX7#,LX70,SX70..(SED,WG)..(GD,GR,LG)198608-198808

MAROON,MAROON,TRIM3#

main62412-22190-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

main62412-22190-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62412-22210-02iGX71,MX71..HT198408-198608

MAROON,MAROON,TRIM3#

main62412-22210-03iGX71,MX71..HT198408-198608

GRAY,COOL GRAY,TRIM1#

main62412-22210-05iGX71,MX71..HT198408-198608

BEIGE,BEIGE,TRIM4#

main62412-22220-02iGX71,SX70..HT198608-198808

MAROON,MAROON,TRIM3#

main62412-22220-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

main62412-22220-05iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-22040-02iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62413-22040-03iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

GRAY,COOL GRAY,TRIM1#

main62413-22040-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

main62413-22040-05iGX7#,LX7#,MX71,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62413-22040-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62413-22060-02iGX71,MX71,SX70..HT198408-198808

MAROON,MAROON,TRIM3#

main62413-22060-03iGX71,MX71..HT198408-198608

GRAY,COOL GRAY,TRIM1#

main62413-22060-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

main62413-22060-05iGX71,MX71..HT198408-198608

BEIGE,BEIGE,TRIM4#

main62413-22060-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-22040-02iGX7#,LX70,MX71,SX70..(SED,WG)..(GD,GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62414-22040-03iGX7#,LX7#,MX71,SX70,YX7#..SED,V,WG198408-198608

GRAY,COOL GRAY,TRIM1#

main62414-22040-04iGX7#,LX7#,SX70,YX7#..SED,V,WG198608-198808

BLUE,DARK BLUE,TRIM8#

main62414-22040-05iGX7#,LX7#,MX71,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62414-22040-15iGX7#,LX7#,SX70,YX7#..(SED,V,WG)..(DX,GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62414-22060-02iGX71,MX71,SX70..HT198408-198808

MAROON,MAROON,TRIM3#

main62414-22060-03iGX71,MX71..HT198408-198608

GRAY,COOL GRAY,TRIM1#

main62414-22060-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

main62414-22060-05iGX71,MX71..HT198408-198608

BEIGE,BEIGE,TRIM4#

main62414-22060-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-22060-02iGX71,LX70,SX70..SED..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62431-22060-03iGX71,LX70,SX70..SED..(GR,LG)198408-198608

GRAY,COOL GRAY,TRIM1#

main62431-22060-04iGX71,LX70,SX70..SED..(GR,LG)198608-198808

BLUE,DARK BLUE,TRIM8#

main62431-22060-05iGX71,LX70,SX70..SED..(GR,LG)198408-198608

BEIGE,BEIGE,TRIM4#

main62431-22060-15iGX71,LX70,SX70..SED..(GR,LG)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62431-22070-02iGX71,MX71..SED..GD198408-198808

MAROON,MAROON,TRIM3#

main62431-22070-03iGX71,MX71..SED..GD198408-198608

GRAY,COOL GRAY,TRIM1#

main62431-22070-04iGX71..SED..GD198608-198808

BLUE,DARK BLUE,TRIM8#

main62431-22070-05iGX71,MX71..SED..GD198408-198608

BEIGE,BEIGE,TRIM4#

main62431-22070-15iGX71..SED..GD198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62431-22110-02iGX71,SX70..HT..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62431-22110-03iGX71..HT..LG198408-198608

GRAY,COOL GRAY,TRIM1#

main62431-22110-04iGX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

main62431-22110-05iGX71..HT..LG198408-198608

BEIGE,BEIGE,TRIM4#

main62431-22110-15iGX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62431-22120-02iGX71,MX71..HT..(GD,GT)198408-198808

MAROON,MAROON,TRIM3#

main62431-22120-03iGX71,MX71..HT..(GD,GT)198408-198608

GRAY,COOL GRAY,TRIM1#

main62431-22120-04iGX71..HT..(GD,GT)198608-198808

BLUE,DARK BLUE,TRIM8#

main62431-22120-05iGX71,MX71..HT..(GD,GT)198408-198608

BEIGE,BEIGE,TRIM4#

main62431-22120-15iGX71..HT..(GD,GT)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62431-23010-02iGX70198411-198808

MAROON,MAROON,TRIM3#

main62431-23010-03iGX70198411-198608

GRAY,COOL GRAY,TRIM1#

main62431-23010-04iGX70198608-198808

BLUE,DARK BLUE,TRIM8#

main62431-23010-05iGX70198411-198608

BEIGE,BEIGE,TRIM4#

main62431-23010-15iGX70198608-198808

BEIGE,DARK BEIGE,TRIM4#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-22060-02iGX71,LX70,SX70..SED..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62432-22060-03iGX71,LX70,SX70..SED..(GR,LG)198408-198608

GRAY,COOL GRAY,TRIM1#

main62432-22060-04iGX71,LX70,SX70..SED..(GR,LG)198608-198808

BLUE,DARK BLUE,TRIM8#

main62432-22060-05iGX71,LX70,SX70..SED..(GR,LG)198408-198608

BEIGE,BEIGE,TRIM4#

main62432-22060-15iGX71,LX70,SX70..SED..(GR,LG)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62432-22070-02iGX71,MX71..SED..GD198408-198808

MAROON,MAROON,TRIM3#

main62432-22070-03iGX71,MX71..SED..GD198408-198608

GRAY,COOL GRAY,TRIM1#

main62432-22070-04iGX71..SED..GD198608-198808

BLUE,DARK BLUE,TRIM8#

main62432-22070-05iGX71,MX71..SED..GD198408-198608

BEIGE,BEIGE,TRIM4#

main62432-22070-15iGX71..SED..GD198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62432-22110-02iGX71,SX70..HT..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62432-22110-03iGX71..HT..LG198408-198608

GRAY,COOL GRAY,TRIM1#

main62432-22110-04iGX71..HT..LG198608-198808

BLUE,DARK BLUE,TRIM8#

main62432-22110-05iGX71..HT..LG198408-198608

BEIGE,BEIGE,TRIM4#

main62432-22110-15iGX71..HT..LG198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62432-22120-02iGX71,MX71..HT..(GD,GT)198408-198808

MAROON,MAROON,TRIM3#

main62432-22120-03iGX71,MX71..HT..(GD,GT)198408-198608

GRAY,COOL GRAY,TRIM1#

main62432-22120-04iGX71..HT..(GD,GT)198608-198808

BLUE,DARK BLUE,TRIM8#

main62432-22120-05iGX71,MX71..HT..(GD,GT)198408-198608

BEIGE,BEIGE,TRIM4#

main62432-22120-15iGX71..HT..(GD,GT)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62432-23010-02iGX70198411-198808

MAROON,MAROON,TRIM3#

main62432-23010-03iGX70198411-198608

GRAY,COOL GRAY,TRIM1#

main62432-23010-04iGX70198608-198808

BLUE,DARK BLUE,TRIM8#

main62432-23010-05iGX70198411-198608

BEIGE,BEIGE,TRIM4#

main62432-23010-15iGX70198608-198808

BEIGE,DARK BEIGE,TRIM4#

62473CBOARD, ROOF SIDE INNER GARNISH, RH

main62473-22120-03iGX71,LX70,SX70,YX70..GL,KYO,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

main62473-22120-04iGX71,LX70,SX70,YX72..GL,KYO,LS,STD198608-198808

BLUE,DARK BLUE,TRIM8#

main62473-22120-05iGX71,LX70,SX70,YX70..GL,LS198408-198608

BEIGE,BEIGE,TRIM4#

main62473-22120-15iGX71,LX70,SX70,YX72..GL,LS198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62473-22140-02iGX71,LX70,SX70..SED..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62473-22140-03iGX71,LX70,SX70..SED..(GR,LG)198408-198608

GRAY,COOL GRAY,TRIM1#

main62473-22140-04iGX71,LX70,SX70..SED..(GR,LG)198608-198808

BLUE,DARK BLUE,TRIM8#

main62473-22140-05iGX71,LX70,SX70..SED..(GR,LG)198408-198608

BEIGE,BEIGE,TRIM4#

main62473-22140-15iGX71,LX70,SX70..SED..(GR,LG)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62473-22150-03iGX71..SED..GD198605-198608

GRAY,COOL GRAY,TRIM1#

main62473-22150-05iGX71..SED..GD198605-198608

BEIGE,BEIGE,TRIM4#

main62473-22160-02iGX71,MX71..SED..GD198408-198808

MAROON,MAROON,TRIM3#

main62473-22160-03iGX71,MX71..SED..GD198408-198605

GRAY,COOL GRAY,TRIM1#

main62473-22160-04iGX71..SED..GD198608-198808

BLUE,DARK BLUE,TRIM8#

main62473-22160-05iGX71,MX71..SED..GD198408-198605

BEIGE,BEIGE,TRIM4#

main62473-22160-15iGX71..SED..GD198608-198808

BEIGE,DARK BEIGE,TRIM4#

62474CBOARD, ROOF SIDE INNER GARNISH, LH

main62474-22120-03iGX71,LX70,SX70,YX70..GL,KYO,LS,STD198408-198608

GRAY,COOL GRAY,TRIM1#

main62474-22120-04iGX71,LX70,SX70,YX72..GL,KYO,LS,STD198608-198808

BLUE,DARK BLUE,TRIM8#

main62474-22120-05iGX71,LX70,SX70,YX70..GL,LS198408-198608

BEIGE,BEIGE,TRIM4#

main62474-22120-15iGX71,LX70,SX70,YX72..GL,LS198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62474-22140-02iGX71,LX70,SX70..SED..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62474-22140-03iGX71,LX70,SX70..SED..(GR,LG)198408-198608

GRAY,COOL GRAY,TRIM1#

main62474-22140-04iGX71,LX70,SX70..SED..(GR,LG)198608-198808

BLUE,DARK BLUE,TRIM8#

main62474-22140-05iGX71,LX70,SX70..SED..(GR,LG)198408-198608

BEIGE,BEIGE,TRIM4#

main62474-22140-15iGX71,LX70,SX70..SED..(GR,LG)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62474-22150-03iGX71..SED..GD198605-198608

GRAY,COOL GRAY,TRIM1#

main62474-22150-05iGX71..SED..GD198605-198608

BEIGE,BEIGE,TRIM4#

main62474-22160-02iGX71,MX71..SED..GD198408-198808

MAROON,MAROON,TRIM3#

main62474-22160-03iGX71,MX71..SED..GD198408-198605

GRAY,COOL GRAY,TRIM1#

main62474-22160-04iGX71..SED..GD198608-198808

BLUE,DARK BLUE,TRIM8#

main62474-22160-05iGX71,MX71..SED..GD198408-198605

BEIGE,BEIGE,TRIM4#

main62474-22160-15iGX71..SED..GD198608-198808

BEIGE,DARK BEIGE,TRIM4#

62551FGARNISH, REAR SEAT SIDE, RH

main62551-22020-02iGX71,LX70,MX71,SX70..SED..(GD,GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62551-22020-03iGX71,LX70,MX71,SX70,YX70..SED198408-198608

GRAY,COOL GRAY,TRIM1#

main62551-22020-04iGX71,LX70,SX70,YX72..SED198608-198808

BLUE,DARK BLUE,TRIM8#

main62551-22020-05iGX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62551-22020-15iGX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62551-22030-02iGX71,MX71..HT198408-198808

MAROON,MAROON,TRIM3#

main62551-22030-03iGX71,MX71..HT198408-198608

GRAY,COOL GRAY,TRIM1#

main62551-22030-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

main62551-22030-05iGX71,MX71..HT198408-198608

BEIGE,BEIGE,TRIM4#

main62551-22030-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62552FGARNISH, REAR SEAT SIDE, LH

main62552-22020-02iGX71,LX70,MX71,SX70..SED..(GD,GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62552-22020-03iGX71,LX70,MX71,SX70,YX70..SED198408-198608

GRAY,COOL GRAY,TRIM1#

main62552-22020-04iGX71,LX70,SX70,YX72..SED198608-198808

BLUE,DARK BLUE,TRIM8#

main62552-22020-05iGX71,LX70,MX71,SX70,YX70..SED..(GD,GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62552-22020-15iGX71,LX70,SX70,YX72..SED..(GD,GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62552-22030-02iGX71,MX71,SX70..HT198408-198808

MAROON,MAROON,TRIM3#

main62552-22030-03iGX71,MX71..HT198408-198608

GRAY,COOL GRAY,TRIM1#

main62552-22030-04iGX71..HT198608-198808

BLUE,DARK BLUE,TRIM8#

main62552-22030-05iGX71,MX71..HT198408-198608

BEIGE,BEIGE,TRIM4#

main62552-22030-15iGX71..HT198608-198808

BEIGE,DARK BEIGE,TRIM4#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198808

RH

main62562-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198808

LH

62561CCLIP (FOR ROCKER PANEL INNER PROTECTOR)

main90467-08056-03×6iGX7#,LX7#,MX71,SX70,YX70,76198408-198808

GRAY,LIGHT GRAY

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-22020iGX7#,LX7#,MX71,SX70,YX7#198408-198808

RH

main62564-22010iGX7#,LX7#,MX71,SX70,YX7#198408-198808

LH

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-22050-02iGX71,LX70,SX70..SED..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62581-22050-03iGX71,LX70,SX70,YX70..SED..(GL,GR,KYO,LG,LS,STD)198408-198608

GRAY,COOL GRAY,TRIM1#

main62581-22050-04iGX71,LX70,SX70,YX72..SED..(GL,GR,KYO,LG,LS,STD)198608-198808

BLUE,DARK BLUE,TRIM8#

main62581-22050-05iGX71,LX70,SX70,YX70..SED..(GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62581-22050-15iGX71,LX70,SX70,YX72..SED..(GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62581-22060-02iGX71,MX71..SED..GD198408-198808

MAROON,MAROON,TRIM3#

main62581-22060-03iGX71,MX71..SED..GD198408-198608

GRAY,COOL GRAY,TRIM1#

main62581-22060-04iGX71..SED..GD198608-198808

BLUE,DARK BLUE,TRIM8#

main62581-22060-05iGX71,MX71..SED..GD198408-198608

BEIGE,BEIGE,TRIM4#

main62581-22060-15iGX71..SED..GD198608-198808

BEIGE,DARK BEIGE,TRIM4#

62582CGARNISH, REAR WINDOW SIDE, LH

main62582-22030-02iGX71,LX70,SX70..SED..(GR,LG)198408-198808

MAROON,MAROON,TRIM3#

main62582-22030-03iGX71,LX70,SX70,YX70..SED..(GL,GR,KYO,LG,LS,STD)198408-198608

GRAY,COOL GRAY,TRIM1#

main62582-22030-04iGX71,LX70,SX70,YX72..SED..(GL,GR,KYO,LG,LS,STD)198608-198808

BLUE,DARK BLUE,TRIM8#

main62582-22030-05iGX71,LX70,SX70,YX70..SED..(GL,GR,LG,LS)198408-198608

BEIGE,BEIGE,TRIM4#

main62582-22030-15iGX71,LX70,SX70,YX72..SED..(GL,GR,LG,LS)198608-198808

BEIGE,DARK BEIGE,TRIM4#

main62582-22040-02iGX71,MX71..SED..GD198408-198808

MAROON,MAROON,TRIM3#

main62582-22040-03iGX71,MX71..SED..GD198408-198608

GRAY,COOL GRAY,TRIM1#

main62582-22040-04iGX71..SED..GD198608-198808

BLUE,DARK BLUE,TRIM8#

main62582-22040-05iGX71,MX71..SED..GD198408-198608

BEIGE,BEIGE,TRIM4#

main62582-22040-15iGX71..SED..GD198608-198808

BEIGE,DARK BEIGE,TRIM4#

6777116080WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-16080

6777130060WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30060

9015950083

main90159-50083

9018905018

main90189-05018

9046305024

main90463-05024

9046710011

main90467-10011

9046804118

main90468-04118

9046805011

main90468-05011

9046805017

main90468-05017

9046807013

main90468-07013

9095901009

main90959-01009

9095901165

main90959-01165

9356014010

main93560-14010

41 parts on this diagram · 3 diagrams in section
