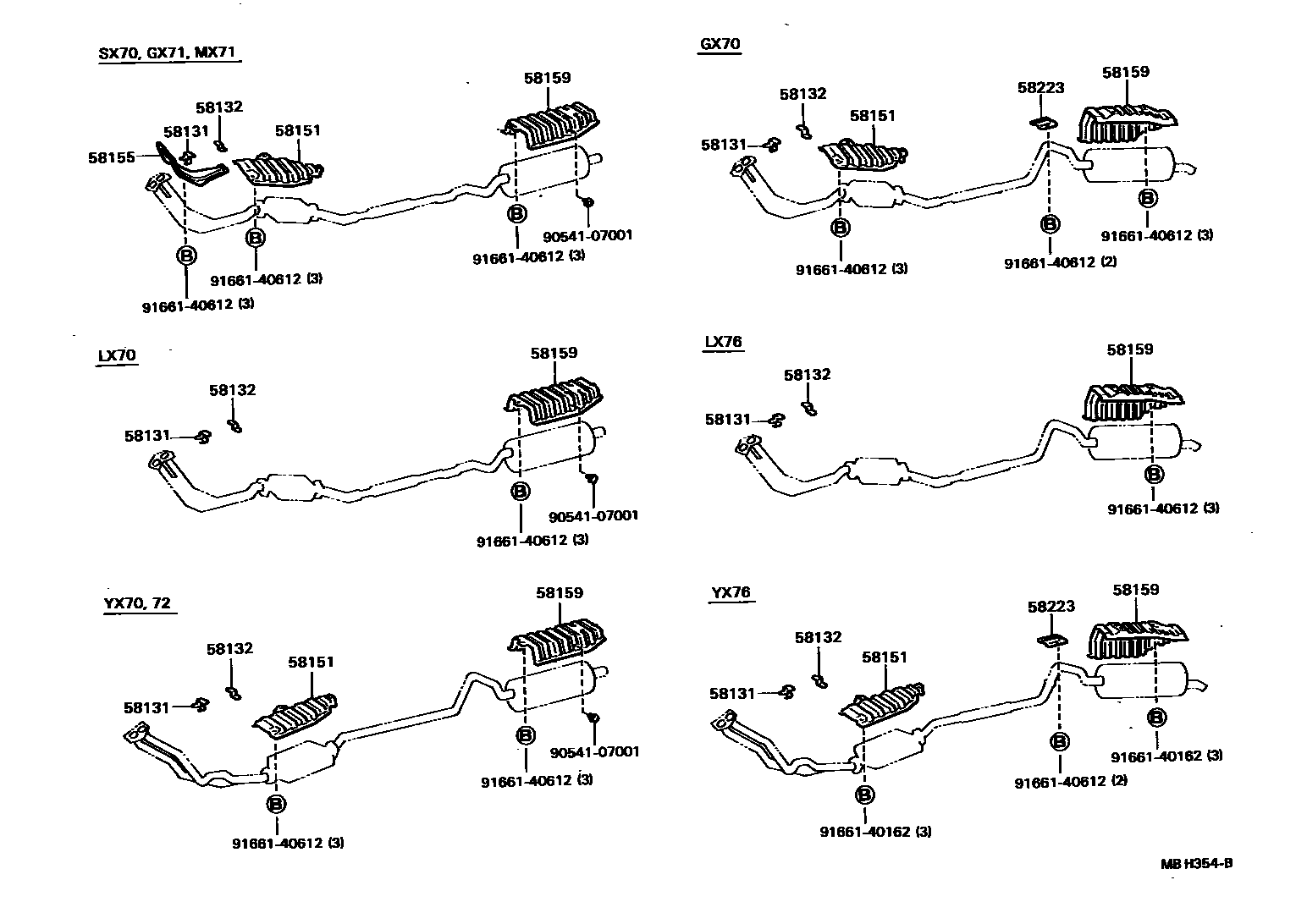

FLOOR INSULATOR

58131BRACKET, FRONT FLOOR HEAT INSULATOR, NO.1

main58131-22030iGX7#,LX7#,MX71,SX70,YX7#198408-198808

58132BRACKET, FRONT FLOOR HEAT INSULATOR, NO.2

main58132-22030×2iGX7#,LX7#,MX71,SX70,YX7#198408-198808

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58041-22050iYX7#198408-198808

main58151-22050iGX7#,MX71,SX70198408-198808

58155INSULATOR, FRONT FLOOR HEAT, NO.3

main58155-22060iGX71..TWT198510-198808

58159INSULATOR, MAIN MAFFLAR HEAT

main58327-22050iGX71,LX70,MX71,SX70,YX70,72198408-198808

main58327-23010iGX70,LX76,YX76198411-198808

58223INSULATOR, CENTER FLOOR HEAT, NO.2

main58223-91601iGX70,YX76198411-198808

9054107001

main90541-07001

9166140162

main91661-40162

9166140612

main91661-40612

9 parts on this diagram · 1 diagram in section
