V-BELT

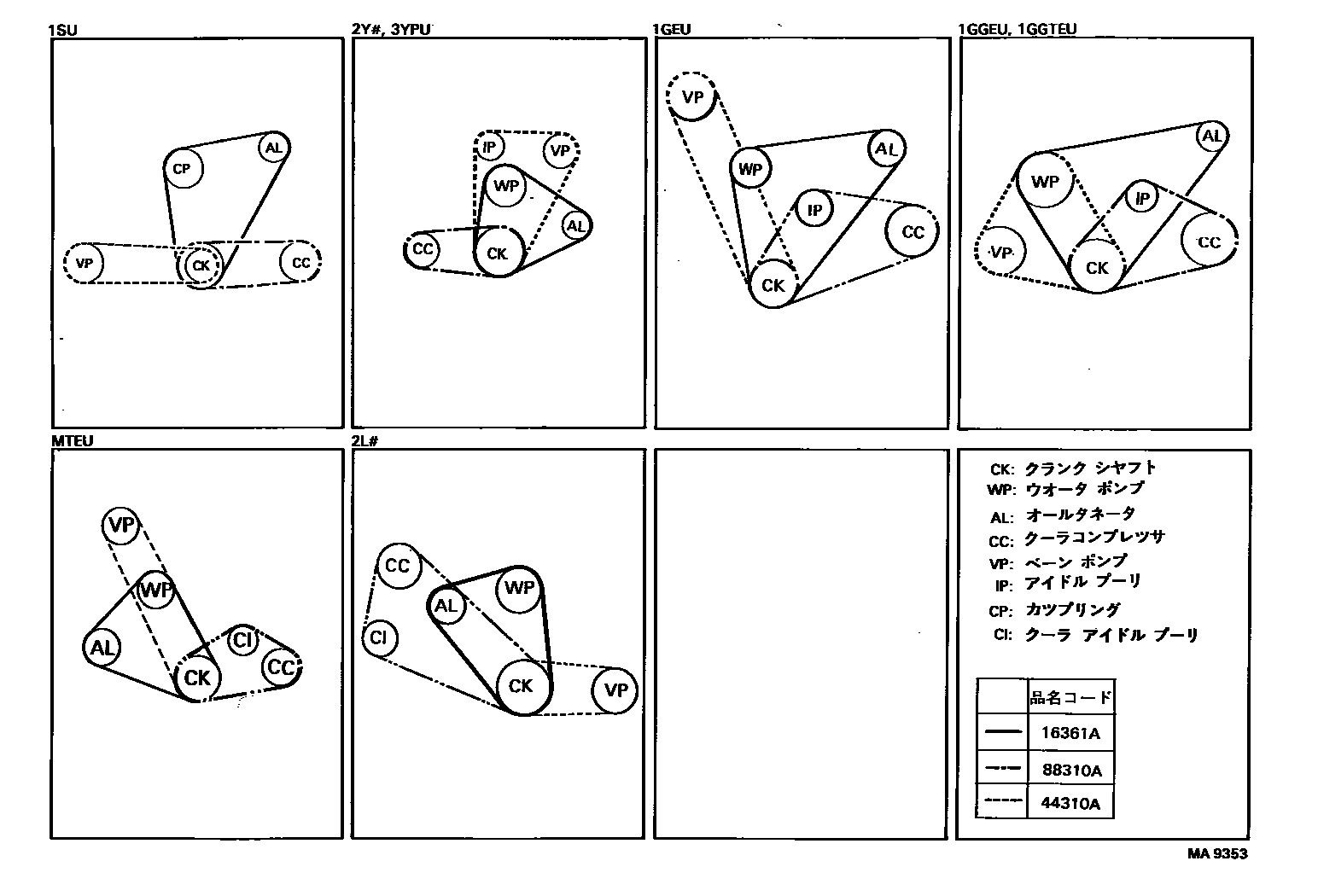

Parts diagram

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02132i198408-198808

DOUBLE V BELTS

main99363-01150i198408-198808

main99364-01100i198408-198808

main99364-50830i198411-198808

main99364-51160i198408-198808

main99364-51170i198510-198808

main99365-50820i198408-198808

main99367-00920i198408-198510

44310ABELT, V(FOR VANE PUMP)

main90916-02092i198408-198608

main90916-02107i198408-198510

main99322-01110i198608-198808

main99332-00850i198408-198808

main99332-01055i198408-198808

main99363-00770i198408-198808

main99363-00950i198608-198808

main99363-00960i198408-198808

main99363-00970i198510-198608

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

main99322-00880i198408-198808

main99322-00960i198408-198510

main99322-01250i198408-198808

main99364-00850i198408-198808

main99364-00860i198408-198808

main99364-50810i198408-198808

3 parts on this diagram · 1 diagram in section
