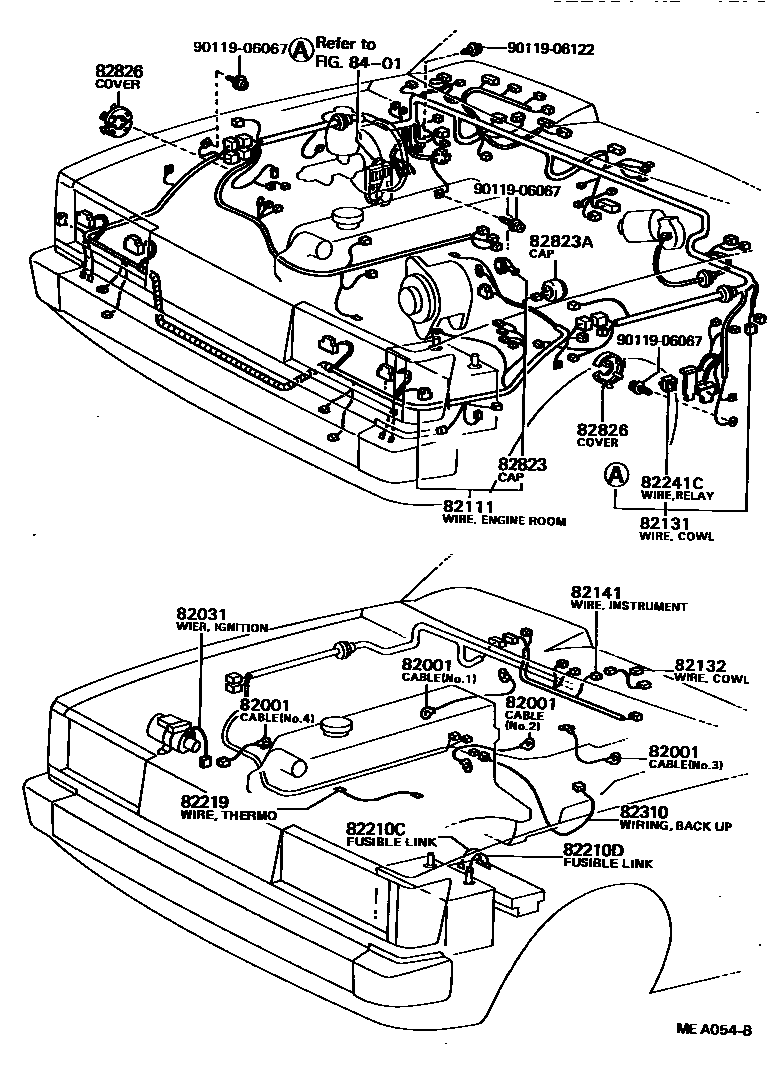

WIRING & CLAMP
82001CABLE, BOND, NO.1
L=250(NO.4)
L=300(NO.4)
L=260(NO.1)
L=400(NO.1)
L=350(NO.2)
L=500(NO.1)
L=320(NO.1)
L=300(NO.3)
L=350(NO.1)
82031WIRE SUB-ASSY, IGNITION COIL
82111WIRE, ENGINE ROOM MAIN
COLD SPEC
*30
COLD SPEC
COLD SPEC
82131WIRE, COWL
EXTRA INTERIOR
EXTRA INTERIOR
EXTRA INTERIOR
EXTRA INTERIOR
W/ESC OR *AD
W/*DS
W/*DS
W/ESC,*AD OR *CC
W/ESC,*AD OR *CC
*30
W/*DS
W/*PW OR *SNR
EXTRA INTERIOR
W/*PW,*SNR,*AD,*HC OR *RW
W/*AD,*HC OR *RW; W/ESC,*AD,*CC,*HC,*RW OR *SM
W/*CC,*HC,*RW OR *SM
82132WIRE, COWL, NO.2
main82132-22010iGX60,TX67..(3FC,4F,4FC)..(DLX,GL,LE); GX61..SED..EFI; LX60,65,MX61,SX60..SED198208-198407
82141WIRE, INSTRUMENT PANEL
W/*DS
W/*DS
W/*AD
W/*DS
W/*DS
W/*DS
W/*DS & *RW
W/*RW
W/*AD OR *RW
W/*AD OR *RW
W/*RW
W/*RW
82210CFUSIBLE LINK
82210DFUSIBLE LINK
82219WIRE, THERMO SENSOR
82241CWIRE, RELAY
W/O CHARGE LAMP RELAY
82310WIRING ASSY, TO BACK UP LAMP SWITCH
*30
82823CAP, TERMINAL, NO.1
82823ACAP, TERMINAL, NO.2
82826COVER, WIRING HARNESS HOLE
8401SWITCH & RELAY & COMPUTER
9011906067
main90119-06067
9011906122
main90119-06122
17 parts on this diagram · 14 diagrams in section
