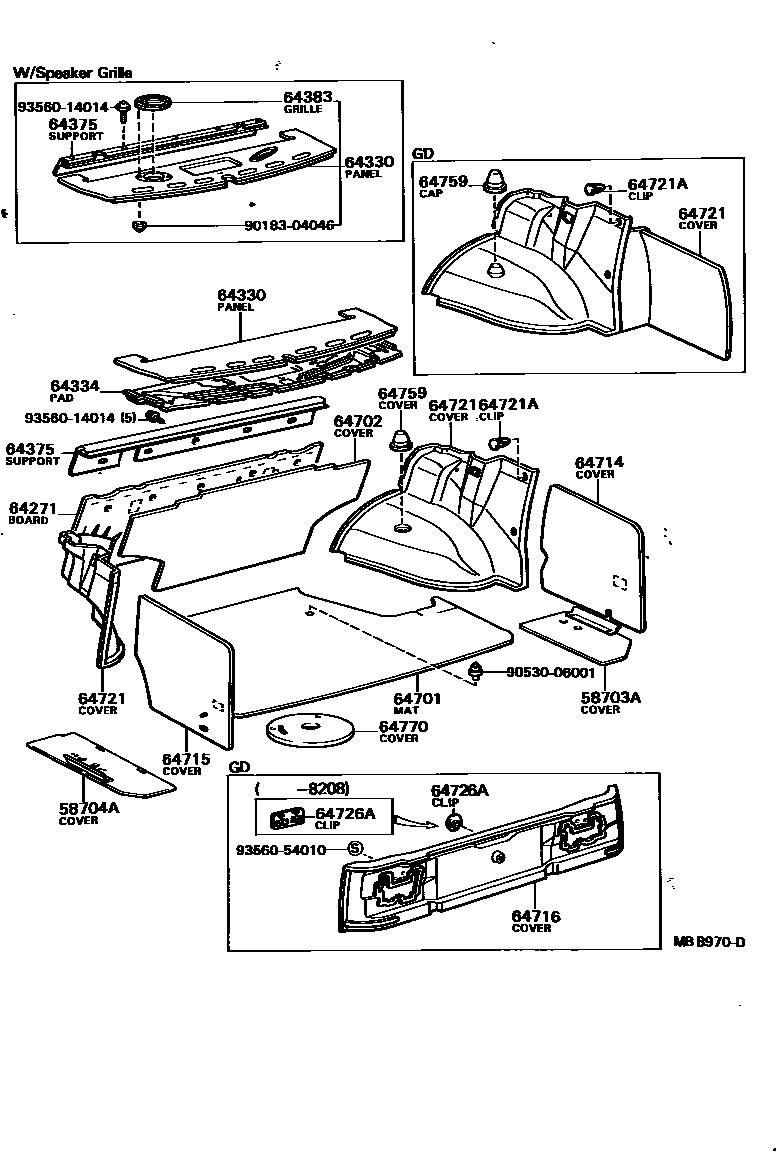

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT

0001 1 0002 1

58703ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, RH

main58703-22040iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

main58703-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

58704ACOVER SUB-ASSY, LUGGAGE COMPARTMENT SIDE, LH

main58704-22020iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198407

main58704-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

64271BOARD, ROOM PARTITION, NO.1

main64271-22060iLX60,MX60,RX6#,TX60..SED..(DLX,GL,GT,STD); RX60..HT..GL198009-198208

main64271-22070iGX61,MX61..HT..GD; GX61,MX61..SED..(GD,LG); LX60,65..GL,LE198208-198407

*EXT

main64271-95806iGX61,MX61,SX60..HT..(GL,GR,LE,LG,LGT)198208-198407

64330PANEL ASSY, PACKAGE TRAY TRIM

main64330-22260-01iLX60,MX60,RX60,TX60..SED..(DLX,GL,STD)198009-198208

BLACK,BLACK,TRIM2#

main64330-22260-02iGX61,LX60,MX60,SX60..SED..(DLX,GL,LE,STD)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64330-22260-04iLX60,MX60,RX60,TX60..SED..(DLX,GL,STD)198009-198208

BLUE,BLUE,TRIM8#

main64330-22260-06iLX60,MX60,RX60,TX60..SED..(DLX,GL,STD)198009-198208

D-BROWN,BROWN,TRIM4#

main64330-22260-14iGX61,LX60,MX60,SX60..SED..(DLX,GL,LE,STD)198208-198407

BLUE,BLUE,TRIM8#

main64330-22270-01iLX60..GL198009-198208

*EXT,W/*SPG,BLACK,BLACK,TRIM2#

main64330-22270-02iGX61,MX61..SED..(LG,LGT)198208-198407

W/*SPG,DEEP BROWN,RED/MAROON,TRIM4#

main64330-22270-04iGX6#,MX61,RX60..SED..(GR,LE,LG,LGT)198105-198208

W/*SPG,BLUE,BLUE,TRIM8#

main64330-22270-06iGX61,MX61..SED..(LG,LGT)198208-198407

W/*SPG,D-BROWN,BROWN,TRIM4#

main64330-22270-14iGX61,MX61..SED..(LG,LGT)198208-198407

W/*SPG,BLUE,BLUE,TRIM8#

main64330-22280-01iGX61,MX61,63..SED..GD198009-198208

W/*SPG,BLACK,BLACK,TRIM2#

main64330-22280-04iGX61,MX61,63..SED..GD198009-198208

W/*SPG,BLUE,BLUE,TRIM8#

main64330-22280-06iGX61,MX61,63..SED..GD198009-198208

W/*SPG,D-BROWN,BROWN,TRIM4#

main64330-22290-01iLX60..GL198009-198208

*EXT,BLACK,BLACK,TRIM2#

main64330-22290-02iLX60..GL; LX65,MX61,SX60..SED..(GR,LE,LGT)198208-198407

*EXT,DEEP MAROON,RED/MAROON,TRIM3#; DEEP MAROON,RED/MAROON,TRIM3#

main64330-22290-04iLX60..GL198009-198208

*EXT,BLUE,BLUE,TRIM8#

main64330-22290-06iLX65,MX61,SX60..SED..(GR,LE,LGT)198208-198407

D-BROWN,BROWN,TRIM4#

main64330-22290-14iLX60..GL; LX65,MX61,SX60..SED..(GR,LE,LGT)198208-198407

*EXT,BLUE,BLUE,TRIM8#; BLUE,BLUE,TRIM8#

main64330-22330-01iLX60,RX60,TX60..SED..(DLX,GL)198009-198208

W/*SPG,BLACK,BLACK,TRIM2#

main64330-22330-04iLX60,RX60,TX60..SED..(DLX,GL)198009-198208

W/*SPG,BLUE,BLUE,TRIM8#

main64330-22330-06iLX60,RX60,TX60..SED..(DLX,GL)198009-198208

W/*SPG,D-BROWN,BROWN,TRIM4#

main64330-22340-01iGX6#,MX61,RX63..SED..(GT,LG,LGT)198009-198208

W/*SPG & *RW,BLACK,BLACK,TRIM2#

main64330-22340-04iGX6#,MX61,RX63..SED..(GT,LG,LGT)198009-198208

W/*SPG & *RW,BLUE,BLUE,TRIM8#

main64330-22340-06iGX6#,MX61,RX63..SED..(GT,LG,LGT)198009-198208

W/*SPG & *RW,D-BROWN,BROWN,TRIM4#

main64330-22350-01iRX63..SED198009-198105

W/*RW,BLACK,BLACK,TRIM2#

main64330-22350-04iRX63..SED198009-198105

W/*RW,BLUE,BLUE,TRIM8#

main64330-22350-06iRX63..SED198009-198105

W/*RW,D-BROWN,BROWN,TRIM4#

main64330-22390-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64330-22390-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

main64330-22390-14iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main64330-95812-01iRX60,TX60..HT..GL198009-198208

BLACK,BLACK,TRIM2#

main64330-95812-02iGX61,SX60..HT..(GL,LE)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64330-95812-04iRX60,TX60..HT..GL198009-198208

BLUE,BLUE,TRIM8#

main64330-95812-06iGX61,SX60..HT..(GL,LE)198208-198407

D-BROWN,BROWN,TRIM4#

main64330-95812-14iGX61,SX60..HT..(GL,LE)198208-198407

BLUE,BLUE,TRIM8#

main64330-95814-01iGX60,RX60..HT..(GR,LE,LG)198009-198208

W/*SPG,BLACK,BLACK,TRIM2#

main64330-95814-02iGX61,MX61..HT..(LG,LGT)198208-198407

W/*SPG,DEEP MAROON,RED/MAROON,TRIM3#

main64330-95814-04iGX60,RX60..HT..(GR,LE,LG)198009-198208

W/*SPG,BLUE,BLUE,TRIM8#

main64330-95814-06iGX61,MX61..HT..(LG,LGT)198208-198407

W/*SPG,D-BROWN,BROWN,TRIM4#

main64330-95814-14iGX61,MX61..HT..(LG,LGT)198208-198407

W/*SPG,BLUE,BLUE,TRIM8#

main64330-95815-01iGX61,RX63..HT..(GT,LGT)198009-198105

W/*SPG,BLACK,BLACK,TRIM2#

main64330-95815-04iGX61,RX63..HT..(GT,LGT)198009-198105

W/*SPG,BLUE,BLUE,TRIM8#

main64330-95815-06iGX61,RX63..HT..(GT,LGT)198009-198105

W/*SPG,D-BROWN,BROWN,TRIM4#

main64330-95816-01iGX61,MX61,63..HT..GD198009-198208

W/*SPG,BLACK,BLACK,TRIM2#

main64330-95816-04iGX61,MX61,63..HT..GD198009-198208

W/*SPG,BLUE,BLUE,TRIM8#

main64330-95816-06iGX61,MX61,63..HT..GD198009-198208

W/*SPG,D-BROWN,BROWN,TRIM4#

main64330-95817-01iGX60,RX60..HT..(GR,LE)198009-198208

BLACK,BLACK,TRIM2#

main64330-95817-02iMX61,SX60..HT..(GR,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64330-95817-04iGX60,RX60..HT..(GR,LE)198009-198208

BLUE,BLUE,TRIM8#

main64330-95817-06iGX60,RX60..HT..(GR,LE)198009-198208

D-BROWN,BROWN,TRIM4#

main64330-95817-14iMX61,SX60..HT..(GR,LGT)198208-198407

BLUE,BLUE,TRIM8#

main64330-95818-01iGX60..HT..LG198009-198208

W/*SPG & *RW,BLACK,BLACK,TRIM2#

main64330-95818-02iMX61..HT..LGT198208-198407

W/*SPG & *RW,DEEP MAROON,RED/MAROON,TRIM3#

main64330-95818-04iGX60..HT..LG198009-198208

W/*SPG & *RW,BLUE,BLUE,TRIM8#

main64330-95818-06iGX60..HT..LG198009-198208

W/*SPG & *RW,D-BROWN,BROWN,TRIM4#

main64330-95819-01iGX61,MX61,RX63..HT..(GT,LGT)198009-198208

W/*SPG & *RW,BLACK,BLACK,TRIM2#

main64330-95819-04iGX61,MX61,RX63..HT..(GT,LGT)198009-198208

W/*SPG & *RW,BLUE,BLUE,TRIM8#

main64330-95819-06iGX61,MX61,RX63..HT..(GT,LGT)198009-198208

W/*SPG & *RW,D-BROWN,BROWN,TRIM4#

main64330-95820-01iGX61,MX63..HT..GD198009-198208

W/*SPG & *RW,BLACK,BLACK,TRIM2#

main64330-95820-04iGX61,MX63..HT..GD198009-198208

W/*SPG & *RW,BLUE,BLUE,TRIM8#

main64330-95820-06iGX61,MX63..HT..GD198009-198208

W/*SPG & *RW,D-BROWN,BROWN,TRIM4#

main64330-95821-01iRX60,TX60..HT..GL198009-198208

W/*SPG,BLACK,BLACK,TRIM2#

main64330-95821-04iRX60,TX60..HT..GL198009-198208

W/*SPG,BLUE,BLUE,TRIM8#

main64330-95821-06iRX60,TX60..HT..GL198009-198208

W/*SPG,D-BROWN,BROWN,TRIM4#

main64330-95822-01iRX63..HT198009-198105

W/*RW,BLACK,BLACK,TRIM2#

main64330-95822-04iRX63..HT198009-198105

W/*RW,BLUE,BLUE,TRIM8#

main64330-95822-06iRX63..HT198009-198105

W/*RW,D-BROWN,BROWN,TRIM4#

main64330-95823-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64330-95823-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

main64330-95823-14iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main64330-95824-02iGX61..HT..GD198208-198308

W/*RW,DEEP MAROON,RED/MAROON,TRIM3#

main64330-95824-06iGX61..HT..GD198309-198407

LIMITED,BROWN

main64330-95824-14iGX61..HT..GD198208-198308

W/*RW,BLUE,BLUE,TRIM8#

main64330-95825-02iMX61..HT..LGT198208-198407

W/*RW,DEEP MAROON,RED/MAROON,TRIM3#

main64330-95825-06iMX61..HT..LGT198208-198407

W/*RW,D-BROWN,BROWN,TRIM4#

main64330-95825-14iMX61..HT..LGT198208-198407

W/*RW,BLUE,BLUE,TRIM8#

64334PAD, PACKAGE TRAY TRIM SILENCER

main64334-22050iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198009-198306

main64334-22060iGX61,LX60,65,MX61,SX60..SED..(DLX,GD,GL,GR,LE,LG,LGT)198306-198407

W/SPEAKER

64375SUPPORT, PACKAGE TRIM

main64374-22010-01iGX61,MX61,63..SED..GD198009-198208

BLACK,BLACK,TRIM2#

main64374-22010-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64374-22010-04iGX61,MX61,63..SED..GD198009-198208

BLUE,BLUE,TRIM8#

main64374-22010-06iGX61,MX61,63..SED..GD198009-198407

D-BROWN,BROWN,TRIM4#

main64374-22010-14iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main64374-95800×2iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

64383GRILLE, SPEAKER, REAR

main64033-22010-02iGX61,MX61..GD198208-198407

RH,DEEP MAROON,RED/MAROON,TRIM3#

main64033-22010-04iGX61,MX61..GD198208-198407

RH,BLUE,BLUE,TRIM8#

main64033-22010-06iGX61,MX61..GD198208-198407

RH,D-BROWN,BROWN,TRIM4#

main64034-22010-02iGX61,MX61..GD198208-198407

LH,DEEP MAROON,RED/MAROON,TRIM3#

main64034-22010-04iGX61,MX61..GD198208-198407

LH,BLUE,BLUE,TRIM8#

main64034-22010-06iGX61,MX61..GD198208-198407

LH,D-BROWN,BROWN,TRIM4#

main64383-22020-01×2iGX6#,LX60,MX61,63,RX6#,TX60..(HT,SED)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

main64383-22020-02×2iGX61,MX61..LG,LGT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main64383-22020-04×2iGX6#,LX60,MX61,63,RX6#,TX60..(HT,SED)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main64383-22020-06×2iGX6#,LX60,MX61,63,RX6#,TX60..(HT,SED)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

D-BROWN,BROWN,TRIM4#

main64383-22020-14iGX61,MX61..LG,LGT198208-198407

BLUE,BLUE,TRIM8#

64701MAT SUB-ASSY, LUGGAGE COMPARTMENT

main64701-22100iGX6#,LX60,MX61,RX6#,TX60..(HT,SED)..(GL,GR,GT,LE,LG,LGT)198009-198208

main64701-22110iGX61,MX61,63..HT..GD198009-198407

main64701-22120iLX60,MX61,SX60..DLX,LGT,STD198208-198407

main64701-22130iGX61,MX61,63..SED..GD198009-198407

main64711-22140iMX60198011-198407

64702COVER SUB-ASSY, LUGGAGE COMPARTMENT, FRONT

main64717-22030iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG)198009-198208

main64717-22040iGX61,MX61..SED..(GD,LG); LX60,65..GL,LE198208-198407

*EXT

64714COVER, LUGGAGE COMPARTMENT, RH

main64714-22080iGX6#,LX60,65,MX60,61,RX6#,SX60,TX60..(HT,SED)..(DLX,GL,GR,GT,LE,LG,LGT,STD)198009-198407

64715COVER, LUGGAGE COMPARTMENT, LH

main64715-22070iGX6#,LX60,MX60,61,RX6#,TX60..(HT,SED)..(DLX,GL,GR,GT,LE,LG,LGT,STD)198009-198208

main64715-22071iGX61,LX60,65,MX6#,SX60..DLX,GL,GR,LE,LG,LGT,STD198208-198407

main64715-22080iGX61,MX61,63..GD198009-198208

main64715-22090iGX61,MX61..GD198208-198407

64716COVER, LUGGAGE COMPARTMENT, REAR CENTER

main64716-22100iGX61,MX61,63..SED..GD198009-198208

main64716-22130iGX61,MX61..SED..GD198208-198407

main64716-95803iGX61,MX61,63..HT..GD198009-198208

main64716-95805iGX61,MX61..HT..GD198208-198407

64721COVER, LUGGAGE COMPARTMENT TRIM, INNER RH

main64072-95805iGX61,MX61,RX63..HT..(GT,LGT)198009-198208

LH

main64712-95800iGX61,MX61,RX63..HT..(GT,LGT)198009-198208

RH,FR

main64721-22030iGX60,RX60,TX60..HT; GX61,MX61,RX63..HT..(GT,LGT)198009-198208

RH; RH,RR

main64721-22060iGX6#,LX60,65,MX61,RX6#,SX60,TX60..SED..(GL,GR,GT,LE,LG,LGT)198009-198407

RH

main64721-22070iGX61,MX61,63..SED..GD198009-198208

RH

main64721-22090iGX61,MX61..SED..GD198208-198407

RH

main64721-95804iGX61,MX61,63..HT..GD198009-198208

RH

main64721-95805iGX61,MX61..HT..GD198208-198407

RH

main64722-22040iGX60,RX60,TX60..HT198009-198208

LH

main64722-22070iGX6#,LX60,65,MX61,RX6#,SX60,TX60..SED..(GL,GR,GT,LE,LG,LGT)198009-198407

LH

main64722-22080iGX61,MX61,63..SED..GD198009-198208

LH

main64722-22090iLX60,MX60,SX60,TX60..DLX,STD198009-198407

main64722-22130iGX61,MX61..SED..GD198208-198407

LH

main64722-95804iGX61,MX61,63..HT..GD198009-198208

LH

main64722-95805iGX61,MX61..HT..GD198208-198407

LH

64721ACLIP(FOR LUGGAGE COMPARTMENT TRIM INNER COVER)

main90467-07158-03×6iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED198009-198407

GRAY,GRAY,TRIM2#

64726ACLIP, LUGGAGE TRIM, REAR

main64726-30020iGX61,MX61,63..SED..GD198009-198208

main90467-22002-03iGX61,MX61..SED..GD198208-198407

GRAY,GRAY,TRIM2#

64759COVER, SHOCK ABSORBER HEAD

main58731-22020×2iGX61,LX60,MX61,SX60..DLX,GD,GL,GR,STD198208-198407

main58731-22030×2iGX61,LX65..LE,LG198208-198407

64770COVER ASSY, SPARE WHEEL

main64770-12010iGX61,LX60,65,MX61,SX60198208-198407

TEMPORARY TIRE

main64770-30050iGX61,SX60..(GD,STD)..(CBR,LPG,TWC); LX60,MX60..DLX198208-198407

9018304046

main90183-04046

9053006001

main90530-06001

9356014014

main93560-14014

9356054010

main93560-54010

21 parts on this diagram · 2 diagrams in section
