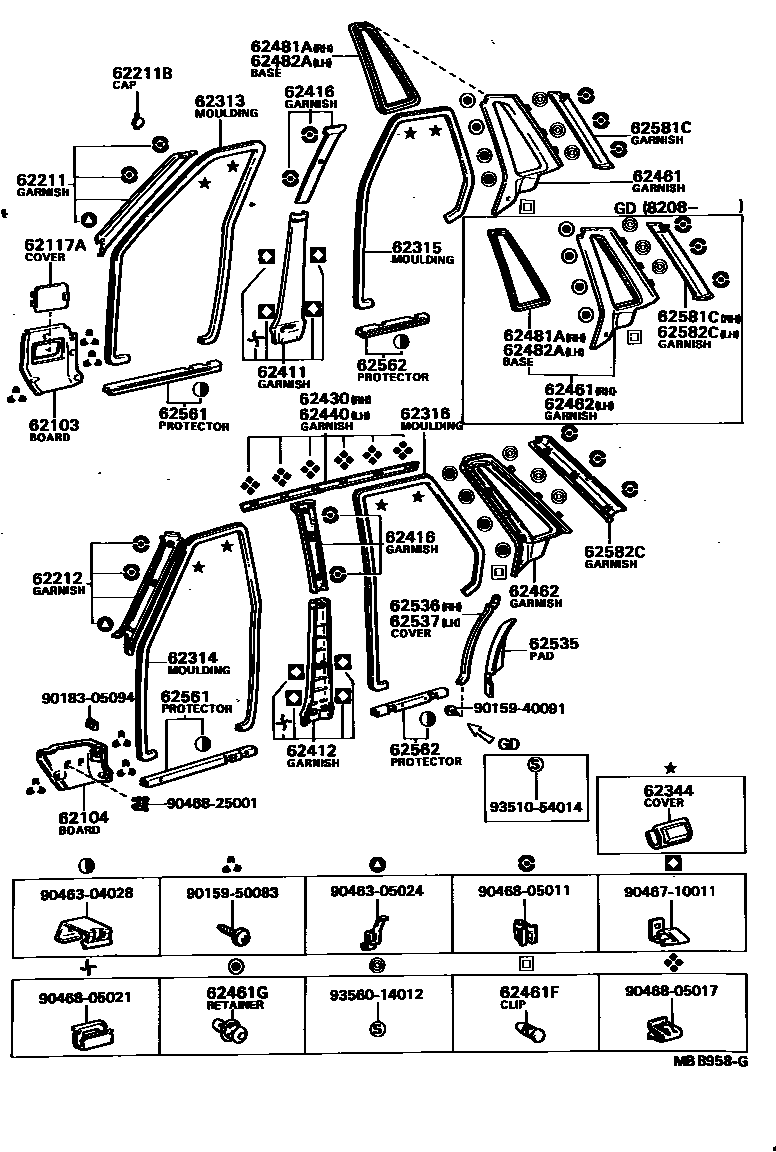

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

0001 1 0002 1 0003 1

62103BOARD SUB-ASSY, COWL SIDE TRIM, RH

main62101-22100-01iGX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD198009-198208

BLACK,BLACK,TRIM2#

sub62101-22100

main62101-22100-02iGX6#,LX6#,MX6#,SX60,TX67..DLX,GL,GR,LE,LG,LGT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62101-22100

main62101-22100-04iGX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT198009-198208

BLUE,BLUE,TRIM8#

sub62101-22100

main62101-22100-06iGX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LG,LGT198009-198407

D-BROWN,BROWN,TRIM4#

sub62101-22100

main62101-22100-14iGX6#,LX6#,MX6#,SX60,TX67..DLX,GL,GR,LE,LG,LGT,STD198208-198407

BLUE,BLUE,TRIM8#

sub62101-22100

main62101-22110-01iGX61,MX61,63..GD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main62101-22110-04iGX61,MX61,63..GD198009-198208

BLUE,BLUE,TRIM8#

main62101-22110-06iGX61,MX61,63..GD198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main62101-22111-02iGX61,MX61..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62101-22111-06iGX61,MX61..GD198208-198308

D-BROWN,BROWN,TRIM4#

main62101-22111-14iGX61,MX61..GD198208-198308

BLUE,BLUE,TRIM8#

main62101-22111-16iGX61,MX61..GD198308-198407

D-BROWN,BROWN,TRIM4#

main62101-22111-24iGX61,MX61..GD198308-198407

BLUE,BLUE,TRIM8#

62104BOARD SUB-ASSY, COWL SIDE TRIM, LH

main62102-22110-01iGX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT,STD198009-198208

BLACK,BLACK,TRIM2#

sub62102-22110

main62102-22110-02iGX6#,LX6#,MX6#,SX60,TX67..DLX,GL,GR,LE,LG,LGT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62102-22110

main62102-22110-04iGX6#,LX6#,MX60,61,RX6#,TX6#..DLX,GL,GR,GT,LE,LG,LGT198009-198208

BLUE,BLUE,TRIM8#

sub62102-22110

main62102-22110-06iGX6#,LX6#,MX60,61,RX6#,SX60,TX6#..DLX,GL,GR,GT,LE,LG,LGT198009-198407

D-BROWN,BROWN,TRIM4#

sub62102-22110

main62102-22110-14iGX6#,LX6#,MX6#,SX60,TX67..DLX,GL,GR,LE,LG,LGT,STD198208-198407

BLUE,BLUE,TRIM8#

sub62102-22110

main62102-22120-01iGX61,MX61,63..GD198009-198208

BLACK & GRAY,BLACK,TRIM2#

main62102-22120-04iGX61,MX61,63..GD198009-198208

BLUE,BLUE,TRIM8#

main62102-22120-06iGX61,MX61,63..GD198009-198208

D-BROWN & GREIGE,BROWN,TRIM4#

main62102-22121-02iGX61,MX61..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62102-22121-06iGX61,MX61..GD198208-198308

D-BROWN,BROWN,TRIM4#

main62102-22121-14iGX61,MX61..GD198208-198308

BLUE,BLUE,TRIM8#

main62102-22121-16iGX61,MX61..GD198308-198407

D-BROWN,BROWN,TRIM4#

main62102-22121-24iGX61,MX61..GD198308-198407

BLUE,BLUE,TRIM8#

62117ACOVER, COWL SIDE TRIM SERVICE HOLE

main62117-22010-01iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

BLACK,BLACK,TRIM2#

main62117-22010-04iGX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT198009-198208

BLUE,BLUE,TRIM8#

main62117-22010-06iGX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT198009-198208

D-BROWN,BROWN,TRIM4#

main62117-22011-02iGX6#,LX6#,MX6#,SX60,TX67..DLX,GD,GL,GR,LE,LG,LGT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62117-22011-06iGX6#,LX6#,MX6#,SX60,TX67..DLX,GD,GL,GR,LE,LG,LGT198208-198407

D-BROWN,BROWN,TRIM4#

main62117-22011-14iGX6#,LX6#,MX6#,SX60,TX67198208-198407

BLUE,BLUE,TRIM8#

62211GARNISH, FRONT PILLAR, RH

main62211-22060-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

sub62211-22060

main62211-22060-02iGX61,MX61,SX60..HT..(GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62211-22060

main62211-22060-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

sub62211-22060

main62211-22060-06iGX61,MX61,SX60..HT..(GL,GR,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62211-22060

main62211-22060-14iGX61,MX61,SX60..HT..(GL,GR,LE,LG,LGT)198208-198407

BLUE

sub62211-22060

main62211-22070-01iLX60,MX60,RX6#,TX60..SED..(DLX,GL,GT,STD)198009-198208

BLACK,BLACK,TRIM2#

main62211-22070-02iGX61,LX60,67,MX60,SX60,TX67..(SED,V)..(DLX,GL,LE)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62211-22070-04iLX67,TX67..DLX,GL198009-198208

BLUE,BLUE,TRIM8#

main62211-22070-06iLX67,TX67..DLX,GL198009-198407

D-BROWN,BROWN,TRIM4#

main62211-22070-14iGX61,LX60,67,MX60,SX60,TX67..(SED,V)..(DLX,GL,LE,STD)198208-198407

BLUE,BLUE,TRIM8#

main62211-22080-01iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

sub62211-22080

main62211-22080-01iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

W/SUN ROOF,BLACK,BLACK,TRIM2#

sub62211-22080

main62211-22080-01iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

*EXT,BLACK,BLACK,TRIM2#

sub62211-22080

main62211-22080-02iGX61..SED..LG;GX60,LX65,MX61,SX60..(SED,WG)..(GR,LE,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62211-22080

main62211-22080-02iGX61..SED..LG;GX60,LX65,MX61,SX60..(SED,WG)..(GR,LE,LGT)198208-198407

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62211-22080

main62211-22080-04iRX63..SED198009-198208

*EXT,BLUE,BLUE,TRIM8#

sub62211-22080

main62211-22080-04iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62211-22080

main62211-22080-04iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62211-22080

main62211-22080-06iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

W/SUN ROOF,D-BROWN,BROWN,TRIM4#

sub62211-22080

main62211-22080-06iRX63..SED198009-198407

D-BROWN,BROWN,TRIM4#

sub62211-22080

main62211-22080-06iLX60..GL198009-198407

*EXT,D-BROWN,BROWN,TRIM4#

sub62211-22080

main62211-22080-14iGX61..SED..LG;GX60,LX65,MX61,SX60..(SED,WG)..(GR,LE,LGT)198208-198407

BLUE,BLUE,TRIM8#

sub62211-22080

main62211-22080-14iGX61..SED..LG;GX60,LX65,MX61,SX60..(SED,WG)..(GR,LE,LGT)198208-198407

*EXT,BLUE,BLUE,TRIM8#

sub62211-22080

main62211-22100-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62211-22100-04iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main62211-22100-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

main62211-22110-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62211-22110-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main62211-22110-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

62211BCAP, FRONT PILLAR GARNISH SETTING

main90950-01371-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main90950-01371-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main90950-01371-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

62212GARNISH, FRONT PILLAR, LH

main62212-22060-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

sub62212-22060

main62212-22060-02iGX61,MX61,SX60..HT..(GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62212-22060

main62212-22060-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

sub62212-22060

main62212-22060-06iGX6#,MX61,63,RX6#,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

sub62212-22060

main62212-22060-14iGX61,MX61,SX60..HT..(GL,GR,LE,LG,LGT)198208-198407

BLUE

sub62212-22060

main62212-22070-01iLX60,MX60,RX6#,TX60..SED..(DLX,GL,GT,STD)198009-198208

BLACK,BLACK,TRIM2#

main62212-22070-02iGX61,LX60,67,MX60,SX60,TX67..(SED,V)..(DLX,GL,LE)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62212-22070-04iLX60,MX60,RX6#,TX60..SED..(DLX,GL,GT)198009-198208

BLUE,BLUE,TRIM8#

main62212-22070-06iLX60,MX60,RX6#,TX60..SED..(DLX,GL,GT)198009-198407

D-BROWN,BROWN,TRIM4#

main62212-22070-14iGX61,LX60,67,MX60,SX60,TX67..(SED,V)..(DLX,GL,LE,STD)198208-198407

BLUE,BLUE,TRIM8#

main62212-22080-01iLX60..GL198009-198208

W/SUN ROOF,BLACK,BLACK,TRIM2#

sub62212-22080

main62212-22080-01iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

sub62212-22080

main62212-22080-01iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

*EXT,BLACK,BLACK,TRIM2#

sub62212-22080

main62212-22080-02iGX61..SED..LG;GX60,LX65,MX61,SX60..(SED,WG)..(GR,LE,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62212-22080

main62212-22080-02iGX61..SED..LG;GX60,LX65,MX61,SX60..(SED,WG)..(GR,LE,LGT)198208-198407

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62212-22080

main62212-22080-04iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

*EXT,BLUE,BLUE,TRIM8#

sub62212-22080

main62212-22080-04iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62212-22080

main62212-22080-04iGX6#,MX61,63,RX60..(SED,WG)..(GD,GR,LE,LG,LGT)198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62212-22080

main62212-22080-06iLX60..GL198009-198407

*EXT,D-BROWN,BROWN,TRIM4#

sub62212-22080

main62212-22080-06iRX63..SED198009-198208

W/SUN ROOF,D-BROWN,BROWN,TRIM4#

sub62212-22080

main62212-22080-06iRX63..SED198009-198407

D-BROWN,BROWN,TRIM4#

sub62212-22080

main62212-22080-14iGX61..SED..LG;GX60,LX65,MX61,SX60..(SED,WG)..(GR,LE,LGT)198208-198407

BLUE

sub62212-22080

main62212-22080-14iGX61..SED..LG;GX60,LX65,MX61,SX60..(SED,WG)..(GR,LE,LGT)198208-198407

*EXT,BLUE,BLUE,TRIM8#

sub62212-22080

main62212-22100-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62212-22100-04iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main62212-22100-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

main62212-22110-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62212-22110-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main62212-22110-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

62313MOULDING, FRONT DOOR OPENING TRIM, RH

main62313-22090-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

sub62313-22090

main62313-22090-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-22090

main62313-22090-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62313-22090

main62313-22090-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62313-22090

main62313-22090-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

sub62313-22090

main62313-95801-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main62313-95801-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62313-95801-04iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

BLUE,BLUE,TRIM8#

main62313-95801-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

62314MOULDING, FRONT DOOR OPENING TRIM, LH

main62313-22090-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

sub62313-22090

main62313-22090-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-22090

main62313-22090-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62313-22090

main62313-22090-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62313-22090

main62313-22090-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

sub62313-22090

main62313-95801-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main62313-95801-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62313-95801-04iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

BLUE,BLUE,TRIM8#

main62313-95801-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

62315MOULDING, REAR DOOR OPENING TRIM, RH

main62333-22040-01iGX6#,LX60,MX6#,RX6#,TX60..SED198009-198208

BLACK,BLACK,TRIM2#

sub62313-22090

main62333-22040-02iGX61,LX60,65,MX6#,SX60..SED..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-22090

main62333-22040-04iGX6#,LX60,MX6#,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62313-22090

main62333-22040-06iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62313-22090

main62333-22040-14iGX61,LX60,65,MX6#,SX60..SED198208-198407

BLUE,BLUE,TRIM8#

sub62313-22090

main62333-91603-01iGX60,LX67,TX67..V,WG198011-198208

BLACK,BLACK,TRIM2#

main62333-91603-02iGX60,LX67,TX67..DLX,GL,LE198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62333-91603-04iGX60,LX67,TX67..(V,WG)..(DLX,GL,LE)198011-198208

BLUE,BLUE,TRIM8#

main62333-91603-06iGX60,LX67,TX67..(V,WG)..(DLX,GL,LE)198011-198407

D-BROWN,BROWN,TRIM4#

main62333-91603-14iGX60,LX67,TX67198208-198407

BLUE,BLUE,TRIM8#

main62333-95800-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

sub62313-95801

main62333-95800-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-95801

main62333-95800-04iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

BLUE,BLUE,TRIM8#

sub62313-95801

main62333-95800-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

sub62313-95801

62316MOULDING, REAR DOOR OPENING TRIM, LH

main62333-22040-01iGX6#,LX60,MX6#,RX6#,TX60..SED198009-198208

BLACK,BLACK,TRIM2#

sub62313-22090

main62333-22040-02iGX61,LX60,65,MX6#,SX60..SED..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-22090

main62333-22040-04iGX6#,LX60,MX6#,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62313-22090

main62333-22040-06iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62313-22090

main62333-22040-14iGX61,LX60,65,MX6#,SX60..SED198208-198407

BLUE,BLUE,TRIM8#

sub62313-22090

main62333-91603-01iGX60,LX67,TX67..V,WG198011-198208

BLACK,BLACK,TRIM2#

main62333-91603-02iGX60,LX67,TX67..DLX,GL,LE198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62333-91603-04iGX60,LX67,TX67..(V,WG)..(DLX,GL,LE)198011-198208

BLUE,BLUE,TRIM8#

main62333-91603-06iGX60,LX67,TX67..(V,WG)..(DLX,GL,LE)198011-198407

D-BROWN,BROWN,TRIM4#

main62333-91603-14iGX60,LX67,TX67198208-198407

BLUE,BLUE,TRIM8#

main62333-95800-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

sub62313-95801

main62333-95800-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62313-95801

main62333-95800-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

sub62313-95801

main62333-95800-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

sub62313-95801

main62333-95800-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

sub62313-95801

62344COVER, DOOR OPENING TRIM MOULDING

main62315-22010-01iGX6#,LX6#,MX60,63,RX6#,TX6#..SED,V,WG198103-198208

BLACK,BLACK,TRIM2#

main62315-22010-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62315-22010-04iGX6#,LX6#,MX60,63,RX6#,TX6#..SED,V,WG198103-198208

BLUE,BLUE,TRIM8#

main62315-22010-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198103-198407

D-BROWN,BROWN,TRIM4#

main62315-22010-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

62411GARNISH, CENTER PILLAR, RH

main62413-22010-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

sub62413-22010

main62413-22010-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62413-22010

main62413-22010-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

sub62413-22010

main62413-22010-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

sub62413-22010

main62413-22010-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

sub62413-22010

main62413-22020-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main62413-22020-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62413-22020-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62413-22020-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62413-22020-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

62412GARNISH, CENTER PILLAR, LH

main62414-22010-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

sub62414-22010

main62414-22010-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62414-22010

main62414-22010-04iGX6#,MX61,63,RX6#,TX60..HT198009-198204

BLUE,BLUE,TRIM8#

sub62414-22010

main62414-22010-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

sub62414-22010

main62414-22010-14iGX61,MX61,SX60..HT198204-198407

BLUE,BLUE,TRIM8#

sub62414-22010

main62414-22020-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main62414-22020-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62414-22020-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62414-22020-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62414-22020-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

62416GARNISH, CENTER PILLAR, UPPER

main62411-22120-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

RH,BLACK,BLACK,TRIM2#

main62411-22120-02iGX61,MX61,SX60..HT198208-198407

RH,DEEP MAROON,RED/MAROON,TRIM3#

main62411-22120-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

RH,BLUE,BLUE,TRIM8#

main62411-22120-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

RH,D-BROWN,BROWN,TRIM4#

main62411-22120-14iGX61,MX61,SX60..HT198208-198407

RH,BLUE,BLUE,TRIM8#

main62411-22130-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

RH,BLACK,BLACK,TRIM2#

main62411-22130-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

RH,DEEP MAROON,RED/MAROON,TRIM3#

main62411-22130-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

RH,BLUE,BLUE,TRIM8#

main62411-22130-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

RH,D-BROWN,BROWN,TRIM4#

main62411-22130-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

RH,BLUE,BLUE,TRIM8#

main62412-22140-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

LH,BLACK,BLACK,TRIM2#

sub62412-22140

main62412-22140-02iGX61,MX61,SX60..HT198208-198407

LH,DEEP MAROON,RED/MAROON,TRIM3#

sub62412-22140

main62412-22140-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

LH,BLUE,BLUE,TRIM8#

sub62412-22140

main62412-22140-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

LH,D-BROWN,BROWN,TRIM4#

sub62412-22140

main62412-22140-14iGX61,MX61,SX60..HT198208-198407

LH,BLUE,BLUE,TRIM8#

sub62412-22140

main62412-22150-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

LH,BLACK,BLACK,TRIM2#

main62412-22150-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

LH,DEEP MAROON,RED/MAROON,TRIM3#

main62412-22150-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

LH,BLUE,BLUE,TRIM8#

main62412-22150-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

LH,D-BROWN,BROWN,TRIM4#

main62412-22150-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

LH,BLUE,BLUE,TRIM8#

62430GARNISH ASSY, ROOF SIDE RAIL, RH

main62431-22030-01iLX60..GL198009-198208

*EXT,BLACK,BLACK,TRIM2#

sub62431-22030

main62431-22030-01iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

sub62431-22030

main62431-22030-01iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198208

W/SUN ROOF,BLACK,BLACK,TRIM2#

sub62431-22030

main62431-22030-02iGX61,LX65,MX61,SX60..SED..(GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62431-22030

main62431-22030-02iGX61,LX65,MX61,SX60..SED..(GR,LE,LG,LGT)198208-198407

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62431-22030

main62431-22030-04iLX60..GL198009-198208

*EXT,BLUE,BLUE,TRIM8#

sub62431-22030

main62431-22030-04iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62431-22030

main62431-22030-04iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62431-22030

main62431-22030-06iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62431-22030

main62431-22030-06iRX63..SED198009-198208

W/SUN ROOF,D-BROWN,BROWN,TRIM4#

sub62431-22030

main62431-22030-06iLX60..GL198009-198407

*EXT,D-BROWN,BROWN,TRIM4#

sub62431-22030

main62431-22030-14iGX61,LX65,MX61,SX60..SED..(GR,LE,LG,LGT)198208-198407

*EXT,BLUE,BLUE,TRIM8#

sub62431-22030

main62431-22030-14iLX60..GL198208-198407

BLUE,BLUE,TRIM8#

sub62431-22030

main62431-22050-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62431-22050-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main62431-22050-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

main62431-91601-01iGX60..WG198011-198208

BLACK,BLACK,TRIM2#

sub62431-91601

main62431-91601-02iGX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62431-91601

main62431-91601-04iGX60..WG198011-198208

BLUE,BLUE,TRIM8#

sub62431-91601

main62431-91601-06iGX60..WG198011-198407

D-BROWN,BROWN,TRIM4#

sub62431-91601

main62431-91601-14iGX60198208-198407

BLUE,BLUE,TRIM8#

sub62431-91601

main62431-95801-01iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

main62431-95801-02iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62431-95801-04iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62431-95801-06iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62431-95801-14iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

BLUE,BLUE,TRIM8#

main62431-95803-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62431-95803-04iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main62431-95803-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

62440GARNISH ASSY, ROOF SIDE RAIL, LH

main62432-22030-01iLX60..GL198009-198208

*EXT,BLACK,BLACK,TRIM2#

sub62432-22030

main62432-22030-01iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

sub62432-22030

main62432-22030-01iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198208

W/SUN ROOF,BLACK,BLACK,TRIM2#

sub62432-22030

main62432-22030-02iLX60..GL198208-198407

*EXT,DEEP MAROON,RED/MAROON,TRIM3#

sub62432-22030

main62432-22030-02iLX60..GL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62432-22030

main62432-22030-04iLX60..GL198009-198208

*EXT,BLUE,BLUE,TRIM8#

sub62432-22030

main62432-22030-04iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62432-22030

main62432-22030-04iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198208

W/SUN ROOF,BLUE,BLUE,TRIM8#

sub62432-22030

main62432-22030-06iGX6#,MX61,63,RX60..SED..(GD,GR,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62432-22030

main62432-22030-06iRX63..SED198009-198208

W/SUN ROOF,D-BROWN,BROWN,TRIM4#

sub62432-22030

main62432-22030-06iLX60..GL198009-198407

*EXT,D-BROWN,BROWN,TRIM4#

sub62432-22030

main62432-22030-14iGX61..SED..LG;LX65,MX61,SX60..SED..(GR,LE,LGT)198208-198407

*EXT,BLUE,BLUE,TRIM8#

sub62432-22030

main62432-22030-14iLX60..GL198208-198407

BLUE,BLUE,TRIM8#

sub62432-22030

main62432-22050-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62432-22050-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main62432-22050-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

main62432-91601-01iGX60..WG198011-198208

BLACK,BLACK,TRIM2#

sub62432-91601

main62432-91601-02iGX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62432-91601

main62432-91601-04iGX60..WG198011-198208

BLUE,BLUE,TRIM8#

sub62432-91601

main62432-91601-06iGX60..WG198011-198407

D-BROWN,BROWN,TRIM4#

sub62432-91601

main62432-91601-14iGX60198208-198407

BLUE,BLUE,TRIM8#

sub62432-91601

main62432-95800-01iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

sub62432-95800

main62432-95800-02iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62432-95800

main62432-95800-04iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62432-95800

main62432-95800-06iGX61,MX61,SX60..HT..(GR,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62432-95800

main62432-95800-14iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

BLUE,BLUE,TRIM8#

sub62432-95800

main62432-95801-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62432-95801-04iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main62432-95801-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

62461GARNISH, ROOF SIDE TRIM, RH

main62405-95801-01iRX6#,TX60..HT..(GL,GT)198009-198208

BLACK,BLACK,TRIM2#

main62405-95801-02iGX61,SX60..HT..(GL,LE)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62405-95801-04iRX6#,TX60..HT..(GL,GT)198009-198208

BLUE,BLUE,TRIM8#

main62405-95801-06iRX6#,TX60..HT..(GL,GT)198009-198407

D-BROWN,BROWN,TRIM4#

main62405-95801-14iGX61,SX60..HT..(GL,LE)198208-198407

BLUE,BLUE,TRIM8#

main62405-95802-01iGX6#,MX61,RX60..HT..(GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

main62405-95802-02iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62405-95802-04iGX6#,MX61,RX60..HT..(GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62405-95802-06iGX61,MX61,SX60..HT..(GR,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62405-95802-14iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

BLUE,BLUE,TRIM8#

main62470-22050-01iGX61,MX61,63..SED..GD198009-198208

BLACK,BLACK,TRIM2#

main62470-22050-04iGX61,MX61,63..SED..GD198009-198208

BLUE,BLUE,TRIM8#

main62470-22050-06iGX61,MX61,63..SED..GD198009-198208

D-BROWN,BROWN,TRIM4#

main62470-95802-01iGX61,MX61,63..HT..GD198009-198208

BLACK,BLACK,TRIM2#

main62470-95802-04iGX61,MX61,63..HT..GD198009-198208

BLUE,BLUE,TRIM8#

main62470-95802-06iGX61,MX61,63..HT..GD198009-198208

D-BROWN,BROWN,TRIM4#

main62470-95803-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62470-95803-04iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main62470-95803-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

main62473-22050-01iGX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)198009-198208

BLACK,BLACK,TRIM2#

main62473-22050-02iGX61,LX60,65,MX6#,SX60..SED..(DLX,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62473-22050-04iGX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62473-22050-06iGX6#,LX60,65,MX60,61,RX6#,SX60,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62473-22050-14iGX61,LX60,65,MX6#,SX60..SED198208-198407

BLUE,BLUE,TRIM8#

main62473-22110-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62473-22110-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main62473-22110-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

62461FCLIP (FOR ROOF SIDE TRIM GARNISH)

main90467-09084-01iGX6#,LX60,MX6#,RX6#,TX60..HT,SED198009-198208

BLACK,BLACK,TRIM2#

sub90467-09084

main90467-09084-14iGX6#,LX60,MX61,63,RX6#,TX60..(HT,SED)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub90467-09084

main90467-09084-34iGX61,LX60,65,MX6#,SX60198208-198407

BLUE,BLUE,TRIM8#

sub90467-09084

main90467-09084-56iGX6#,LX60,MX61,63,RX6#,TX60..(HT,SED)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub90467-09084

62461GRETAINER, DOOR TRIM

main67771-12010iGX6#,LX60,MX63,RX6#,TX60..SED198009-198010

main67771-22010iGX6#,LX60,MX6#,RX6#,TX60..SED198010-198101

main67771-22020iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED198101-198407

62462GARNISH, ROOF SIDE TRIM, LH

main62406-95801-01iRX6#,TX60..HT..(GL,GT)198009-198208

BLACK,BLACK,TRIM2#

main62406-95801-02iGX61,SX60..HT..(GL,LE)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62406-95801-04iRX6#,TX60..HT..(GL,GT)198009-198208

BLUE,BLUE,TRIM8#

main62406-95801-06iRX6#,TX60..HT..(GL,GT)198009-198407

D-BROWN,BROWN,TRIM4#

main62406-95801-14iGX61,SX60..HT..(GL,LE)198208-198407

BLUE,BLUE,TRIM8#

main62406-95802-01iGX6#,MX61,RX60..HT..(GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

main62406-95802-02iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62406-95802-04iGX6#,MX61,RX60..HT..(GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62406-95802-06iGX61,MX61,SX60..HT..(GR,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62406-95802-14iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

BLUE,BLUE,TRIM8#

main62474-22050-01iGX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)198009-198208

BLACK,BLACK,TRIM2#

main62474-22050-02iGX61,LX60,65,MX6#,SX60..SED..(DLX,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62474-22050-04iGX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62474-22050-06iGX6#,LX60,65,MX60,61,RX6#,SX60,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62474-22050-14iGX61,LX60,65,MX6#,SX60..SED..(DLX,GL,GR,LE,LG,LGT,STD)198208-198407

BLUE,BLUE,TRIM8#

main62474-22110-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62474-22100

main62474-22110-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

sub62474-22100

main62474-22110-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

sub62474-22100

main62480-22050-01iGX61,MX61,63..SED..GD198009-198208

BLACK,BLACK,TRIM2#

main62480-22050-04iGX61,MX61,63..SED..GD198009-198208

BLUE,BLUE,TRIM8#

main62480-22050-06iGX61,MX61,63..SED..GD198009-198208

D-BROWN,BROWN,TRIM4#

main62480-95802-01iGX61,MX61,63..HT..GD198009-198208

BLACK,BLACK,TRIM2#

main62480-95802-04iGX61,MX61,63..HT..GD198009-198208

BLUE,BLUE,TRIM8#

main62480-95802-06iGX61,MX61,63..HT..GD198009-198208

D-BROWN,BROWN,TRIM4#

main62480-95803-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62480-95803-04iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main62480-95803-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

62481ABASE, ROOF SIDE INNER GARNISH, RH

main62481-95800-01iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

main62481-95800-02iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62481-95800-04iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62481-95800-06iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62481-95800-14iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

BLUE,BLUE,TRIM8#

main62481-95801-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62481-95801-04iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main62481-95801-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

main62487-22030iGX61,LX60,65,MX6#,SX60..SED198009-198407

62482ABASE, ROOF SIDE INNER GARNISH, LH

main62482-95800-01iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198208

BLACK,BLACK,TRIM2#

main62482-95800-02iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62482-95800-04iGX6#,MX61,63,RX60..HT..(GD,GR,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62482-95800-06iGX61,MX61,SX60..HT..(GR,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62482-95800-14iGX61,MX61,SX60..HT..(GR,LG,LGT)198208-198407

BLUE,BLUE,TRIM8#

main62482-95801-02iGX61,MX61..HT..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62482-95801-04iGX61,MX61..HT..GD198208-198407

BLUE,BLUE,TRIM8#

main62482-95801-06iGX61,MX61..HT..GD198208-198407

D-BROWN,BROWN,TRIM4#

main62488-22020iGX6#,LX60,MX60,61,RX6#,TX60..SED..(DLX,GL,GR,GT,LE,LG,LGT,STD)198009-198407

62535PAD, QUARTER WHEEL HOUSE TRIM

main62611-22030iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..HT,SED198009-198407

62536COVER, QUARTER WHEEL HOUSE TRIM FRONT, RH

main62551-22010-01iGX6#,LX60,MX6#,RX6#,TX60..SED198009-198208

BLACK,BLACK,TRIM2#

sub62551-22010

main62551-22010-02iGX61,LX60,65,MX6#,SX60..SED..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62551-22010

main62551-22010-04iGX6#,LX60,MX6#,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62551-22010

main62551-22010-06iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62551-22010

main62551-22010-14iGX61,LX60,65,MX6#,SX60..SED198208-198407

BLUE,BLUE,TRIM8#

sub62551-22010

main62551-95800-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

sub62551-95800

main62551-95800-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62551-95800

main62551-95800-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

sub62551-95800

main62551-95800-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

sub62551-95800

main62551-95800-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

sub62551-95800

main62610-91602-01iLX67,TX67198011-198208

BLACK,BLACK,TRIM2#

sub62610-91602

main62610-91602-02iLX67,TX67..DLX,GL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62610-91602

main62610-91602-04iLX67,TX67..DLX,GL198011-198208

BLUE,BLUE,TRIM8#

sub62610-91602

main62610-91602-06iLX67,TX67..DLX,GL198011-198407

D-BROWN,BROWN,TRIM4#

sub62610-91602

main62610-91602-14iLX67,TX67198208-198407

BLUE,BLUE,TRIM8#

sub62610-91602

main62610-91603-01iGX60..WG198011-198208

BLACK,BLACK,TRIM2#

sub62610-91603

main62610-91603-04iGX60..WG198011-198208

BLUE,BLUE,TRIM8#

sub62610-91603

main62610-91603-06iGX60..WG198011-198208

D-BROWN,BROWN,TRIM4#

sub62610-91603

main62610-91604-02iGX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62610-91604-04iGX60198208-198407

BLUE,BLUE,TRIM8#

main62610-91604-06iGX60198208-198407

D-BROWN,BROWN,TRIM4#

62537COVER, QUARTER WHEEL HOUSE TRIM FRONT, LH

main62552-22010-01iGX6#,LX60,MX6#,RX6#,TX60..SED198009-198208

BLACK,BLACK,TRIM2#

sub62552-22010

main62552-22010-02iGX61,LX60,65,MX6#,SX60..SED..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62552-22010

main62552-22010-04iGX6#,LX60,MX6#,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

sub62552-22010

main62552-22010-06iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

sub62552-22010

main62552-22010-14iGX61,LX60,65,MX6#,SX60..SED198208-198407

BLUE,BLUE,TRIM8#

sub62552-22010

main62552-95800-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

sub62552-95800

main62552-95800-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62552-95800

main62552-95800-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

sub62552-95800

main62552-95800-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

sub62552-95800

main62552-95800-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

sub62552-95800

main62620-91602-01iLX67,TX67198011-198208

BLACK,BLACK,TRIM2#

sub62620-91602

main62620-91602-02iLX67,TX67..DLX,GL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

sub62620-91602

main62620-91602-04iLX67,TX67..DLX,GL198011-198208

BLUE,BLUE,TRIM8#

sub62620-91602

main62620-91602-06iLX67,TX67..DLX,GL198011-198407

D-BROWN,BROWN,TRIM4#

sub62620-91602

main62620-91602-14iLX67,TX67198208-198407

BLUE,BLUE,TRIM8#

sub62620-91602

main62620-91603-01iGX60..WG198011-198208

BLACK,BLACK,TRIM2#

sub62620-91603

main62620-91603-04iGX60..WG198011-198208

BLUE,BLUE,TRIM8#

sub62620-91603

main62620-91603-06iGX60..WG198011-198208

D-BROWN,BROWN,TRIM4#

sub62620-91603

main62620-91604-02iGX60198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62620-91604-04iGX60198208-198407

BLUE,BLUE,TRIM8#

main62620-91604-06iGX60198208-198407

D-BROWN,BROWN,TRIM4#

62561PROTECTOR, ROCKER PANEL, INNER FRONT

main62561-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

RH

main62562-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

LH

62562PROTECTOR, ROCKER PANEL, INNER REAR

main62563-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

62581CGARNISH, REAR WINDOW SIDE, RH

main62581-22030-01iGX6#,LX60,MX6#,RX6#,TX60..SED198009-198208

BLACK,BLACK,TRIM2#

main62581-22030-02iGX61,LX60,65,MX6#,SX60..SED..(DLX,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62581-22030-04iGX6#,LX60,MX6#,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62581-22030-06iGX6#,LX60,MX6#,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62581-22030-14iGX61,LX60,65,MX6#,SX60..SED..(DLX,GL,GR,LE,LG,LGT,STD)198208-198407

BLUE

main62581-22040-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62581-22040-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main62581-22040-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

62582CGARNISH, REAR WINDOW SIDE, LH

main62582-22010-01iGX6#,LX60,MX6#,RX6#,TX60..SED198009-198208

BLACK,BLACK,TRIM2#

main62582-22010-02iGX61,LX60,65,MX6#,SX60..SED..(DLX,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62582-22010-04iGX6#,LX60,MX6#,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main62582-22010-06iGX6#,LX60,65,MX6#,RX6#,SX60,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main62582-22010-14iGX61,LX60,65,MX6#,SX60..SED198208-198407

BLUE,BLUE,TRIM8#

main62582-22020-02iGX61,MX61..SED..GD198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main62582-22020-04iGX61,MX61..SED..GD198208-198407

BLUE,BLUE,TRIM8#

main62582-22020-06iGX61,MX61..SED..GD198208-198407

D-BROWN,BROWN,TRIM4#

9015940091

main90159-40091

9015950083

main90159-50083

9018305094

main90183-05094

9046304028

main90463-04028

9046305024

main90463-05024

9046710011

main90467-10011

9046805011

main90468-05011

9046805017

main90468-05017

9046805021

main90468-05021

9046825001

main90468-25001

9351054014

main93510-54014

9356014012

main93560-14012

41 parts on this diagram · 3 diagrams in section
