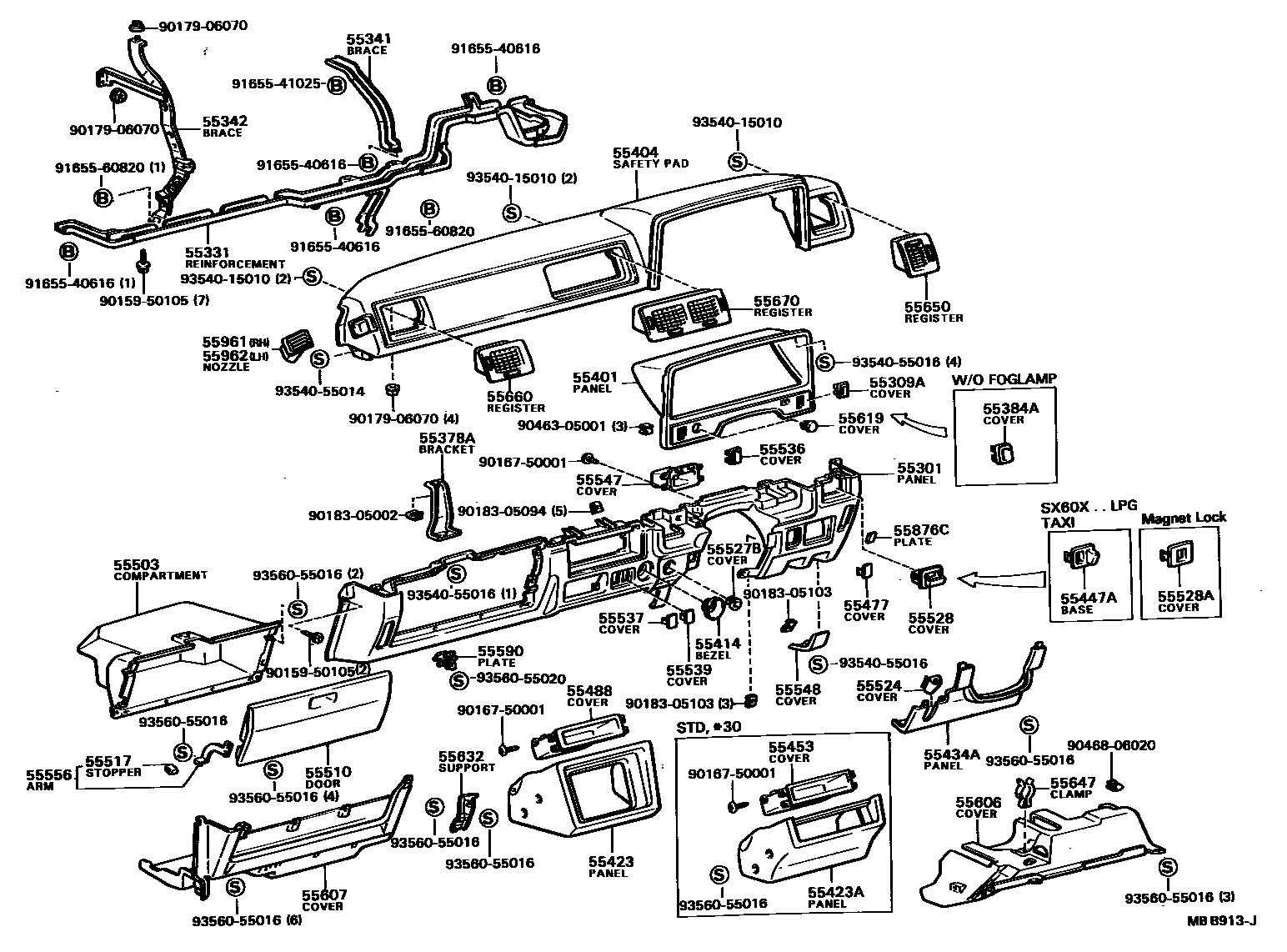

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-22080-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55311-22080-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55311-22080-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55311-22080-06iGX6#,LX6#,MX6#,RX60,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55311-22080-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

55309ACOVER, BASE SWITCH HOLE, NO.1

main55384-20011iLX60..DLX198009-198407

TAXI

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-22080iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

main55305-22090iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198203

main55305-22140iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198203-198407

55341BRACE, INSTRUMENT PANEL, NO.1

main55341-22030iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

main55341-22040iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(3FC,4F,4FC,5F)198009-198407

55342BRACE, INSTRUMENT PANEL, NO.2

main55306-22060iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

main55306-22070iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

55378ABRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING

main55378-22020iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

55384ACOVER, PARKING LAMP SWITCH HOLE

main55384-20011iLX67,TX67198208-198407

55401PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH

main55410-95800iGX6#,MX61,63..HT..(GD,LG,LGT)198009-198208

main55410-95801iGX60,RX6#,TX60..HT..(GL,GR,GT,LE)198009-198208

main55410-95802iGX61,MX61..HT..(GD,LG)198208-198407

main55411-22150iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GL,GR,LE,LGT,STD)198208-198407

main55411-22160iGX6#,MX61,63..SED..(GD,LG,LGT); LX60..GL198009-198208

*EXT

main55411-22230iGX61,MX61..SED..(4FC,5F)..(GD,LG); GX61..4HC; LX60,65..GL,LE198208-198407

*EXT

55404SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER

main55401-22190-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55401-22190-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55401-22190-04iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLUE,BLUE,TRIM8#

main55401-22190-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55401-22190-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

main55401-95800-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main55401-95800-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55401-95800-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

main55401-95800-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

main55401-95800-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

55414BEZEL, CIGAR LIGHTER HOLE

main55477-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

main55477-22020iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

55423PANEL, STEREO PLAYER FINISH

main55423-22020-01iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198205

BLACK,BLACK,TRIM2#

main55423-22020-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198205

BLUE,BLUE,TRIM8#

main55423-22020-06iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198205

D-BROWN,BROWN,TRIM4#

main55423-22030-01iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198205-198208

BLACK,BLACK,TRIM2#

main55423-22030-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55423-22030-06iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198205-198208

D-BROWN,BROWN,TRIM4#

main55423-22030-14iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198205-198208

BLUE,BLUE,TRIM8#

55423APANEL, RADIO TUNER FINISH

main55424-22010-01iTX6#..STD198009-198208

BLACK,BLACK,TRIM2#

main55424-22010-04iLX60,MX60..DLX198109-198208

*30,BLUE,BLUE,TRIM8#

main55424-22010-06iLX60,MX60..DLX198109-198208

*30,D-BROWN,BROWN,TRIM4#

55434APANEL, INSTRUMENT FINISH, LOWER SUB

main55432-22080-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55432-22080-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55432-22080-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55432-22080-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55432-22080-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

55447ABASE, LPG SWITCH HOLE

main55447-30040iLX60..DLX198208-198407

TAXI SPEC

55453COVER, RADIO TUNER OPENING

main55521-22020iTX6#..STD198009-198208

main55522-14080iLX60,MX60..MTM..DLX; MX61,SX60,TX67..LGT,STD198208-198407

W/O RADIO

55477COVER, OVERDRIVE KNOB HOLE

main55385-20011iGX6#,RX6#,SX60,TX60..HT..(3FC,4F,5F)198009-198407

main55534-30050-01iGX6#,LX6#,MX60,RX6#,TX6#..(SED,V,WG)..(3FC,4F,4HC,5F)198009-198208

BLACK,BLACK,TRIM2#

main55534-30050-04iGX6#,LX6#,MX60,RX6#,TX6#..(SED,V,WG)..(3FC,4F,4FC,5F)198009-198208

BLUE,BLUE,TRIM8#

main55534-30050-06iGX6#,LX6#,MX60,RX6#,SX60,TX6#..(SED,V,WG)..(3FC,4F,4FC,5F)198009-198407

D-BROWN,BROWN,TRIM4#

main55534-30050-12iGX6#,LX60,67,MX60,SX60,TX67..(SED,V,WG)..(3FC,4F,4HC,5F)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55534-30050-14iGX6#,LX6#,MX60,SX60,TX67..(SED,V,WG)..(3FC,4F,4FC,5F)198208-198407

BLUE,BLUE,TRIM8#

55488COVER, STEREO OPENING

main55521-22020iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

55503COMPARTMENT SUB-ASSY, GLOVE

main55506-22030iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

main55581-22020iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

55510DOOR ASSY, GLOVE COMPARTMENT

main55550-22030-01iGX6#,MX61,63,RX6#,TX60..HT198009-198203

BLACK,BLACK,TRIM2#

main55550-22030-04iGX6#,MX61,63,RX6#,TX60..HT198009-198203

BLUE,BLUE,TRIM8#

main55550-22030-06iGX6#,MX61,63,RX6#,TX60..HT198009-198203

D-BROWN,BROWN,TRIM4#

main55550-22040-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55550-22040-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55550-22040-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55550-22040-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55550-22040-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

main55550-22060-01iGX6#,MX61,63,RX6#,TX60..HT198203-198208

BLACK,BLACK,TRIM2#

main55550-22060-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55550-22060-04iGX6#,MX61,63,RX6#,TX60..HT198203-198208

BLUE,BLUE,TRIM8#

main55550-22060-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198203-198407

D-BROWN,BROWN,TRIM4#

main55550-22060-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

55517STOPPER, GLOVE COMPARTMENT DOOR ARM

main55517-14010iGX6#,LX6#,MX6#,RX6#,TX6#198009-198109

55524COVER, SWITCH BACE HOLE

main55524-22010-02iGX6#,LX60,65,MX61,SX60,TX67..(SED,V,WG)..ATM198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55524-22010-06iGX6#,LX60,65,MX61,SX60,TX67..(SED,V,WG)..ATM198208-198407

D-BROWN,BROWN,TRIM4#

main55524-22010-14iGX6#,LX60,65,MX61,SX60,TX67..(SED,V,WG)..ATM198208-198407

BLUE,BLUE,TRIM8#

55527BCOVER, DIESEL THROTTLE KNOB HOLE

main55527-22020-01iGX6#,MX61,63,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55527-22020-04iGX6#,MX61,63,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55527-22020-06iGX6#,LX65,MX61,63,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55527-22020-12iGX6#,LX65,MX61,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55527-22020-14iGX6#,LX65,MX61,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

55528COVER, AUTO DRIVE OPENING

main55528-30010-01iGX6#,LX60,MX61,63,RX6#,TX60..SED; LX67,TX67..DLX,STD198105-198208

BLACK,BLACK,TRIM2#

main55528-30010-04iGX6#,LX60,MX61,63,RX6#,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT)198105-198208

BLUE,BLUE,TRIM8#

main55528-30010-06iGX6#,LX60,65,MX61,63,RX6#,SX60,TX60..SED..(DLX,GD,GL,GR,GT,LE,LG,LGT); LX67,TX67..DLX198105-198407

D-BROWN,BROWN,TRIM4#

main55528-30010-12iGX61,LX60,65,MX61,SX60..SED..(DLX,GD,GL,GR,LE,LG,LGT); LX67,TX67..DLX198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55528-30010-14iLX67,TX67..DLX,STD198105-198407

BLUE,BLUE,TRIM8#

main55528-95800iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

55528ACOVER, MAGNETIC DOOR LOCK

main55528-22010-01iGX60,TX67..(V,WG)..(GL,LE)198011-198208

BLACK,BLACK,TRIM2#

main55528-22010-04iGX60,TX67..(V,WG)..(GL,LE)198011-198208

BLUE,BLUE,TRIM8#

main55528-22010-06iGX60,TX67..(V,WG)..(GL,LE)198011-198407

D-BROWN,BROWN,TRIM4#

main55528-22010-12iGX60,TX67..GL,LE198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55528-22010-14iGX60,TX67..GL,LE198208-198407

BLUE,BLUE,TRIM8#

55536COVER, REAR WINDOW WIPER SWITCH HOLE

main55384-20011iTX67..DLX,STD;GX6#,LX6#,MX6#,RX60,SX60,TX60..SED,V198105-198407

main55539-22010-01iGX6#,MX63,RX6#,TX60..HT198009-198105

BLACK,BLACK,TRIM2#

main55539-22010-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55539-22010-04iGX6#,MX63,RX6#,TX60..HT198009-198105

BLUE,BLUE,TRIM8#

main55539-22010-05iGX6#,MX61,63,RX60,TX60..HT198105-198208

GREIGE,BEIGE,TRIM4#

main55539-22010-06iGX61,MX61,SX60..HT198208-198407

D-BROWN,BROWN,TRIM4#

main55539-22010-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

55537COVER, REAR WINDOW DEFOGGER SWITCH HOLE

main55534-30050-01iTX6#..STD198009-198208

BLACK,BLACK,TRIM2#

main55534-30050-14iSX60,TX67..STD198208-198407

BLUE,BLUE,TRIM8#

55539COVER, SPARE SWITCH HOLE

main55534-30050-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55534-30050-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55534-30050-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

D-BROWN,BROWN,TRIM4#

main55534-30050-12iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55534-30050-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

main55539-22010-01×2iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main55539-22010-02×2iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55539-22010-04×2iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

main55539-22010-05×2iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

GREIGE,BEIGE,TRIM4#

main55539-22010-14×2iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

55547COVER, REMOTE CONTROL MIRROR HOLE

main55547-22010-01iLX6#,MX60,TX6#..DLX,STD198105-198208

BLACK,BLACK,TRIM2#

main55547-22010-02iLX60,67,MX60,SX60,TX67..DLX; MX61..LGT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55547-22010-04iLX6#,MX60,TX6#..DLX198105-198208

BLUE,BLUE,TRIM8#

main55547-22010-05iRX60,TX60..HT..GL198009-198105

GREIGE,BEIGE,TRIM4#

main55547-22010-06iMX61..LGT198208-198407

D-BROWN,BROWN,TRIM4#

main55547-22010-14iLX60,67,MX60,SX60,TX67..DLX,STD; MX61..LGT198208-198407

BLUE,BLUE,TRIM8#

55548COVER, FUEL LID OPENER OPENING

main55548-22020-01iLX60..DLX198109-198208

*30,BLACK,BLACK,TRIM2#

main55548-22020-02iLX67,MX60,TX67..DLX,GL198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55548-22020-04iLX60..DLX198109-198208

*30,BLUE,BLUE,TRIM8#

main55548-22020-06iLX60..DLX198109-198208

*30,D-BROWN,BROWN,TRIM4#

main55548-22020-14iSX60..STD;LX67,MX60,TX67198208-198407

BLUE,BLUE,TRIM8#

55556ARM, GLOVE COMPARTMENT DOOR CHECK

main55556-22030iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

main55556-22040iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

55590PLATE ASSY, GROVE COMPARTMENT DOOR LOCK STRIKER

main55590-12010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

55606COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1

main55606-22020iGX6#,LX6#,MX6#,RX6#,TX6#..3FC,4F,4FC,5F198009-198204

main55606-22030iGX6#..4HC198009-198204

main55606-22070iGX6#,LX60,67,MX60,SX60,TX67..MTM198208-198302

main55606-22071iGX6#,LX60,67,MX60,SX60,TX67..MTM198302-198407

main55606-22080iGX6#,LX60,65,MX6#,SX60..ATM198208-198302

main55606-22081iGX6#,LX60,65,MX6#,SX60..ATM198302-198407

55607COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2

main55607-22010-01iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

BLACK,BLACK,TRIM2#

main55607-22010-02iGX6#,LX6#,MX6#,SX60,TX67..DLX,GD,GL,GR,LE,LG,LGT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55607-22010-04iGX6#,LX6#,MX6#,RX6#,TX6#..DLX,GD,GL,GR,GT,LE,LG,LGT198009-198208

BLUE,BLUE,TRIM8#

main55607-22010-05iGX6#,MX61,63,RX6#,TX60..HT198009-198208

GREIGE,BEIGE,TRIM4#

main55607-22010-06iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

D-BROWN,BROWN,TRIM4#

main55607-22010-14iGX6#,LX6#,MX6#,SX60,TX67198208-198407

BLUE,BLUE,TRIM8#

55619COVER, SWITCH HOLE

main55548-95800iRX60,TX60..HT..GL198009-198208

W/O RHEOSTAT

main55617-10010iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GL,GR,LE,LGT,STD)198208-198407

W/O RHEOSTAT

55632SUPPORT, INSTRUMENT PANEL UNDER TRAY, NO.1

main55631-22060iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..SED,V,WG198009-198407

55647CLAMP, INSTRUMENT PANEL UNDER COVER

main55647-22010iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198204-198407

55650REGISTER ASSY, INSTRUMENT PANEL, NO.1

main55650-22040-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55650-22040-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55650-22040-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55650-22040-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55650-22040-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

main55650-95800-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main55650-95800-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55650-95800-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

main55650-95800-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

main55650-95800-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

55660REGISTER ASSY, INSTRUMENT PANEL, NO.2

main55660-22040-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55660-22040-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55660-22040-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55660-22040-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55660-22040-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

main55660-95800-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main55660-95800-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55660-95800-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

main55660-95800-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

main55660-95800-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

55670REGISTER ASSY, INSTRUMENT PANEL, NO.3

main55670-22060-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55670-22060-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55670-22060-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55670-22060-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55670-22060-24iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

main55670-95800-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main55670-95800-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55670-95800-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

main55670-95800-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

main55670-95800-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

55876CPLATE,SIDE VENTILATOR CONTROL NAME, NO.2

main55876-20010×2iGX6#,LX6#,MX6#,RX6#,SX60,TX6#198009-198407

55961NOZZLE, SIDE DEFROSTER, NO.1

main55961-22020-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main55961-22020-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55961-22020-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

main55961-22020-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

main55961-22020-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

main55961-22030-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55961-22030-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55961-22030-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55961-22030-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55961-22030-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-22020-01iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLACK,BLACK,TRIM2#

main55962-22020-02iGX61,MX61,SX60..HT198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55962-22020-04iGX6#,MX61,63,RX6#,TX60..HT198009-198208

BLUE,BLUE,TRIM8#

main55962-22020-06iGX6#,MX61,63,RX6#,SX60,TX60..HT198009-198407

D-BROWN,BROWN,TRIM4#

main55962-22020-14iGX61,MX61,SX60..HT198208-198407

BLUE,BLUE,TRIM8#

main55962-22030-01iGX6#,LX6#,MX6#,RX6#,TX6#..SED,V,WG198009-198208

BLACK,BLACK,TRIM2#

main55962-22030-02iGX6#,LX6#,MX6#,SX60,TX67..(SED,V,WG)..(DLX,GD,GL,GR,LE,LG,LGT)198208-198407

DEEP MAROON,RED/MAROON,TRIM3#

main55962-22030-04iGX6#,LX6#,MX6#,RX6#,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198208

BLUE,BLUE,TRIM8#

main55962-22030-06iGX6#,LX6#,MX6#,RX6#,SX60,TX6#..(SED,V,WG)..(DLX,GD,GL,GR,GT,LE,LG,LGT)198009-198407

D-BROWN,BROWN,TRIM4#

main55962-22030-14iGX6#,LX6#,MX6#,SX60,TX67..SED,V,WG198208-198407

BLUE,BLUE,TRIM8#

9015950105

main90159-50105

9016750001

main90167-50001

9017906070

main90179-06070

9018305002

main90183-05002

9018305094

main90183-05094

9018305103

main90183-05103

9046305001

main90463-05001

9046806020

main90468-06020

9165540616

main91655-40616

9165541025

main91655-41025

9165560820

main91655-60820

9354015010

main93540-15010

9354055014

main93540-55014

9354055016

main93540-55016

9356055016

main93560-55016

9356055020

main93560-55020

58 parts on this diagram · 2 diagrams in section
