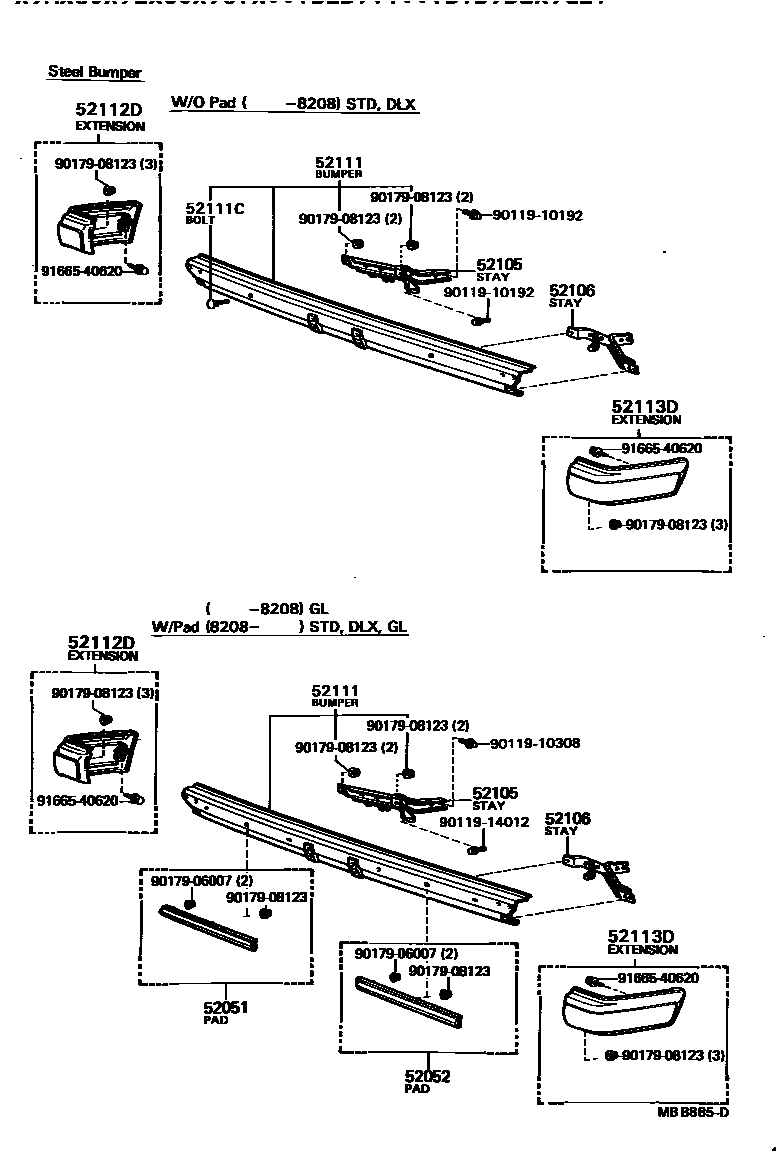

FRONT BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0005 1

52051PAD SUB-ASSY, FRONT BUMPER, RH

main52051-29065iTX6#..GL198009-198208

52052PAD SUB-ASSY, FRONT BUMPER, LH

main52051-29065iLX60..DLX; LX67,MX60,SX60,TX67..(SED,V)..(DLX,GL,STD)198208-198407

52105STAY SUB-ASSY, FRONT BUMPER, RH

main52011-22050iLX6#,MX60,TX6#..SED,V198009-198208

main52011-22070iTX60..HT198009-198208

main52011-22090iLX60,67,MX60,SX60,TX67..(SED,V)..(DLX,GL,STD)198208-198407

52106STAY SUB-ASSY, FRONT BUMPER, LH

main52012-22040iLX6#,MX60,TX6#..SED,V198009-198208

main52012-22060iTX60..HT198009-198208

main52012-22080iLX60,67,MX60,SX60,TX67..(SED,V)..(DLX,GL,STD)198208-198407

52111BUMPER ASSY, FRONT

main52111-29415iLX60..DLX; LX67,MX60,SX60,TX67..(SED,V)..(DLX,GL,STD)198208-198407

main52111-29455iLX6#,MX60,TX6#..SED,V198009-198208

52111CBOLT, ROUND HEAD SQUARE NECK(FOR FRONT BUMPER)

main90112-08043iLX6#,MX60,TX6#..DLX,STD198009-198208

52112DEXTENSION, FRONT BUMPER, RH

main52102-29055iLX6#,MX60,TX6#198009-198208

main52102-29115iLX60..DLX; LX67,MX60,SX60,TX67..(SED,V)..(DLX,GL,STD)198208-198407

52113DEXTENSION, FRONT BUMPER, LH

main52103-29155iLX6#,MX60,TX6#198009-198208

main52103-29175iLX60..DLX; LX67,MX60,SX60,TX67..(SED,V)..(DLX,GL,STD)198208-198407

9011910192

main90119-10192

9011910308

main90119-10308

9011914012

main90119-14012

9017906007

main90179-06007

9017908123

main90179-08123

9166540620

main91665-40620

14 parts on this diagram · 4 diagrams in section
