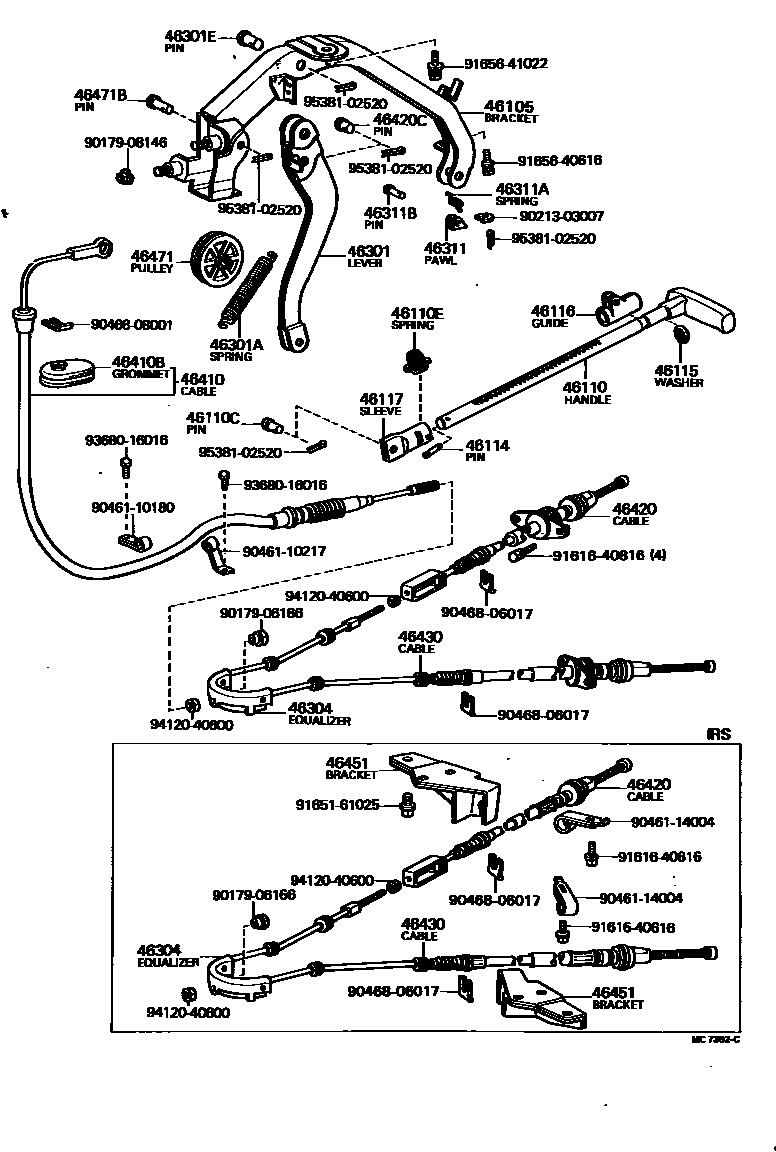

PARKING BRAKE & CABLE

0001 1 0002 1 0004 1 0005 1 0006 1

46105BRACKET SUB-ASSY, PARKING BRAKE PLANGER OR PEDAL

main46105-22040iGX60..4HC198009-198208

main46105-22050iGX61..4HC198009-198208

46110HANDLE ASSY, PARKING BRAKE CONTROL

main46101-22070iGX6#..4HC198009-198208

46110CPIN(FOR PARKING BRAKE HANDLE SET)

main90240-08094iGX6#..4HC198009-198208

46110ESPRING, TORSION(FOR PARKING BRAKE PLUNGER)

main90508-14038iGX6#..4HC198009-198208

46114PIN, PARKING BRAKE PLUNGER

main46114-30010iGX6#..4HC198009-198208

46115WASHER, PARKING BRAKE PLUNGER

main46115-20010iGX6#..4HC198009-198208

46116GUIDE, PARKING BRAKE PLUNGER

main46116-22060iGX6#..4HC198009-198208

46117SLEEVE, PARKING BRAKE PLUNGER

main46117-30010iGX6#..4HC198009-198208

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-22030iGX60..4HC198009-198208

main46301-22040iGX61..4HC198009-198208

46301ASPRING, TENSION(FOR INTERMEDIATE LEVER)

main90506-12175iGX6#..4HC198009-198208

46301EPIN, W/HOLE(FOR INTERMEDIATE LEVER)

main90240-12147iGX6#..4HC198009-198208

46304EQUALIZER SUB-ASSY, PARKING BRAKE

main46341-14010iGX6#,LX60,65,MX6#,SX60,TX67..ATM198208-198407

main46341-22030iGX6#,LX6#,MX6#,RX6#,TX6#198009-198208

46311PAWL, PARKING BRAKE

main46311-20030iGX6#..4HC198009-198208

46311ASPRING(FOR PARKING BRAKE PAWL)

main90506-07007iGX6#,LX60,65,MX6#,SX60,TX67..ATM198208-198407

main90508-08405iGX6#..4HC198009-198208

46311BPIN, PARKING BRAKE PAWL PIVOT

main90240-08156iGX6#..4HC198009-198208

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-22150iGX6#..4HC198009-198208

main46410-22170iGX6#,LX60,65,MX6#,SX60,TX67..ATM198208-198407

46410BGROMMET(FOR PARKING BRAKE FRONT CABLE)

main90480-01022iGX6#..4HC198009-198208

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-22131iGX61,MX61..GD,LGT198208-198407

main46420-22190iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

main46420-22250iGX61,LX65..LE,LG198208-198407

main46420-23120iLX67,TX67198011-198407

main46420-23130iGX60..WG198011-198407

46420CPIN, W/HOLE(FOR PARKING BRAKE CABLE)

main90240-10148iGX6#..4HC198009-198208

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-22050iGX60,LX60,MX60,RX60,SX60,TX60..HT,SED198009-198407

main46430-22110iGX61,MX61..GD,LGT198208-198407

main46430-22170iGX61,LX65..LE,LG198208-198407

main46430-23080iLX67,TX67198011-198407

main46430-23090iGX60..WG198011-198407

46451BRACKET, CABLE SUPPORT

main46401-22010iGX61,LX65,MX61,63,RX63198009-198407

RH

main46403-22010iGX61,LX65,MX61,63,RX63198009-198407

LH

46471PULLEY, WIRE

main46471-20020iGX6#..4HC198009-198208

46471BPIN, W/HOLE(FOR WIRE PULLEY SET)

main90240-10157iGX6#..4HC198009-198208

9017906166

main90179-06166

9017908146

main90179-08146

9021303007

main90213-03007

9046110180

main90461-10180

9046110217

main90461-10217

9046114004

main90461-14004

9046806017

main90468-06017

9046808001

main90468-08001

9161640616

main91616-40616

9161640816

main91616-40816

9165161025

main91651-61025

9165640616

main91656-40616

9165641022

main91656-41022

9368016016

main93680-16016

9412040600

main94120-40600

9538102520

main95381-02520

39 parts on this diagram · 5 diagrams in section
