Toyota 311140 — CARBURETOR ASSEMBLY

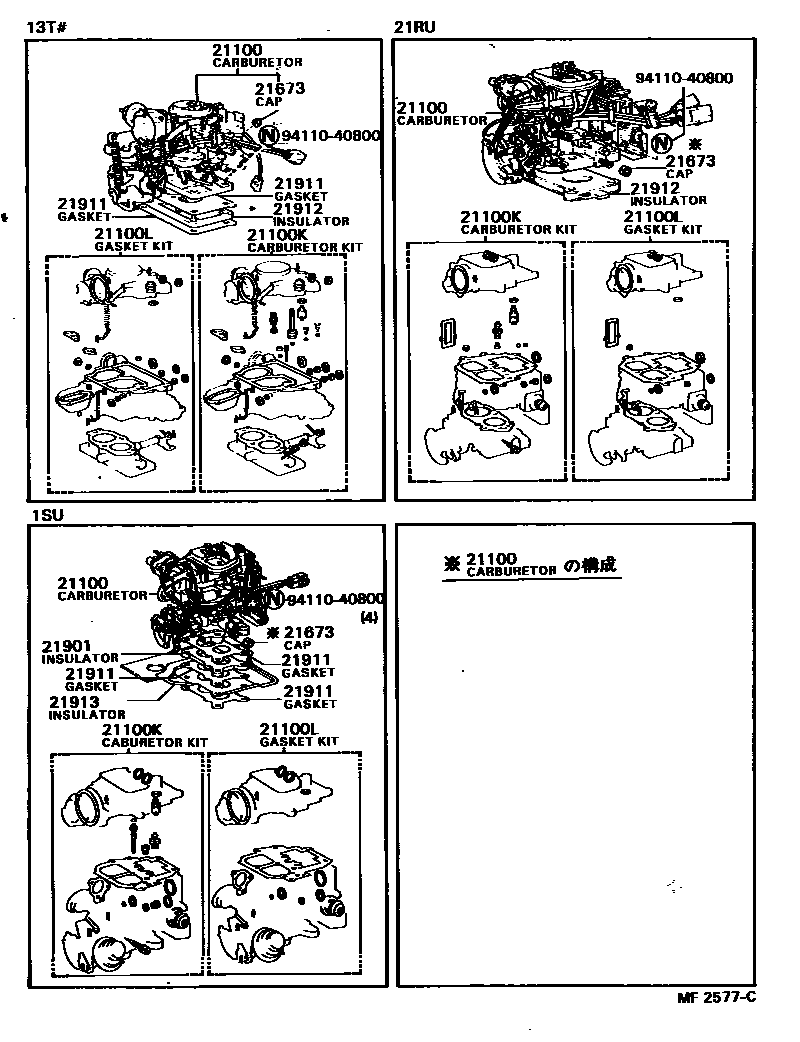

Parts diagram

21100CARBURETOR ASSY

21100KCARBURETOR KIT

21100LGASKET KIT, CARBURETOR

21673CAP, IDLE LIMIT

21901INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1

21911GASKET, CARBURETOR

21912INSULATOR, CARBURETOR HEAT

21913INSULATOR, CARBURETOR HEAT, NO.2

9411040800

9 parts on this diagram · 1 diagram in section

CARBURETOR ASSEMBLY for Toyota 311140

This section contains 9 genuine Toyota parts for the CARBURETOR ASSEMBLY system of the Toyota 311140. Key components include: CARBURETOR ASSY, CARBURETOR KIT, GASKET KIT, CARBURETOR, CAP, IDLE LIMIT, INSULATOR SUB-ASSY, CARBURETOR HEAT, NO.1.
