STARTER

0001 1 0002 1 0003 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1 0013 1

28011CLUTCH SUB-ASSY, STARTER

main28011-15010i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

main28011-26042i13T#,1G#,1SU..GX6#,SX60,TX6#198009-198407

12V 1.4KW

main28011-41020i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

12V 1.0KW

main28011-54010iL,2LTE..LX6#198009-198407

12V 2.5KW

main28011-54070iL..LX60,67..5F198009-198407

12V 2.0KW

28100STARTER ASSY

main28100-15040i1G#..GX6#198009-198407

main28100-27020i13T#..TX6#198009-198407

main28100-27030i13T#..TX6#198009-198208

main28100-27050i13TJ..TX67198208-198407

main28100-34070i21RU,18RGEU..RX6#198009-198208

sub28100-40061

main28100-37010i21RU,18RGEU..RX6#198009-198208

sub28100-37011

main28100-41050iMTEU..MX61198110-198407

main28100-41060iMU..MX60198308-198407

main28100-42021i5MEU,MU..MX60,63198009-198308

12V 1.0KW

sub28100-42070

main28100-45033i5MEU,MTEU,MU..MX6#198009-198308

main28100-45050iMTEU,MU..MX6#198308-198407

main28100-54052iL,2LTE..LX6#198009-198407

sub28100-54220

main28100-54061iL,2LTE..LX60,65..4FC198009-198407

sub28100-54220

main28100-54070iL..LX60,67..5F198009-198407

sub28100-54180

main28100-63020i1SU..SX60198208-198407

main28100-72010i2YPU..SX60198302-198407

28110HOUSING ASSY, STARTER DRIVE

main28110-15040i1G#..GX6#198009-198407

12V 1.0KW

main28110-27020i13T#..TX6#198009-198407

12V 0.8KW

main28110-27030i13T#..TX6#198009-198407

12V 1.0KW

main28110-37010i21RU,18RGEU..RX6#198009-198208

12V 0.8KW

main28110-40061i21RU,18RGEU..RX6#198009-198208

12V 1.0KW

main28110-41021i5MEU,MU..MX60,63198009-198308

12V 1.0KW

main28110-41050iMTEU..MX61198110-198407

12V 0.8KW

main28110-41060iMU..MX60198308-198407

12V 1.0KW

main28110-45050iMTEU,MU..MX6#198308-198407

12V 1.4KW

main28110-63020i1SU..SX60198208-198407

12V 1.0KW

main28110-72010i2YPU..SX60198302-198407

*30,12V 1.0KW

main28115-45021i5MEU,MTEU,MU..MX6#198009-198308

12V 1.4KW

main28115-54011iL,2LTE..LX6#198009-198407

12V 2.5KW

main28115-54070iL..LX60,67..5F198009-198407

12V 2.0KW

28111BUSH(FOR STARTER HOUSING)

main28111-51011i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

28113LEVER, STARTER PINION DRIVE

main28113-15011i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

main28113-41011i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

12V 1.0KW

28119COVER, STARTER END FRAME

main28119-54070iL..LX60,67..5F198009-198407

12V 2.0KW

main28119-77090iL,2LTE..LX6#198009-198407

12V 2.5KW

main28199-15090iMTEU,MU..MX6#198308-198407

12V 1.4KW

main28199-77090i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

28120YOKE ASSY, STARTER

main28120-15010i21RU,18RGEU,MTEU..MX61,RX6#198009-198407

12V 0.8KW

main28120-15090iMTEU,MU..MX6#198308-198407

12V 1.4KW

main28120-26070i2YPU..SX60198302-198407

*30,12V 1.0KW

main28120-26071i13T#,1SU..SX60,TX6#198203-198407

12V 1.0KW

main28120-26140i13T#..TX6#198009-198407

12V 0.8KW

main28120-34030i5MEU,MTEU,MU..MX6#198009-198308

12V 1.4KW

main28120-34070i21RU,18RGEU..RX6#198009-198208

12V 1.0KW

main28120-42020i5MEU,MU..MX60,63198009-198308

12V 1.0KW

main28120-47040iL,2LTE..LX6#198009-198407

12V 2.5KW

main28120-54070iL..LX60,67..5F198009-198407

12V 2.0KW

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-15010iMTEU..MX61198110-198407

12V 0.8KW

main28130-15020iMU..MX60198308-198407

12V 1.0KW

main28130-15040i1G#..GX6#198009-198407

12V 1.0KW

main28130-15090iMTEU,MU..MX6#198308-198407

12V 1.4KW

main28130-26070i13T#..TX6#198009-198407

12V 1.0KW

main28130-37010i21RU,13T#,18RGEU..RX6#,TX6#198009-198407

12V 0.8KW

main28130-41020i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

12V 1.0KW

main28130-54060iL,2LTE..LX6#198009-198407

12V 2.5KW

sub28130-54430

sub28199-46080

sub90099-04207

main28130-63020i1SU..SX60198208-198407

12V 1.0KW

main28130-72010i2YPU..SX60198302-198407

*30,12V 1.0KW

28131BUSH, COMMUTATOR END FRAME

main28131-20010i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

STD,12V 1.0KW

main90099-10039i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

U/S 0.3,12V 1.0KW

main90099-10040i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

U/S 0.5,12V 1.0KW

main90099-10134i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198108-198407

12V 0.8KW

28133COVER, BEARING(FOR END FRAME)

main28132-15010i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

sub28132-15011

main28132-40010i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

12V 1.0KW

28136PLATE, STARTER LOCK

main28136-15010i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

main28136-40010i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

12V 1.0KW

28138RUBBER(FOR STARTER BEARING COVER)

main28138-15010i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

main28138-40010i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

12V 1.0KW

sub28138-26030

28140HOLDER ASSY, STARTER BRUSH

main28140-15010i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

main28140-15090iMTEU,MU..MX6#198308-198407

12V 1.4KW

main28140-25020i21RU,18RGEU..RX6#198009-198208

12V 1.0KW

main28140-26070iMU..MX60198308-198407

12V 1.0KW

main28140-34030i5MEU,MTEU,MU..MX6#198009-198308

12V 1.4KW

main28140-41020i5MEU,MU..MX60,63198009-198308

12V 1.0KW

main28140-54070iL..LX60,67..5F198009-198407

12V 2.0KW

main28140-77090iL,2LTE..LX6#198009-198407

12V 2.5KW

28150SWITCH ASSY, MAGNET STARTER

main28150-15011i21RU,18RGEU..RX6#198009-198208

12V 0.8KW

main28150-15012i13T#,MTEU..MX61,TX6#198009-198304

12V 0.8KW

main28150-15040i1GEU..GX6#198009-198110

12V 1.0KW

main28150-15070i1G#..GX6#198110-198407

12V 1.0KW

main28150-27030i13T#..TX6#198009-198108

12V 1.0KW

main28150-27031i13T#..TX6#198108-198208

12V 1.0KW

main28150-27051i13TJ..TX67198208-198407

12V 1.0KW

main28150-34070i21RU,18RGEU..RX6#198009-198208

12V 1.0KW

main28150-34080i2YPU..SX60198302-198407

*30,12V 1.0KW

main28150-37010i13TJ,MTEU..MX61,TX67198304-198407

12V 0.8KW

sub28150-37011

main28150-41060iMU..MX60198308-198407

12V 1.0KW

main28150-45032i5MEU,MTEU,MU..MX6#198009-198308

12V 1.4KW

main28150-45050iMTEU,MU..MX6#198308-198407

12V 1.4KW

main28150-54011iL,2LTE..LX60,65..4FC198009-198407

12V 2.5KW

sub28150-54190

main28150-54051iL,2LTE..LX6#198009-198407

12V 2.5KW,COLD SPEC

sub28150-54221

main28150-54070iL..LX60,67..5F198009-198407

12V 2.0KW

sub28150-54110

main28150-60040i5MEU,MU..MX60,63198009-198308

12V 1.0KW

main28150-63021i1SU..SX60198208-198407

12V 1.0KW

28153COVER, MAGNET SWITCH

main28159-13030i13TJ..TX67198308-198407

12V 0.8KW

main28159-15010i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198308

12V 0.8KW

28160ARMATURE ASSY, STARTER

main28160-15010i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

main28160-15090iMTEU,MU..MX6#198308-198407

12V 1.4KW

sub28160-15091

main28160-26050i5MEU,MTEU,MU..MX6#198009-198308

12V 1.4KW

main28160-26070i2YPU..SX60198302-198407

*30,12V 1.0KW

sub28160-26071

main28160-41020i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

12V 1.0KW

main28160-47040iL,2LTE..LX6#198009-198407

12V 2.5KW

sub28160-54140

main28160-54070iL..LX60,67..5F198009-198407

12V 2.0KW

sub28160-54071

28162SPRING, STARTER BRAKE

main28162-15010i21RU,13T#,18RGEU,MTEU..MX61,RX6#,TX6#198009-198407

12V 0.8KW

main28162-41022i21RU,18RGEU,5MEU,MU..MX60,63,RX6#198009-198308

12V 1.0KW

28163NUT OR COLLAR, PINION STOP, STARTER

main28163-40011i13T#..TX6#198009-198407

12V 0.8KW,1.0KW

28163ARING, SNAP(FOR STARTER PINION STOP NUT)

main90099-07047i13T#..TX6#198009-198407

12V 0.8KW,1.0KW

28199COVER, STARTER

main28199-13011i13TJ..TX67198208-198407

12V 1.0KW

main28199-15110i13TJ..TX67198304-198407

12V 0.8KW

main28199-26131i13T#..TX6#198009-198304

12V 0.8KW

main28199-27030i13T#..TX6#198009-198108

12V 1.0KW

main28199-27031i13T#..TX6#198108-198208

12V 1.0KW

2813826142RUBBER(FOR STARTER BEARING COVER)

main28138-26142

9009900926

main90099-00926

9009901467

main90099-01467

9009904272

main90099-04272

9009904921

main90099-04921

9009905118

main90099-05118

9009905148

main90099-05148

9009905178

main90099-05178

9009912405

main90099-12405

9017908146

main90179-08146

9161161050

main91611-61050

9411040800

main94110-40800

9451100800

main94511-00800

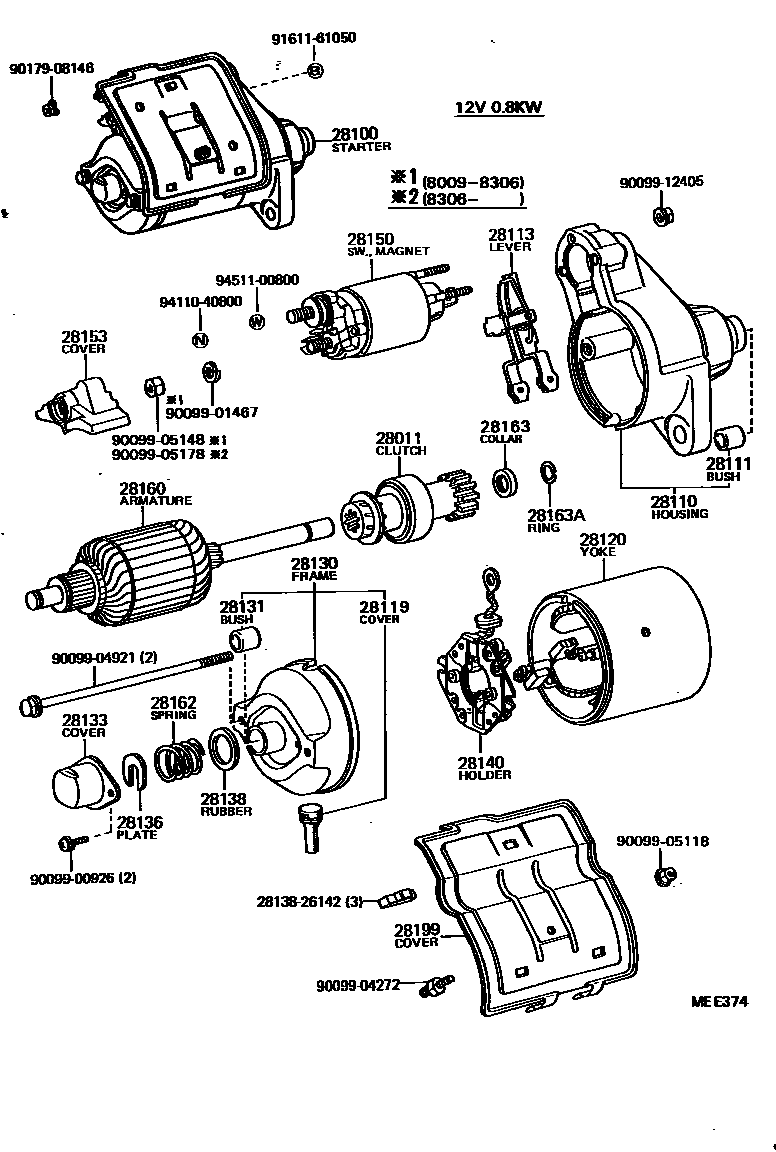

33 parts on this diagram · 12 diagrams in section
