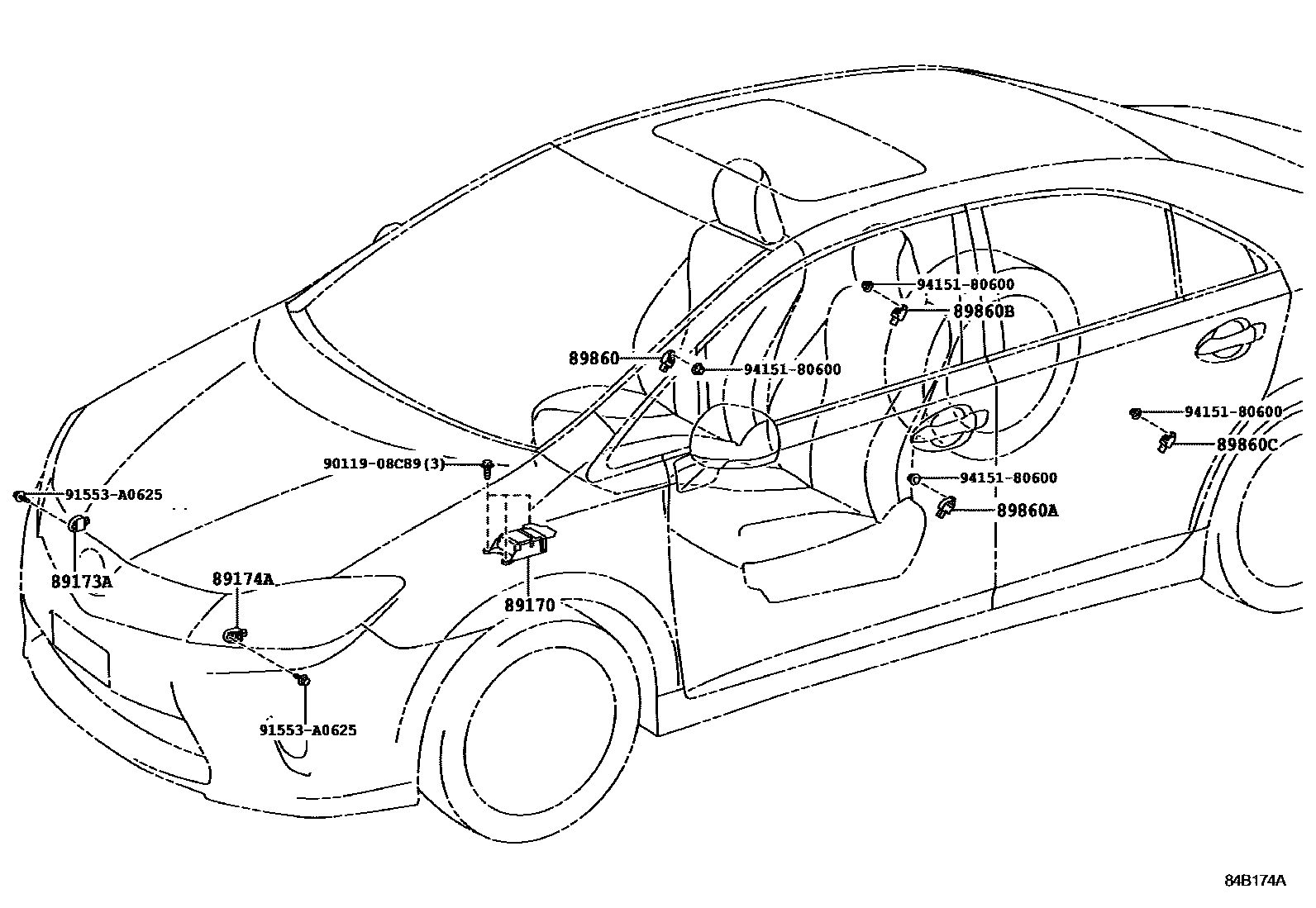

AIR BAG

89170SENSOR ASSY, AIRBAG

main89170-75020supersedes 89170-75010iAZK10..CBU200911-201308

main89170-75210supersedes 89170-75200iAZK10..CBU201308-201505

main89170-75270supersedes 89170-75260iAZK10..CBU201505

89173ASENSOR, AIRBAG, FRONT RH

main89173-79025iAZK10..CBU200911-201308

89174ASENSOR, AIRBAG, FRONT LH

main89173-79025iAZK10..CBU200911-201308

89860SENSOR ASSY, SIDE AIRBAG, RH

main89831-75010iAZK10..CBU200911-201308

89860ASENSOR ASSY, SIDE AIRBAG, LH

main89831-75010iAZK10..CBU200911-201308

89860BSENSOR ASSY, SIDE AIRBAG, RH, NO.2

main89831-75020iAZK10..CBU200911-201308

89860CSENSOR ASSY, SIDE AIRBAG, LH, NO.2

main89831-75020iAZK10..CBU200911-201308

9011908C89

main90119-08C89

91553A0625

main91553-A0625

9415180600

main94151-80600

10 parts on this diagram · 1 diagram in section
