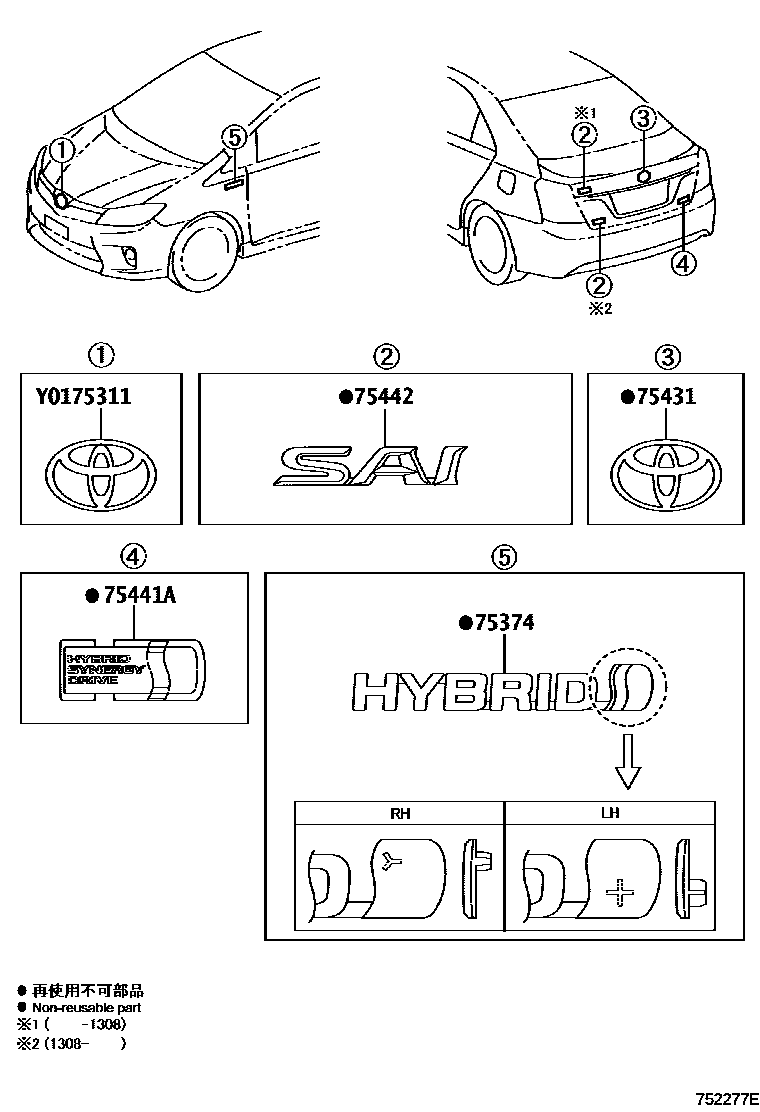

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main75310-33010iAZK10..CBU201308-201802

main75310-75010iAZK10..CBU200911-201308

main53141-47011iAZK10..G..CBU201610-201802

main53141-47012iAZK10..G..CBU201308-201609

main53141-75020iAZK10..G..CBU200911-201308

75374EMBLEM, SIDE PANEL

main75374-47050iAZK10..CBU200911-201010

main75374-47051iAZK10..CBU201308

main75374-47060iAZK10..CBU200911-201010

main75374-47061iAZK10..CBU201308

75431EMBLEM, LUGGAGE COMPARTMENT DOOR

main75403-75010iAZK10..CBU200911-201308

75441APLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.1

main75441-41010iAZK10..CBU201308-201802

main75441-75010iAZK10..CBU200911-201010

main75441-75011iAZK10..CBU201011-201308

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-75010iAZK10..CBU200911-201308

main75442-75030iAZK10..CBU201308-201802

5 parts on this diagram · 1 diagram in section
