SEAT BELT & CHILD RESTRAINT SEAT

0001 1���� ��� 0002 1�� ���

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-A5iAZK10..CBU201111-201308

SHELL,TRIM0#

main73023-53020-A6iAZK10..CBU201308-201802

FLAXEN,TRIM0#

main73023-53020-B1iAZK10..CBU201308-201802

GRAY,TRIM2#

main73023-53020-E0iAZK10..CBU200911-201111

GREGE,TRIM4#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-A5iAZK10..CBU201111-201308

SHELL,TRIM0#

main73024-53020-A6iAZK10..CBU201308-201802

FLAXEN,TRIM0#

main73024-53020-B1iAZK10..CBU201308-201802

GRAY,TRIM2#

main73024-53020-E0iAZK10..CBU200911-201111

GREGE,TRIM4#

73190BRACKET ASSY, SEAT BELT INNER ANCHOR, LH

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-12070×2iAZK10..CBU201505

main73200-53010×2iAZK10..CBU201308-201504

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-75070-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main73210-75070-A1iAZK10..CBU201308-201802

FLAXEN,TRIM0#

main73210-75070-B0iAZK10..CBU201308-201802

GRAY,TRIM2#

main73210-75080-A0iAZK10..G..CBU201111-201308

main73210-75080-A1iAZK10..G..CBU201308-201802

main73210-75080-B0iAZK10..CBU; AZK10..G..CBU200911-201111

main73210-75080-E0iAZK10..CBU; AZK10..G..CBU200911-201111

main73210-75090-B0iAZK10..G..CBU201505-201802

73219STOPPER, TONGUE PLATE

main73219-33010iAZK10..CBU200911-201308

main73219-33020iAZK10..CBU200911-201308

main73219-33030iAZK10..CBU201308

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-75050-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main73220-75050-A1iAZK10..CBU201308-201802

FLAXEN,TRIM0#

main73220-75050-B0iAZK10..CBU201308-201802

GRAY,TRIM2#

main73220-75060-A0iAZK10..G..CBU201111-201308

main73220-75060-A1iAZK10..G..CBU201308-201802

main73220-75060-B0iAZK10..G..CBU201308-201802

main73220-75060-E0supersedes 73220-75050-E0iAZK10..CBU; AZK10..G..CBU200911-201111

main73220-75070-B0iAZK10..G..CBU201505-201802

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-75010-C0iAZK10..S..CBU200911-201308

BLACK,TRIM0#,1#,4#

main73230-75060-C0iAZK10..G..CBU200911-201308

BLACK,TRIM0#,1#,4#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-C0×2iAZK10..CBU200911-201308

BLACK

main73233-60020-C1×2iAZK10..CBU201610-201802

BLACK

73240BELT ASSY, FRONT SEAT INNER, LH

main73240-75010-C0iAZK10..S..CBU200911-201308

BLACK,TRIM0#,1#,4#

main73240-75100-C0supersedes 73240-75010-C0iAZK10..G..CBU200911-201308

BLACK,TRIM0#,1#,4#

main73240-75060-C0iAZK10..S..CBU200911-201111

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010

9010510523

main90105-10523

9010511058

main90105-11058

9010911059

main90109-11059

9017811002

main90178-11002

9017911010

main90179-11010

9020617005

main90206-17005

9155380612

main91553-80612

9461211200

main94612-11200

C991011001

mainC9910-11001

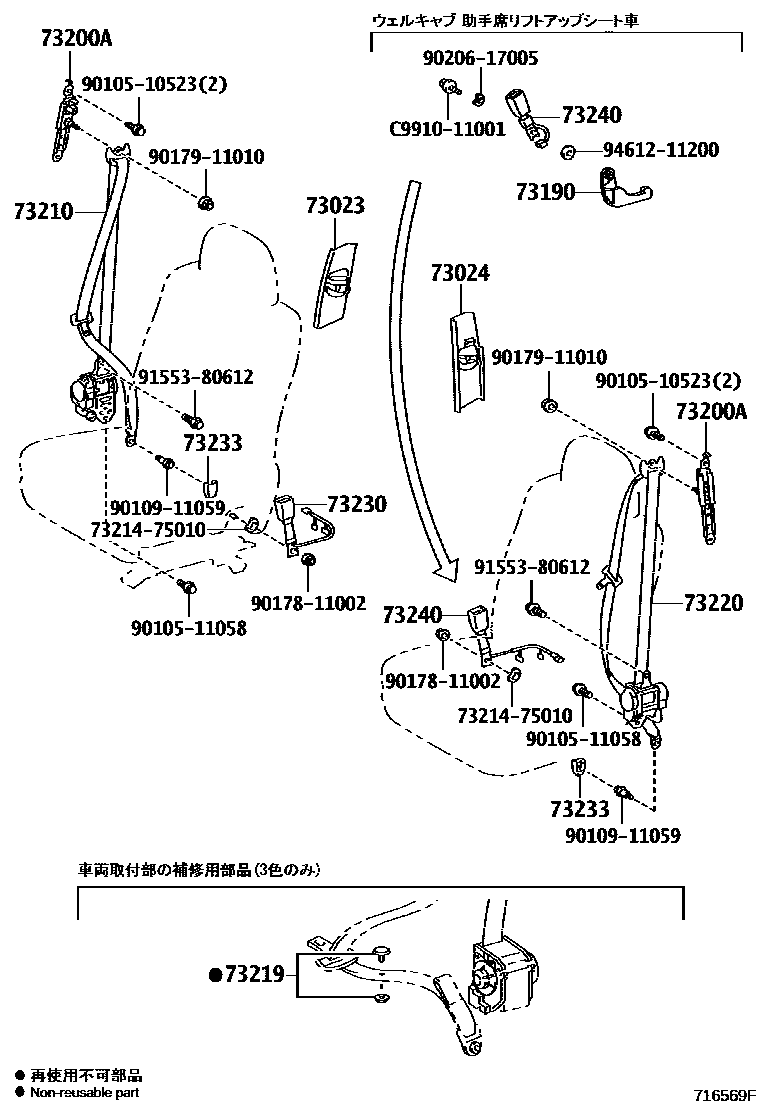

20 parts on this diagram · 2 diagrams in section
