FRONT SEAT & SEAT TRACK

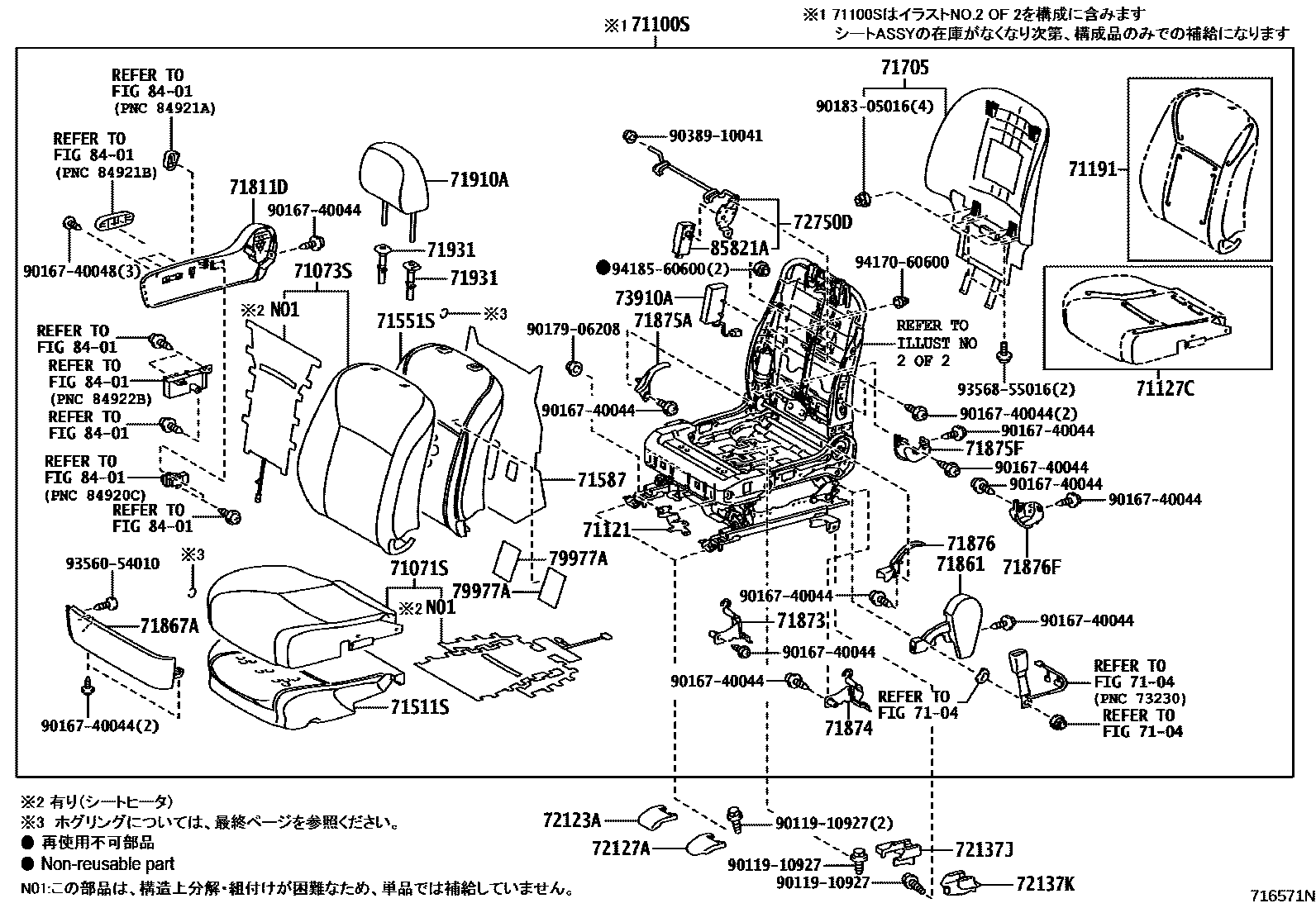

Parts diagram
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71071-75010-B0i200911-201111
GRAY,TRIM1#
main71071-75010-E0i200911-201111
PLUM,TRIM4#
main71071-75030-A0i201111-201308
SHELL,TRIM0#
main71071-75030-C0i201111-201308
BLACK,TRIM1#
main71071-75270-A4i201308-201802
FLAXEN/AKANE,TRIM01
main71071-75270-A5i201308-201802
FLAXEN/FLAXEN,TRIM00
main71071-75270-C2i201308-201802
BLACK/BLACK,TRIM2#
main71071-75020-E0i200911-201111
main71071-75190-A0i201111-201308
main71071-75280-C3i201308-201802
main71071-75300-A4i201308-201802
main71071-75300-A5i201308-201802
main71071-75300-C2i201308-201802
main71071-75340-K0i201505-201802
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71073-75010-B0i200911-201111
GRAY,TRIM1#
main71073-75010-E0i200911-201111
PLUM,TRIM4#
main71073-75080-A0i201111-201301
SHELL,TRIM0#
main71073-75080-A1i201301-201308
SHELL,TRIM0#
main71073-75080-C0i201111-201301
BLACK,TRIM1#
main71073-75080-C1i201301-201308
BLACK,TRIM1#
main71073-75150-A8i201308-201802
FLAXEN/AKANE,TRIM01
main71073-75150-A9i201308-201802
FLAXEN/FLAXEN,TRIM00
main71073-75150-C4i201308-201802
BLACK/BLACK,TRIM2#
main71073-75020-A0i201111-201301
main71073-75020-A1i201301-201308
main71073-75020-E0i200911-201111
main71073-75160-C5i201308-201802
main71073-75170-A8i201308-201802
main71073-75170-A9i201308-201802
main71073-75170-C4i201308-201802
main71073-75220-K0i201505-201802
71100SSEAT ASSY, FRONT RH
main71100-75010-A1i201111-201301
SHELL,TRIM0#
main71100-75010-B2i201111-201301
BLACK,TRIM1#
main71100-75030-A1supersedes 71100-75020-A1i201111-201301
main71100-75030-B2supersedes 71100-75020-B2i201111-201301
main71100-75080-A0supersedes 71100-75020-A1i201111-201301
main71100-75090-A0supersedes 71100-75020-A1i201111-201301
main71100-75370-B2supersedes 71100-75350-B2i200911-201111
main71100-75370-E3supersedes 71100-75350-E3i200911-201111
main71100-75380-E4supersedes 71100-75350-E3i200911-201111
main71100-75390-E4supersedes 71100-75350-E3i200911-201111
main71100-75A10-B2supersedes 71100-75340-B2i200911-201111
main71100-75A10-E3supersedes 71100-75340-E3i200911-201111
71121BRACKET, FRONT SEAT CUSHION, RH
main71121-75010i201308
71127CWIRE, FRONT SEAT CUSHION COVER SET
main71127-75010i201111-201308
main71127-75020i201308
71191WIRE, FRONT SEATBACK COVER
main71191-75010i201111-201308
main71191-75020i201308
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
main71511-75010i200911-201308
main71511-75150i201308
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
main71551-75030i201308
main71551-75090i200911-201308
71587PROTECTOR, FRONT SEATBACK EDGE
main71587-75010×2i200911-201101
main71587-75020×2i201101-201308
71705BOARD SUB-ASSY, FRONT SEATBACK, RH
main71705-75020-A3i201111-201308
SHELL,TRIM0#
main71705-75020-A4i201308-201802
FLAXEN,TRIM00
main71705-75020-B1i200911-201111
GRAY,TRIM1#
main71705-75020-C2i201111-201308
BLACK,TRIM1#
main71705-75020-E2i200911-201111
PLUM,TRIM4#
main71705-75020-E3i201308-201802
DK.BROWN,TRIM00,01
71811DSHIELD, FRONT SEAT CUSHION, RH
main71811-75030-A1i201111-201308
SHELL,TRIM0#
main71811-75030-B0i200911-201111
GRAY,TRIM1#
main71811-75030-C0i201111-201308
BLACK,TRIM1#
main71811-75030-E0i201308-201311
DK. BROWN,TRIM00,01
main71811-75030-E1i200911-201111
PLUM,TRIM4#
main71811-75040-A1i201111-201308
main71811-75040-B0i200911-201111
main71811-75040-C0i201111-201308
main71811-75040-E0i201308-201311
main71811-75040-E1i200911-201111
71861SHIELD, FRONT SEAT CUSHION, INNER RH
main71861-75010-A1i201111-201308
SHELL,TRIM0#
main71861-75010-B0i200911-201111
GRAY,TRIM1#
main71861-75010-C0i201308-201802
BLACK,TRIM00,2#
main71861-75010-E0i200911-201111
PLUM,TRIM4#
main71861-75010-E1i201311-201802
DK. BROWN,TRIM01
71867ASHIELD, FRONT SEAT CUSHION, INNER NO.1 RH
main71867-75020-A1i201111-201308
SHELL,TRIM0#
main71867-75020-B0i200911-201111
GRAY,TRIM1#
main71867-75020-C0i201308-201802
BLACK,TRIM00,2#
main71867-75020-E0i201311-201802
DK. BROWN,TRIM01
main71867-75020-E1i200911-201111
PLUM,TRIM4#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
main71873-12040i200911-201308
main71873-75020i201608
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
main71874-12040i200911-201308
main71874-75020i201608
71875ACOVER, RECLINING ADJUSTER INSIDE, RH
main71875-58030-A3i201111-201308
SHELL,TRIM0#
main71875-58030-B5i200911-201111
GRAY,TRIM1#
main71875-58030-C0i201311-201802
BLACK
main71875-58030-E3i200911-201111
PLUM BROWN,TRIM4#
main71875-58030-E4i201308-201311
DK. BROWN,TRIM00,01
71875FCOVER, RECLINING ADJUSTER INSIDE, RH (FOR RH SEAT)
main71875-75010i201308
71876COVER, RECLINING ADJUSTER INSIDE, LH
main71875-60150-A2i201111-201308
SHELL,TRIM0#
main71875-60150-B5i200911-201111
GRAY,TRIM1#
main71875-60150-C0i201311-201802
BLACK
main71875-60150-E5i200911-201111
PLUM BROWN,TRIM4#
main71875-60150-E6i201308-201311
DK. BROWN,TRIM00,01
71876FCOVER, RECLINING ADJUSTER INSIDE, LH (FOR RH SEAT)
main71875-75020i200911-201308
71910AHEADREST ASSY, FRONT SEAT
main71910-75090-B0×2i200911-201111
main71910-75090-E0×2i200911-201111
main71910-75130-A0×2i201111-201308
main71910-75130-C0×2i201111-201308
main71910-75180-A2×2i201308-201802
main71910-75180-A4×2i201308-201802
main71910-75180-C2×2i201308-201802
main71910-75010-B0×2i200911-201111
main71910-75010-E0×2i200911-201111
main71910-75020-E1×2i200911-201111
main71910-75030-E1×2i200911-201111
main71910-75140-A0×2i201111-201301
main71910-75140-A1×2i201301-201308
main71910-75140-C0×2i201111-201301
main71910-75140-C1×2i201301-201308
main71910-75160-A0×2i201111-201308
main71910-75170-A0×2i201111-201301
main71910-75170-A1×2i201301-201308
main71910-75190-A4×2i201308-201802
main71910-75190-A6×2i201308-201802
main71910-75190-C3×2i201308-201802
main71910-75270-C1×2i201308-201802
main71910-75280-C1×2i201308-201802
main71910-75290-C0×2i201505-201802
71931SUPPORT, FRONT SEAT HEADREST
main71930-44020-21×2i201710-201802
main71930-44020-A2×2i201111-201308
main71930-44020-A7×2i201308-201802
main71930-44020-B2×2i200911-201111
main71930-44020-C0×2i201308-201710
main71930-44020-E5×2i200911-201111
main71931-47010-02×2i201308-201802
main71931-47010-A7×2i201111-201308
main71931-47010-C0×2i201111-201308
main71931-47010-C8×2i201710-201802
main71931-47010-E6×2i200911-201111
main71931-47010-P4×2i200911-201111
main71931-50060-A2×4i201111-201308
main71931-50060-A6×4i201308-201802
main71931-50060-B1×4i200911-201111
main71931-50060-C0×4i201308-201710
main71931-50060-C2×4i201710-201802
main71931-50060-E1×4i200911-201111
72123ACOVER, SEAT TRACK BRACKET, OUTER FRONT RH
main72123-75010i201308
72127ACOVER, SEAT TRACK BRACKET, INNER FRONT RH
main72127-75010i200911-201308
72137JCOVER, FRONT SEAT TRACK, RH REAR OUTER
main72137-75010i200911-201308
72137KCOVER, FRONT SEAT TRACK, RH REAR INNER
main72157-75010i200911-201308
72750DADJUSTER ASSY, LUMBAR SUPPORT, RH
main72750-53030i200911-201306
main72750-75020i201306-201308
73910AAIRBAG ASSY, FRONT SEAT, RH
main73910-75010i200911-201308
79977AFELT, SEATBACK
main79977-75010×2i201005-201308
main79977-75040×2i201308
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
85821AMOTOR ASSY, POWER SEAT
main85820-60130i201306-201308
main85820-60170i200911-201306
9011910927
main90119-10927
9016740044
main90167-40044
9016740048
main90167-40048
9017906208
main90179-06208
9018305016
main90183-05016
9038910041
main90389-10041
9356054010
main93560-54010
9356855016
main93568-55016
9417060600
main94170-60600
9418560600
main94185-60600

41 parts on this diagram · 11 diagrams in section
