REAR DOOR LOCK & HANDLE

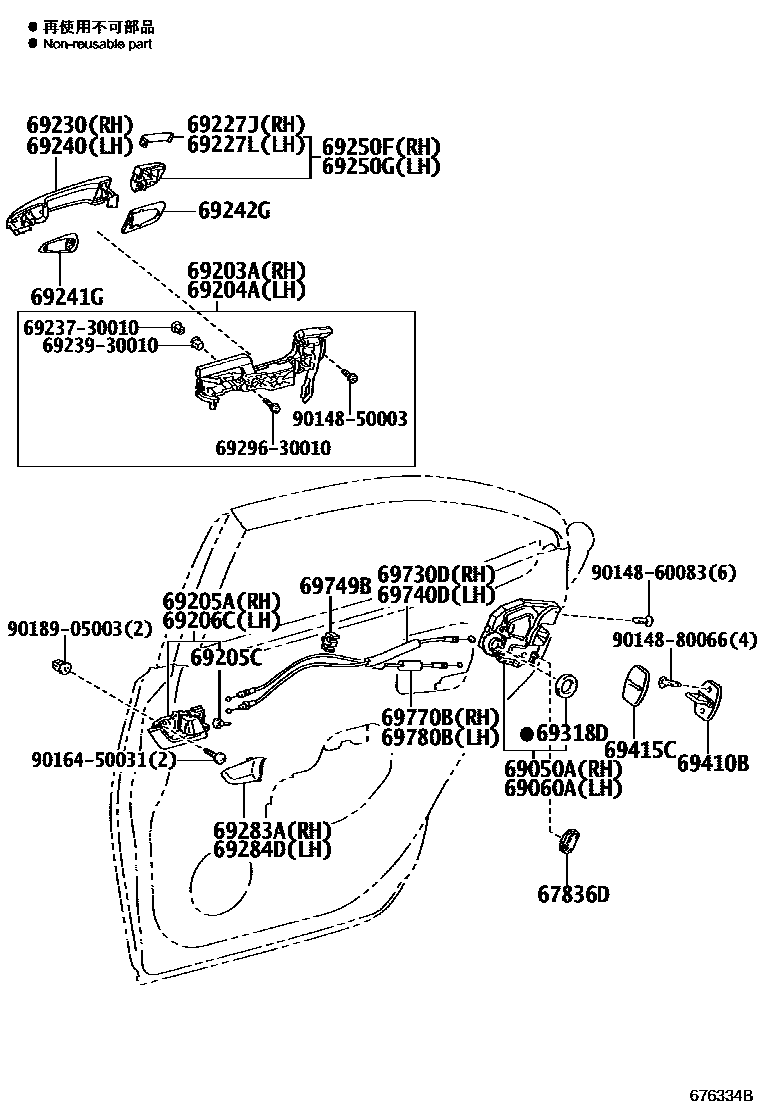

Parts diagram
67836DCOVER, REAR DOOR LOCK CHILD PROTECTION
main67836-12040i200911-201308
69050ALOCK ASSY, REAR DOOR W/MOTOR, RH
main69050-33131i200911-201308
69060ALOCK ASSY, REAR DOOR W/MOTOR, LH
main69060-33131i200911-201308
69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69203-75020i200911-201705
sub69203-75021
main69203-75021i201706
69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69204-75020i200911-201705
sub69204-75021
main69204-75021i201706
69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH
main69205-30200-A0i201111-201308
SHELL,TRIM0#
main69205-30200-A1i201308
FLAXEN,TRIM00
main69205-30200-B0i200911-201111
GRAY,TRIM1#
main69205-30200-C0i201111-201308
BLACK,TRIM1#
main69205-30200-C0i201308-201802
BLACK,TRIM2#
main69205-30200-E0i201308-201802
DK. BROWN,TRIM01
main69205-30200-E1i200911-201111
GREGE,TRIM4#
69205CCUSHION(FOR REAR DOOR INSIDE HANDLE)
main90541-04014i200911-201308
69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH
main69206-30200-A0i201111-201308
SHELL,TRIM0#
main69206-30200-A1i201308
FLAXEN,TRIM00
main69206-30200-B0i200911-201111
GRAY,TRIM1#
main69206-30200-C0i201111-201308
BLACK,TRIM1#
main69206-30200-C0i201308-201802
BLACK,TRIM2#
main69206-30200-E0i201308-201802
DK. BROWN,TRIM01
main69206-30200-E1i200911-201111
GREGE,TRIM4#
69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH
main69217-75060i200911-201802
69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH
main69218-75010i200911-201802
69230HANDLE ASSY, REAR DOOR OUTSIDE, RH
main69210-75030-A0i200911-201802
WHITE PEARL CS.,070
main69210-75030-B0i200911-201802
SILVER ME.,1F7
main69210-75030-B1i201010-201308
GRAY ME.,1G3
main69210-75030-B2i201308-201802
GRAY M.M.,1H1
main69210-75030-C0i200911-201802
BLACK,202
main69210-75030-C1i201505-201802
SPARKLING BLACK PEARL CS.,220
main69210-75030-D0i200911-201308
BLACKISH RED MC.,3R0
main69210-75030-D1i201308-201802
RED M.M.,3R3
main69210-75030-E0i200911-201111
BEIGE ME.,4T8
main69210-75030-H0i200911-201308
AQUA M.M.,782
main69210-75030-H1i201308-201802
CLEAR STREAM ME.,787
main69210-75030-J0i200911-201802
DK.BLUE MC.,8S6
69240HANDLE ASSY, REAR DOOR OUTSIDE, LH
main69220-75030-A0i200911-201802
WHITE PEARL CS.,070
main69220-75030-B0i200911-201802
SILVER ME.,1F7
main69220-75030-B1i201010-201308
GRAY ME.,1G3
main69220-75030-B2i201308-201802
GRAY M.M.,1H1
main69220-75030-C0i200911-201802
BLACK,202
main69220-75030-C1i201505-201802
SPARKLING BLACK PEARL CS.,220
main69220-75030-D0i200911-201308
BLACKISH RED MC.,3R0
main69220-75030-D1i201308-201802
RED M.M.,3R3
main69220-75030-E0i200911-201111
BEIGE ME.,4T8
main69220-75030-H0i200911-201308
AQUA M.M.,782
main69220-75030-H1i201308-201802
CLEAR STREAM ME.,787
main69220-75030-J0i200911-201802
DK.BLUE MC.,8S6
69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT
main69241-48030i200911-201308
main69242-48030i200911-201308
69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR
main69241-48040i200911-201009
sub69241-48041
main69241-48041i201010-201302
sub69241-48050
main69241-48050i201303-201308
main69242-48040i200911-201009
sub69242-48041
main69242-48041i201010-201302
sub69242-48050
main69242-48050i201303-201308
69250FCOVER ASSY, REAR DOOR OUTSIDE HANDLE, RH
main69250-75070-A0i200911-201802
WHITE PEARL CS.,070
main69250-75070-B0i200911-201802
SILVER ME.,1F7
main69250-75070-B1i201010-201308
GRAY ME.,1G3
main69250-75070-B2i201308-201802
GRAY M.M.,1H1
main69250-75070-C0i200911-201802
BLACK,202
main69250-75070-C1i201505-201802
SPARKLING BLACK PEARL CS.,220
main69250-75070-D0i200911-201308
BLACKISH RED MC.,3R0
main69250-75070-D1i201308-201802
RED M.M.,3R3
main69250-75070-E0i200911-201111
BEIGE ME.,4T8
main69250-75070-H0i200911-201308
AQUA M.M.,782
main69250-75070-H1i201308-201802
CLEAR STREAM ME.,787
main69250-75070-J0i200911-201802
DK.BLUE MC.,8S6
69250GCOVER ASSY, REAR DOOR OUTSIDE HANDLE, LH
main69250-75080-A0i200911-201802
WHITE PEARL CS.,070
main69250-75080-B0i200911-201802
SILVER ME.,1F7
main69250-75080-B1i201010-201308
GRAY ME.,1G3
main69250-75080-B2i201308-201802
GRAY M.M.,1H1
main69250-75080-C0i200911-201802
BLACK,202
main69250-75080-C1i201505-201802
SPARKLING BLACK PEARL CS.,220
main69250-75080-D0i200911-201308
BLACKISH RED MC.,3R0
main69250-75080-D1i201308-201802
RED M.M.,3R3
main69250-75080-E0i200911-201111
BEIGE ME.,4T8
main69250-75080-H0i200911-201308
AQUA M.M.,782
main69250-75080-H1i201308-201802
CLEAR STREAM ME.,787
main69250-75080-J0i200911-201802
DK.BLUE MC.,8S6
69283APLUG, REAR DOOR INSIDE HANDLE BEZEL, RH
main69283-20020-A0i201111-201308
SHELL,TRIM0#
sub69283-20020
main69283-20020-A1i201308-201802
FLAXEN,TRIM00,01
sub69283-20020
main69283-20020-B1i200911-201111
GRAY,TRIM1#
sub69283-20020
main69283-20020-C0i201111-201308
BLACK,TRIM1#
sub69283-20020
main69283-20020-C0i201308-201802
BLACK,TRIM2#
sub69283-20020
main69283-20020-E0i200911-201111
GREGE,TRIM4#
sub69283-20020
main69283-20020-E2i201308-201802
DK. BROWN,TRIM01
sub69283-20020
69284DPLUG, REAR DOOR INSIDE HANDLE BEZEL, LH
main69284-20010-A0i201111-201308
SHELL,TRIM0#
sub69284-20010
main69284-20010-A1i201308-201802
FLAXEN,TRIM00,01
sub69284-20010
main69284-20010-B1i200911-201111
GRAY,TRIM1#
sub69284-20010
main69284-20010-C0i201111-201308
BLACK,TRIM1#
sub69284-20010
main69284-20010-C0i201308-201802
BLACK,TRIM2#
sub69284-20010
main69284-20010-E0i200911-201111
GREGE,TRIM4#
sub69284-20010
main69284-20010-E2i201308-201802
DK. BROWN,TRIM01
sub69284-20010
69318DSEAL, DOOR LOCK WIRING HARNESS
main69318-51010i200911-201308
69410BPLATE ASSY, REAR DOOR LOCK STRIKER
main69410-33020i200911-201308
69415CCOVER, DOOR LOCK STRIKER, REAR
main69415-33010i200911-201410
main69415-60020i201411
69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH
main69730-75010i200911-201308
69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH
main69730-75010i200911-201308
69749BCLAMP, REAR DOOR LOCK LINK
main69749-75010i200911-201308
69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH
main69770-75010i200911-201308
69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH
main69770-75010i200911-201308
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9016450031
main90164-50031
9018905003
main90189-05003

34 parts on this diagram · 1 diagram in section
