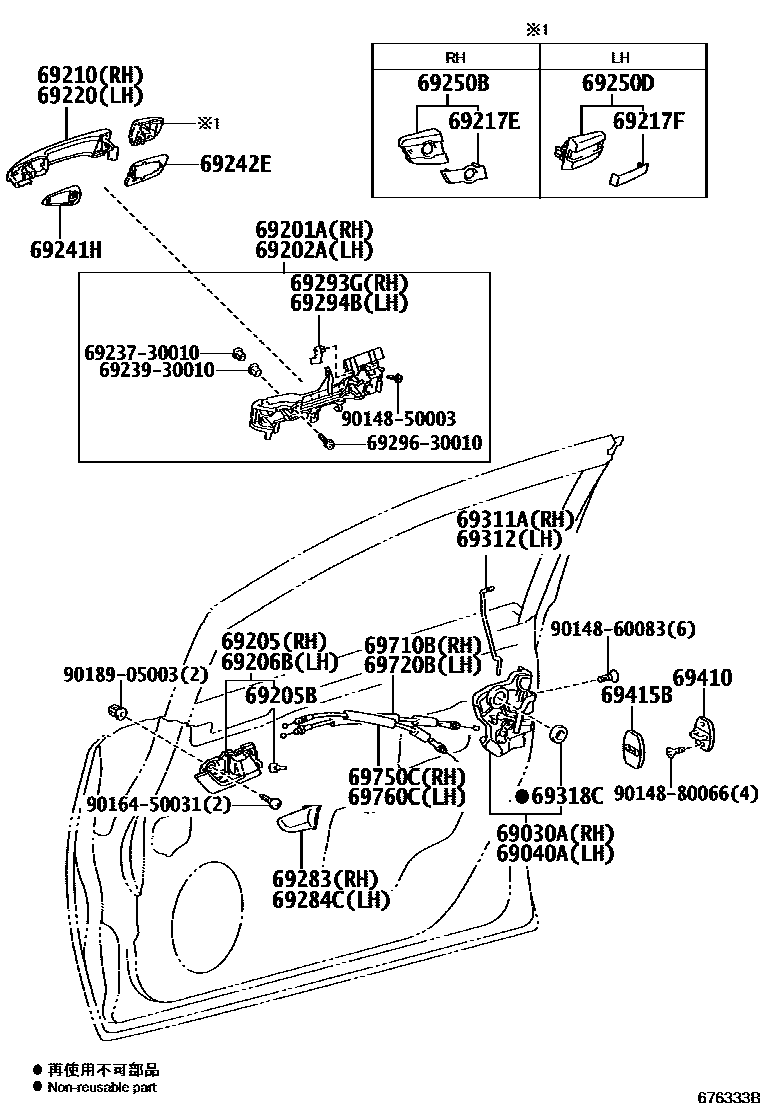

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-42210iAZK10..CBU200911-201308

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-42230iAZK10..CBU200911-201308

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-48011iAZK10..CBU200911-201705

sub69201-48012

main69201-48012iAZK10..CBU201706

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-48011iAZK10..CBU200911-201705

sub69202-48012

main69202-48012iAZK10..CBU201706

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main69205-30200-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main69205-30200-A1iAZK10..CBU201308

FLAXEN,TRIM00

main69205-30200-B0iAZK10..CBU200911-201111

GRAY,TRIM1#

main69205-30200-C0iAZK10..CBU201111-201308

BLACK,TRIM1#

main69205-30200-C0iAZK10..CBU201308-201802

BLACK,TRIM2#

main69205-30200-E0iAZK10..CBU201308-201802

DK. BROWN,TRIM01

main69205-30200-E1iAZK10..CBU200911-201111

GREGE,TRIM4#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014iAZK10..CBU200911-201308

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main69206-30200-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main69206-30200-A1iAZK10..CBU201308

FLAXEN,TRIM00

main69206-30200-B0iAZK10..CBU200911-201111

GRAY,TRIM1#

main69206-30200-C0iAZK10..CBU201111-201308

BLACK,TRIM1#

main69206-30200-C0iAZK10..CBU201308-201802

BLACK,TRIM2#

main69206-30200-E0iAZK10..CBU201308-201802

DK. BROWN,TRIM01

main69206-30200-E1iAZK10..CBU200911-201111

GREGE,TRIM4#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-75010-A0iAZK10..CBU200911-201802

WHITE PEARL CS.,070

main69210-75010-B0iAZK10..CBU200911-201802

SILVER ME.,1F7

main69210-75010-B1iAZK10..CBU201010-201308

GRAY ME.,1G3

main69210-75010-B2iAZK10..CBU201308-201802

GRAY M.M.,1H1

main69210-75010-C0iAZK10..CBU200911-201802

BLACK,202

main69210-75010-C1iAZK10..G..CBU201505-201802

SPARKLING BLACK PEARL CS.,220

main69210-75010-D0iAZK10..CBU200911-201308

BLACKISH RED MC.,3R0

main69210-75010-D1iAZK10..CBU201308-201802

RED M.M.,3R3

main69210-75010-E0iAZK10..CBU200911-201111

BEIGE ME.,4T8

main69210-75010-H0iAZK10..CBU200911-201308

AQUA M.M.,782

main69210-75010-H1iAZK10..CBU201308-201802

CLEAR STREAM ME.,787

main69210-75010-J0iAZK10..CBU200911-201802

DK.BLUE MC.,8S6

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-75010iAZK10..CBU200911-201802

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-75010iAZK10..CBU200911-201802

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-75010-A0iAZK10..CBU200911-201802

WHITE PEARL CS.,070

main69220-75010-B0iAZK10..CBU200911-201802

SILVER ME.,1F7

main69220-75010-B1iAZK10..CBU201010-201308

GRAY ME.,1G3

main69220-75010-B2iAZK10..CBU201308-201802

GRAY M.M.,1H1

main69220-75010-C0iAZK10..CBU200911-201802

BLACK,202

main69220-75010-C1iAZK10..G..CBU201505-201802

SPARKLING BLACK PEARL CS.,220

main69220-75010-D0iAZK10..CBU200911-201308

BLACKISH RED MC.,3R0

main69220-75010-D1iAZK10..CBU201308-201802

RED M.M.,3R3

main69220-75010-E0iAZK10..CBU200911-201111

BEIGE ME.,4T8

main69220-75010-H0iAZK10..CBU200911-201308

AQUA M.M.,782

main69220-75010-H1iAZK10..CBU201308-201802

CLEAR STREAM ME.,787

main69220-75010-J0iAZK10..CBU200911-201802

DK.BLUE MC.,8S6

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-48030iAZK10..CBU200911-201308

main69242-48030iAZK10..CBU200911-201308

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-48040iAZK10..CBU200911-201009

sub69241-48041

main69241-48041iAZK10..CBU201010-201302

sub69241-48050

main69241-48050iAZK10..CBU201303-201308

main69242-48040iAZK10..CBU200911-201009

sub69242-48041

main69242-48041iAZK10..CBU201010-201302

sub69242-48050

main69242-48050iAZK10..CBU201303-201308

69250BCOVER ASSY, DOOR OUTSIDE HANDLE

main69250-75010-A0iAZK10..CBU200911-201802

WHITE PEARL CS.,070

main69250-75010-B0iAZK10..CBU200911-201802

SILVER ME.,1F7

main69250-75010-B1iAZK10..CBU201010-201308

GRAY ME.,1G3

main69250-75010-B2iAZK10..CBU201308-201802

GRAY M.M.,1H1

main69250-75010-C0iAZK10..CBU200911-201802

BLACK,202

main69250-75010-C1iAZK10..G..CBU201505-201802

SPARKLING BLACK PEARL CS.,220

main69250-75010-D0iAZK10..CBU200911-201308

BLACKISH RED MC.,3R0

main69250-75010-D1iAZK10..CBU201308-201802

RED M.M.,3R3

main69250-75010-E0iAZK10..CBU200911-201111

BEIGE ME.,4T8

main69250-75010-H0iAZK10..CBU200911-201308

AQUA M.M.,782

main69250-75010-H1iAZK10..CBU201308-201802

CLEAR STREAM ME.,787

main69250-75010-J0iAZK10..CBU200911-201802

DK.BLUE MC.,8S6

69250DCOVER ASSY, DOOR OUTSIDE HANDLE, LH

main69250-75020-A0iAZK10..CBU200911-201802

WHITE PEARL CS.,070

main69250-75020-B0iAZK10..CBU200911-201802

SILVER ME.,1F7

main69250-75020-B1iAZK10..CBU201010-201308

GRAY ME.,1G3

main69250-75020-B2iAZK10..CBU201308-201802

GRAY M.M.,1H1

main69250-75020-C0iAZK10..CBU200911-201802

BLACK,202

main69250-75020-C1iAZK10..G..CBU201505-201802

SPARKLING BLACK PEARL CS.,220

main69250-75020-D0iAZK10..CBU200911-201308

BLACKISH RED MC.,3R0

main69250-75020-D1iAZK10..CBU201308-201802

RED M.M.,3R3

main69250-75020-E0iAZK10..CBU200911-201111

BEIGE ME.,4T8

main69250-75020-H0iAZK10..CBU200911-201308

AQUA M.M.,782

main69250-75020-H1iAZK10..CBU201308-201802

CLEAR STREAM ME.,787

main69250-75020-J0iAZK10..CBU200911-201802

DK.BLUE MC.,8S6

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-20020-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

sub69283-20020

main69283-20020-A1iAZK10..CBU201308-201802

FLAXEN,TRIM00,01

sub69283-20020

main69283-20020-B1iAZK10..CBU200911-201111

GRAY,TRIM1#

sub69283-20020

main69283-20020-C0iAZK10..CBU201111-201308

BLACK,TRIM1#

sub69283-20020

main69283-20020-C0iAZK10..CBU201308-201802

BLACK,TRIM2#

sub69283-20020

main69283-20020-E0iAZK10..CBU200911-201111

GREGE,TRIM4#

sub69283-20020

main69283-20020-E2iAZK10..CBU201308-201802

DK. BROWN,TRIM01

sub69283-20020

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-20010-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

sub69284-20010

main69284-20010-A1iAZK10..CBU201308-201802

FLAXEN,TRIM00,01

sub69284-20010

main69284-20010-B1iAZK10..CBU200911-201111

GRAY,TRIM1#

sub69284-20010

main69284-20010-C0iAZK10..CBU201111-201308

BLACK,TRIM1#

sub69284-20010

main69284-20010-C0iAZK10..CBU201308-201802

BLACK,TRIM2#

sub69284-20010

main69284-20010-E0iAZK10..CBU200911-201111

GREGE,TRIM4#

sub69284-20010

main69284-20010-E2iAZK10..CBU201308-201802

DK. BROWN,TRIM01

sub69284-20010

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iAZK10..CBU200911-201308

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iAZK10..CBU200911-201308

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-75010iAZK10..CBU200911-201308

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-75010iAZK10..CBU200911-201308

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010iAZK10..CBU200911-201308

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33020iAZK10..CBU200911-201308

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-33010iAZK10..CBU200911-201410

main69415-60020iAZK10..CBU201411

69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH

main69710-75010iAZK10..CBU200911-201308

69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH

main69710-75010iAZK10..CBU200911-201308

69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH

main69750-75010iAZK10..CBU200911-201308

69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH

main69750-75010iAZK10..CBU200911-201308

6923730010RETAINER, DOOR OUTSIDE HANDLE

main69237-30010

6923930010PIN, BACK DOOR OUTSIDE HANDLE

main69239-30010

6929630010SCREW, DOOR INSIDE HANDLE

main69296-30010

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9016450031

main90164-50031

9018905003

main90189-05003

36 parts on this diagram · 1 diagram in section
