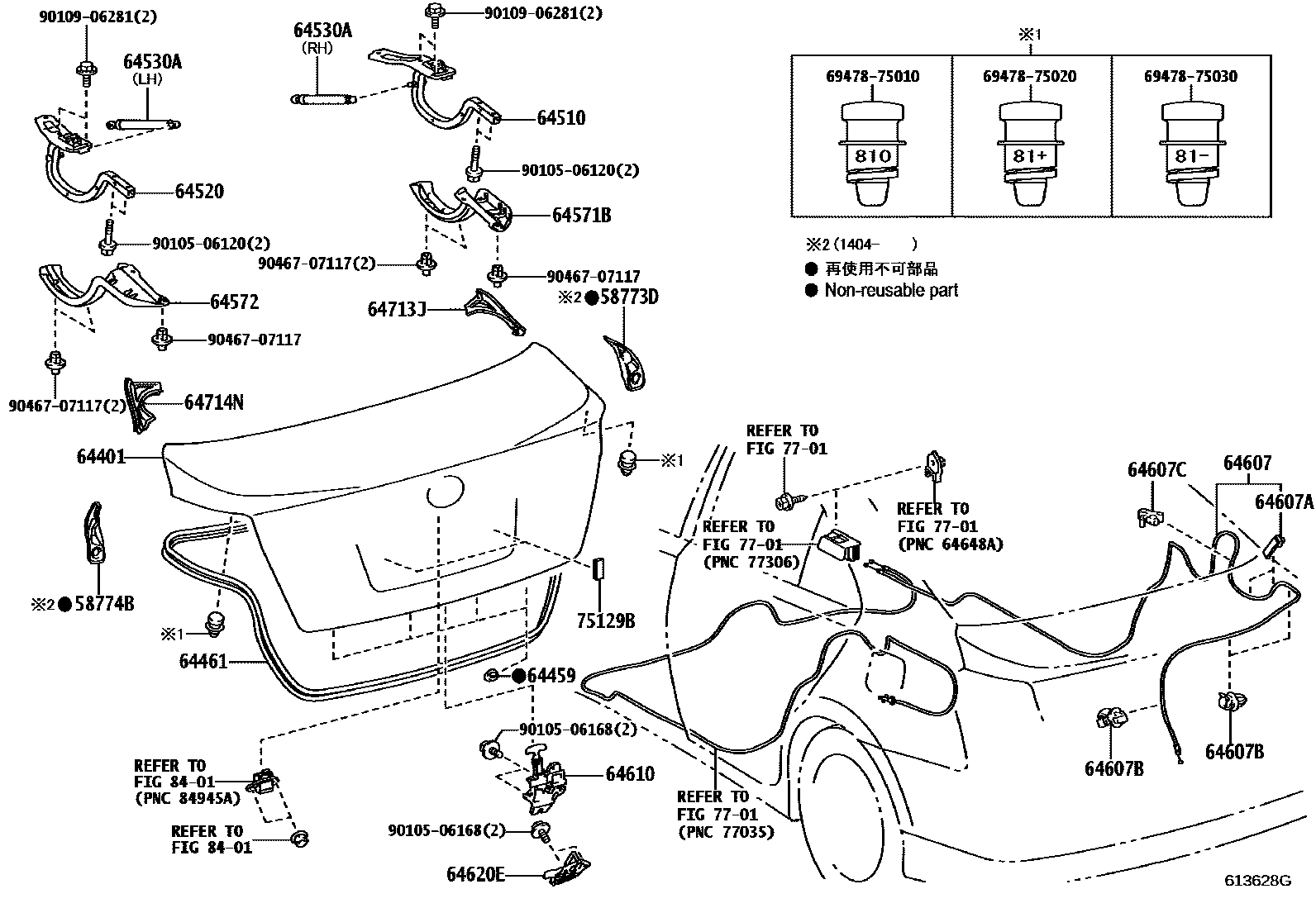

LUGGAGE COMPARTMENT DOOR & LOCK

58773DCOVER, LUGGAGE COMPARTMENT SIDE, RH

main58773-75010iAZK10..CBU201404

58774BCOVER, LUGGAGE COMPARTMENT SIDE, LH

main58774-75010iAZK10..CBU201404

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-75020iAZK10..CBU; AZK10..G..CBU201111-201308

main64401-75150iAZK10..CBU; AZK10..G..CBU201308-201310

main64401-75151iAZK10..CBU; AZK10..G..CBU201311-201802

64459CUSHION, LUGGAGE COMPARTMENT DOOR

main90541-09124×4iAZK10..CBU200911-201308

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-75020iAZK10..CBU200911-201101

main64461-75030iAZK10..CBU201102-201201

64510HINGE ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-75010iAZK10..CBU201308

64520HINGE ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64520-75010iAZK10..CBU200911-201308

64530ASUPPORT ASSY, LUGGAGE COMPARTMENT DOOR

main64530-75051iAZK10..CBU; AZK10..G..CBU201308-201311

main64540-75051iAZK10..CBU; AZK10..G..CBU201308-201311

64571BCOVER, LUGGAGE COMPARTMENT DOOR HINGE, RH

main64571-75010iAZK10..CBU200911-201308

64572COVER, LUGGAGE COMPARTMENT DOOR HINGE, LH

main64572-75010iAZK10..CBU200911-201308

64607CABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-75020iAZK10..CBU200911-201308

main64607-75030iAZK10..CBU201308

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main82711-25160×2iAZK10..CBU200911-201308

64607BCLAMP, NO.2(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90469-06005×3iAZK10..CBU200911-201308

64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90959-01369iAZK10..CBU200911-201308

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64600-75010iAZK10..CBU200911-201308

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-51010iAZK10..CBU200911-201308

64713JCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 RH

main64713-75030iAZK10..CBU200911-201308

64714NCOVER, LUGGAGE COMPARTMENT UPPER, NO.1 LH

main64714-75010iAZK10..CBU200911-201308

75129BCUSHION, REAR LICENCE PLATE

main75129-13020×2iAZK10..CBU200911-201204

main75129-30010×2iAZK10..CBU201205-201308

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

6947875010CUSHION, BACK DOOR LOWER STOPPER

main69478-75010

6947875020CUSHION, BACK DOOR LOWER STOPPER

main69478-75020

6947875030CUSHION, BACK DOOR LOWER STOPPER

main69478-75030

9010506120

main90105-06120

9010506168

main90105-06168

9010906281

main90109-06281

9046707117

main90467-07117

28 parts on this diagram · 1 diagram in section
