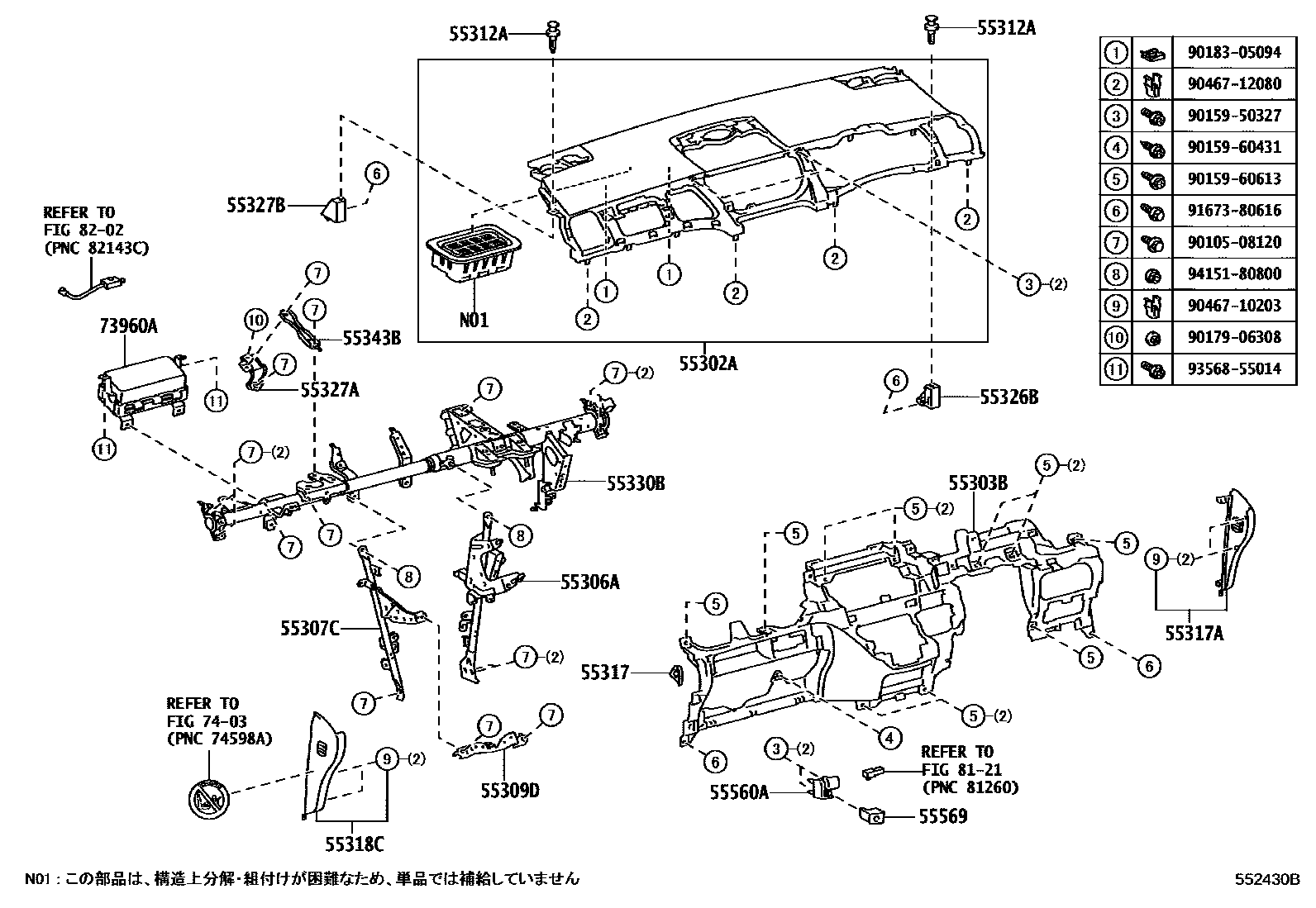

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1��������� 0003 1����� 0004 1����� 0005 1���������� 0006 1 0007 1��������� 0008 1����� 0009 1����� ��(���������) 0010 1����� ��(���������) 0011 1����������

55302APANEL SUB-ASSY, INSTRUMENT, UPPER

main55302-75010-C0iAZK10..CBU200911-201304

BLACK,TRIM1#,4#

main55302-75010-E0iAZK10..CBU201111-201304

DK. BROWN,TRIM0#

main55302-75060-C0supersedes 55302-75040-C0iAZK10..G..CBU; AZK10..S..CBU201308-201802

main55302-75060-E0iAZK10..CBU201305-201308

DK. BROWN,TRIM0#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-75010-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main55303-75010-A1iAZK10..G..CBU; AZK10..S..CBU201308-201802

main55303-75010-C0supersedes 55303-75040-C0iAZK10..G..CBU; AZK10..S..CBU201308-201802

main55303-75010-E0iAZK10..CBU200911-201111

PLUM,TRIM4#

main55303-75010-E1supersedes 55303-75040-E0iAZK10..G..CBU; AZK10..S..CBU201308-201802

main55303-75040-A0iAZK10..S..CBU201308-201802

FLAXEN,TRIM00,01

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-75010iAZK10..CBU200911-201308

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-75010iAZK10..CBU200911-201308

55309DBRACE SUB-ASSY, INSTRUMENT PANEL TO FLOOR

main55309-75010iAZK10..CBU200911-201308

55312ACLIP, INSTRUMENT PANEL

main52161-16010×2iAZK10..CBU200911-201308

55317PATCH, INSTRUMENT PANEL

main55316-75010-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main55316-75010-A1iAZK10..CBU201308-201802

FLAXEN,TRIM00,01

main55316-75010-C0iAZK10..CBU201308-201802

BLACK,TRIM2#

main55316-75010-E0iAZK10..CBU200911-201111

PLUM,TRIM4#

main55316-75010-E1iAZK10..CBU201308-201802

DK. BROWN,TRIM01

55317APANEL, INSTRUMENT SIDE, RH

main55317-75040-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main55317-75040-A1iAZK10..CBU201308-201802

FLAXEN,TRIM00

main55317-75040-C0iAZK10..CBU201308-201802

BLACK,TRIM2#

main55317-75040-E0iAZK10..CBU200911-201111

PLUM,TRIM4#

main55317-75040-E1iAZK10..CBU201308-201802

DK. BROWN,TRIM01

55318CPANEL, INSTRUMENT SIDE, LH

main55318-75020-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main55318-75020-A1iAZK10..CBU201308-201802

FLAXEN,TRIM00

main55318-75020-C0iAZK10..CBU201308-201802

BLACK,TRIM2#

main55318-75020-E0iAZK10..CBU200911-201111

PLUM,TRIM4#

main55318-75020-E1iAZK10..CBU201308-201802

DK. BROWN,TRIM01

55326BSTAY, INSTRUMENT PANEL, RH

main55326-75010iAZK10..CBU200911-201308

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-75010iAZK10..CBU200911-201308

55327BSTAY, INSTRUMENT PANEL, LH

main55326-75020iAZK10..CBU200911-201308

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-75010supersedes 55330-75040iAZK10..CBU200911-201308

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-75010iAZK10..CBU200911-201308

55560ALOCK ASSY, GLOVE COMPARTMENT DOOR

main55560-75010-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main55560-75010-A1iAZK10..CBU201308-201802

FLAXEN,TRIM00

main55560-75010-C0iAZK10..CBU201308-201802

BLACK,TRIM2#

main55560-75010-E0iAZK10..CBU200911-201111

PLUM,TRIM4#

main55560-75010-E1iAZK10..CBU201308-201802

DK. BROWN,TRIM01

55569COVER, GLOVE COMPARTMENT DOOR LOCK

main55569-75010-A0iAZK10..CBU201111-201308

SHELL,TRIM0#

main55569-75010-A1iAZK10..CBU201308-201802

FLAXEN,TRIM00

main55569-75010-C0iAZK10..CBU200911-201308

BLACK,TRIM1#

main55569-75010-E0iAZK10..CBU200911-201111

PLUM,TRIM4#

main55569-75010-E1iAZK10..CBU201308-201802

DK. BROWN,TRIM01

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-75010iAZK10..CBU200911-201308

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

9010508120

main90105-08120

9015950327

main90159-50327

9015960431

main90159-60431

9015960613

main90159-60613

9017906308

main90179-06308

9018305094

main90183-05094

9046710203

main90467-10203

9046712080

main90467-12080

9167380616

main91673-80616

9356855014

main93568-55014

9415180800

main94151-80800
