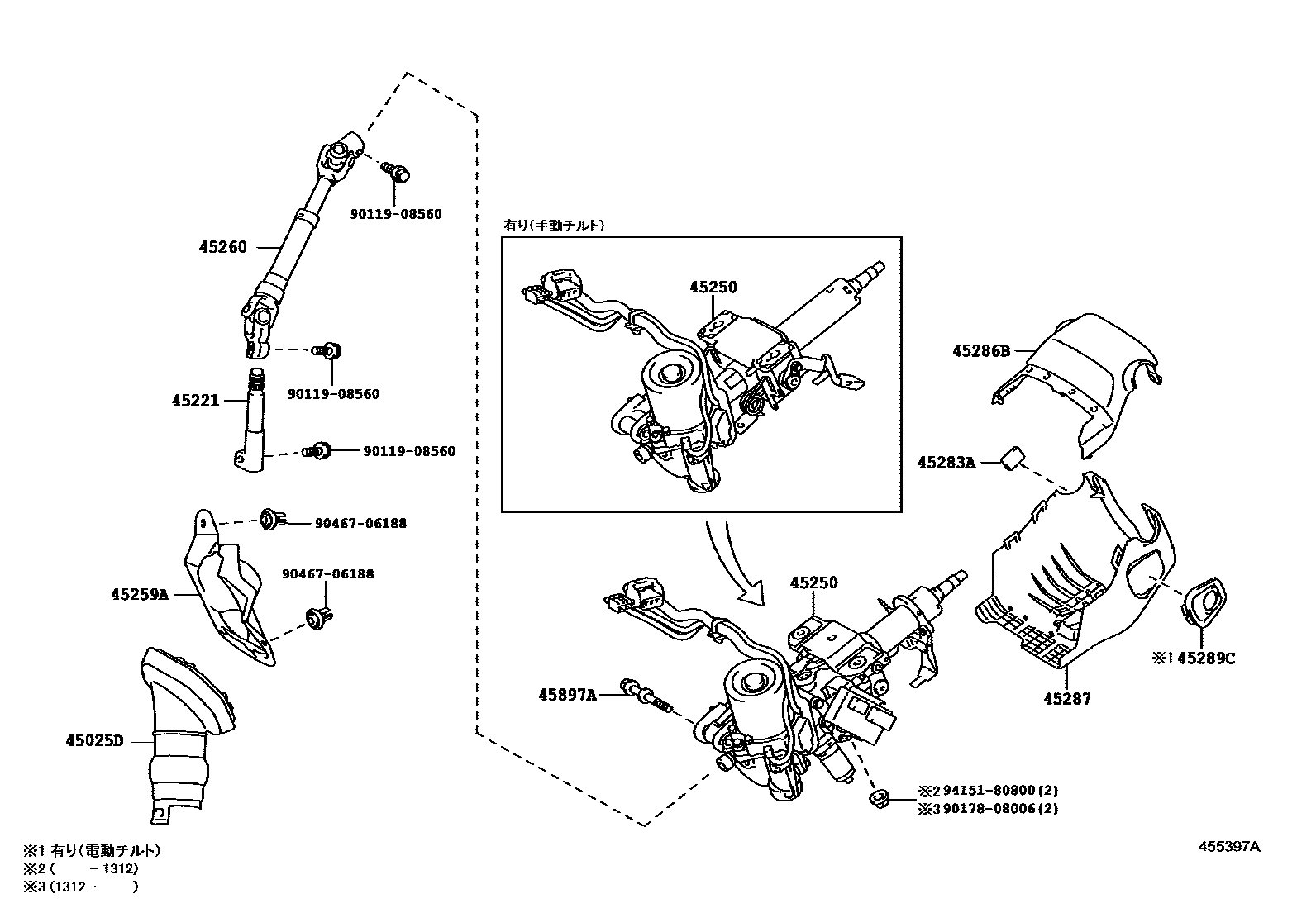

STEERING COLUMN & SHAFT
45025DCOVER SUB-ASSY, STEERING COLUMN HOLE, NO.1
45221SHAFT, STEERING INTERMEDIATE
45250COLUMN ASSY, STEERING
45259ASHEET, COLUMN HOLE COVER SILENCER
45260SHAFT ASSY, STEERING INTERMEDIATE, NO.2
45283APLATE, BEAM CHANGE & TURN SIGNAL CAUTION
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM00,2#
DK. BROWN,TRIM00,01
PLUM,TRIM4#
BLACK,TRIM1#
DK. BROWN,TRIM0#
PLUM,TRIM4#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM00,2#
DK. BROWN,TRIM00,01
PLUM,TRIM4#
BLACK,TRIM00,2#
DK. BROWN,TRIM00,01
PLUM,TRIM4#
45289CCOVER, STEERING COLUMN, LWR NO.2
BLACK,TRIM1#
DK. BROWN,TRIM00,01
PLUM,TRIM4#
45897ABOLT, TILT STEERING PAWL SET
9011908560
main90119-08560
9017808006
main90178-08006
9046706188
main90467-06188
9415180800
main94151-80800
14 parts on this diagram · 1 diagram in section
