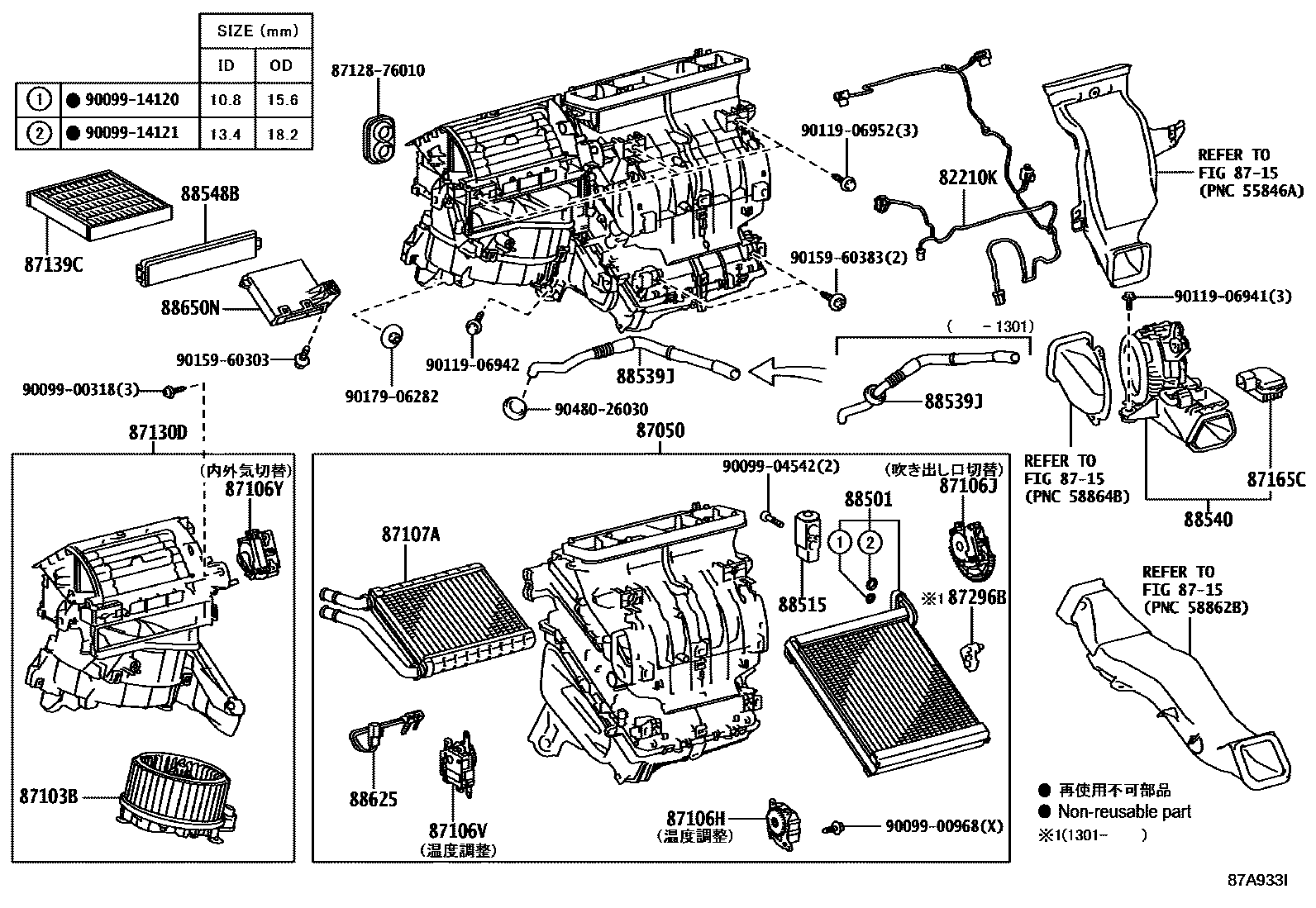

HEATING & AIR CONDITIONING - COOLER UNIT

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12040iANF10201301-201802

87050RADIATOR ASSY, AIR CONDITIONER

main87050-75010iANF10200907-201301

main87050-76030iANF10201508-201706

main87050-76031iANF10201707

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-75010iANF10200907-201010

main87103-75011iANF10201011-201301

main87103-76020iANF10201508

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12170iANF10201301-201410

main87106-47170iANF10201411

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-42100iANF10201301-201707

main87106-42190iANF10201707

87106VSERVO SUB-ASSY, DAMPER(FOR AIRMIX NO.2)

main87106-42090iANF10201301-201410

main87106-75010iANF10201411

87106YSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION & FRESH)

main87106-42120iANF10200907-201301

main87106-42150iANF10201707

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iANF10200907-201301

87130DBLOWER ASSY

main87130-75020iANF10201301-201508

main87130-76050iANF10201508-201706

main87130-76051iANF10201707

87139CFILTER, CLEAN AIR

main87139-30040iANF10200907-201301

main87139-50060iANF10200907-201204

main87139-50100iANF10201205-201301

main87139-52040iANF10201301-201802

8715HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

→ Go to FIG 87-15

87165CCONTROL, BLOWER MOTOR

main87165-28020iANF10200907-201301

87296BLEVER, HEATER AIR DAMPER CONTROL

main87296-42010iANF10201301

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-75010iANF10200907-201301

88515VALVE, COOLER EXPANSION

main88515-26070iANF10200907-201301

main88515-42090iANF10201508

88539JHOSE, DRAIN COOLER

main88539-12190iANF10200907-201301

main88539-12210iANF10201301

88540BLOWER ASSY, COOLER

main88540-75010iANF10200907-201301

88548BCASE, AIR FILTER

main88548-42010iANF10200907-201301

88625THERMISTOR, COOLER, NO.1

main88625-26090iANF10200907-201301

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-75090supersedes 88650-75070iANF10200907-201301

main88650-75100supersedes 88650-75070iANF10200907-201301

main88650-75110supersedes 88650-75070iANF10200907-201301

main88650-75210supersedes 88650-75200iANF10201301-201508

main88650-75220supersedes 88650-75200iANF10201301-201508

main88650-75230supersedes 88650-75200iANF10201301-201508

main88650-75250iANF10201508-201608

main88650-75260supersedes 88650-75240iANF10201508

main88650-75270iANF10201508-201608

8712876010GROMMET, HEATER

main87128-76010

9009900318

main90099-00318

9009900968

main90099-00968

9009904542

main90099-04542

9009914120

main90099-14120

9009914121

main90099-14121

9011906941

main90119-06941

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

9048026030

main90480-26030

33 parts on this diagram · 1 diagram in section
