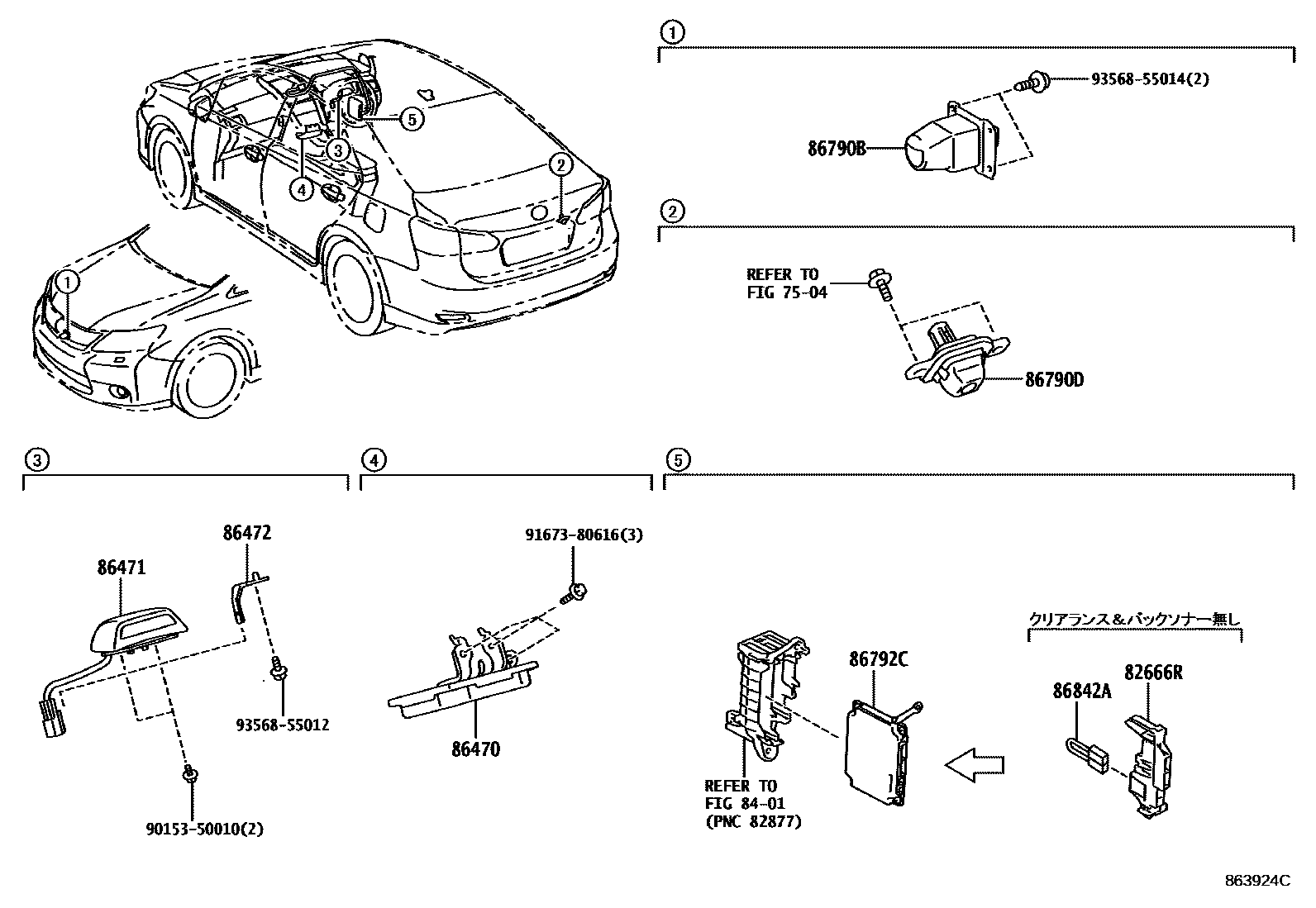

CAMERA & REAR MONITOR DISPLAY

0001 1 0002 1

7504

82666RHOLDER, CONNECTOR

main82666-75190iANF10200907-201301

8401

86470COMPUTER ASSY, DRIVER MONITOR

main86470-75010iANF10201301-201802

86471CAMERA, DRIVER MONITOR

main86471-75010iANF10201301-201802

86472BRACKET, DRIVER MONITOR

main86472-50010iANF10200907-201301

86790BCAMERA ASSY, TELEVISION, FR

main86790-75011iANF10201608-201802

main86790-75020iANF10200907-201109

main86790-75021iANF10201110-201301

86790DCAMERA ASSY, TELEVISION, RR

main86790-75040iANF10200907-201209

main86790-75050iANF10201209-201301

86792CCOMPUTER, PARKING ASSIST

main86792-75070iANF10201608-201802

main86792-75020iANF10200907-201301

main86792-75050iANF10201301-201508

86842AWIRE, NAVIGATION, NO.1

9015350010

main90153-50010

9167380616

main91673-80616

9356855012

main93568-55012

9356855014

main93568-55014

14 parts on this diagram · 2 diagrams in section
