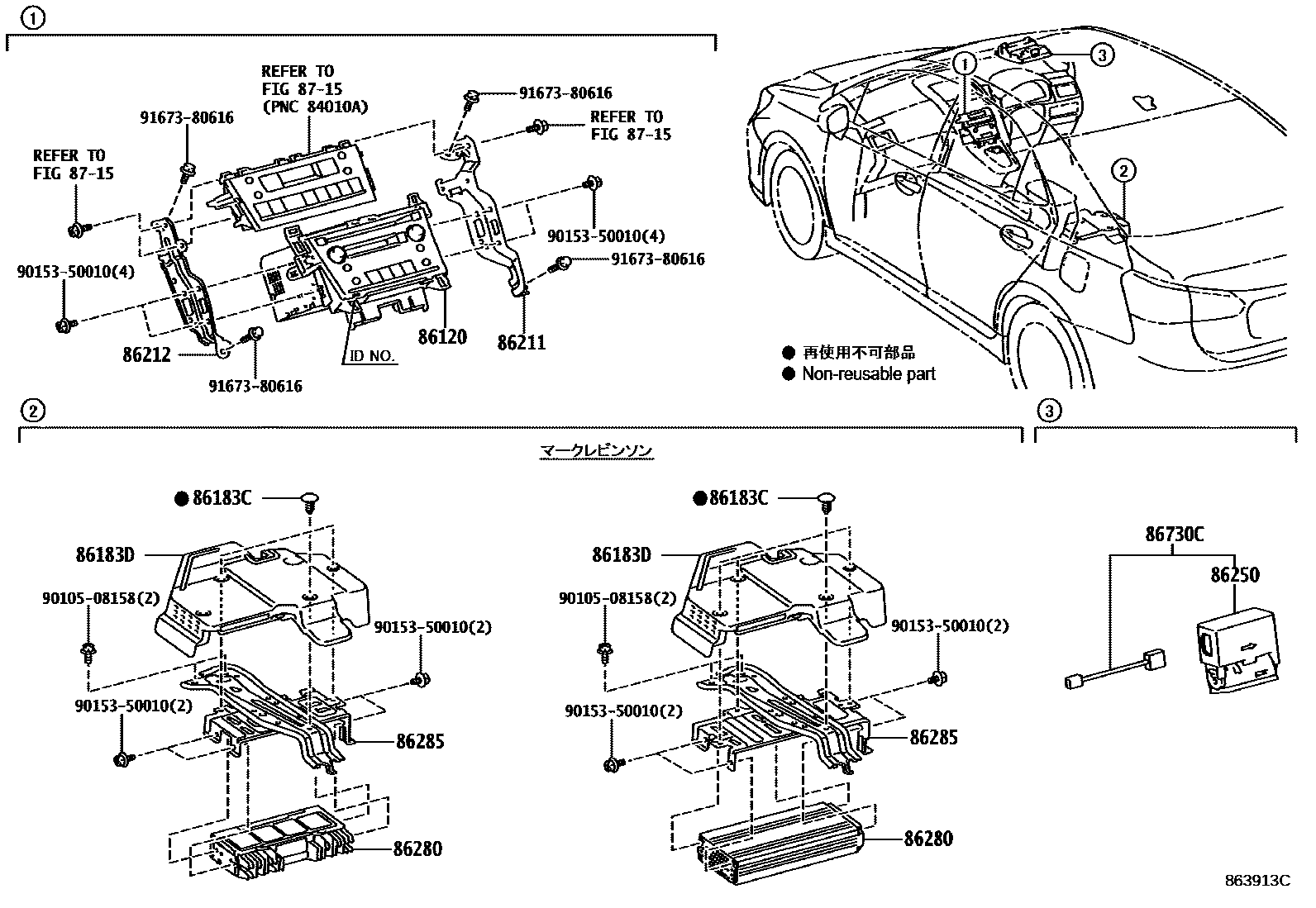

RADIO RECEIVER & AMPLIFIER & CONDENSER

0001 1 0002 1 0003 1������ 0004 1 0005 1 0006 1������

86120RECEIVER ASSY, RADIO

main86120-75230supersedes 86120-75273iANF10200907-200908

main86120-75231supersedes 86120-75273iANF10200909-201003

main86120-75232supersedes 86120-75273iANF10201004-201008

main86120-75233supersedes 86120-75223iANF10201009-201103

main86120-75234supersedes 86120-75273iANF10201104-201108

main86120-75235supersedes 86120-75225iANF10201109-201110

main86120-75281supersedes 86120-75271iANF10201110-201205

main86120-75282supersedes 86120-75273iANF10201206-201208

main86120-75283supersedes 86120-75273iANF10201209-201301

86183CCLIP, AUDIO RACK

86183DCOVER, AUDIO AMPLIFIER

main86183-75020supersedes 86183-75010iANF10201301-201508

86211BRACKET, RADIO, NO.1

main86211-75020iANF10200907-201301

main86211-75040iANF10201301-201508

main86211-75070iANF10201508

86212BRACKET, RADIO, NO.2

main86212-75020iANF10200907-201301

main86212-75040iANF10201301-201508

main86212-75070iANF10201508

86250MICROPHONE ASSY, AMPLIFIER

main86250-52020iANF10200907-201301

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-0W600supersedes 86280-75030iANF10200907-201301

sub86280-75080

main86280-0WB40supersedes 86280-75090iANF10201301-201508

main86280-0WD90supersedes 86280-75110iANF10201508

sub86280-75130

86285BRACKET, AMPLIFIER, NO.1

main86285-75030supersedes 86285-75020iANF10201301-201508

86730CMICROPHONE ASSY, TELEPHONE

main86730-30220iANF10201508-201802

main86730-75010iANF10200907-201301

main86730-75030iANF10201301-201508

8715

9010508158

main90105-08158

9015350010

main90153-50010

9167380616

main91673-80616

13 parts on this diagram · 6 diagrams in section
