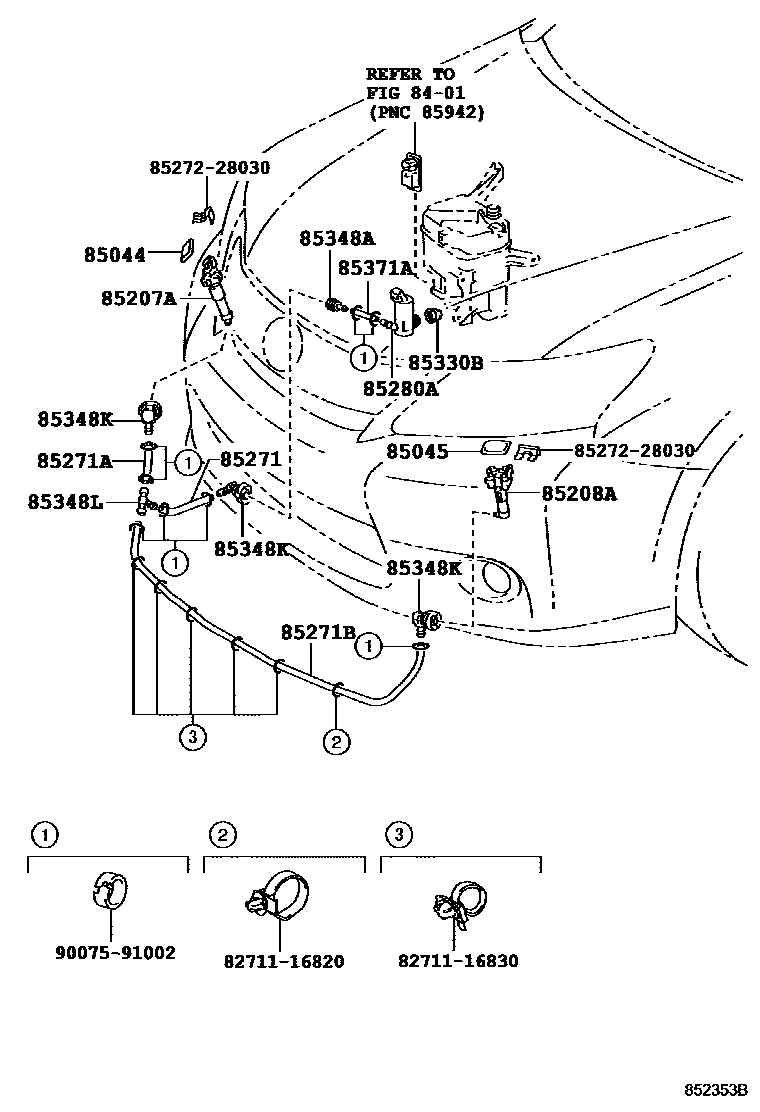

HEADLAMP CLEANER
8401SWITCH & RELAY & COMPUTER
85044NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
DK.GRAY MC.,1G0
SILVER M.M.,1G1
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
85045NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
DK.GRAY MC.,1G0
SILVER M.M.,1G1
BLACK OPAL MC.,214
STARLIGHT BLACK GF.,217
BEIGE ME.,4T1
SLEEK ECRU ME.,4U7
DK.BLUE MC. CC.,8U0
LAPIS LAZULI MC.,8V3
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
85271BHOSE, HEADLAMP CLEANER, NO.3
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85371AHOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
8271116820WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16820
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8527228030CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-28030
9007591002
main90075-91002
18 parts on this diagram · 2 diagrams in section
