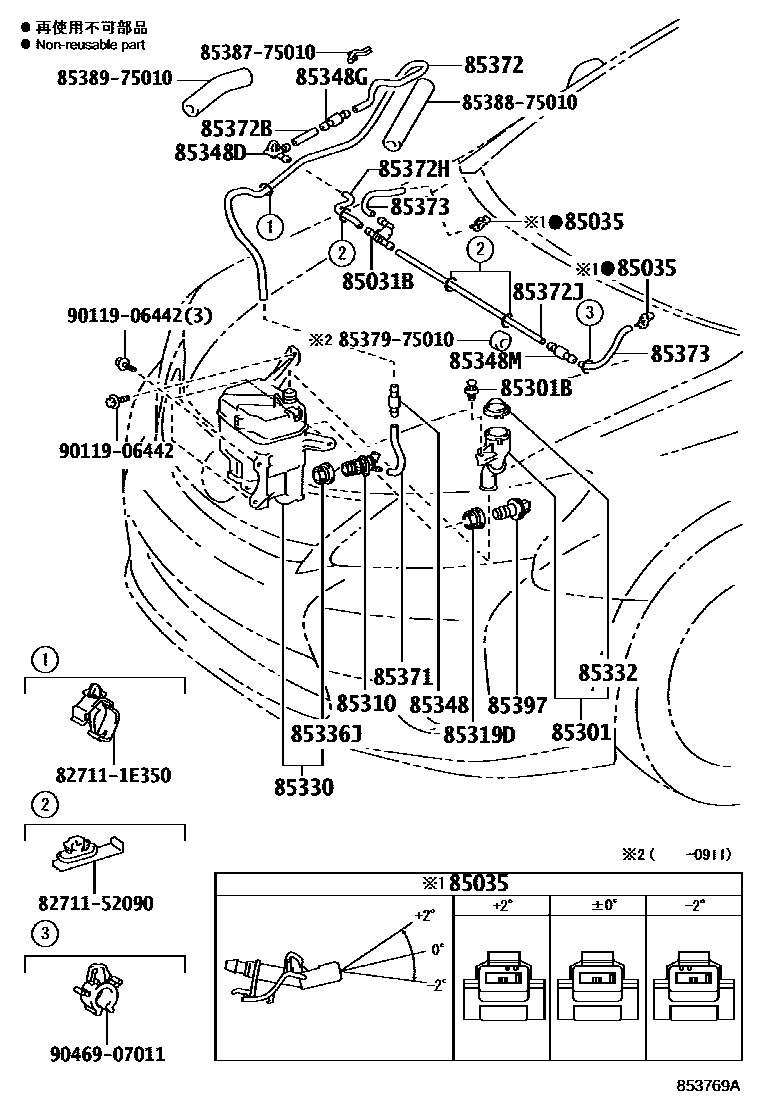

WINDSHIELD WASHER

0001 1��(������������) 0002 1��(������������) 0003 1��(������������) 0004 1��(������������)

85031BVALVE SUB-ASSY, WASHER

main85321-28020iANF10200907-201301

85035NOZZLE SUB-ASSY, WASHER

main85381-12330×2iANF10201301

main85381-12340×2iANF10201301

main85381-12350×2iANF10200907-201301

85301INLET SUB-ASSY, WASHER

main85319-75010iANF10200907-201301

85301BCLIP, WASHER

main90467-07211iANF10200907-201301

main90467-07217iANF10201406

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85330-60190iANF10200907-201301

85319DPACKING, FRONT WASHER

main85319-33230iANF10200907-201301

85330JAR ASSY, WINDSHIELD WASHER

main85355-75050supersedes 85355-75011iANF10201301

85332CAP, WINDSHIELD WASHER JAR

main85316-75010iANF10200907-201301

85336JPROTECTOR, WASHER JAR

main85336-60300iANF10200907-201301

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iANF10200907-201301

85348DJOINT, WINDSHIELD WASHER ELBOW, NO.1

main85377-32220iANF10200907-201301

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85375-10260iANF10200907-201301

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iANF10200907-201301

85371HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT)

main90099-33080iANF10201301

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90099-33080iANF10200907-201301

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iANF10200907-201301

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90099-33080iANF10200907-201301

85372JHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.4

main90099-33080iANF10200907-201301

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080×2iANF10200907-201301

85397SWITCH ASSY,LEVEL WARNING

main85397-30400iANF10200907-201301

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-52090

8537975010JOINT

main85379-75010

8538775010CLAMP NO.1 (FOR WINDSEIELD WASHER)

main85387-75010

8538875010CLAMP NO.2 (FOR WINDSEIELD WASHER)

main85388-75010

8538975010PACKING, WINDSHIELD WASHER HOSE, NO.1

main85389-75010

9011906442

main90119-06442

9046907011

main90469-07011

28 parts on this diagram · 4 diagrams in section
