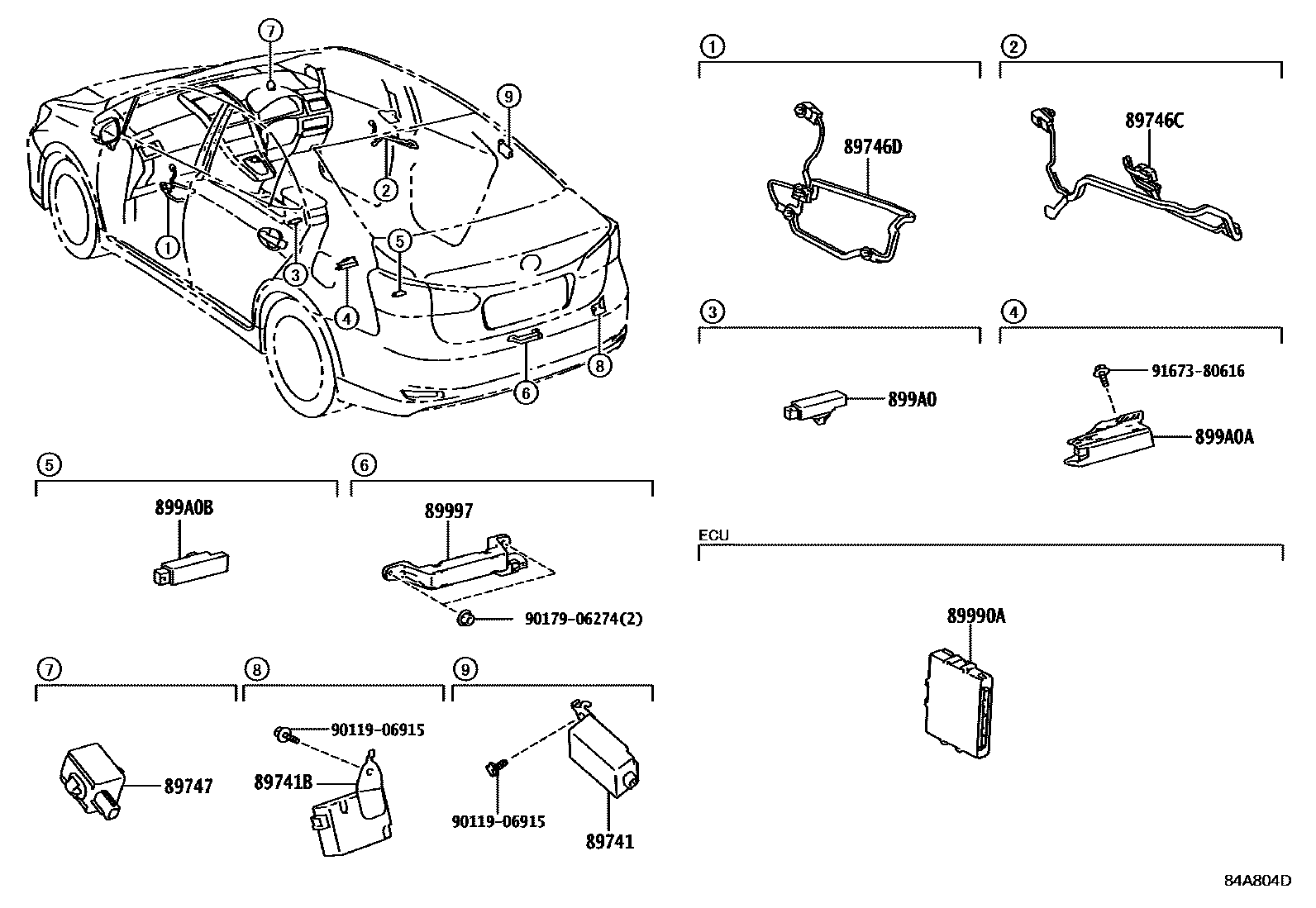

WIRELESS DOOR LOCK

0001 1 0002 1

89741RECEIVER, DOOR CONTROL

main89740-75110iANF10200907-201301

main89740-75160iANF10201301-201802

89741BRECEIVER, DOOR CONTROL, NO.2

main89740-75020iANF10200907-201009

89746CHARNESS, ELECTRICAL KEY WIRE, NO.1

main89746-75010iANF10200907-201301

89746DHARNESS, ELECTRICAL KEY WIRE, NO.2

main89746-75020iANF10200907-201301

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iANF10200907-201301

89990ACOMPUTER ASSY, SMART KEY

main89990-75010iANF10200907-201010

main89990-75020iANF10201011-201301

main89990-75030iANF10201301-201508

main89990-75050iANF10201508-201802

89997ANTENNA, ELECTRICAL KEY

main89997-30070iANF10200907-201301

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iANF10200907-201301

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47020iANF10200907-201301

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-47010iANF10200907-201301

9011906915

main90119-06915

9017906274

main90179-06274

9167380616

main91673-80616

13 parts on this diagram · 2 diagrams in section
