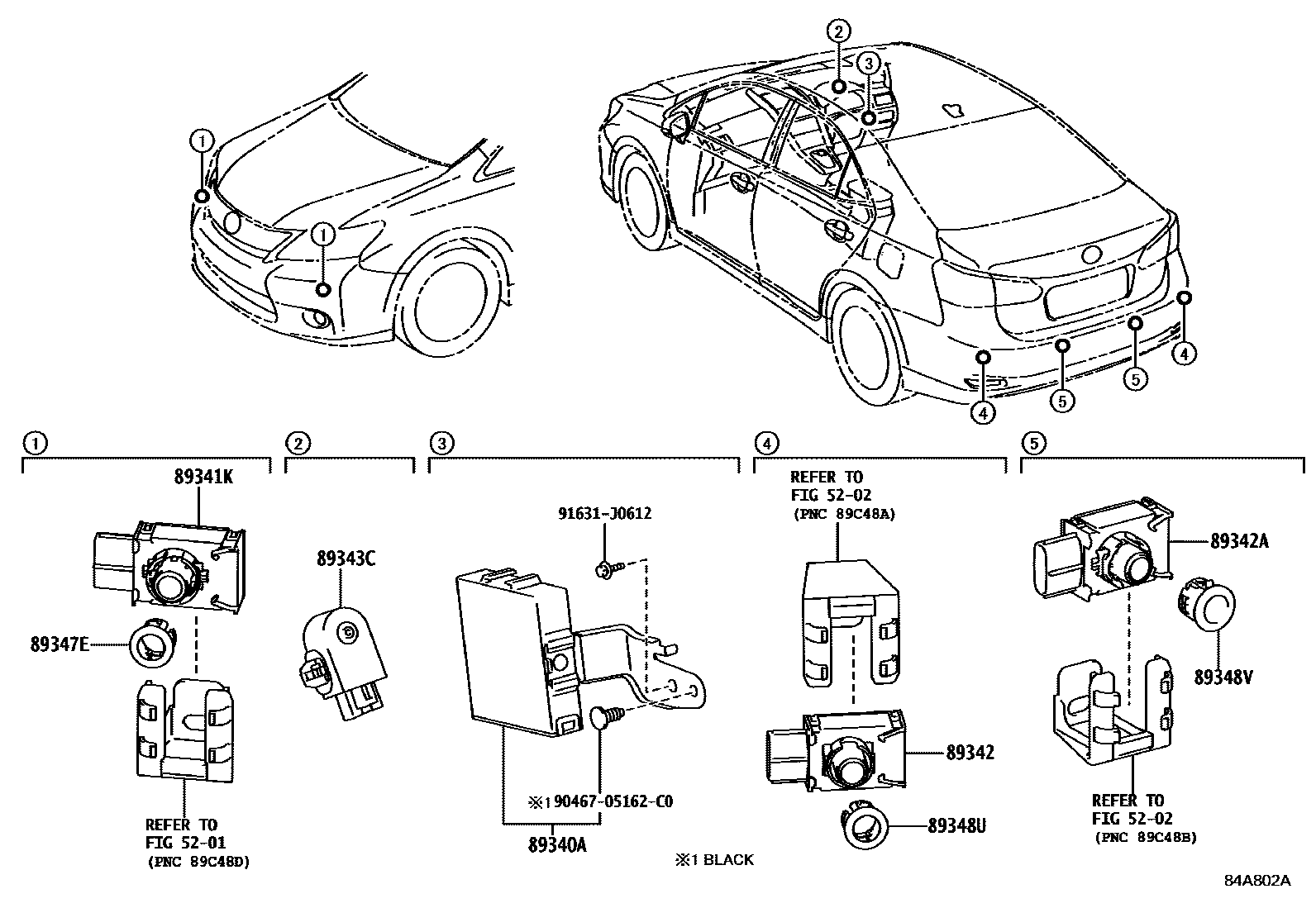

CLEARANCE & BACK SONAR
5201FRONT BUMPER & BUMPER STAY
5202REAR BUMPER & BUMPER STAY
89340ACOMPUTER ASSY, CLEARANCE WARNING
89341KSENSOR, ULTRASONIC, FRONT CORNER
GRAPHITE BLACK GF.,223
89342SENSOR, ULTRASONIC, REAR CORNER
GRAPHITE BLACK GF.,223
89342ASENSOR, ULTRASONIC, REAR CENTER
GRAPHITE BLACK GF.,223
89343CBUZZER, CLEARANCE WARNING, NO.1
89347EBEZEL, ULTRASONIC SENSOR, FRONT CORNER
GRAPHITE BLACK GF.,223
89348UBEZEL, ULTRASONIC SENSOR, REAR CORNER
GRAPHITE BLACK GF.,223
89348VBEZEL, ULTRASONIC SENSOR, REAR CENTER
GRAPHITE BLACK GF.,223
9046705162C0
main90467-05162C0
91631J0612
main91631-J0612
12 parts on this diagram · 2 diagrams in section
