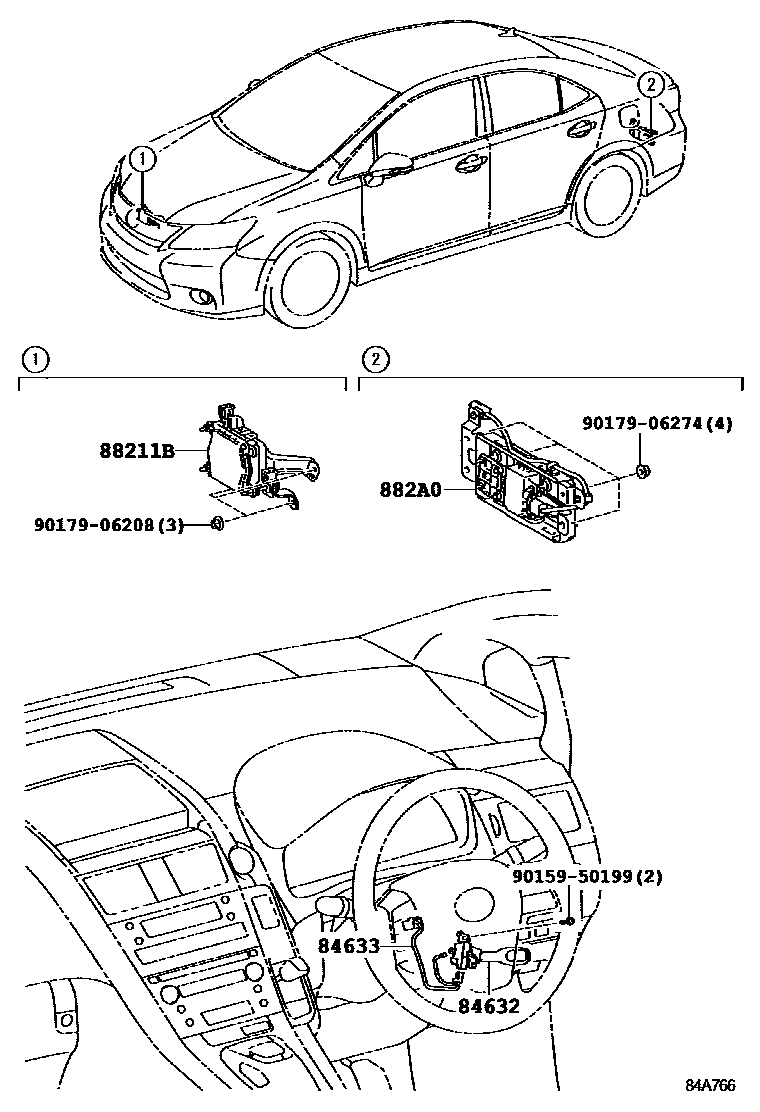

CRUISE CONTROL (AUTO DRIVE)

0001 1 0002 1

84632SWITCH, CRUISE CONTROL MAIN

main84632-58011supersedes 84632-34011iANF10200907-201301

84633WIRE, CRUISE CONTROL SWITCH

main84633-48010supersedes 84633-48020iANF10201301

88211BSENSOR ASSY, MILLIMETER WAVE RADAR

main88210-75020iANF10200907-201301

main88210-75040iANF10201301

882A0SENSOR ASSY, MILLIMETER WAVE RADAR, REAR

main882A0-75010iANF10201301

9015950199

main90159-50199

9017906208

main90179-06208

9017906274

main90179-06274

7 parts on this diagram · 2 diagrams in section
