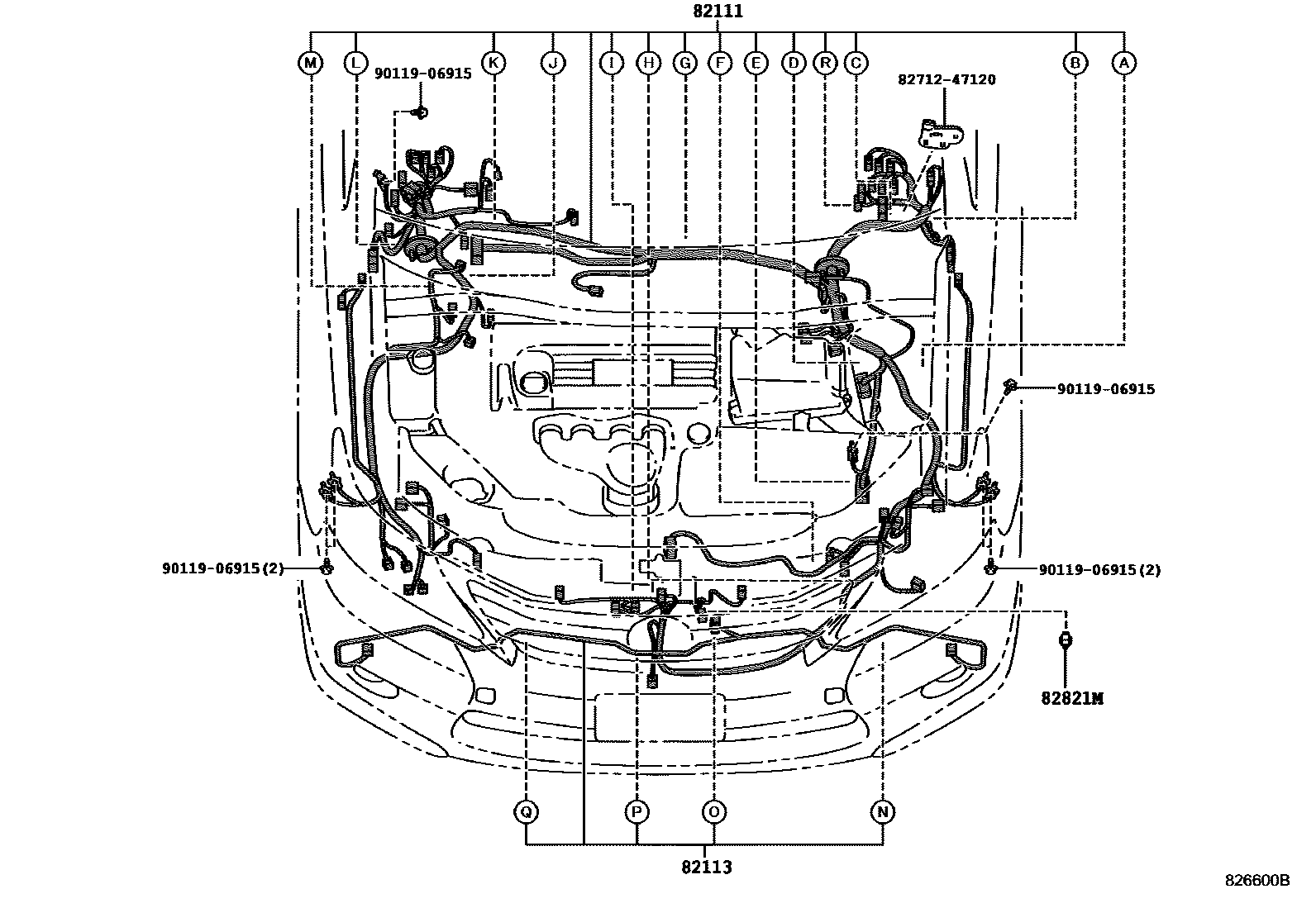

WIRING & CLAMP

0001 1����� ��� 1/2 0002 1����� ��� 2/2 0003 1����� 0004 1�������� ���� 0005 1��� 0006 1��� & ��� 0007 1��������� 0008 1��� 0009 1����� & ������ 0010 1���� 1/3 0011 1���� 2/3 0012 1���� 3/3

82111WIRE, ENGINE ROOM MAIN

main82111-75400iANF10201608

main82111-75060supersedes 82111-75050iANF10200907-201009

main82111-75061supersedes 82111-75051iANF10201009-201110

main82111-75063supersedes 82111-75053iANF10201110-201301

main82111-75230supersedes 82111-75220iANF10201301-201401

main82111-75231supersedes 82111-75221iANF10201405-201406

main82111-75280supersedes 82111-75270iANF10201406-201508

main82111-75310supersedes 82111-75300iANF10201402-201405

main82111-75390supersedes 82111-75380iANF10201508-201608

82113WIRE, ENGINE ROOM, NO.3

main82113-75090iANF10201608

main82113-75060supersedes 82113-75040iANF10200907-201301

82821MCOVER, CONNECTOR

main82821-75170iANF10201301-201608

8271247120CLAMP, WIRING HARNESS

main82712-47120

9011906915

main90119-06915

5 parts on this diagram · 12 diagrams in section
