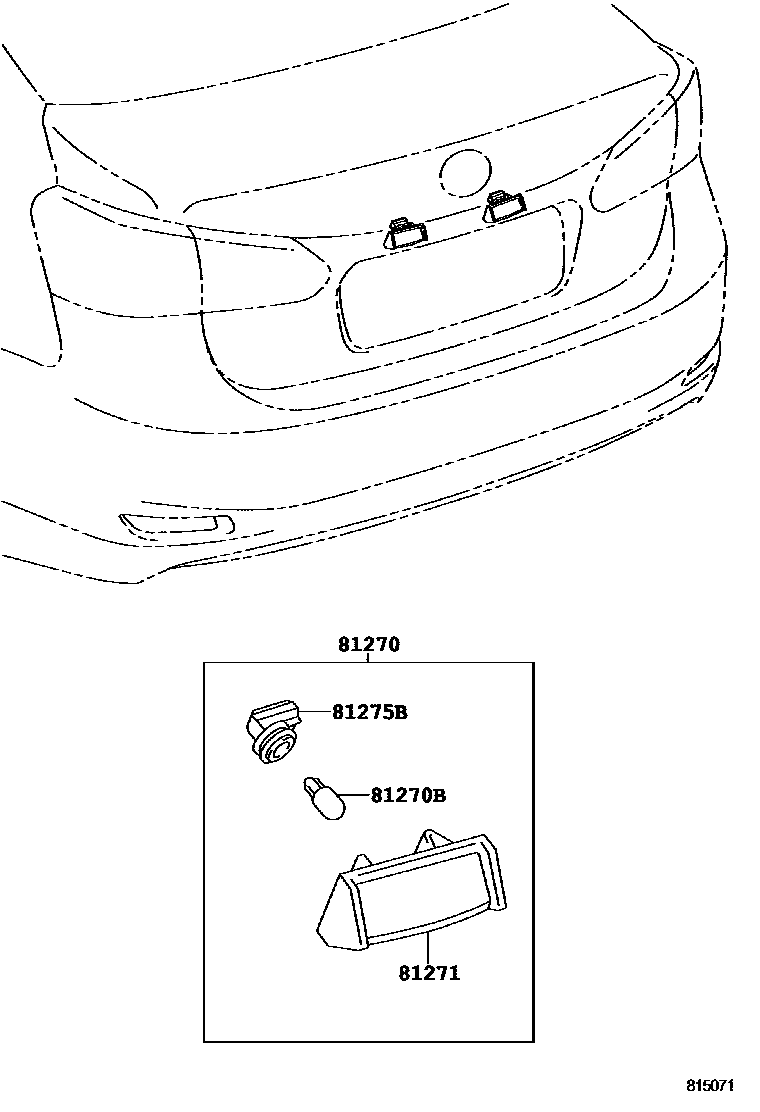

REAR LICENSE PLATE LAMP

0001 1 0002 1

81270LAMP ASSY, LICENSE PLATE

main81270-30291×2iANF10200907-201301

main81270-75010×2iANF10201508

81270BBULB (FOR LICENSE PLATE LAMP)

main99132-12050×2iANF10200907-201301

81271LENS, LICENSE PLATE LAMP

main81271-30291×2iANF10200907-201301

81275BSOCKET PLUG, LICENSE PLATE LAMP

main90075-99005×2iANF10200907-201301

4 parts on this diagram · 2 diagrams in section
