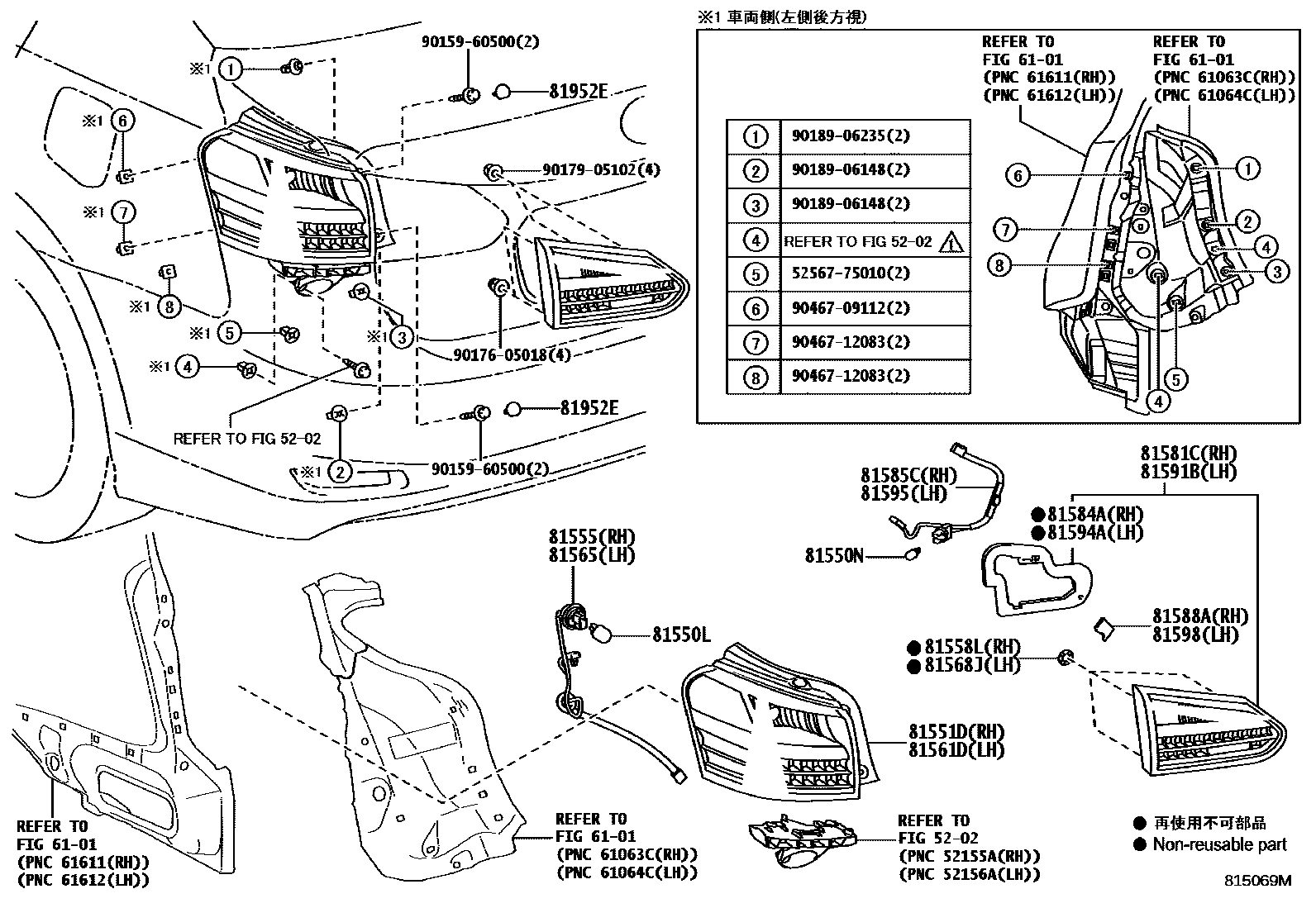

REAR COMBINATION LAMP

0001 1 0002 1

5202REAR BUMPER & BUMPER STAY

→ Go to FIG 52-02

6101SIDE MEMBER

→ Go to FIG 61-01

81550LAMP ASSY, REAR COMBINATION, RH

main81550-75060iANF10201301-201405

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15021×2iANF10200907-201301

81550NBULB, BACK UP LAMP

main90981-11059×2iANF10200907-201301

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-75040iANF10200907-201301

main81551-75060iANF10201301-201406

main81551-75100iANF10201406

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-75040iANF10200907-201301

main81555-75060iANF10201301-201802

81558LPROTECTOR, REAR COMBINATION LAMP, RH

main81558-24040×3iANF10200907-201301

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-75040iANF10200907-201301

main81561-75060iANF10201301-201406

main81561-75100iANF10201406

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-75040iANF10200907-201301

main81565-75060iANF10201301-201802

81568JPROTECTOR, REAR COMBINATION LAMP, LH

main81558-24040×3iANF10200907-201301

81581CLENS AND BODY, REAR LAMP, RH

main81581-75010iANF10200907-201301

main81581-75040iANF10201301-201409

main81581-75041iANF10201409

81584AGASKET, REAR LAMP RH

main81584-75010iANF10200907-201301

main81584-75040iANF10201301

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-75010iANF10200907-201301

main81585-75040iANF10201301

81588APROTECTOR, REAR LAMP, RH

main81588-75030iANF10200907-201301

main81588-75040iANF10201301

81591BLENS AND BODY, REAR LAMP, LH

main81591-75010iANF10200907-201301

main81591-75040iANF10201301-201409

main81591-75041iANF10201409

81594AGASKET, REAR LAMP LH

main81594-75010iANF10200907-201301

main81594-75040iANF10201301

81595SOCKET & WIRE, REAR LAMP, LH

main81585-75010iANF10200907-201301

main81585-75040iANF10201301

81598PROTECTOR, REAR LAMP, LH

main81588-75030iANF10200907-201301

main81588-75040iANF10201301

81952ECOVER, REAR LAMP

main81952-22010×4iANF10200907-201301

5256775010BRACKET, REAR BUMPER EXTENSION, RH

main52567-75010

9015960500

main90159-60500

9017605018

main90176-05018

9017905102

main90179-05102

9018906148

main90189-06148

9018906235

main90189-06235

9046709112

main90467-09112

9046712083

main90467-12083

28 parts on this diagram · 2 diagrams in section
